Double Bowl Scope Sinks

The TBJ Model 24-71-2B-AH SPCS work sink is specifically designed for use in GI Labs and Sterile Processing Departments for the pre-cleaning of flexible endoscopes. The unit includes two sink bowls thus meeting AAMI guidelines for having a minimum of two separate sink basins……one for manual cleaning and leak testing and one for rinsing of scopes. The work sink includes an integrated 4-drawer storage cabinet located on the right side. The work sink shall have the following configuration and features:

Features:

• (2) 24” x 16” x 8” deep sink bowls
• 18 ½” of counter top space on the right side of the sink top
• (2) deck mounted hot/cold water faucets centered between each sink bowl
• (1) OPTIONAL deck mounted eyewash
• The ergonomic, electrically operated hydraulic lift system allows the sink height to be adjusted from 36” to 42” high via a rocker switch control
• Two level handle drain controls for remote sink draining
• Full length, removable undershelf below sink top for storage
• Overall dimensions: 24” W x 71” L




Construction/Design:

• Heavy duty stainless steel construction
• Type 304 stainless steel sink top, 14 gauge, #4 finish
• Type 304 stainless steel tubular base frame made of 1 ½” square x 16 gauge wall tubing
• Adjustable leveling feet
• All exposed welds ground and polished
• 4” high backsplash extending the length of the sink top
• NSF approved 14 gauge sink bowls with cove corners
• 1/8” high marine edge on around front and sides
• Hospital grade, chrome plated brass faucets and fixtures
• Lever handle drain controls
• Sink bowl sizes and overall dimensions can be customized around your specific needs
• A wide variety of optional features are available to add to the base unit
<



PDF Information Sheet

The TBJ Model 30-84-2B-AH SPCS work sink is specifically designed for use in GI Labs and Sterile Processing Departments for the pre-cleaning of flexible endoscopes. The unit includes two large sink bowls thus meeting AAMI guidelines for having a minimum of two separate sink basins……one for manual cleaning and leak testing and one for rinsing of scopes An integrated Scope Buddy™ Plus Endoscope Flushing Aid with wire management to reduce clutter at the sink is included. The work sink shall have the following configuration and features:

Features:

• (2) 30” x 16” x 10 ½” deep sink bowls
• 10 ½” of counter top space on each end of the sink
• (1) deck mounted hot/cold water faucet with spray rinse shall be located at the left sink bowl
• (1) deck mounted Selecta compressed air pistol is also located at the left sink bowl
• Our unique OPTIONAL Auto Fill System is included on the wash sink bowl that allows for automatic, push-button filing of the sink so that users can walk away and multi-task while the sink fills with water
• Also included at the right side sink bowl is a deck mounted hot/cold water faucet
• The ergonomic, electrically operated hydraulic lift system allows the sink height to be adjusted from 32” to 40” high via a rocker switch control
• Integrated Scope Buddy™ Plus Flushing Aid
• Two level handle drain controls for remote sink draining
• Full length, 26” wide undershelf below sink top for storage
• Overall dimensions: 30” W x 84” L




Construction/Design:

• Heavy duty stainless steel construction
• Type 304 stainless steel sink top, 14 gauge, #4 finish
• Type 304 stainless steel tubular base frame made of 1 ½” square x 16 gauge wall tubing
• Adjustable leveling feet
• Heliarc welded construction
• All exposed welds ground and polished
• 4” high backsplash extending the length of the sink top
• NSF approved 14 gauge sink bowls with cove corners
• 1/8” high marine edge on around front and sides
• Hospital grade, chrome plated brass faucets and fixtures
• Lever handle drain controls
• Sink bowl sizes and overall dimensions can be customized around your specific needs
• A wide variety of optional features are available to add to the base unit
<



PDF Information Sheet

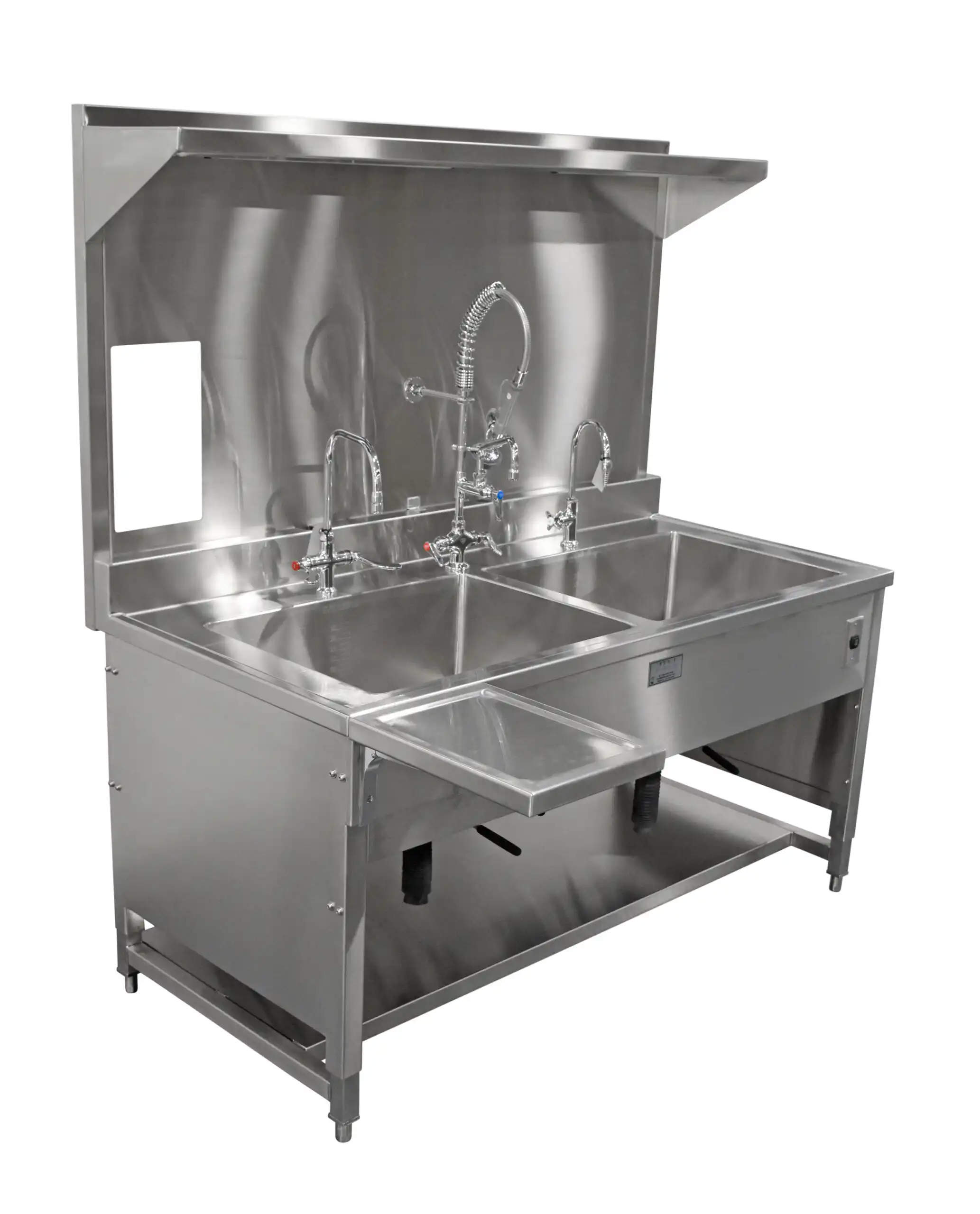

The TBJ Model 30-50-2B-AH SPCS work sink is specifically designed for use in GI Labs and Sterile Processing Departments for the pre-cleaning of flexible endoscopes. The unit includes two sink bowls thus meeting AAMI guidelines for having a minimum of two separate sink basins. An integrated Scope Buddy™ Plus Endoscope Flushing Aid with wire management to reduce clutter at the sink is included. The work sink shall have the following configuration and features:

Features:

• Two 22” x 19” x 10 ½” deep sink bowls
• (1) deck-mounted hot/cold faucet with wrist blade handles shall be located between sinks bowls
• Our unique OPTIONAL Auto Fill System is included on the wash sink bowl that allows for automatic, push-button filing of the sink so that users can walk away and multi-task while the sink fills with water
• The ergonomic, electrically operated hydraulic lift system allows the sink height to be adjusted from 32” to 40” high via a rocker switch control
• An integrated Scope Buddy ™ Plus Endoscope Flusing Aid is included
• Two lever handle drain controls for remote sink draining
• Stainless steel back panel with bin and basket hanging system
• Overhead canopy with shelf and LED lighting
• Full length, 26” wide undershelf below sink top for storage

Construction/Design:

• Heavy duty stainless steel construction
• Type 304 stainless steel sink top, 14 gauge, #4 finish
• Type 304 stainless steel tubular base frame made of 1 ½” square x 16 gauge wall tubing
• Adjustable leveling feet
• Seamless heliarc welded construction
• All exposed welds ground and polished
• 4” high backsplash extending the length of the sink top
• NSF approved 14 gauge sink bowls with cove corners
• 1/8” high marine edge on around front and sides
• Hospital grade, chrome plated brass faucets and fixtures
• Lever handle drain controls
• Sink bowl sizes and overall dimensions can be customized around your specific needs.
• A wide variety of optional features are available to add to the base unit.

PDF Information Sheet

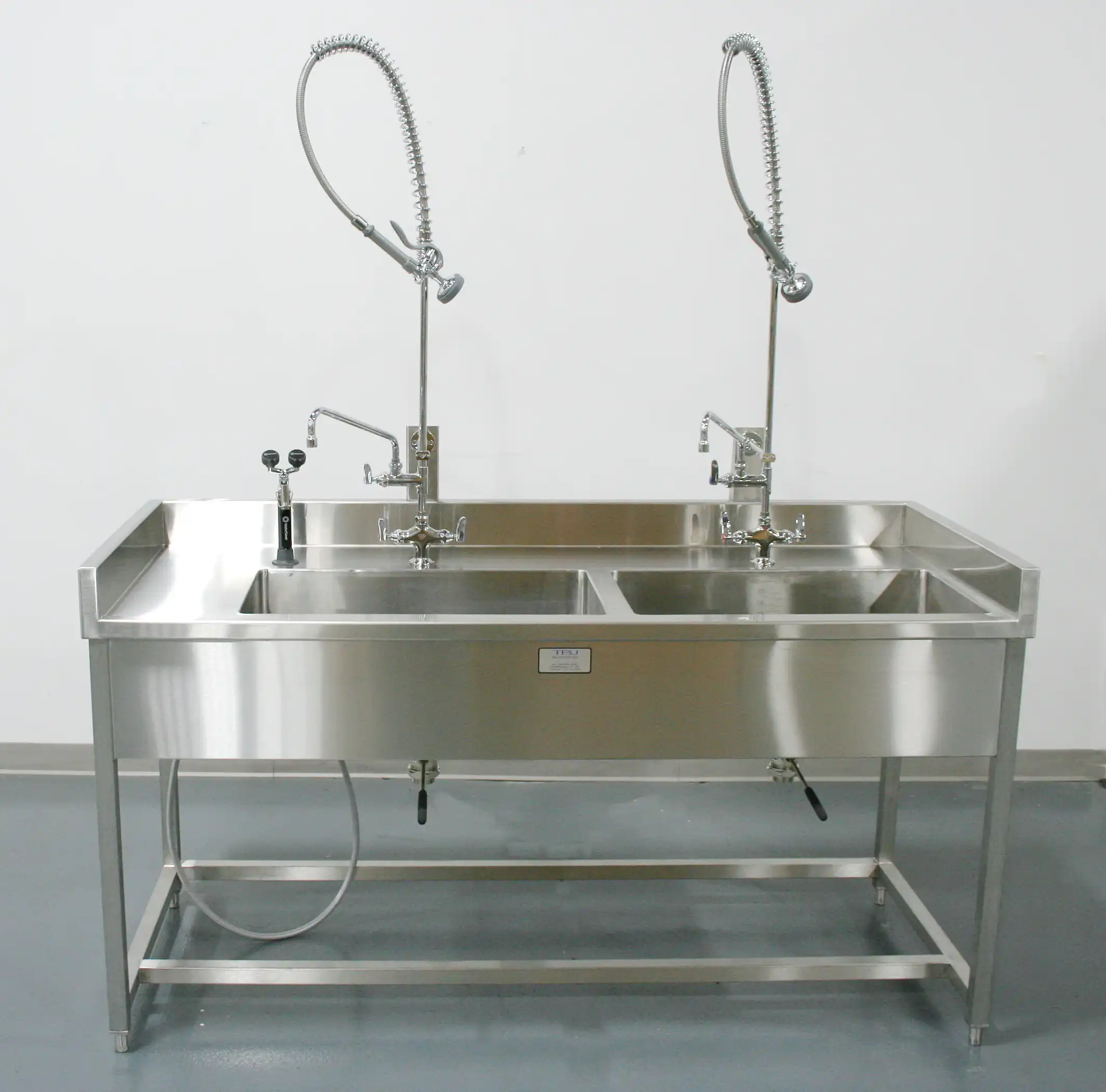

The TBJ Model 30-72-2B SPCS work sink is specifically designed for use in GI Labs and Sterile Processing Departments for the pre-cleaning of flexible endoscopes. The unit includes two sink bowls thus meeting AAMI guidelines for having a minimum of two separate sink basins……one for manual cleaning and leak testing and one for rinsing of scopes. The work sink shall have the following configuration and features:

Features:

• Two 28” x 16” x 9 ½” deep sink bowls
• (2) deck-mounted hot/cold water faucets with spray rinse combination centered at each sink
• Includes a ANSI approved deck mounted eye wash
• Fixed sink top height of 36” (OPTIONAL height adjustment feature can be added to make the sink top adjustable between 32” to 40”)
• Includes two lever handle drain controls for remote sink draining

Construction/Design:

• Heavy duty stainless steel construction
• Type 304 stainless steel sink top, 14 gauge, #4 finish
• Type 304 stainless steel tubular base frame made of 1 ½” square x 16 gauge wall tubing
• Adjustable leveling feet
• Seamless heliarc welded construction
• All exposed welds ground and polished
• 4” high backsplash extending the length of the sink top
• NSF approved 14 gauge sink bowls with cove corners
• 1/8” high marine edge on around front and sides
• Hospital grade, chrome plated brass faucets and fixtures
• Lever handle drain controls
• Sink bowl sizes and overall dimensions can be customized around your specific needs
• A wide variety of optional features are available to add to the base unit

PDF Information Sheet

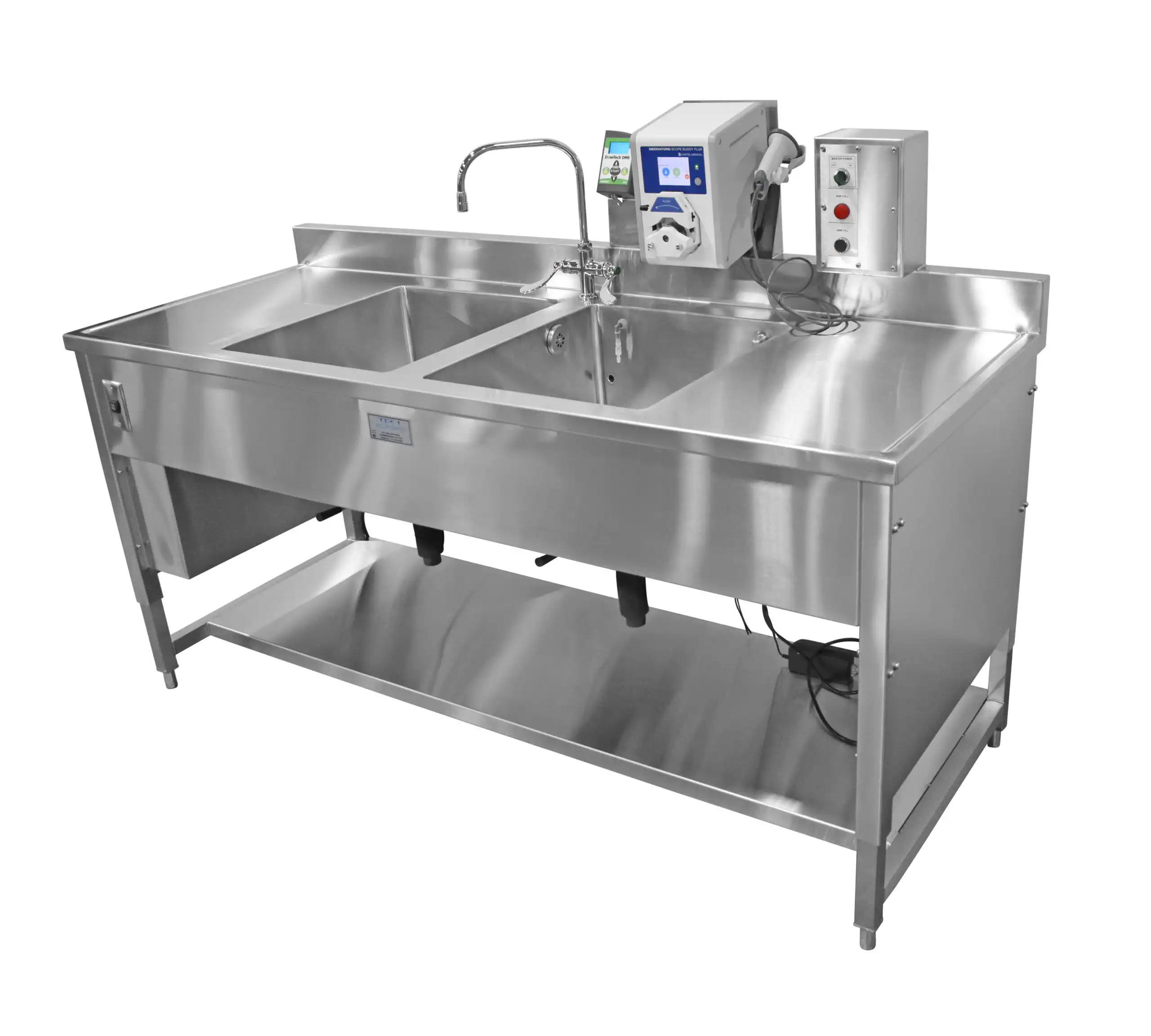

The TBJ Model 30-77-2B-AH SPCS work sink is specifically designed for use in GI Labs and Sterile Processing Departments for the pre-cleaning of flexible endoscopes. The unit includes two sink bowls thus meeting AAMI guidelines for having a minimum of two separate sink basins……one for manual cleaning and leak testing and one for rinsing of scopes An integrated Scope Buddy™ Plus Endoscope Flushing Aid with wire management to reduce clutter at the sink is included. The work sink shall have the following configuration and features:

Features:

• Two 22” x 19” x 11” deep sink bowls
• 18” of counter top space on each end of the sink
• (1) deck mounted hot/cold faucet with wrist blade handles shall be located between sinks bowls
• Our unique OPTIONAL Auto Fill System is included on the wash sink bowl that allows for automatic, push-button filing of the sink so that users can walk away and multi-task while the sink fills with water
• The ergonomic, electrically operated hydraulic lift system allows the sink height to be adjusted from 32” to 40” high via a rocker switch control
• An OPTIONAL automated dosing system with (2) programmable dosing settings and temperature monitoring is included
• Two level handle drain controls for remote sink draining
• Full length, 26” wide undershelf below sink top for storage

Construction/Design:

• Heavy duty stainless steel construction
• Type 304 stainless steel sink top, 14 gauge, #4 finish
• Type 304 stainless steel tubular base frame made of 1 ½” square x 16 gauge wall tubing
• Adjustable leveling feet
• Seamless heliarc welded construction
• All exposed welds ground and polished
• 4” high backsplash extending the length of the sink top
• NSF approved 14 gauge sink bowls with cove corners
• 1/8” high marine edge on around front and sides
• Hospital grade, chrome plated brass faucets and fixtures
• Lever handle drain controls
• Sink bowl sizes and overall dimensions can be customized around your specific needs
• A wide variety of optional features are available to add to the base unit

PDF Information Sheet

The TBJ Model 30-96-2TB SPCS work sink is specifically designed for use in GI Labs and Sterile Processing Departments for the pre-cleaning flexible endoscopes. The unit includes two elongated trough style sinks. The elongated trough sinks eliminate coiling and allows endoscopes to be cleaned in a linear position thus promoting more effective cleaning to the exterior of the scope and to the working channels during flushing procedures. The work sink shall have the following configuration and features:

Features:

• The sink shall be 96” long and x 30” wide
• Bowls shall be 72” long x 9” deep
• Both bowls shall include lever handle drain controls
• The sink shall include (2) push-button automatic fill systems (one for each bowl) with level sensors and overflows
• One bowl shall be designated for dosing and flushing and one bowl shall be designated for rinsing and purging
• The sink can be equipped with an integrated Scope Buddy™ Plus Flushing Aid with wire management to reduce clutter around the sink area to improve cleanliness
• The sink top shall be adjustable allowing the sink height to be adjusted from 34” to 42” high via a push-button control
• The sink shall include a full-length under counter storage shelf for detergent placement




Construction/Design:

• Heavy duty stainless steel construction
• Type 304 stainless steel sink top, 14 gauge, #4 finish
• Type 304 stainless steel tubular base frame made of 1 ½” square x 16 gauge wall tubing
• Adjustable leveling feet
• Seamless heliarc welded construction
• All exposed welds ground and polished
• 4” high backsplash extending the length of the sink top
• 1/8” high marine edge on around front and sides
• Sink bowl sizes and overall dimensions can be customized around your specific needs
• A wide variety of optional features are available to add to the base unit

PDF Information Sheet

The TBJ Model 30-96-2B-AH SPCS work sink is specifically designed for use in GI Labs and Sterile Processing Departments for the pre-cleaning of flexible endoscopes. The unit includes two sink bowls thus meeting AAMI guidelines for having a minimum of two separate sink basins……one for manual cleaning and leak testing and one for rinsing of scopes. The work sink shall have the following configuration and features:

Features:

-
• Two 24” x 16” x 12” deep sink bowls
• (1) deck mounted hot/cold faucet with wrist blade handles shall be located between sink bowls
• Includes the OPTIONAL ergonomic, electrically operated hydraulic lift system allowing the sink height to be adjusted from 34” to 42” high via a rocker switch control can be added to the base unit
• Includes a 21” wide x 25” high open storage cabinet on the left side of the unit with a slide out storage shelf
• Includes 26” of counter space on the left side of the sink top and 20” on the right side of the sink top
• Includes two lever handle drain controls for remote sink draining
• OPTIONAL - Integrated Scope Buddy™ Plus Endoscope Flushing Aid




Construction/Design:

• Heavy duty stainless steel construction
• Type 304 stainless steel sink top, 14 gauge, #4 finish
• Type 304 stainless steel tubular base frame made of 1 ½” square x 16 gauge wall tubing
• Adjustable leveling feet
• Seamless heliarc welded construction
• All exposed welds ground and polished
• 4” high backsplash extending the length of the sink top
• NSF approved 14 gauge sink bowls with cove corners
• 1/8” high marine edge on around front and sides
• Hospital grade, chrome plated brass faucets and fixtures
• Lever handle drain controls
• Sink bowl sizes and overall dimensions can be customized around your specific needs
• A wide variety of optional features are available to add to the base unit

PDF Information Sheet

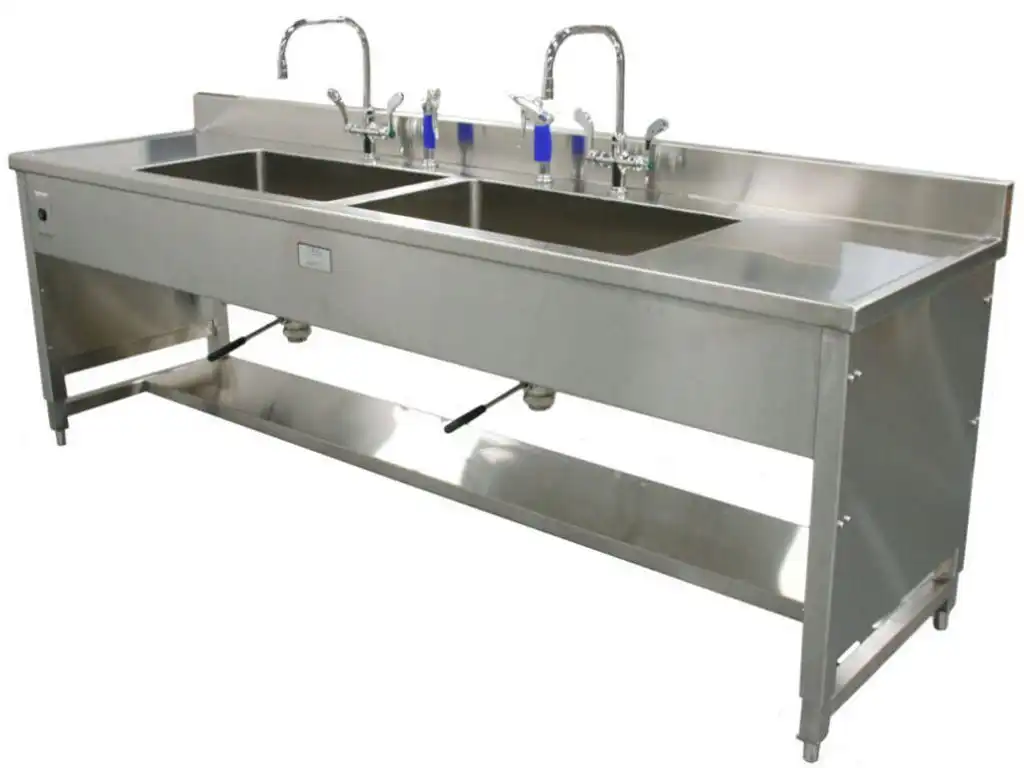

The TBJ Model 25-94-2B SPCS work sink is specifically designed for use in GI Labs and Sterile Processing Departments for the pre-cleaning of flexible endoscopes. The unit includes two sink bowls thus meeting AAMI guidelines for having a minimum of two separate sink basins……one for manual cleaning and leak testing and one for rinsing of scopes. The work sink shall have the following configuration and features:

Features:

• Two 28” x 16” x 10 ½” deep sink bowls
• (2) deck mounted hot/cold faucet with wrist blade handles shall be located between sinks.
• The sink top shall be 36” above the finished floor. The OPTIONAL ergonomic, electrically operated hydraulic lift system allowing the sink height to be adjusted from 32” to 40” high via a rocker switch control is included.
• An OPTIONAL deck mounted cold water spray pistol is and air pistol is included/li>
• An OPTIONAL set of (8) tips for the water and air pistol is included.
• Two lever handle drain controls for remote sink draining
• Full length, 12” wide undershelf below sink top for storage
• Overall dimensions: 25” W x 94” L

Construction/Design:

• Heavy duty stainless steel construction
• Type 304 stainless steel sink top, 14 gauge, #4 finish
• Type 304 stainless steel tubular base frame made of 1 ½” square x 16 gauge wall tubing
• Adjustable leveling feet
• Seamless heliarc welded construction
• All exposed welds ground and polished
• 4” high backsplash extending the length of the sink top
• NSF approved 14 gauge sink bowls with cove corners
• 1/8” high marine edge on around front and sides
• Hospital grade, chrome plated brass faucets and fixtures
• Lever handle drain controls
• Sink bowl sizes and overall dimensions can be customized around your specific needs
• A wide variety of optional features are available to add to the base unit. See partial list of optional features listed below

PDF Information Sheet

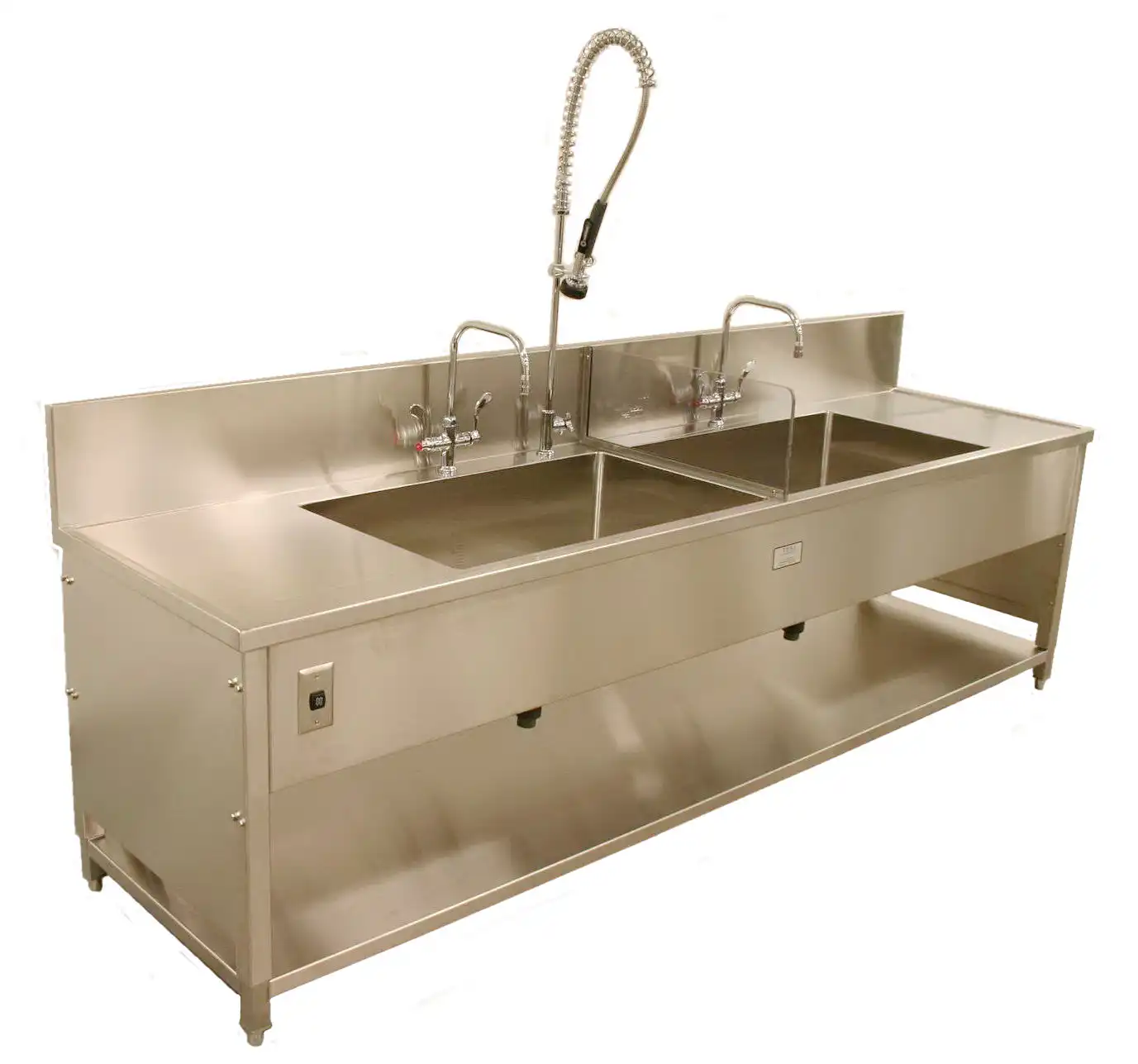

The TBJ Model 28-110-2B SPCS work sink is specifically designed for use in GI Labs and Sterile Processing Departments for the pre-cleaning of flexible endoscopes. The unit includes two sink bowls thus meeting AAMI guidelines for having a minimum of two separate sink basins……one for manual cleaning and leak testing and one for rinsing of scopes. The work sink shall have the following configuration and features:

Features:

• Two 35” x 21” x 10 ½” deep sink bowls
• (2) deck mounted hot/cold water faucets center between each sink bowl
• (1) deck mounted cold water pre-rinse spray located at the left sink bowl
• The sink top shall be 36” above the finished floor. The OPTIONAL ergonomic, electrically operated hydraulic lift system is included and enables the sink top height to be adjusted from 32” to 40” high via a rocker switch control
• An OPTIONAL ½” think x 9 ½” high x 24” long anti-splash lexan shield is included to provide separation between sink bowls
• Two lever handle drain controls for remote sink draining are included
• Full length, 28” wide undershelf below sink top for storage
• Overall dimensions: 28” W x 110” L

Construction/Design:

• Heavy duty stainless steel construction
• Type 304 stainless steel sink top, 14 gauge, #4 finish
• Type 304 stainless steel tubular base frame made of 1 ½” square x 16 gauge wall tubing
• Adjustable leveling feet
• Seamless heliarc welded construction
• All exposed welds ground and polished
• 9 ½” high backsplash extending the length of the sink top
• NSF approved 14 gauge sink bowls with cove corners
• 1/8” high marine edge on around front and sides
• Hospital grade, chrome plated brass faucets and fixtures
• Lever handle drain controls
• Sink bowl sizes and overall dimensions can be customized around your specific needs
• A wide variety of optional features are available to add to the base unit

PDF Information Sheet
