TBJ Pass-Through Cabinets provide a means for the easy and efficient transfer of items and instruments to and from a clean environment while minimizing cross contamination from opening doors. They also eliminate the volume of unnecessary traffic through the clean area and allow positive pressure in the clean area to be maintained. TBJ Pass-Through Cabinets are available in either wall mounted or free standing floor mounted styles. Floor mount pass through cabinets permit carts and larger items to enter the clean area, while wall mounted models facilitate the easy transfer of materials through a chamber installed in the wall at a comfortable and convenient standing height. TBJ features a wide range of standard size pass through cabinets as well as special custom sizes designed for your specific applications. All of our pass-through cabinets feature rugged, heavy duty stainless steel construction and are designed for long lasting durability, easy cleaning and a high quality appearance. Available features include safety interlocks, vent connections, adjustable shelves, VHP disinfection options and solid doors in lieu of windowed doors to name a few. Pass-Through Cabinet Applications
- Medical Pass-Throughs
- Operating Room Pass-Throughs
- Pharmacy Pass-Throughs
- Specimen Pass-Throughs
- Laboratory Pass-Throughs
- Vented Pass-Throughs
- BSL Pass-Throughs
Pass Through Cabinet Model PT 10-10-24
Pass Through Cabinet Model PT 10-10-6
Pass through Cabinet Model PT 13-13-8
Pass Through Cabinet Model PT 15-15-15
Pass Through Cabinet Model PT 18-12-24
Pass Through Cabinet Model PT 18-18-16
Pass Through Cabinet Model PT 18-18-16 V
Pass Through Cabinet Model PT 18-18-24
Pass Through Cabinet Model PT 20-20-22 V
Pass Through Cabinet Model PT 24-24-18
Pass Through Cabinet Model PT 24-24-24 NV
Pass Through Cabinet Model PT 24-24-24 V
Pass Through Cabinet Model PT 24-36-24
Pass Through Cabinet Model PT 24-48-24
Pass Through Cabinet Model PT 30-24-48
Pass Through Cabinet Model PT 30-24-78
Pass Through Cabinet Model PT 36-36-36 V
Pass Through Cabinet Model PT 36-48-36
-
Pass Through Cabinet Model PT 10-10-24
TBJ specimen pass through cabinets enable the collection of lab samples while maintaining patient privacy.
Features:
- Type 304 stainless steel construction
- Two spring-hinged doors with pull handles
- Door interlock system prevents both doors from opening at the same time
- Optional spillage tray
- Overall outside dimensions including trim flange: 10" x 10" x 24" deep
- One fixed flange and one adjustable flange makes installation quick and easy with varying wall thicknesses
PDF Information Sheet
-
Pass Through Cabinet Model PT 10-10-6
TBJ specimen pass through cabinet enables the collection of lab samples while maintaining patient privacy.
Features:
- Type 304 stainless steel construction
- Two spring-hinged doors with pull handles
- Door interlock system prevents both doors from opening at the same time
- Optional spillage tray
- Overall outside dimensions including trim flange: 10" x 10" x 6" deep
- One fixed flange and one adjustable flange makes installation quick and easy with varying wall thicknesses
PDF Information Sheet
-
Pass through Cabinet Model PT 13-13-8
TBJ specimen pass through cabinets enables the collection of lab samples while maintaining patient privacy.
Features:
- Type 304 stainless steel construction
- Two spring-hinged doors with pull handles
- Optional spillage tray
- Overall outside dimensions including trim flange: 13" x 13" x 8" deep
- One fixed flange and one adjustable flange makes installation quick and easy with varying wall thicknesses
PDF Information Sheet
-
Pass Through Cabinet Model PT 15-15-15
TBJ Pass-Through Cabinets provide a means for the easy and efficient transfer of items and instruments to and from a clean environment while minimizing cross contamination from opening doors. They also eliminate the volume of unnecessary traffic through the clean area and allow positive pressure in the clean area to be maintained.
Features:
- Type 304 stainless steel construction (or type 316)
- Contamination-free transfer of materials
- Eliminates unnecessary personnel entry
- Mechanical interlock device eliminates possibility of cross contamination by allowing only one door to be opened at a time
- Internal chamber opening dimensions of 15" high x 15" wide opening x 15" deep chamber
- Available without windows
PDF Information Sheet
-

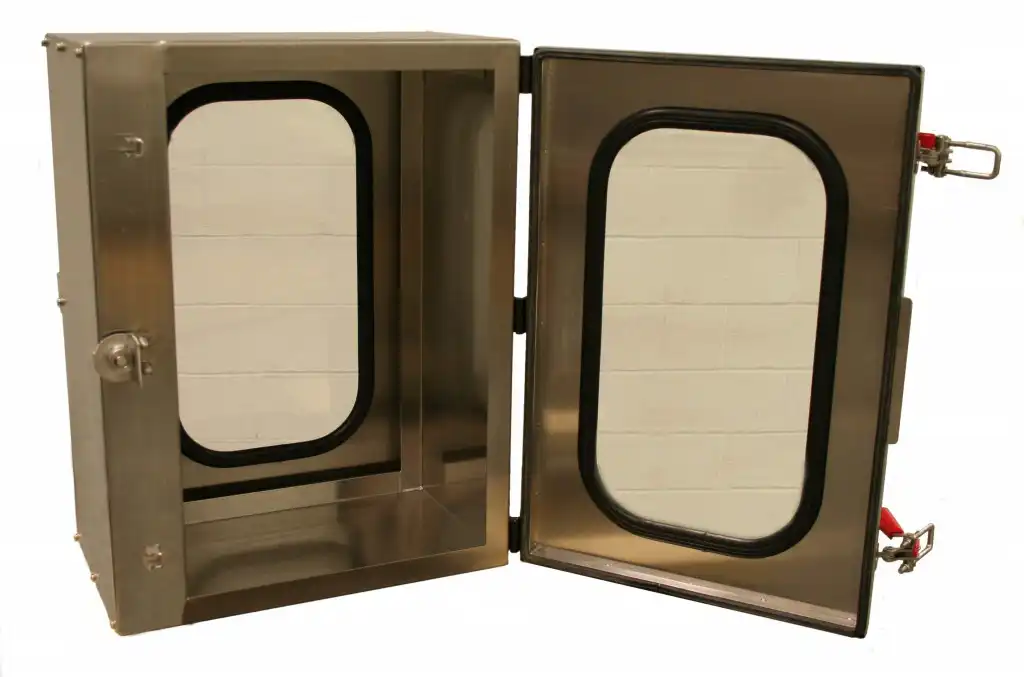

Pass Through Cabinet Model PT 18-12-24
TBJ Pass-Through Cabinets provide a means for the easy and efficient transfer of items and instruments to and from a clean environment while minimizing cross contamination from opening doors. They also eliminate the volume of unnecessary traffic through the clean area and allow positive pressure in the clean area to be maintained.
Features:
- Type 304 stainless steel construction
- Type 316 stainless steel optional
- Contamination-free transfer of materials
- Eliminates unnecessary personnel entry
- Mechanical interlock device eliminates possibility of cross contamination by allowing only one door to be opened at a time
- Internal chamber opening dimensions of 21 1/2" high x 13 1/2" wide x 10 3/8" deep chamber
PDF Information Sheet
-
Pass Through Cabinet Model PT 18-18-16
TBJ Pass-Through Cabinets provide a means for the easy and efficient transfer of items and instruments to and from a clean environment while minimizing cross contamination from opening doors. They also eliminate the volume of unnecessary traffic through the clean area and allow positive pressure in the clean area to be maintained.
Features:
- Type 304 stainless steel construction (or type 316)
- Contamination-free transfer of materials
- Eliminates unnecessary personnel entry
- Mechanical interlock device eliminates possibility of cross contamination by allowing only one door to be opened at a time
- Internal chamber opening dimensions of 18" high x 18" wide chamber opening x 16" deep chamber
- 1/2" NPT ball valve drain
- 1/2" NPT ball valve port
PDF Information Sheet
-

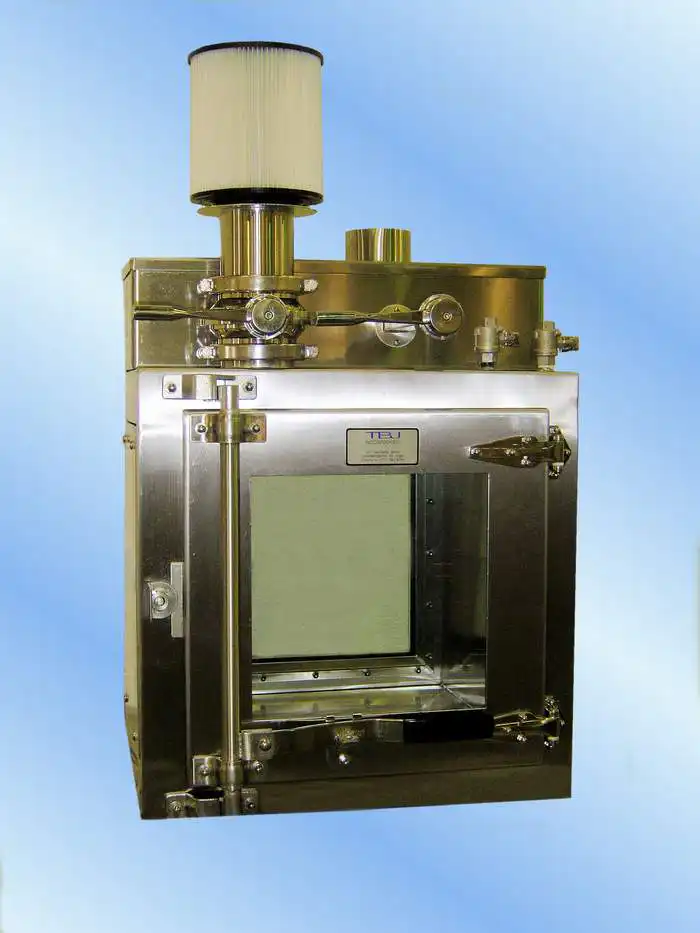

Pass Through Cabinet Model PT 18-18-16 V
TBJ Pass-Through Cabinets provide a means for the easy and efficient transfer of items and instruments to and from a clean environment while minimizing cross contamination from opening doors. They also eliminate the volume of unnecessary traffic through the clean area and allow positive pressure in the clean area to be maintained.
Features:
- Type 304 stainless steel construction (or type 316)
- Contamination-free transfer of materials
- Eliminates unnecessary personnel entry
- Mechanical interlock device eliminates possibility of cross contamination by allowing only one door to be opened at a time
- Internal chamber opening dimensions of 18" high x 18" wide opening x 16" deep chamber
- 4" O.D. exhaust connection with sanitary butterfly valve
- HEPA filtered intake with sanitary butterfly valve
- Two 1/2" NPT VHP ports
PDF Information Sheet
-

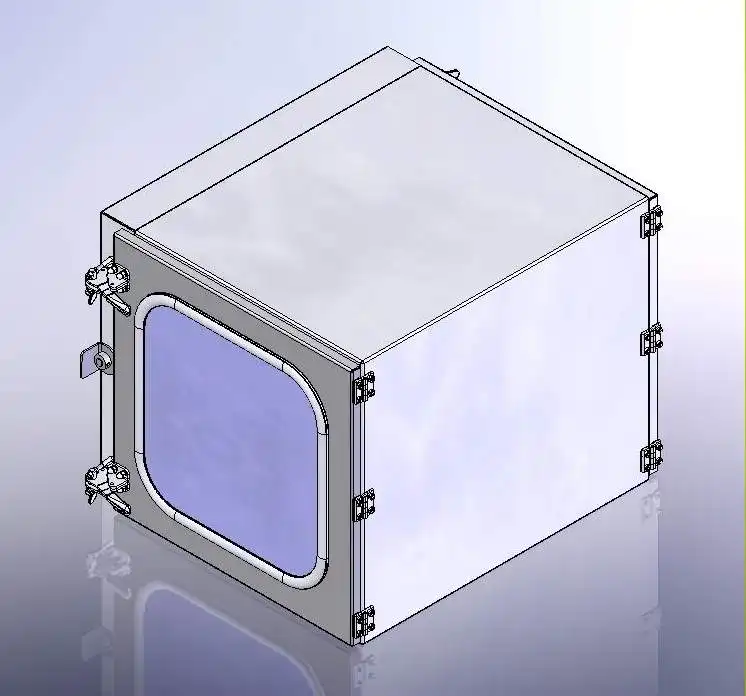

Pass Through Cabinet Model PT 18-18-24
Features:
- PT 18-18-24 - Fast Facts
- Type 304 stainless steel construction (or type 316)
- Contamination-free transfer of materials
- Eliminates unnecessary personnel entry
- Mechanical interlock device eliminates possibility of cross contamination by allowing only one door to be opened at a time
- Internal chamber opening dimensions of 18" high x 20" wide opening x 24" deep chamber
PDF Information Sheet
-
Pass Through Cabinet Model PT 20-20-22 V
TBJ Pass-Through Cabinets provide a means for the easy and efficient transfer of items and instruments to and from a clean environment while minimizing cross contamination from opening doors. They also eliminate the volume of unnecessary traffic through the clean area and allow positive pressure in the clean area to be maintained.
Features:
- Type 304 stainless steel construction (or type 316)
- Contamination-free transfer of materials
- Eliminates unnecessary personnel entry
- Mechanical interlock device eliminates possibility of cross contamination by allowing only one door to be opened at a time
- Internal chamber opening dimensions of 21 1/2" high x 20" wide opening x 20" deep chamber
PDF Information Sheet
-

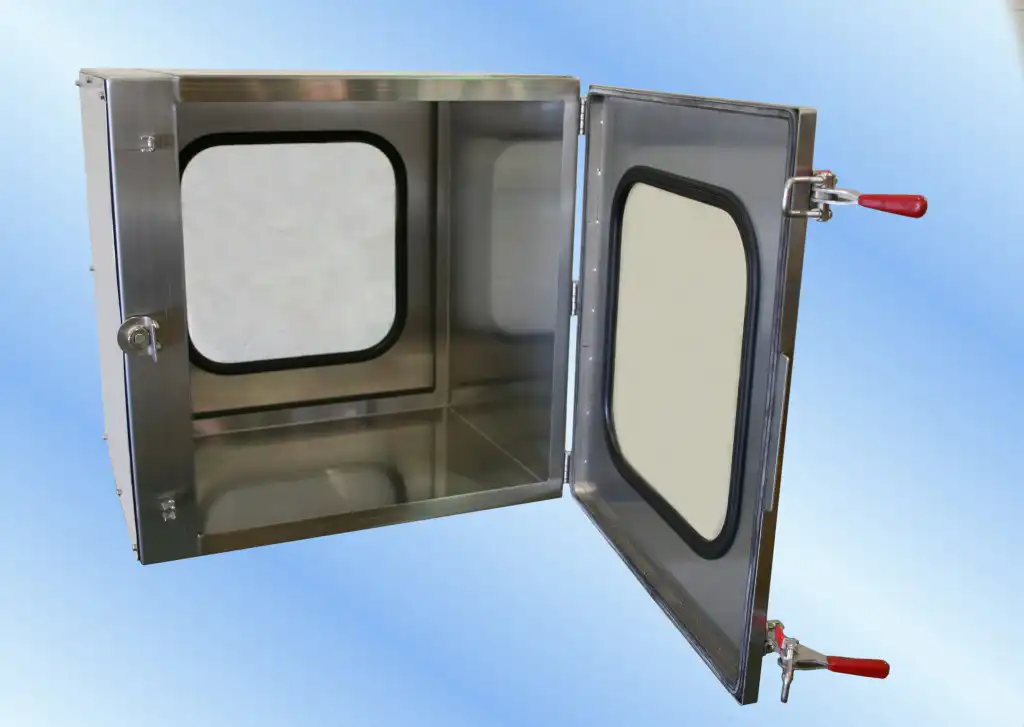

Pass Through Cabinet Model PT 24-24-18
TBJ Pass-Through Cabinets provide a means for the easy and efficient transfer of items and instruments to and from a clean environment while minimizing cross contamination from opening doors. They also eliminate the volume of unnecessary traffic through the clean area and allow positive pressure in the clean area to be maintained.
Features:
- Type 304 stainless steel construction (or type 316)
- Contamination-free transfer of materials
- Eliminates unnecessary personnel entry
- Mechanical interlock device eliminates possibility of cross contamination by allowing only one door to be opened at a time
- Internal chamber opening dimensions of 21 1/2" high x 20" wide opening x 20" deep chamber
PDF Information Sheet
-

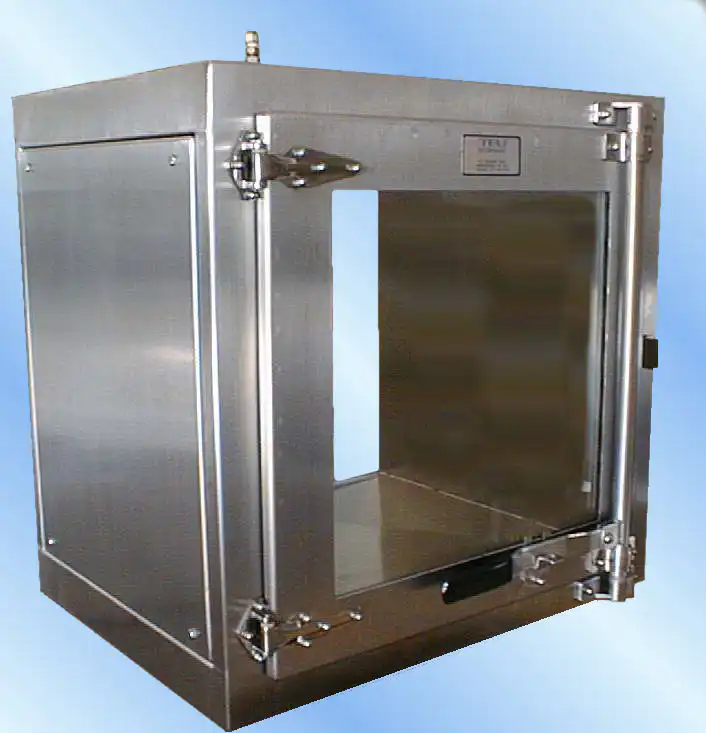

Pass Through Cabinet Model PT 24-24-24 NV
TBJ Pass-Through Cabinets provide a means for the easy and efficient transfer of items and instruments to and from a clean environment while minimizing cross contamination from opening doors. They also eliminate the volume of unnecessary traffic through the clean area and allow positive pressure in the clean area to be maintained.
Features:
- Type 304 stainless steel construction (or type 316)
- Contamination-free transfer of materials
- Eliminates unnecessary personnel entry
- Mechanical interlock device eliminates possibility of cross contamination by allowing only one door to be opened at a time
- Internal chamber opening dimensions of 24" high x 24" wide opening x 24" deep chamber
- Two 1/2" NPT ports
PDF Information Sheet
-

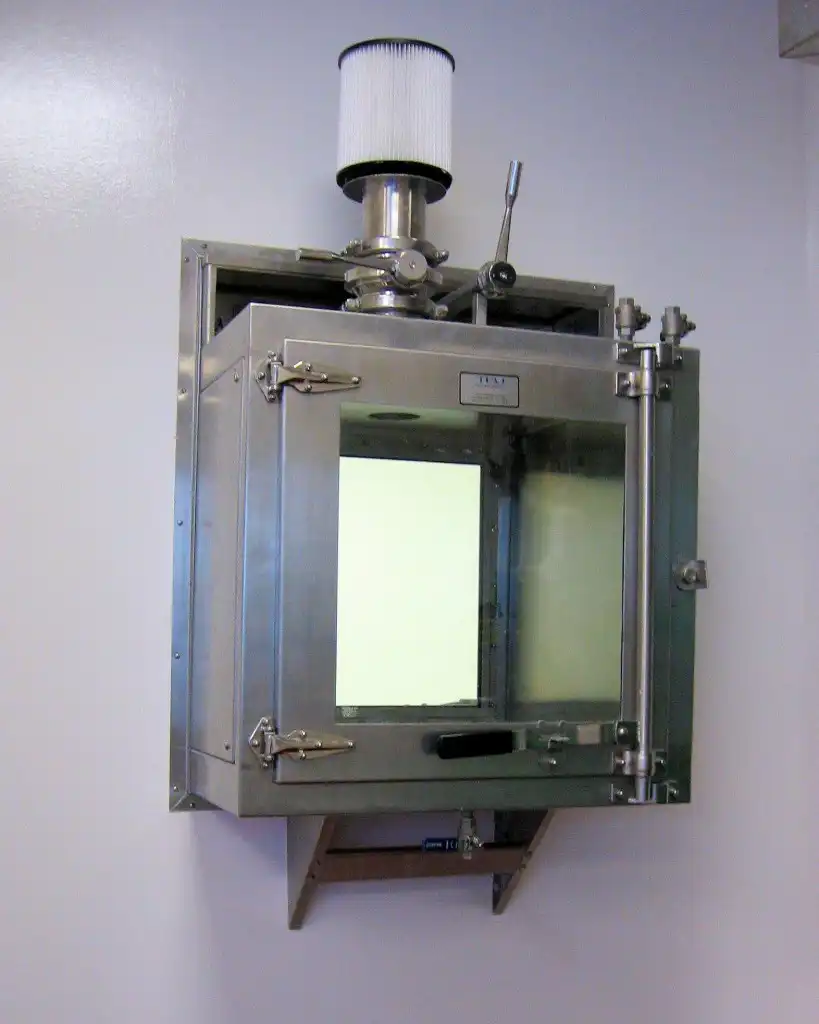

Pass Through Cabinet Model PT 24-24-24 V
TBJ Pass-Through Cabinets provide a means for the easy and efficient transfer of items and instruments to and from a clean environment while minimizing cross contamination from opening doors. They also eliminate the volume of unnecessary traffic through the clean area and allow positive pressure in the clean area to be maintained.
Features:
- Type 304 stainless steel construction (or type 316)
- Contamination-free transfer of materials
- Eliminates unnecessary personnel entry
- Mechanical interlock device eliminates possibility of cross contamination by allowing only one door to be opened at a time
- Internal chamber opening dimensions of 24" high x 24" wide opening x 24" deep chamber
- 4" O.D. exhaust connection with sanitary butterfly valve
- HEPA filtered intake with sanitary butterfly valve
- Two 1/2" NPT VHP ports
PDF Information Sheet
-
Pass Through Cabinet Model PT 24-36-24
TBJ Pass-Through Cabinets provide a means for the easy and efficient transfer of items and instruments to and from a clean environment while minimizing cross contamination from opening doors. They also eliminate the volume of unnecessary traffic through the clean area and allow positive pressure in the clean area to be maintained.
Features:
- Type 304 stainless steel construction (or type 316)
- Contamination-free transfer of materials
- Eliminates unnecessary personnel entry
- Mechanical interlock device eliminates possibility of cross contamination by allowing only one door to be opened at a time
- Internal chamber opening dimensions of 36" high x 24" wide opening x 24" deep chamber
- (2) 1/2" NPT ports
PDF Information Sheet
-

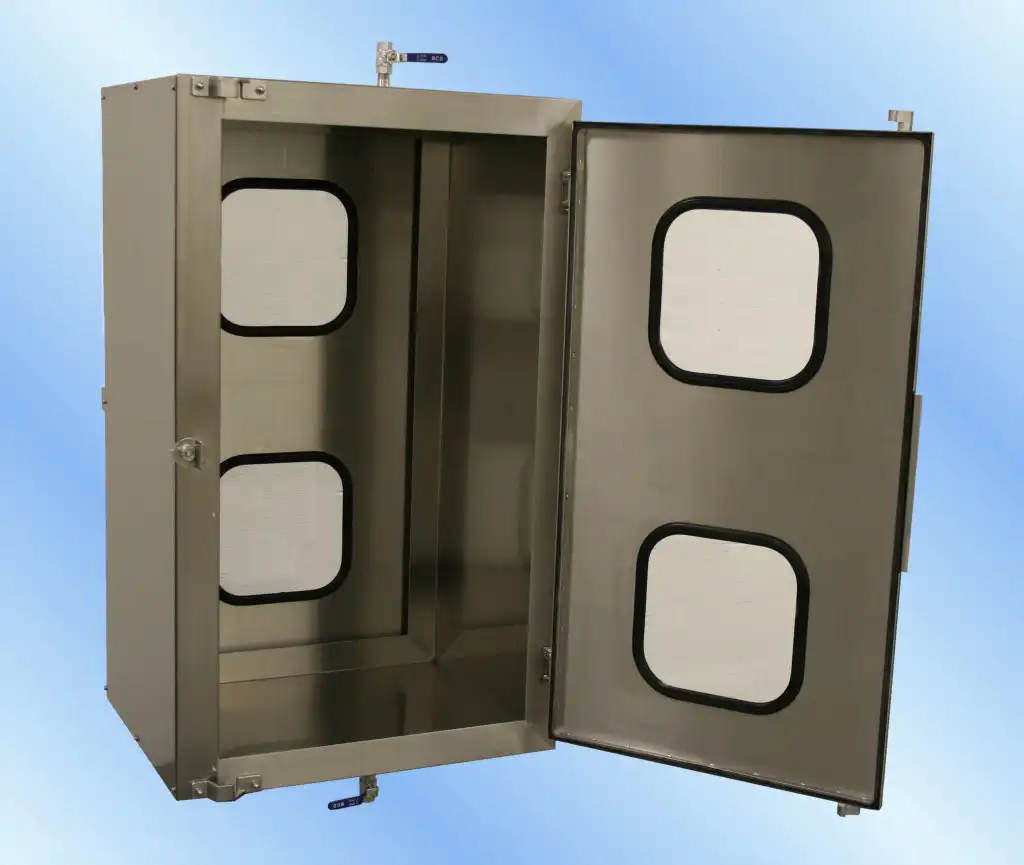

Pass Through Cabinet Model PT 24-48-24
TBJ Pass-Through Cabinets provide a means for the easy and efficient transfer of items and instruments to and from a clean environment while minimizing cross contamination from opening doors. They also eliminate the volume of unnecessary traffic through the clean area and allow positive pressure in the clean area to be maintained.
Features:
- Type 304 stainless steel construction (or type 316)
- Contamination-free transfer of materials
- Eliminates unnecessary personnel entry
- Mechanical interlock device eliminates possibility of cross contamination by allowing only one door to be opened at a time
- Internal chamber opening dimensions of 48" high x 24" wide opening x 24" deep chamber
PDF Information Sheet
-

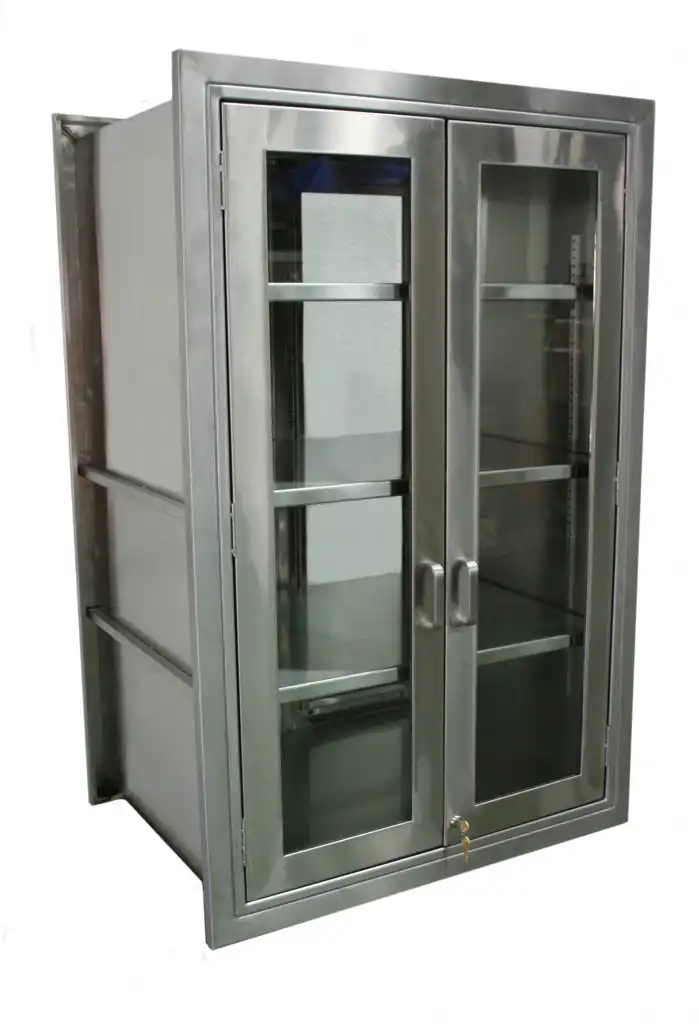

Pass Through Cabinet Model PT 30-24-48
Passing surgical instruments carefully in and out of the operating room can be challenging and time consuming. TBJ OR pass-through cabinets allow restocking from outside the OR, limiting exposure to contaminants. Our OR Pass-Through Cabinets are a practical and economical solution to your pass-through needs. If our standard designs do not meet your needs, we can customize around your specific needs.
Features:
- Type 304 stainless steel construction (also available in type 316)
- Heliarc welded with all visible seams ground and polished
- Two hinged door with framed glass on each side
- Three adjustable shelves
- Keyed lock on one side
PDF Information Sheet
-

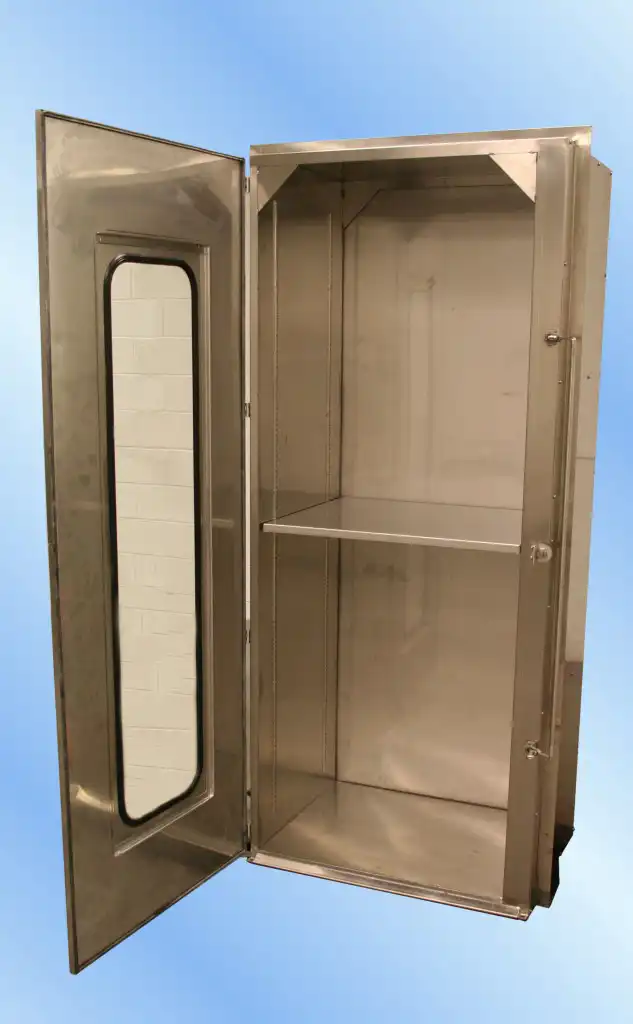

Pass Through Cabinet Model PT 30-24-78
Passing surgical instruments carefully in and out of the operating room can be challenging and time consuming. TBJ OR pass-through cabinets allow restocking from outside the OR, limiting exposure to contaminants. Our OR Pass-Through Cabinets are a practical and economical solution to your pass-through needs. If our standard designs do not meet your needs, we can customize around your specific needs.
Features:
- Contamination-free transfer of materials
- Eliminates unnecessary personnel entry
- Type 304 stainless steel construction
- Mechanical interlock device eliminates possibility of cross contamination by allowing only one door to be opened at a time
- Internal chamber opening dimensions of 78" high x 30" wide opening x 24" deep chamber
- One adjustable height shelf
- Low profile ramp
- Available with or with viewing window or with one door with window and one with out as shown in the photo
PDF Information Sheet
-

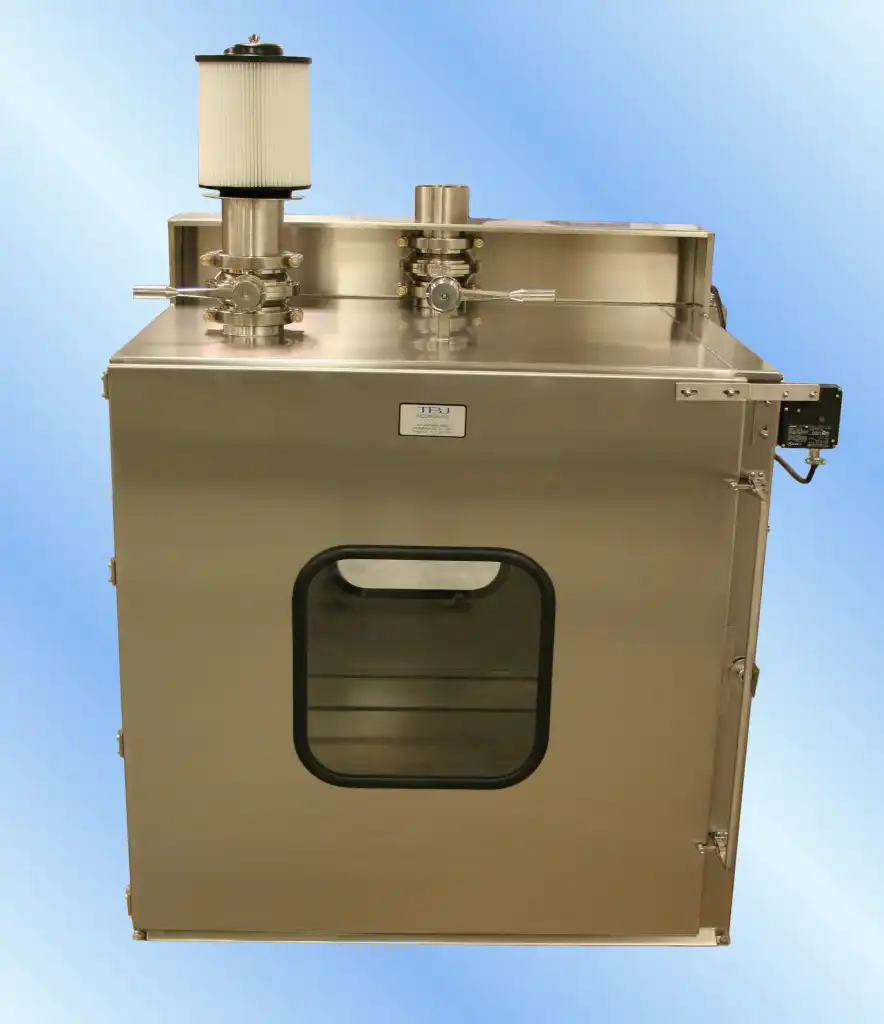

Pass Through Cabinet Model PT 36-36-36 V
TBJ Pass-Through Cabinets provide a means for the easy and efficient transfer of items and instruments to and from a clean environment while minimizing cross contamination from opening doors. They also eliminate the volume of unnecessary traffic through the clean area and allow positive pressure in the clean area to be maintained.
Features:
- Contamination-free transfer of materials
- Eliminates unnecessary personnel entry
- Type 316 stainless steel construction
- Mechanical interlock device eliminates possibility of cross contamination by allowing only one door to be opened at a time
- Internal chamber opening dimensions of 36" high x 36" wide opening x 36" deep chamber
- 4" O.D. exhaust connection with sanitary butterfly valve
- HEPA filtered intake with sanitary butterfly valve
- 1/2" high floor ramp
PDF Information Sheet
-

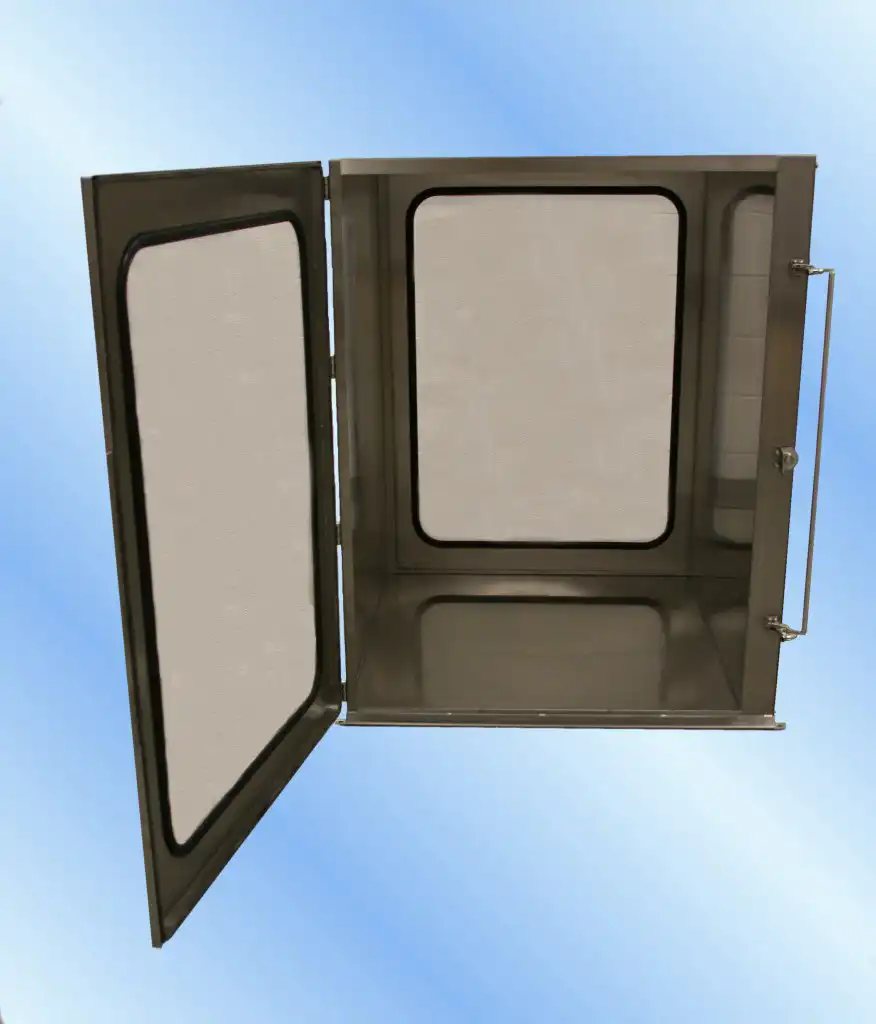

Pass Through Cabinet Model PT 36-48-36
TBJ Pass-Through Cabinets provide a means for the easy and efficient transfer of items and instruments to and from a clean environment while minimizing cross contamination from opening doors. They also eliminate the volume of unnecessary traffic through the clean area and allow positive pressure in the clean area to be maintained.
Features:
- Type 304 stainless steel construction (or type 316)
- Contamination-free transfer of materials
- Eliminates unnecessary personnel entry
- Mechanical interlock device eliminates possibility of cross contamination by allowing only one door to be opened at a time
- Internal chamber opening dimensions of 48" high x 36" wide opening x 36" deep chamber
PDF Information Sheet
