TBJ offers a complete line of made to order stainless steel work sinks specifically made for laboratory and hospital use. Sink lengths and widths be be customized and they are available with single, double, and triple bowl configurations. A full line of optional features such as foot pedal controlled faucets, electronic faucets, spray guns, integral ultrasonic cleaners, and lever handle drains are available.

Hand Wash Sink Model YHSA-10-0496-00 Pedestal Style Hand Wash Sink

Hand Wash Sink Model 15-16-7 HWS

Wall Mounted Sink Model 18-25 HWS

Hand Wash Sink Model 23-21-6 HWS
-

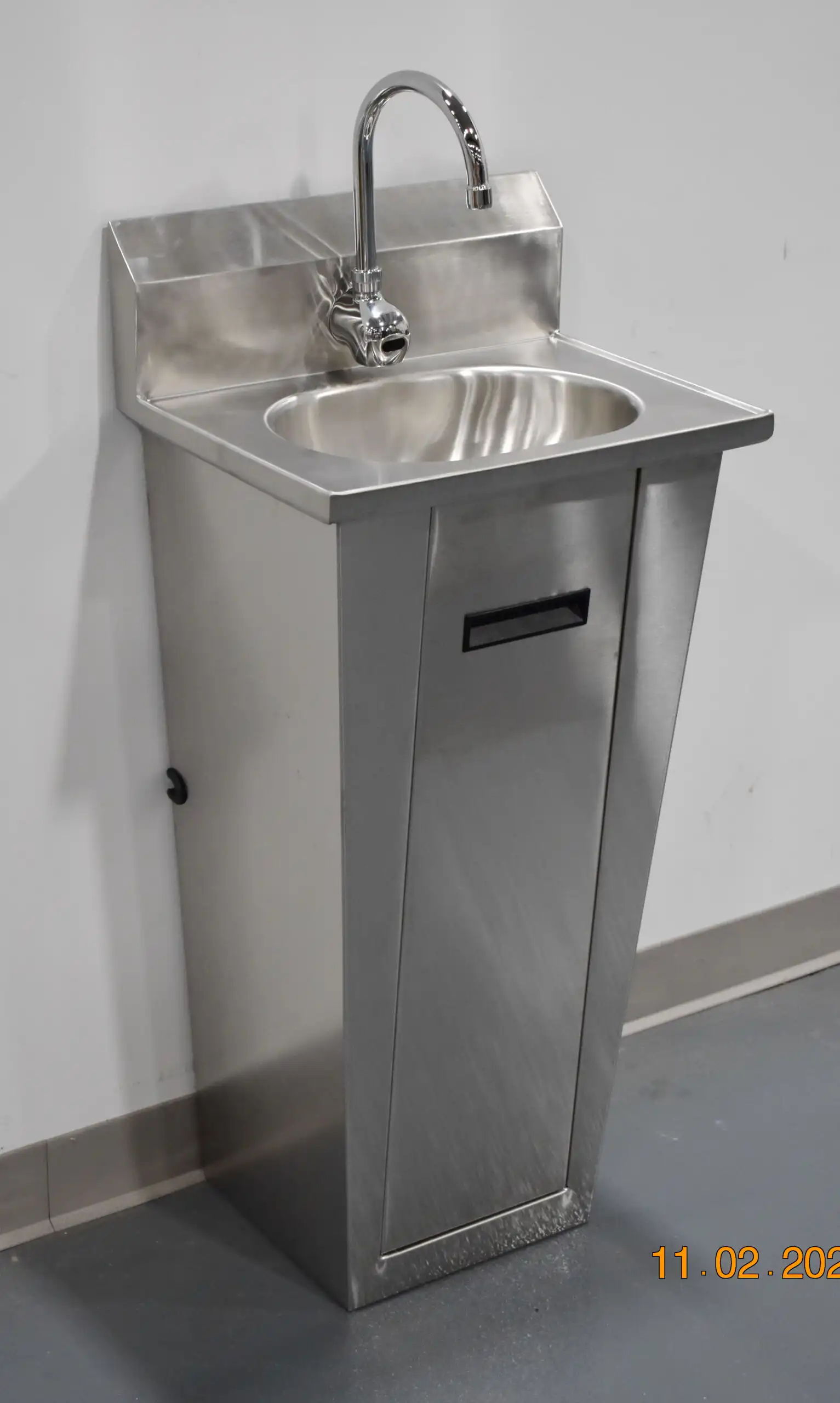

Hand Wash Sink Model YHSA-10-0496-00 Pedestal Style Hand Wash Sink
14 3/4" x 18 7/8" x 39 1/4" foot-operated pedestal unit, includes spout, single sensor controlled faucet, p-trap, tail piece, basket drain with 9 3/4" x 13 1/2" x 6 3/4" bowl size.
Features:
PDF Information Sheet
-

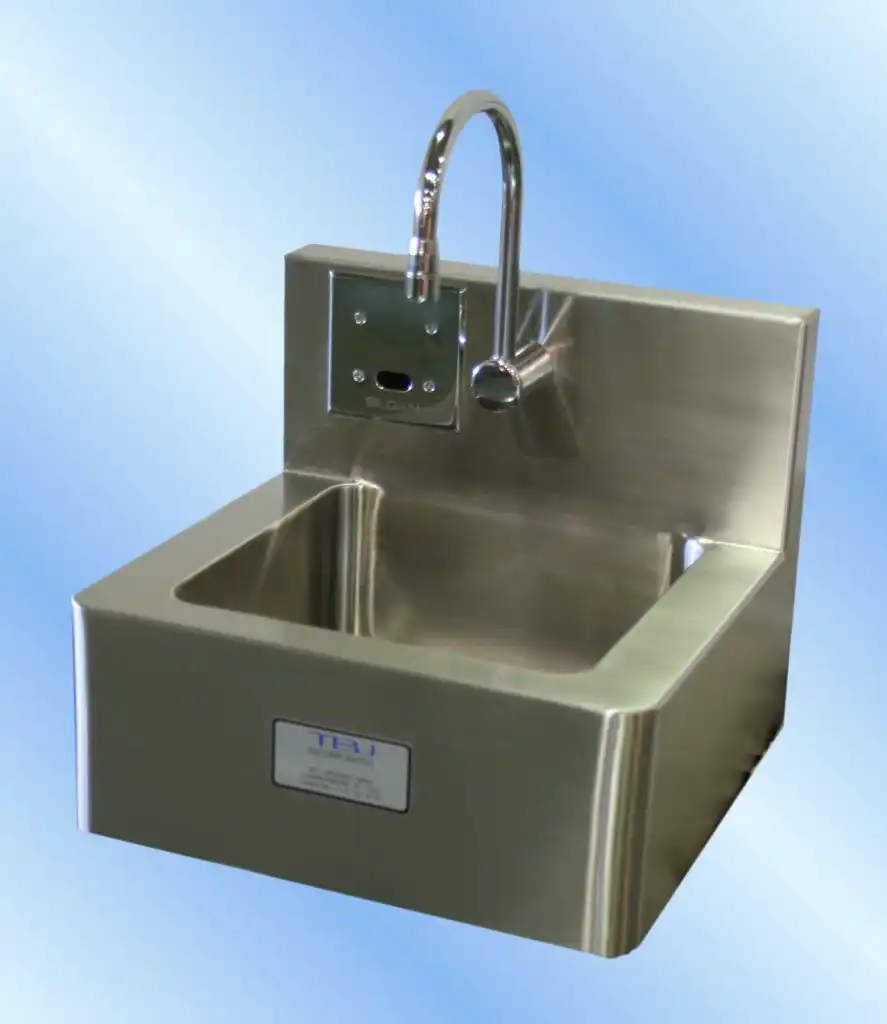

Hand Wash Sink Model 15-16-7 HWS
The TBJ Model 15-16-7 HWS is a compact, wall mounted hand wash sink that comes standard with faucet with wrist blade handles. It can be equipped with an optional deck mounted eye wash and sensor controlled faucet.
Features:
- Type 304 stainless steel construction
- Hot and cold faucet with wrist blade handles
- 12" x 12" x 7" deep sink bowl
- Overall dimensions: 16 3/4" x 15 1/2" x 14" high including 7" high backsplash
- Options include sensor controlled faucet and deck mounted eyewash
PDF Information Sheet
-
Wall Mounted Sink Model 18-25 HWS
The TBJ Model 18-25 HWS is a mid size wall mounted sink for use as a service sink and a hand wash sink in laboratory settings.
Features:
- Type 304 stainless steel construction
- Hot and cold water faucet with wrist blade handles
- 22" x 15" x 9" deep sink bowl
- Overall dimensions: 25" x 18 1/2" x 18 1/8" high including 4" high backsplash
PDF Information Sheet
-

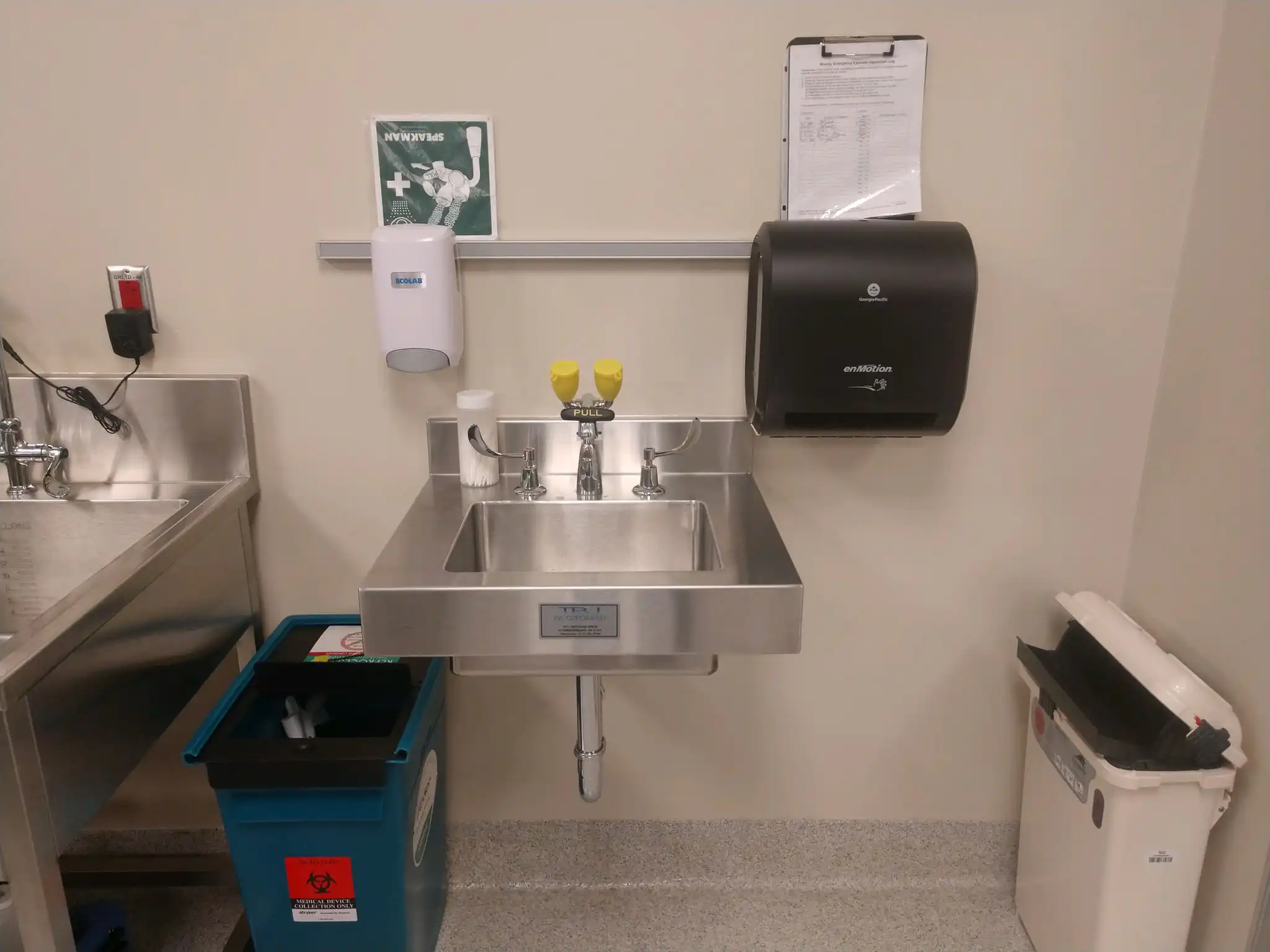

Hand Wash Sink Model 23-21-6 HWS
The TBJ Model 23-21-6 HWS is a spacious, wall mounted hand wash sink that comes standard with a combination faucet with wrist blade handles and eyewash. It is designed for wall mounting via an exposed arm mounting system supplied with the sink.
Features:
- Type 304 stainless steel construction
- Combination hot/cold water faucet with eyewash
- 15” wide x 12” long x 6 ½” deep sink bowl
- 4” high backsplash
- 1 ½” drain connection
- 4” shroud around sink bowl
- Z1236 exposed arm mounting system
- Overall dimensions: 23″ x 21″
PDF Information Sheet
