Reprocessing Sink Model SPD 30-96-3B-CWS-AH-PP - No Peg Board

Reprocessing Sink Model SPD 30-96-3B-CWS-AH-PP

Reprocessing Sink Model SPD 30-100-3B WS

Reprocessing Sink Model SPD 30-114-3B AH WS

Reprocessing Sink Model SPD 30-117-3B-WS-AH

Reprocessing Sink Model SPD 30-127-3B-CWS-AH SPCS

Reprocessing Sink Model SPD 30-132-3B-BC WS

Reprocessing Sink Model SPD 30-146-3B WS

Reprocessing Sink Model SPD 30-160-3B WS

Reprocessing Sink Model SPD 30-162-3B WS

Reprocessing Sink Model SPD 30-84-3B WS

Reprocessing Sink Model SPD 30-96-3B WS

Reprocessing Sink Model SPD 30-96-3B-AH WS

Reprocessing Sink Model SPD 26-120-3B WS
-

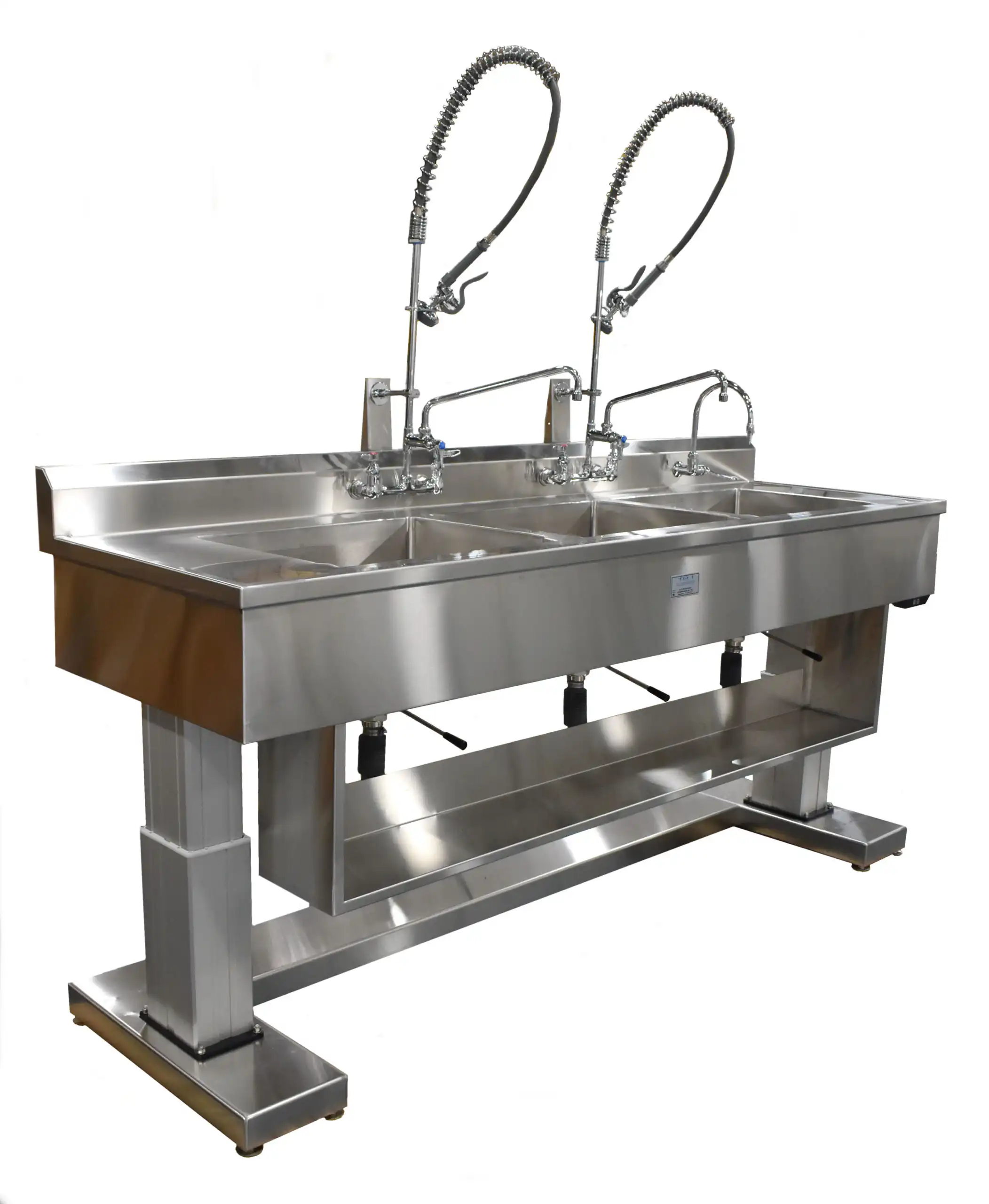

Reprocessing Sink Model SPD 30-96-3B-CWS-AH-PP - No Peg Board
The TBJ Model 30-96-3B-CWS-AH-PP work sink is specifically designed for use in Sterile Processing Departments for the pre-cleaning of surgical instruments and accessories. The unit includes three sink bowls. An OPTIONAL 24” H x 96” wide stainless steel pegboard back panel with bin and basket hanging system, overhead canopy with shelf and LED lighting can be added to the base unit . The work sink shall have the following configuration and features:
Features:
- (3) 24” x 18” x 10” deep sink bowls with ergonomic slanted wrist edges on the front side of sink bowls
- (1) panel-mounted hot/cold faucet with wrist blade handles and pre-rinse sprayer shall be located between 1 st and 2nd sink bowl
- (1) panel mounted hot/cold water faucet mounted between 2nd and 3rd sink bowl
- (1) panel mounted DI water faucet
- The ergonomic, electrically operated hydraulic lift system allows the sink height to be adjusted from 32” to 43” high via a push-button control switch
- (1) bottle holder and (2) wire baskets
- (3) lever handle drain controls for remote sink draining
- Flexible gooseneck LED light inspection light with magnifier
- Storage shelf below sink top
Construction/Design:
- Heavy duty stainless steel construction
- Type 304 stainless steel sink top, 14 gauge, #4 finish
- Type 304 stainless steel tubular base frame made of 1 ½” square x 16 gauge wall tubing
- Adjustable leveling feet
- Seamless heliarc welded construction
- All exposed welds ground and polished
- 4” high backsplash with sloped top
- NSF approved 14 gauge sink bowls with cove corners
- 1/8” high marine edge on around front and sides
- Hospital grade, chrome plated brass faucets and fixtures
- Lever handle drain controls
- Sink bowl sizes and overall dimensions can be customized around your specific needs
- A wide variety of optional features are available to add to the base unit. See partial list of optional features listed below
Optional Features:
- Accessories for Peg Board Mounting – Wire baskets, shelving, detergent holders, task lighting, count down timer, keyboard and monitor arms, water temperature gauge and LED lit basin with ON/OFF switch for improved leak test monitoring.
- Automatic Sink Bowl Filling System – The auto-fill system includes an ON/OFF switch, timer to pre-set fill duration, a level control sensor and push-button fill control. The system will automatically fill the same volume of water cycle after cycle.
- Enzymatic Dosing System – The enzymatic dosing system enables you to pre-program (2) different dosing levels. It includes water temperature monitoring, soak timer and “Check Detergent Supply” alarm when detergent supply is empty.
PDF Information Sheet
View the following 6 videos below: Automatic Sink Bowl Filling, Ultrasonic Sink Bowl, Hydro-Force System, Heated Sink Bowl, Height Adjustment, Work Sink Options.
-
Reprocessing Sink Model SPD 30-96-3B-CWS-AH-PP
The TBJ Model 30-96-3B-CWS-AH-PP work sink is specifically designed for use in hospital sterile processing departments for the pre-cleaning of grossly soiled surgical instruments, utensils, endoscopes and other miscellaneous items prior to automated washing/disinfection cycles. The unit includes two sink bowls. The work sink shall have the following configuration and features:
Features:
- (3) 24” x 18” x 10” deep sink bowls with ergonomic slanted wrist edges on the front side of sink bowls
- (1) panel-mounted hot/cold faucet with wrist blade handles and pre-rinse sprayer shall be located between 1 st and 2nd sink bowl
- (1) panel mounted hot/cold water faucet mounted between 2nd and 3rd sink bowl
- (1) panel mounted DI water faucet
- The ergonomic, electrically operated hydraulic lift system allows the sink height to be adjusted from 32” to 43” high via a push-button control switch
- (1) bottle holder and (2) wire baskets
- (3) lever handle drain controls for remote sink draining
- 24” H x 96” wide stainless steel pegboard back panel with bin and basket hanging system
- Overhead canopy with shelf and LED lighting
- Flexible gooseneck LED light inspection light with magnifier
- Storage shelf below sink top
Construction/Design:
- Heavy duty stainless steel construction
- Type 304 stainless steel sink top, 14 gauge, #4 finish
- Type 304 stainless steel tubular base frame made of 1 ½” square x 16 gauge wall tubing
- Adjustable leveling feet
- Seamless heliarc welded construction
- All exposed welds ground and polished
- 4” high backsplash extending the length of the sink top
- NSF approved 14 gauge sink bowls with cove corners
- 1/8” high marine edge on around front and sides
- Hospital grade, chrome plated brass faucets and fixtures
- Lever handle drain controls
- Sink bowl sizes and overall dimensions can be customized around your specific needs
- A wide variety of optional features are available to add to the base unit. See partial list of optional features listed below
PDF Information Sheet
-
Reprocessing Sink Model SPD 30-100-3B WS
TBJ offers a complete line of custom stainless steel work sinks designed around your specific needs. Options include single, double and triple bowl sinks, spray rinse options, foot pedal controlled faucets, lever handle drains, GFCI outlets, custom back splashes and of course custom sizes.
Features:
- Type 304 Stainless Steel Construction.
- 1 1/2" square heavy duty tubular base frame with adjustable leveling feet.
- Three 28" x 16" x 10 1/2" deep sinks.
- Three lever handle drains.
- Marine edge around top perimeter.
- Overall dimensions: 30" W x 100" L x 36" high work surface.
PDF Information Sheet
View the following 6 videos below: Automatic Sink Bowl Filling, Ultrasonic Sink Bowl, Hydro-Force System, Heated Sink Bowl, Height Adjustment, Work Sink Options.
-
Reprocessing Sink Model SPD 30-114-3B AH WS
The TBJ Model SPD 30-114-3B-AH WS is a height adjustable triple bowl sink that enables users to adjust the work height to their own specific comfort level.
Features:
- Type 304 stainless steel construction.
- 1 1/2" square heavy duty tubular base frame with adjustable leveling feet
- Three 28" x 16" x 10 1/2" deep sinks (12"deep sinks available)
- Push-button height adjustment from 32" to 40" (adjustment range can be customized)
- Marine edge around front perimeter
- 12" high backsplash and side splash
- Left hand and right hand flow options
- Overall dimensions: 30" W x 114" L
- A wide variety of optional features are available
PDF Information Sheet
View the following 6 videos below: Automatic Sink Bowl Filling, Ultrasonic Sink Bowl, Hydro-Force System, Heated Sink Bowl, Height Adjustment, Work Sink Options.
-
Reprocessing Sink Model SPD 30-117-3B-WS-AH
The TBJ Model 30-117-3B-WS-AH work sink is specifically designed for use in hospital sterile processing departments for the pre-cleaning of grossly soiled surgical instruments, utensils, endoscopes and other miscellaneous items prior to automated washing/disinfection cycles. The unit includes three 30” sink bowls to better accommodate robotic instruments. The work sink shall have the following configuration and features.
Features:
- (3) 30” x 16” x 10.5” deep sink bowls with etched gallon indicator markings
- The left sink includes Hydro-force rinse system with pump, adjustable timer, push-button control and on/off switch.
- The center sink includes heated ultrasonic power and control unit and has ultrasonic transducers mounted to underside of sink bowl. (ultrasonic power unit requires 120V electrical). (Bowl 2)
- (3) Pull-up drain controls
- (2) Automatic sink bowl fill with timer and push-button (Bowls 1 and 2)
- (2) Automatic detergent dispensing with push-button pre-sets, soak timer and temperature monitoring (bowls 1 and 2)
- (2) Heated sink bowls with digital thermostat control (Bowls 1 and 2)
- 4” high back splash
- Marine edge around front and side perimeter
- (2) Hot/cold water faucets with swing gooseneck and wrist-blade handles
- (1) Hot/cold water pre-rinse sprayer with wrist-blade handles
- (1) Selecta water pistol
- (1) Selecta air pistol
- (1) Set of (8) pistol attachments for Selecta pistols
- (1) DI/RO pure water faucet
- Push-button height adjustment with 8” travel range
- Optional rigid telescoping drains to accommodate height adjustment
- Under-counter storage shelves provided in movable/removable sections
- Temperature monitor (bowl 3)
- (2) Anchorage brackets (expansion anchor hardware, seismic calculations and OSHPD approval not included)
- Overall dimensions: 30” wide x 117” long
- Heavy duty stainless steel construction
- Type 304 stainless steel sink top, 14 gauge, #4 finish
- Type 304 stainless steel tubular base frame made of 1 ½” square x 16 gauge wall tubing
- Adjustable leveling feet
- Seamless heliarc welded construction
- All exposed welds ground and polished
- 4” high backsplash with sloped top
- NSF approved 14 gauge sink bowls with cove corners
- 1/8” high marine edge on around front and sides
- Hospital grade, chrome plated brass faucets and fixtures
- Lever handle drain controls
- Sink bowl sizes and overall dimensions can be customized around your specific needs.
- A wide variety of optional features are available to add to the base unit. See partial list of optional features listed below.
Construction/Design:
PDF Information Sheet
View the following 6 videos below: Automatic Sink Bowl Filling, Ultrasonic Sink Bowl, Hydro-Force System, Heated Sink Bowl, Height Adjustment, Work Sink Options.
-
Reprocessing Sink Model SPD 30-127-3B-CWS-AH SPCS
The TBJ Model 30-127-3B-CWS-AH SPCS work sink is specifically designed for use in Sterile Processing Departments for the pre-cleaning of surgical instruments and accessories. The unit includes three sink bowls. The work sink shall have the following configuration and features:
Features:
- (3) 24” x 18” x 10” deep sink bowls with ergonomic slanted wrist edges on the front side of sink bowls
- (1) panel-mounted hot/cold faucet with wrist blade handles and pre-rinse sprayer shall be located between 1st and 2nd sink bowl
- (1) panel mounted hot/cold water faucet mounted between 2nd and 3rd sink bowl
- (1) panel mounted DI water faucet
- The ergonomic, electrically operated hydraulic lift system allows the sink height to be adjusted from 32” to 43” high via a push-button control switch.
- (1) bottle holder and (2) wire baskets
- (3) lever handle drain controls for remote sink draining
- 24” H x 127” wide stainless steel pegboard back panel with bin and basket hanging system.
- Overhead canopy with shelf and LED lighting
- Flexible gooseneck LED light inspection light with magnifier.
- Storage shelf below sink top
- Overall dimensions: 30” x 127”.
- Heavy duty stainless steel construction
- Type 304 stainless steel sink top, 14 gauge, #4 finish
- Type 304 stainless steel tubular base frame made of 1 ½” square x 16 gauge wall tubing
- Adjustable leveling feet
- Seamless heliarc welded construction
- All exposed welds ground and polished
- 4” high backsplash with sloped top
- NSF approved 14 gauge sink bowls with cove corners
- 1/8” high marine edge on around front and sides
- Hospital grade, chrome plated brass faucets and fixtures
- Lever handle drain controls
- Sink bowl sizes and overall dimensions can be customized around your specific needs
- A wide variety of optional features are available to add to the base unit. See partial list of optional features listed below <
- Accessories for Peg Board Mounting – Wire baskets, shelving, detergent holders, task lighting, count down timer, keyboard and monitor arms, water temperature gauge and LED lit basin with ON/OFF switch for improved leak test monitoring
- Automatic Sink Bowl Filling System – The auto-fill system includes an ON/OFF switch, timer to pre-set fill duration, a level control sensor and push-button fill control. The system will automatically fill the same volume of water cycle after cycle
- Enzymatic Dosing System – The enzymatic dosing system enables you to pre-program (2) different dosing levels. It includes water temperature monitoring, soak timer and “Check Detergent Supply” alarm when detergent supply is empty <
Construction/Design:
Optional Features:
PDF Information Sheet
View the following 6 videos below: Automatic Sink Bowl Filling, Ultrasonic Sink Bowl, Hydro-Force System, Heated Sink Bowl, Height Adjustment, Work Sink Options.
-
Reprocessing Sink Model SPD 30-132-3B-BC WS
The TBJ Model SPD 30-132-3B-BC WS is a triple bowl reprocessing sink that includes enclosed stainless steel base cabinets below the work top for storage.
Features:
- Type 304 stainless steel construction.
- Three integral two door stainless steel base cabinets for detergent storage.
- Three 28" x 16" x 10 1/2" deep sinks with etched gallon markings.
- Two deck mounted hot/cold water faucets, one deck mounted spray rinse.
- Marine edge around front perimeter
- 4" high backsplash
- Overall dimensions: 30" W x 132" L x 36" high work top
- A wide variety of additional optional features are available
PDF Information Sheet
View the following 6 videos below: Automatic Sink Bowl Filling, Ultrasonic Sink Bowl, Hydro-Force System, Heated Sink Bowl, Height Adjustment, Work Sink Options.
-
Reprocessing Sink Model SPD 30-146-3B WS
The TBJ Model SPD 30-146-3B WS is a 146" wide work sink with three large capacity sink bowls. The work sink is designed for use with wall mounted fixtures.
Features:
- Type 304 stainless steel construction.
- 1 1/2" square heavy duty tubular base frame with adjustable leveling feet.
- Three 24" x 24" x 14 1/2" deep sink.
- Lever handle drain controls
- Designed to disassemble into two pieces and reassemble with a mechanical field joint leaving only a hairline seam across the counter top
- Marine edge around front perimeter
- 6" high backsplash
- Under counter storage shelf on right side.
- Overall dimensions: 30" W x146" L x 36" high work surface
- A wide variety of optional features are available
PDF Information Sheet
View the following 6 videos below: Automatic Sink Bowl Filling, Ultrasonic Sink Bowl, Hydro-Force System, Heated Sink Bowl, Height Adjustment, Work Sink Options.
-
Reprocessing Sink Model SPD 30-160-3B WS
The TBJ Model SPD 30-160-3B WS is a 160" wide work sink with three large capacity sink bowls. All three sink bowls are off set to the left providing 64" of open counter top work space to the right of the 3rd sink bowl.
Features:
- Type 304 stainless steel construction.
- 1 1/2" square heavy duty tubular base frame with adjustable leveling feet.
- Three 28" x 16" x 10 1/2" deep sinks
- One Combination hot/cold water faucet/spray rinse and (2) hot/cold water faucets
- Lever handle drain controls
- One TBJ/Selecta water pistol and one air pistol
- Unit is one welded assembly but can be designed to disassemble into (2) pieces and reassemble with a mechanical field joint leaving only a hairline seam across the counter top
- Marine edge around front perimeter
- 6" high backsplash
- 6" high side splash on right side
- Overall dimensions: 30" W x160" L x 36" high work surface
- A wide variety of optional features are available
PDF Information Sheet
View the following 6 videos below: Automatic Sink Bowl Filling, Ultrasonic Sink Bowl, Hydro-Force System, Heated Sink Bowl, Height Adjustment, Work Sink Options.
-
Reprocessing Sink Model SPD 30-162-3B WS
The TBJ SPD 30-162-3B WS is a 162" wide work sink with three large capacity sink bowls. All three sink bowls are centered providing 36" of open counter top work space to the right and left of the sinks.
Features:
- Type 304 stainless steel construction.
- 1 1/2" square heavy duty tubular base frame with adjustable leveling feet.
- Three 28" x 16" x 10 1/2" deep sinks
- One combination hot/cold water faucet/spray rinse and two hot/cold water faucets
- Lever handle drain controls
- One TBJ/Selecta water pistol and one air pistol
- Unit is one welded assembly but can be designed to disassemble into two pieces and reassemble with a mechanical field joint leaving only a hairline seam across the counter top
- Marine edge around front perimeter
- 6" high backsplash
- Overall dimensions: 30" W x162" L x 36" high work surface
- A wide variety of additional optional features are available
PDF Information Sheet
View the following 6 videos below: Automatic Sink Bowl Filling, Ultrasonic Sink Bowl, Hydro-Force System, Heated Sink Bowl, Height Adjustment, Work Sink Options.
-
Reprocessing Sink Model SPD 30-84-3B WS
TBJ offers a complete line of custom stainless steel reprocessing sinks designed around your specific needs. Options include single, double and triple bowl sinks, spray rinse options, foot pedal controlled faucets, lever handle drains, GFCI outlets, custom back splashes and of course custom sizes.
Features:
- Type 304 Stainless Steel Construction
- 1 1/2" square heavy duty tubular base frame with adjustable leveling feet
- Three 22" x 16" x 10 1/2" deep sinks
- Marine edge around top perimeter
- Overall dimensions: 30" W x 84" H x 36" high work surface
PDF Information Sheet
View the following 6 videos below: Automatic Sink Bowl Filling, Ultrasonic Sink Bowl, Hydro-Force System, Heated Sink Bowl, Height Adjustment, Work Sink Options.
-
Reprocessing Sink Model SPD 30-96-3B WS
TBJ offers a complete line of custom stainless steel reprocessing sinks designed around your specific needs. Options include single, double and triple bowl sinks, spray rinse options, foot pedal controlled faucets, lever handle drains, 1 HP disposers, GFCI outlets, custom back splashes and of course custom sizes.
Features:
- Type 304 Stainless Steel Construction
- 1 1/2" square heavy duty tubular base frame with adjustable leveling feet
- Three 22" x 16" x 7 1/2" deep sinks
- Marine edge around top perimeter
- Overall dimensions: 30" W x 96" L x 36" high work surface
PDF Information Sheet
View the following 6 videos below: Automatic Sink Bowl Filling, Ultrasonic Sink Bowl, Hydro-Force System, Heated Sink Bowl, Height Adjustment, Work Sink Options.
-
Reprocessing Sink Model SPD 30-96-3B-AH WS
The TBJ Model SPD 30-96-3B-AH WS is a height adjustable sink that enables users to adjust the work height to their own specific comfort level.
Features:
- Type 304 stainless steel construction
- 1 1/2" square heavy duty tubular base frame with adjustable leveling feet
- Three 28" x 16" x 7 1/2" deep sinks (10 1/2" and 12"deep sinks available)
- Push-button height adjustment from 34" to 42" (adjustment range can be customized
- Marine edge around front perimeter
- 4" high backsplash
- Left hand and right hand flow options
- Overall dimensions: 30" W x 96" L
- A wide variety of optional features are available
PDF Information Sheet
View the following 6 videos below: Automatic Sink Bowl Filling, Ultrasonic Sink Bowl, Hydro-Force System, Heated Sink Bowl, Height Adjustment, Work Sink Options.
-
Reprocessing Sink Model SPD 26-120-3B WS
TBJ offers a complete line of custom stainless steel work sink designs, tailored around your specific needs. Options include single, double and triple bowl sinks, spray rinse options, foot pedal controlled faucets, lever handle drains, GFCI outlets, custom back splashes and of course custom sizes.
Features:
- Type 304 stainless steel construction.
- 1 1/2" square heavy duty tubular base frame with adjustable leveling feet.
- (3) hot/cold water faucets with wrist blade handles
- (1) deck mounted sprayer
- (3) 22" x 18" x 10" deep sink.
- (1) 1 HP heavy duty disposer with ON/OFF switch
- (2) lever handle drain controls
- (1) GFCI receptacle
- Marine edge around front and side perimeter
- 4" high backsplash
- Under counter storage shelf on right side.
- Overall dimensions: 30" W x123" L x 36" high work surface
- A wide variety of optional features are available.
PDF Information Sheet
View the following 6 videos below: Automatic Sink Bowl Filling, Ultrasonic Sink Bowl, Hydro-Force System, Heated Sink Bowl, Height Adjustment, Work Sink Options.
