TBJ offers a full range of hydraulic large animal tables for necropsy and surgical procedures. Each hydraulic table can be customized around the specific weight capacity required ranging from 200 pound weight capacity all the way up to 6000 pound weight capacity. Tables can be mobile or fixed, floor mounted or pit mounted.

Hydraulic Necropsy Table Model 24-60 HT

Hydraulic Necropsy Table Model 39-78 HT-M

Hydraulic Necropsy Table Model 42-84 HT-M

Hydraulic Necropsy Table Model 42-84 HT-PM

Mobile Hydraulic Necropsy Table Model 48-118 HT-M

Hydaulic Necropsy Table Model 48-84 HT-M

Hydraulic Animal Surgery Table Table Model 48-96 HT-M

Hydraulic Necropsy Table Model 54-84 HT

Hydraulic Animal Surgery Table Model 54-84 HT-M

Hydraulic Necropsy Table Model 54-96 HT-PM

Hydraulic Necropsy Table Model 60-72 HT

Hydraulic Animal Surgery Table Model 63-110 HT

Hydraulic Animal Surgery Table Model 66-108 HT

Hydraulic Animal Surgery Table Model 66-108 HT-C

Hydraulic Animal Surgery Table Model 96-168 HT

Hydraulic Animal Surgery Table Model SL 20-44-M
-

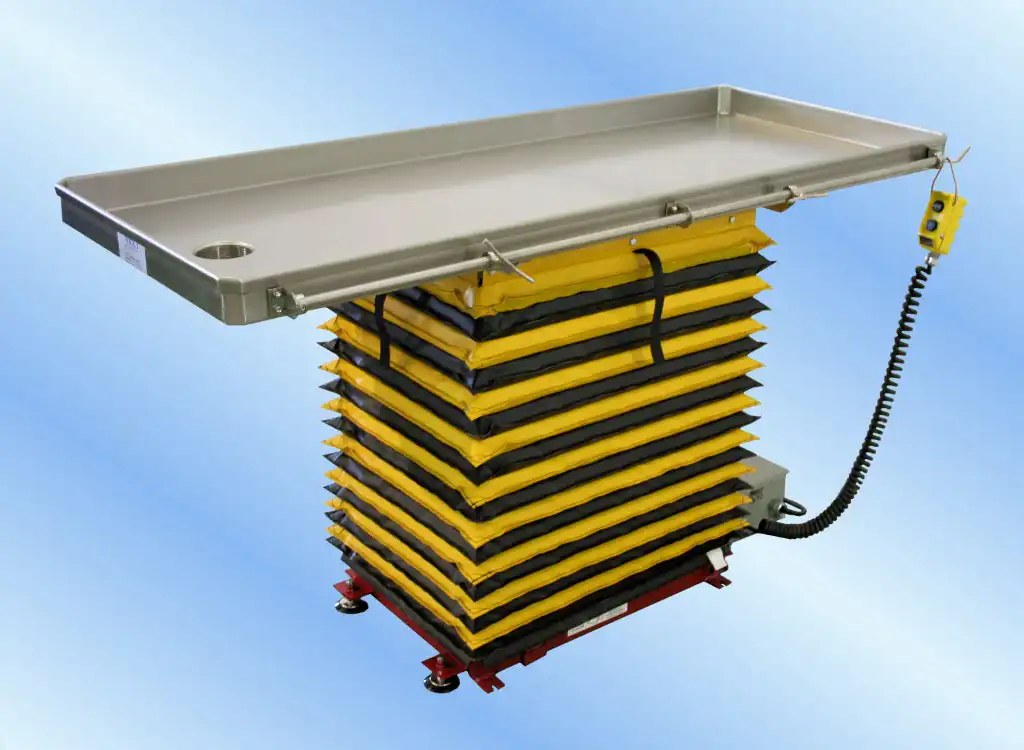

Hydraulic Necropsy Table Model 24-60 HT
The TBJ Model 24-60 is a compact Hydraulic Necropsy Table with a 500 pound capacity. It is shown here with optional tie down bars with adjustable cleats and hand held UP/DOWN control. Foot pedal controls optional.
Features:
- 24" x 60" work surface with 2 1/2" raised edge.
- Vertical travel of 30" with low height of 9 3/16" and maximum height of 39 3/16".
- 115 V
PDF Information Sheet
-

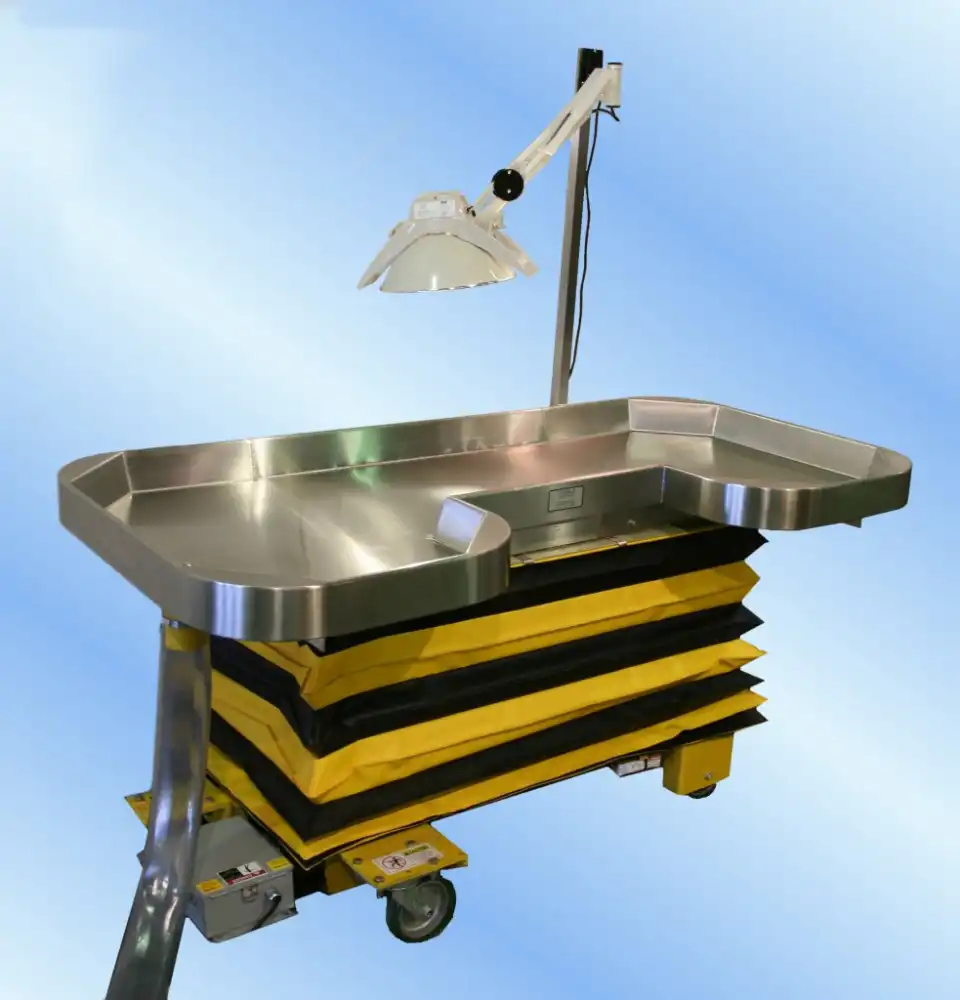

Hydraulic Necropsy Table Model 39-78 HT-M
The TBJ Model 39-78 HT-M is a compact mobile hydraulic necropsy/surgical table for medium to large size animals.
Features:
- 39" x 78" work top with a 24" x 13" recessed access area in the middle of the table
- The work surface is sloped to a 36" opening on one side of the table for drainage to a floor drain.
- Two swivel casters two fixed castes and one floor lock
- Low height of 16 5/8" and maximum height of 52 5/8".
- Hand held controls, foot pedal controls optional
- 115V
PDF Information Sheet
-

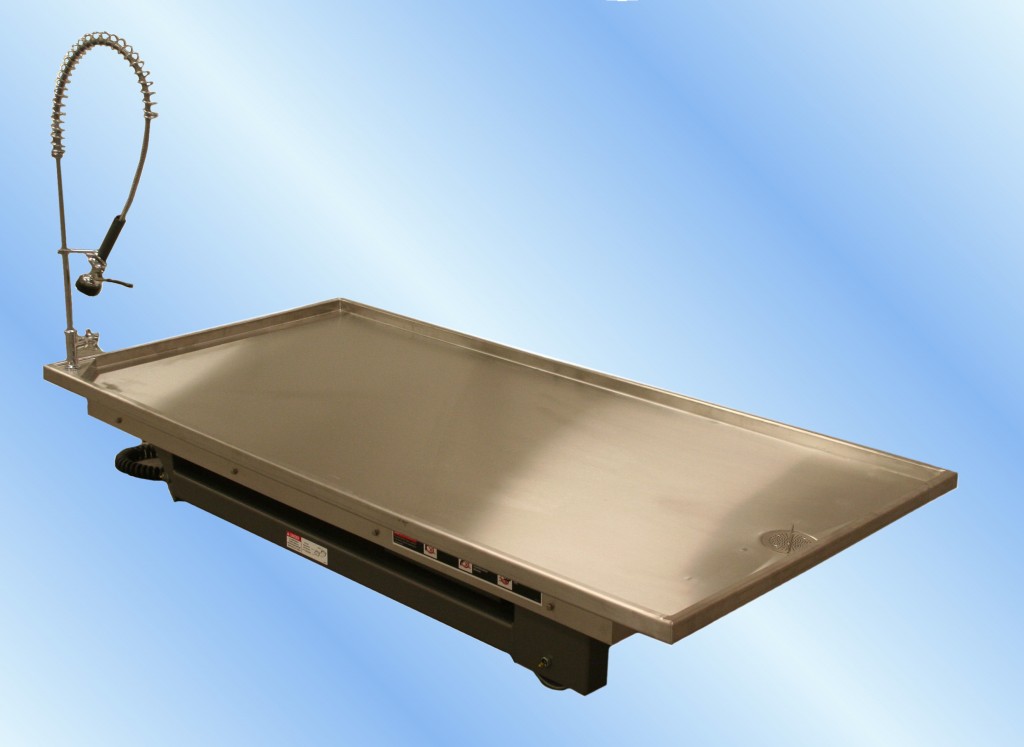

Hydraulic Necropsy Table Model 42-84 HT-M
The TBJ Model 42-84 HT-M is a large mobile hydraulic necropsy table for large size animals up to 1,500 pounds and is available in capacities of up to 6,000 pounds.
Features:
- 42" x 84" rectangular a 1 3/4" high perimeter lip
- Work surface is sloped to a 3" threaded draing connection
- Two swivel casters two fixed castes and one floor lock
- Low height of 15 1/4" and maximum height of 51"
- Hand held controls standard, foot pedal controls optional
- 115V
PDF Information Sheet
-

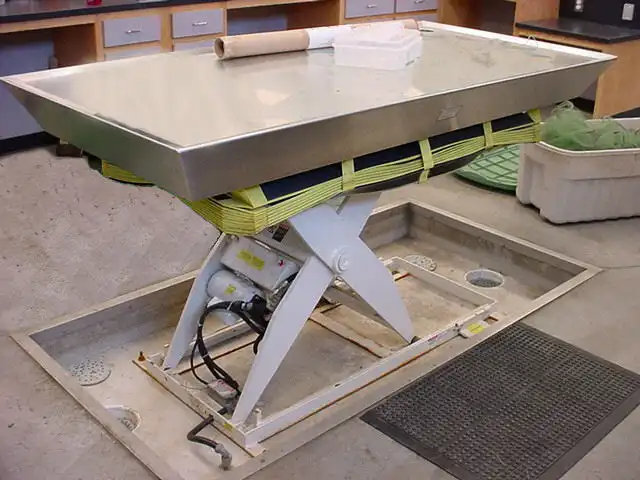

Hydraulic Necropsy Table Model 42-84 HT-PM
The TBJ Model 42-84 HT-PM hydraulic necropsy/surgical table as shown here is designed for shallow pit mounting to enable the table top to recess into the pit so that the table surface is at floor level in the down positions.
Features:
- Hand held controls, foot pedal controls optional
- 3,000 pound capacity (available up to 6,000 pound capacity)
- 41 1/2" x 83 1/2"work surface with marine edge
- Vertical travel of 42"
- 7" deep pit required for pit mounted installation
- 115 V
PDF Information Sheet
-

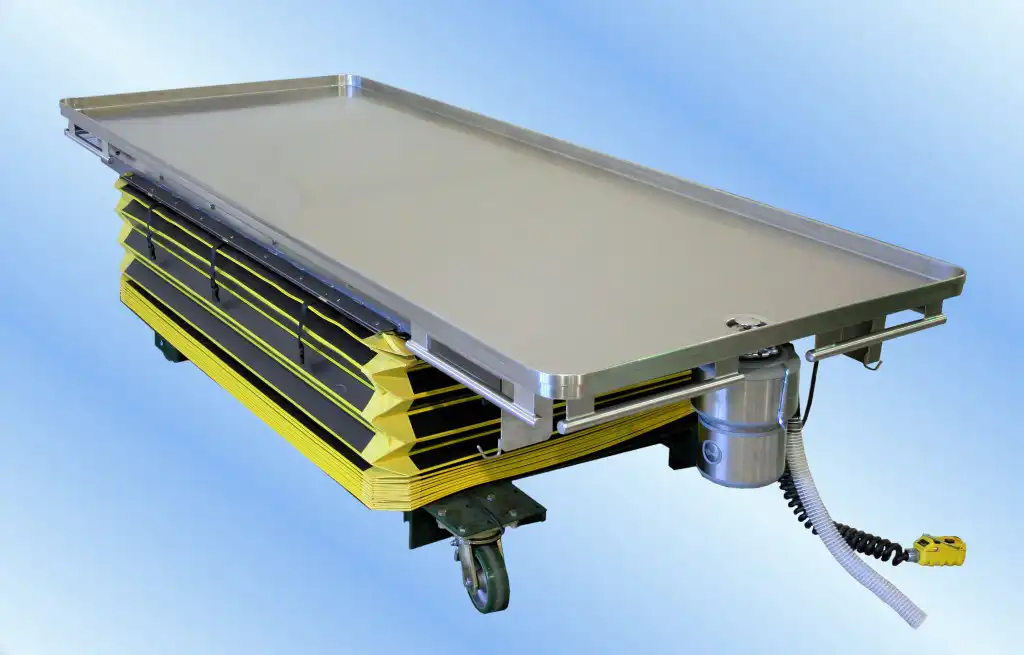

Mobile Hydraulic Necropsy Table Model 48-118 HT-M
The TBJ Model 48-118 HT-M is a mobile hydraulic necropsy/surgical table for large size animals up to 2,000 pounds and is available in capacities of up to 6,000 pounds. The table is shown here with optional disposer and spray gun with recoil hose.
Features:
- 48" x 118" rectangular top with a 1 1/2" high perimeter lip
- Work surface is sloped to a 3" drain equipped with an optional 1 horse power heavy duty disposer
- Two swivel casters two fixed castes and one floor lock
- Low height of 15" and maximum height of 52 1/8"
- Hand held controls standard, foot pedal controls optional
- 115V
PDF Information Sheet
-
Hydaulic Necropsy Table Model 48-84 HT-M
The TBJ Model 48-84 HT-M is a large mobile hydraulic necropsy table for medium to large size animals.
Features:
- 48" x 84" work top with a 36" x 18" recessed access area in the middle of the table
- Work surface is pitched to two drains, one on each end to the table top
- Two swivel casters two fixed castes and one floor lock
- Low height of 17 1/8" and maximum height of 53 1/8".
- Hand held controls standard, foot pedal controls optional
- 115V
PDF Information Sheet
-

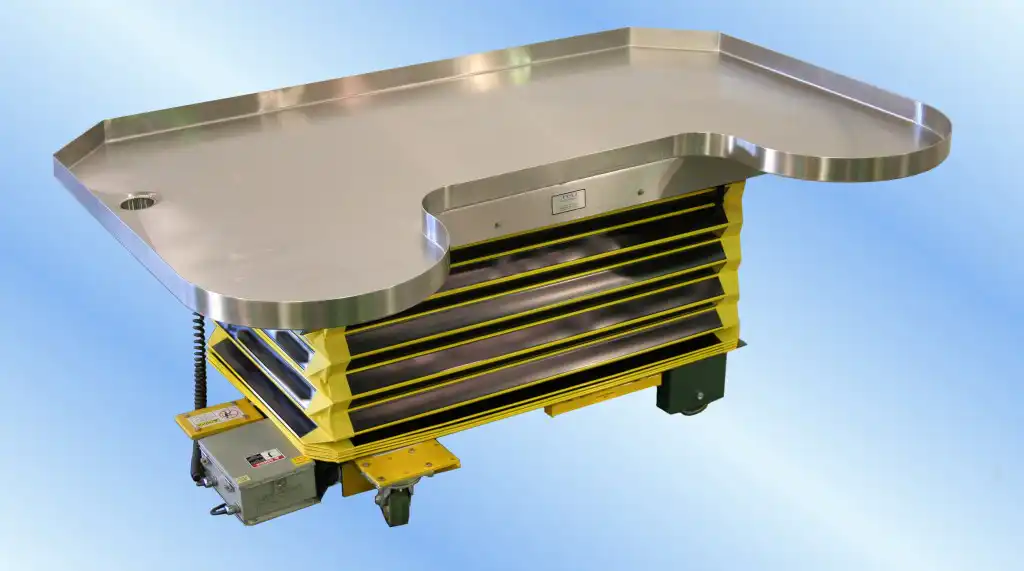

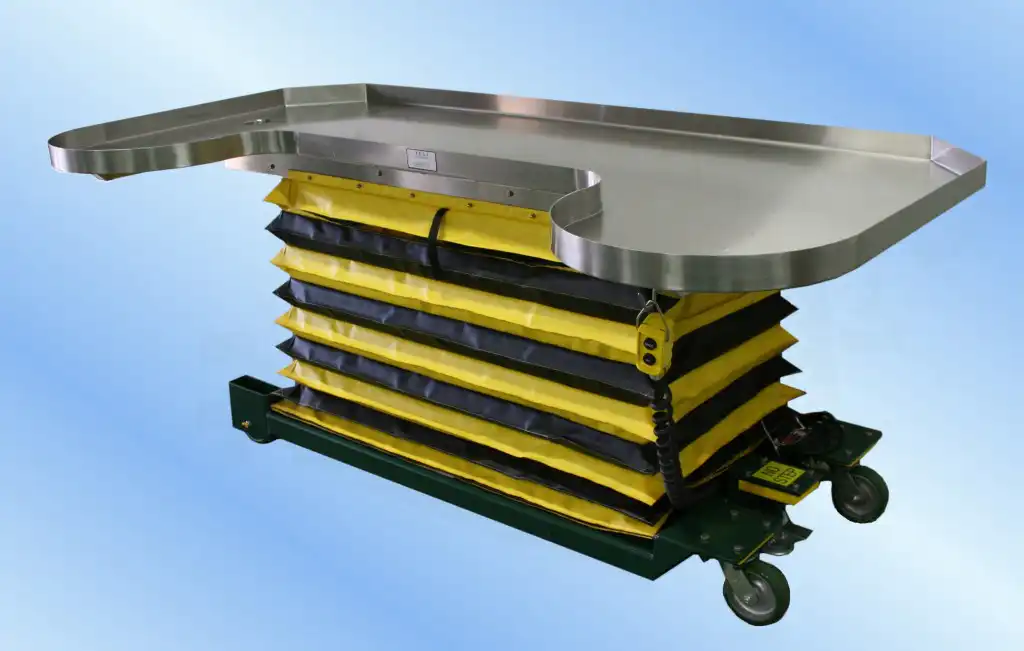

Hydraulic Animal Surgery Table Table Model 48-96 HT-M
The TBJ Model 48-96 HT-M is a large mobile hydraulic animal surgery table for medium to large size animals.
Features:
- 48" x 96" work top with a 48" x 18" recessed access area in the middle of the table.
- Work surface is sloped to a single drain with removable drain basket.
- Two swivel casters two fixed castes and one floor lock
- Low height of 15 1/4" and maximum height of 51 1/2".
- Hand held controls, foot pedal controls optional
- 115V
PDF Information Sheet
-

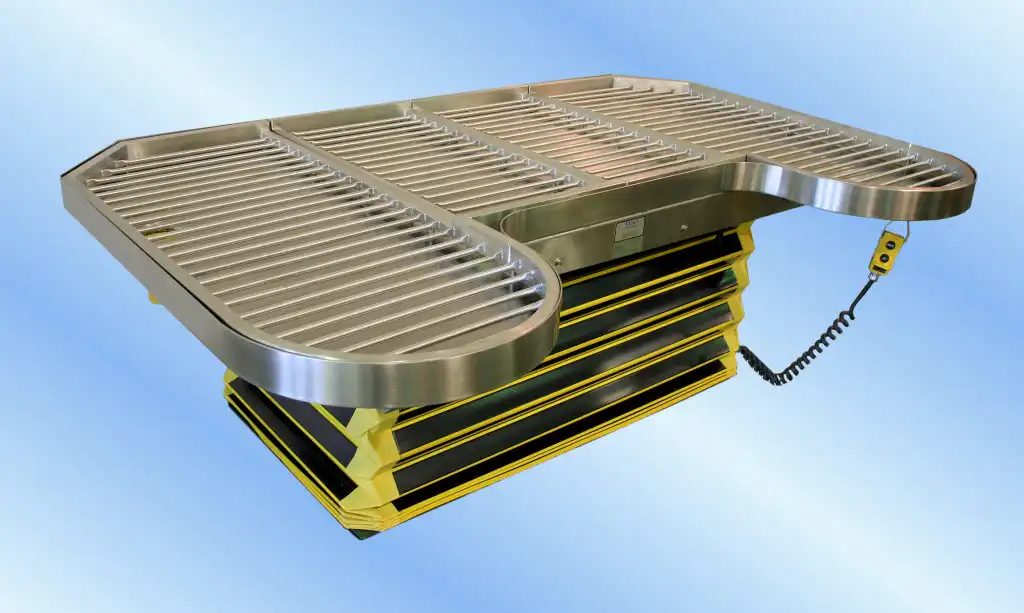

Hydraulic Necropsy Table Model 54-84 HT
The TBJ Model 54-84 HT Hydraulic Necropsy Table is a stationary, heavy duty table designed for use with large animal weighing up to 3,000 pounds. Weight capacities up to 6,000 pounds are available.
Features:
- 54" x 84" work surface with a 2 1/2" raised edge, 18" x 36" recessed access area in the middle of one side of the work top and (4) tubular grid panels.
- Work surface is sloped to a 3" drain.
- Tie down bars with adjustable cleats
- Spray gun with recoil hose
- Low height of 15" and maximum raised height of 51 1/2".
- Hand held controls standard, foot pedal controls optional .
- 115 V
PDF Information Sheet
-

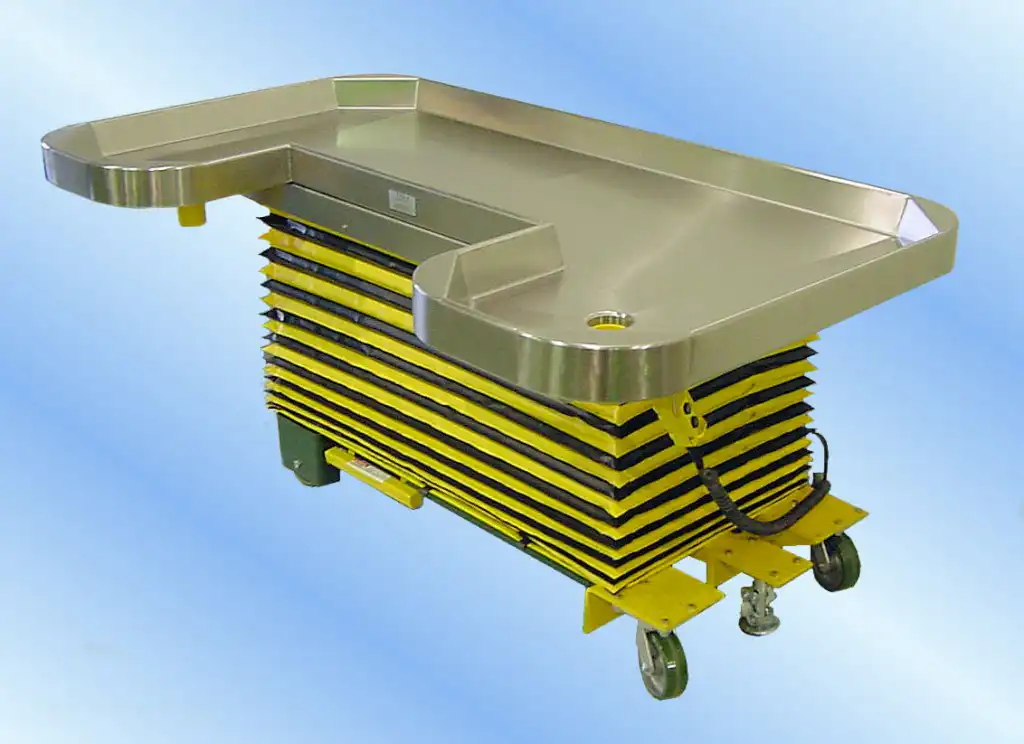

Hydraulic Animal Surgery Table Model 54-84 HT-M
The TBJ Model 54-84 HT-M hydraulic animal surgery table is a heavy duty table designed for use with large animal weighing up to 6,000 pounds. The hydraulics system can be customized for lighter loads upon request.
Features:
- 54" x 84" work surface with a 2 1/2" raised edge, 18" x 36" recessed access area in the middle of one side of the work top
- Four tubular grid panels as shown in the bottom photo below are optional
- Work surface is sloped to a 3" drain
- Two swivel casters two fixed castes and one floor lock
- Low height of 15" and maximum raised height of 51 1/2"
- Hand held controls standard, foot pedal controls optional
- 115 V
PDF Information Sheet
-
Hydraulic Necropsy Table Model 54-96 HT-PM
The TBJ Model 54-96 HT-PM Hydraulic Necropsy Table is designed for shallow pit mounting to enable the table top to recess into the pit so that the table surface is at floor level in the down position.
Features:
- Hand held controls standard, foot pedal controls optional
- GFCI receptacle
- 4,500 pound capacity (available up to 6,000 pound capacity)
- 54" x 96" work surface with marine edge
- Vertical travel of 48"
- 8 1/2" deep pit required for pit mounted installation
- 115 V
PDF Information Sheet
-

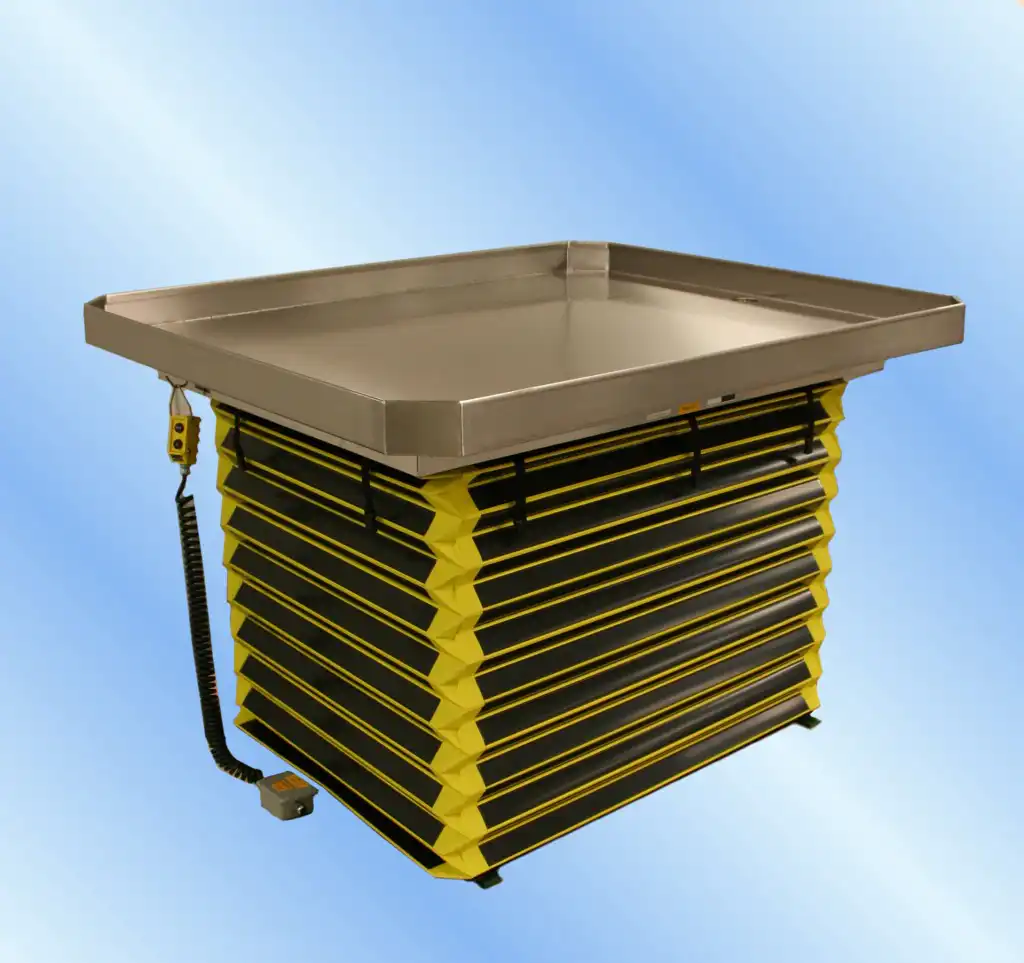

Hydraulic Necropsy Table Model 60-72 HT
The TBJ Model 60-72 HT hydraulic necropsy/surgical table is a large, heavy duty table designed for use with large animals up to 6,000 pounds.
Features:
- 60" x 72", 11 gauge work surface with 4" raised perimeter edge
- Work surface is sloped to a 3" drain
- Hand held controls, foot pedal controls optional
- Vertical travel of 36"
- 11 1/2"low height and 47 1/2" maximum height
- 115 V
PDF Information Sheet
-

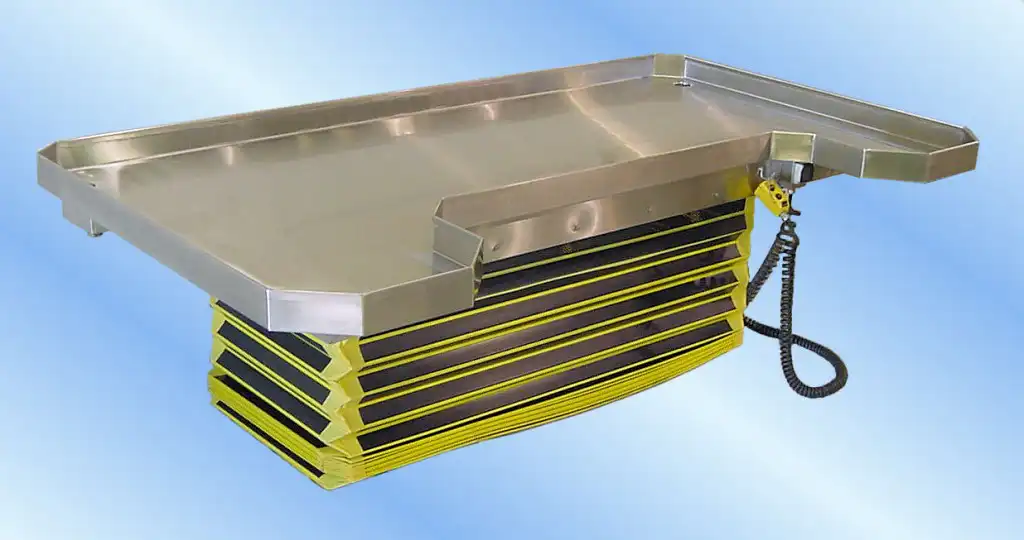

Hydraulic Animal Surgery Table Model 63-110 HT
The TBJ Model 63-110 HT Hydraulic Animal Necropsy/Surgery Table is a large, heavy duty table designed for use with large animals up to 6,000 pounds.
Features:
- 63" x 110" work surface with 4" raised perimeter edge and a 61" x 18" recessed access area in the middle of one side of the work top.
- Work surface is sloped to two drains with removable drain baskets
- Hand held controls standard, foot pedal controls optional
- Vertical travel of 36"
- 11 1/2" low height
- 115 V
PDF Information Sheet
-

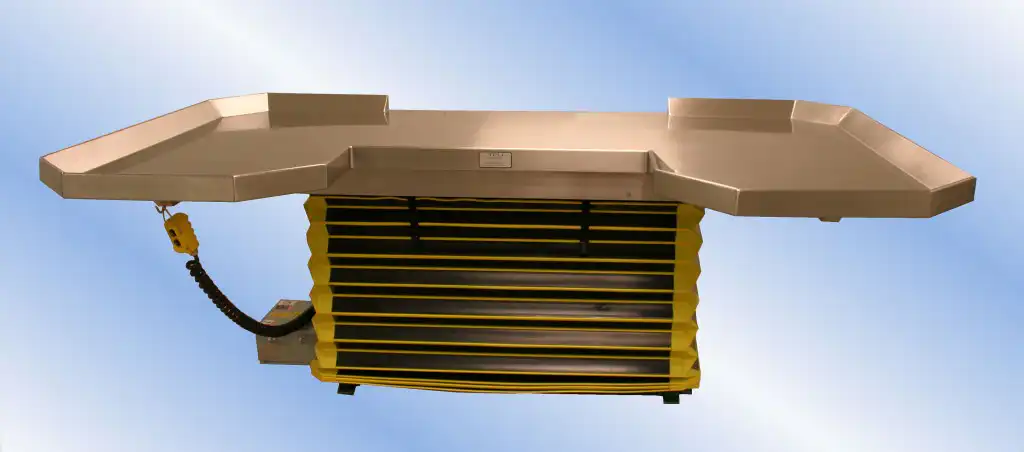

Hydraulic Animal Surgery Table Model 66-108 HT
The TBJ Model 66-108 HT is a large, heavy duty hydraulic animal surgery/necropsy table designed for use with large animal up to 6,000 pounds.
Features:
- 66" x 108" work surface available with a low profile 1 1/8" raised perimeter edge or a higher profile 3" perimeter edge
- 18" x 36" recessed access area in the middle of one side of the work top
- The work surface is sloped to a 48" opening on one side of the table for drainage to a floor drain.
- Hand held controls are standard, foot pedal controls optional
- 13 1/2" or 15 3/8" low height and 44 3/8" or 46 1/4" raised height (depending on perimeter profile)
- 115V or 208 V
PDF Information Sheet
-
Hydraulic Animal Surgery Table Model 66-108 HT-C
The TBJ Model 66-108 HT-C hydraulic animal surgery table is a large, heavy duty table designed for use with large animals up to 4,000 pounds.
Features:
- 66" x 108" work surface with a 3" raised perimeter edge and a 18" x 36" recessed access area in the middle of one side of the work top.
- The work surface is sloped to a 48" opening on one side of the table for drainage to a floor drain.
- The underside of the table top includes a bearing assembly that allows 360 degree rotation of the table top. The bearing assembly has a locking mechanism that allows the table top to be locked into positions at 15 degree intervals.
- The hydraulic cylinder is a heavy duty, single acting cylinder having a ram diameter of 10 1/2" with .001 hard chrome plating. It shall have a total working stroke of 40".
- A gusseted mounting plate with holes is welded to the outside casing of the cylinder for anchoring to the pit floor.
- A hydraulic pumping unit powered by a 5 HP motor directly connected to a fixed displacement pump is utilized for raising and lowering the cylinder. A 30-gallon oil reservoir is included.
- The control box is designed for remote wall mounting and includes one"Raise" button, one"Lower" button.
- 13 5/8" low height and 47 5/8" raised height
- 208 V, 3PH, 60HZ
PDF Information Sheet
-

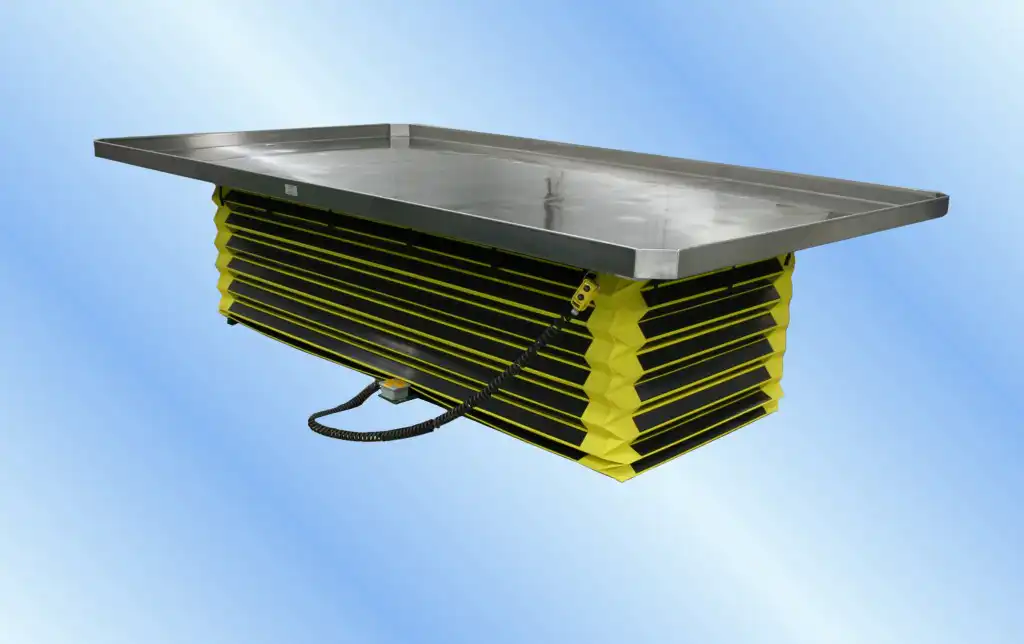

Hydraulic Animal Surgery Table Model 96-168 HT
The TBJ Model 96-168 HT Hydraulic Animal Surgery/Animal Table is a large, heavy duty table designed for use with large animals up to 6,000 pounds.
Features:
- The table has a large 96" x 168", 11 gauge work surface with 4" raised perimeter edge.
- Work surface is sloped to a 3" drain on one end of the table top
- Hand held controls standard, foot pedal controls optional
- Vertical travel of 36"
- 11 1/2"low height and 47 1/2" maximum height
- 115 V
PDF Information Sheet
-

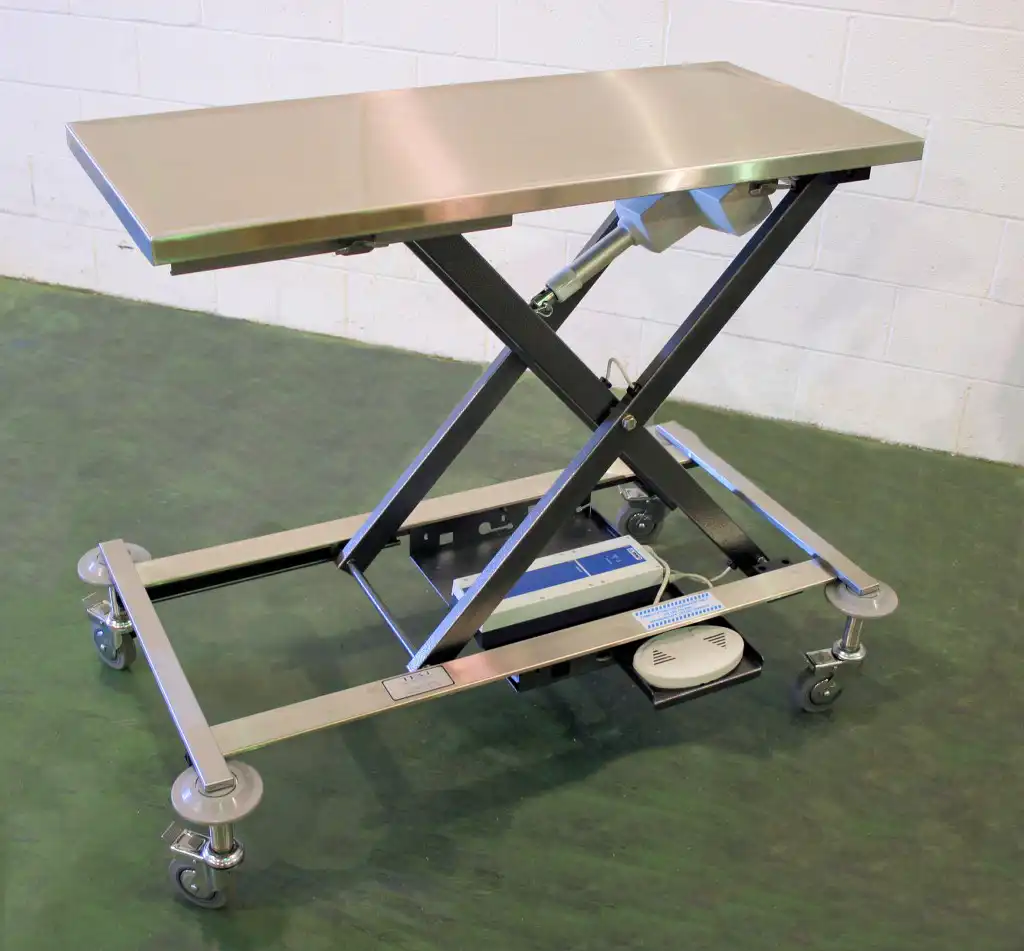

Hydraulic Animal Surgery Table Model SL 20-44-M
The TBJ Model SL 20-44-M is a mobile light duty table for animal surgery and necropsy procedures.
Features:
- Stainless Steel top is 44 1/2" long by 20" wide with raised edges to prevent fluid run-off
- Canine Scale with LCD display, on-screen calibration and on-screen"locked" or"unlocked" weight display option
- Two tie-down restraint cleats on each side of table for secure animal transport
- Foot switch operated on a rechargeable actuator system that lifts up to 200 lbs. From 10 1/2" to 37 3/8" high
- Corrosion resistant reinforced nylon locking casters and rotating non-marring bumpers
