Single Bowl Scope Sinks

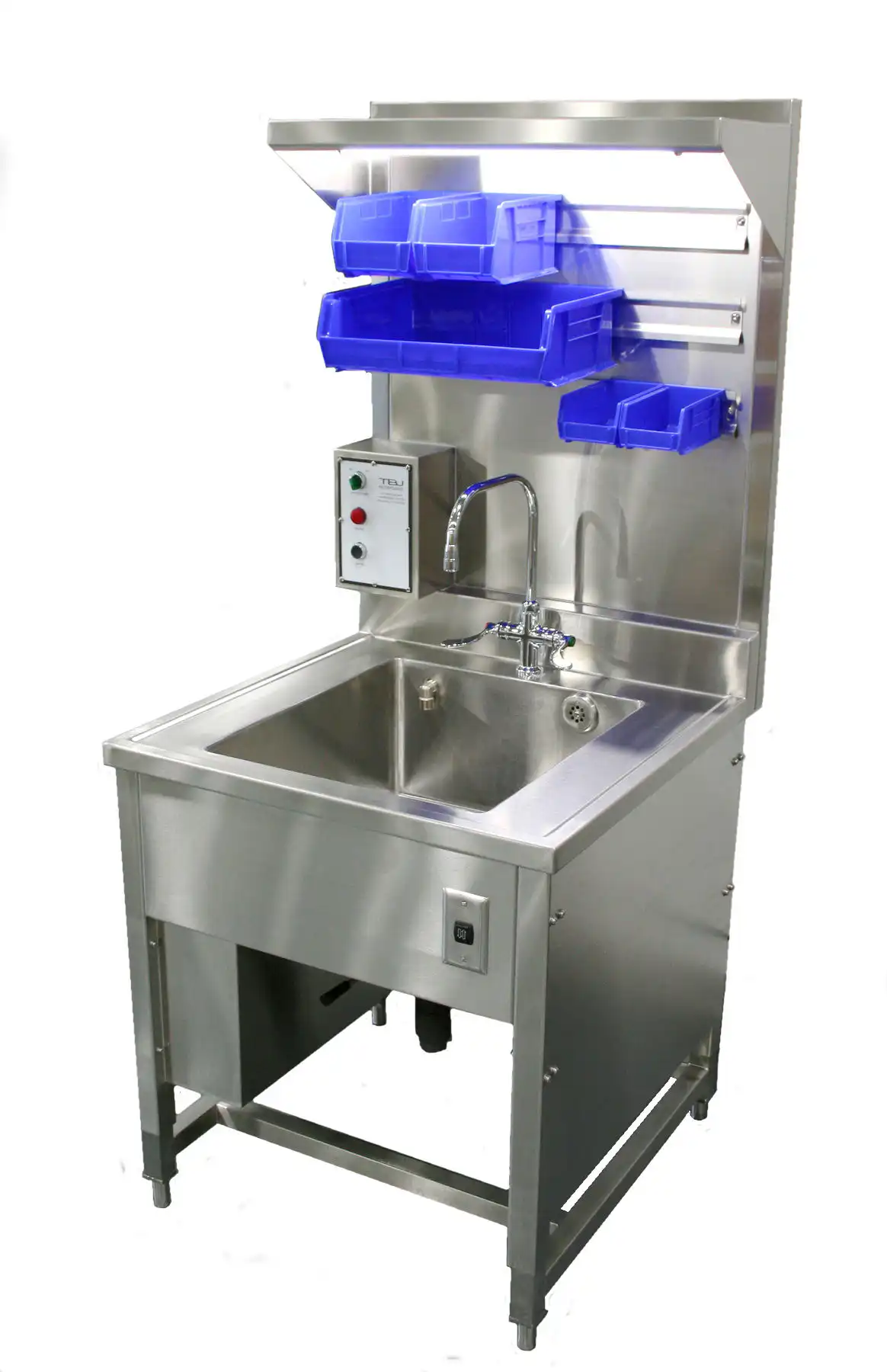

The TBJ Model 30-30-1B-AH SPCS work sink is specifically designed for use in GI Labs and Sterile Processing Departments for the pre-cleaning of flexible endoscopes. The unit is designed for areas with limited space and includes a single sink bowl. An integrated Scope Buddy™ Plus Endoscope Flushing Aid with wire management to reduce clutter at the sink is optional. The work sink shall have the following configuration and features:

Features:

• One 22” x 19” x 10 ½” deep sink bowls
• (1) deck-mounted hot/cold faucet with wrist blade handles shall be located between sinks bowls.
• Our unique OPTIONAL Auto Fill System is includedon the wash sink bowl that allows for automatic, push-button filing of the sink so that users can walk away and multi-task while the sink fills with water.
• The ergonomic, electrically operated hydraulic lift system allows the sink height to be adjusted from 32” to 40” high via a rocker switch control.
• An integrated Scope Buddy ™ Plus Endoscope Flusing Aid is optional.
• A level handle drain control for remote sink draining.
• Stainless steel back panel with bin and basket hanging system.
• Overhead canopy with shelf and LED lighting

Construction/Design:

• Heavy duty stainless steel construction
• Type 304 stainless steel sink top, 14 gauge, #4 finish
• Type 304 stainless steel tubular base frame made of 1 ½” square x 16 gauge wall tubing
• Adjustable leveling feet
• Seamless heliarc welded construction
• All exposed welds ground and polished
• 4” high backsplash extending the length of the sink top
• NSF approved 14 gauge sink bowls with cove corners
• 1/8” high marine edge on around front and sides
• Hospital grade, chrome plated brass faucets and fixtures
• Lever handle drain control
• Sink bowl sizes and overall dimensions can be customized around your specific needs.
• A wide variety of optional features are available to add to the base unit.

PDF Information Sheet

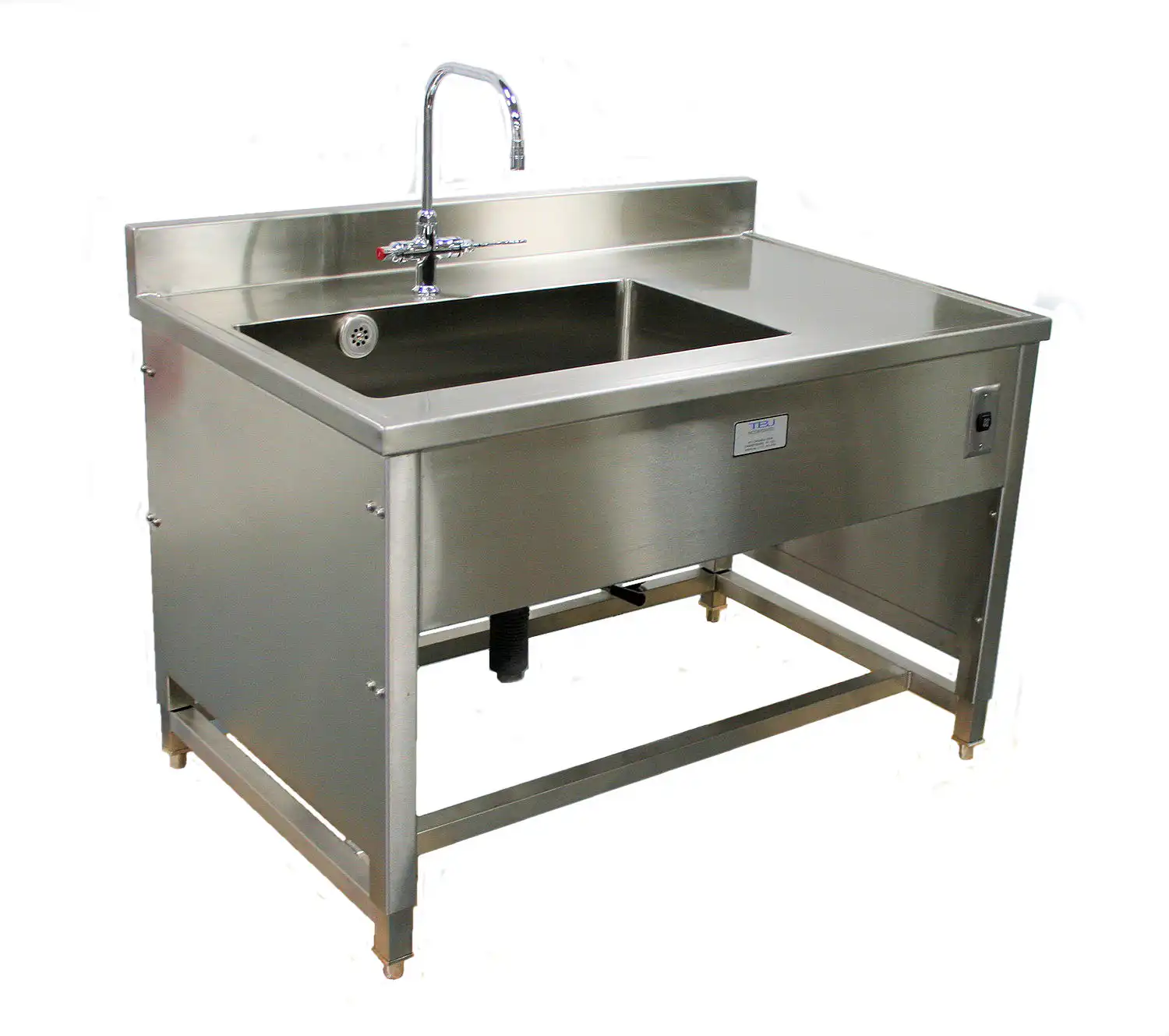

The TBJ Model 30-48-1B-AH SPCS sink is specifically designed for use in GI Labs and Sterile Processing Departments for the pre-cleaning flexible endoscopes. The unit includes a single sink bowls and is ideal for use in compact areas where space constraints prohibit the installation of double or triple bowl unit. The work sink shall have the following configuration and features:

Features:

• The sink shall be 28” x 16” x 10 ½” deep
• A deck mounted hot/cold water faucet with wrist blade handles shall be centered at the sink bowl.
• The sink shall include an electrically operated hydraulic lift system allowing the sink height to be adjusted from 32” to 40” high via a rocker switch control can be added to the base unit
• The sink shall be offset to the left side and include 18” of counter top space.
• Includes (1) lever handle drain control for remote sink draining

Construction/Design:

• Heavy duty stainless steel construction
• Type 304 stainless steel sink top, 14 gauge, #4 finish
• Type 304 stainless steel tubular base frame made of 1 ½” square x 16 gauge wall tubing
• Adjustable leveling feet
• Seamless heliarc welded construction
• All exposed welds ground and polished
• 4” high backsplash extending the length of the sink top
• Heavy gauge NSF approved sink bowls with cove corners
• 1/8” high marine edge on around front and sides
• Hospital grade, chrome plated brass faucets and fixtures
• Crumb cup drain stoppers
• Sink bowl sizes and overall dimensions can be customized around your specific needs.
• A wide variety of optional features are available to add to the base unit.
