Products that solve surgical instrument cleaning problems
SurgiClean®
SurgiSonic® 1211X
SurgiClean® 1320
SurgiClean® 1312
MODEL 26-48-AH WORK STATION
MODEL 30-85-1B-AH SINK WORK STATION
MODEL 26-108-2B-AH SINK WORK STATION
MODEL 26-160-3B-AH SINK WORK STATION
MODEL 28-48-WT-AH-M
-
SurgiSonic® 1211X
Ultrasonic Cleaner for Tubular and Robotic Surgical Instruments
SurgiSonic® 1211X Independent Test Lab Summary Report exceeded AAMI TIR 30 standard for cleaning effectiveness. REVIEW TEST Summary report.
Patented, Hospital Grade Ultrasonic Cleaner
The No. 1211X SurgiSonic® Cleaning Machine combines ultrasonic cleaning action with suction to clean the inside and outside of tubular surgical instruments. Ultrasonic action dislodges baked in debris and suction draws it out of even the most impacted instruments. Every tubular instrument cleaned by the SurgiSonic® machine has its own dedicated suction chamber, filter, and suction pump to assure that maximum cleaning power is applied equally to each instrument being cleaned. Another unique feature of the SurgiSonic® Machine is that when debris is sucked out of the instrument it is then immediately trapped in a 70 micron filter before the cleaning solution is returned to the ultrasonic tank.
The 1211X SurgiSonic® cleans up to six tubular instruments at the same time, including large bariatric instruments, ranging in size from 1.7mm to 12mm in diameter. It is equipped with 6 suction chambers, 6 small/6 medium/and 6 large holed insertion nipples, 6 disposable filters, 6 suction pumps, and a drain tube; an instrument basket is optional. It also comes with an operating manual and a repair manual. All repairs can easily be done in the hospital, and all repair parts are shipped next day air.
Ultrasonic Tank Size: 30 Wide x 8 Front to Back x 6 inches Deep
Overall Size: 16 Wide x 16 Front to Back x 6 inches Tall
Electrical: 400 Watts, 110/120VAC, Hospital Grade Power Cord -

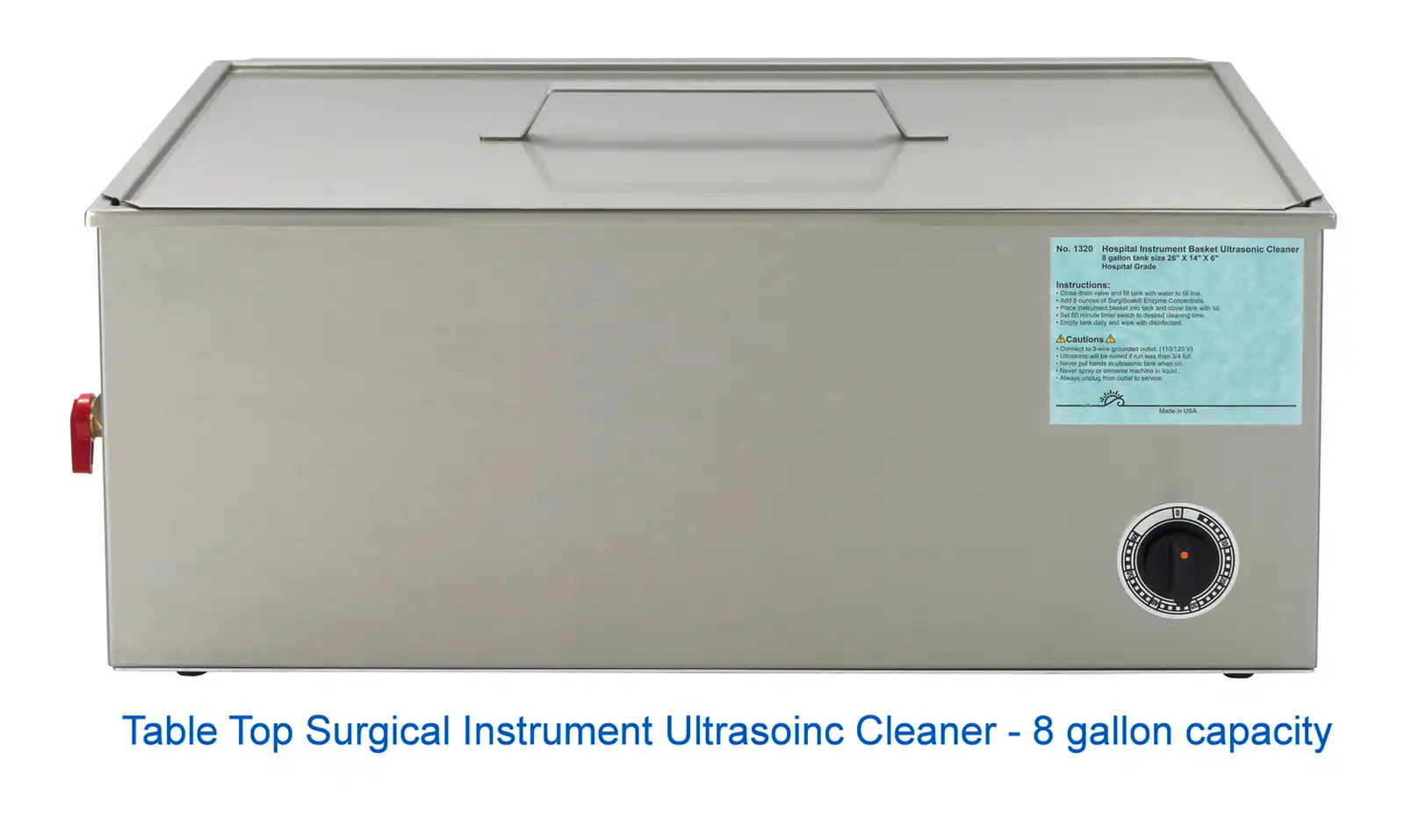

SurgiClean® 1320
Hospital Grade Ultrasonic Cleaner
The No. 1320 Ultrasonic Cleaner for Instrument Baskets has been conveniently sized to fit on counter tops and carts to accommodate instruments placed in hospital trays and baskets. It is operated by a 60 minute timer switch which activates the ultrasonic and heater. The heater automatically adjusts the temperature of the cleaning solution so that it does not go below 100° degrees fahrenheit or above 120 degrees fahrenheit.
It comes with a lid, a drain tube, an operating manual and a repair manual. All repairs can be done in the hospital in about one to two hours, and repair parts are shipped next day air to reduce down time.
Ultrasonic Tank Size: 26 Wide x 14 Front to Back x 6 inches Deep
Overall Size: 27.5 Wide x 16.5 Front to Back x 11 inches Tall
Electrical: 600 Watts, 110/120VAC, Hospital Grade Power Cord -

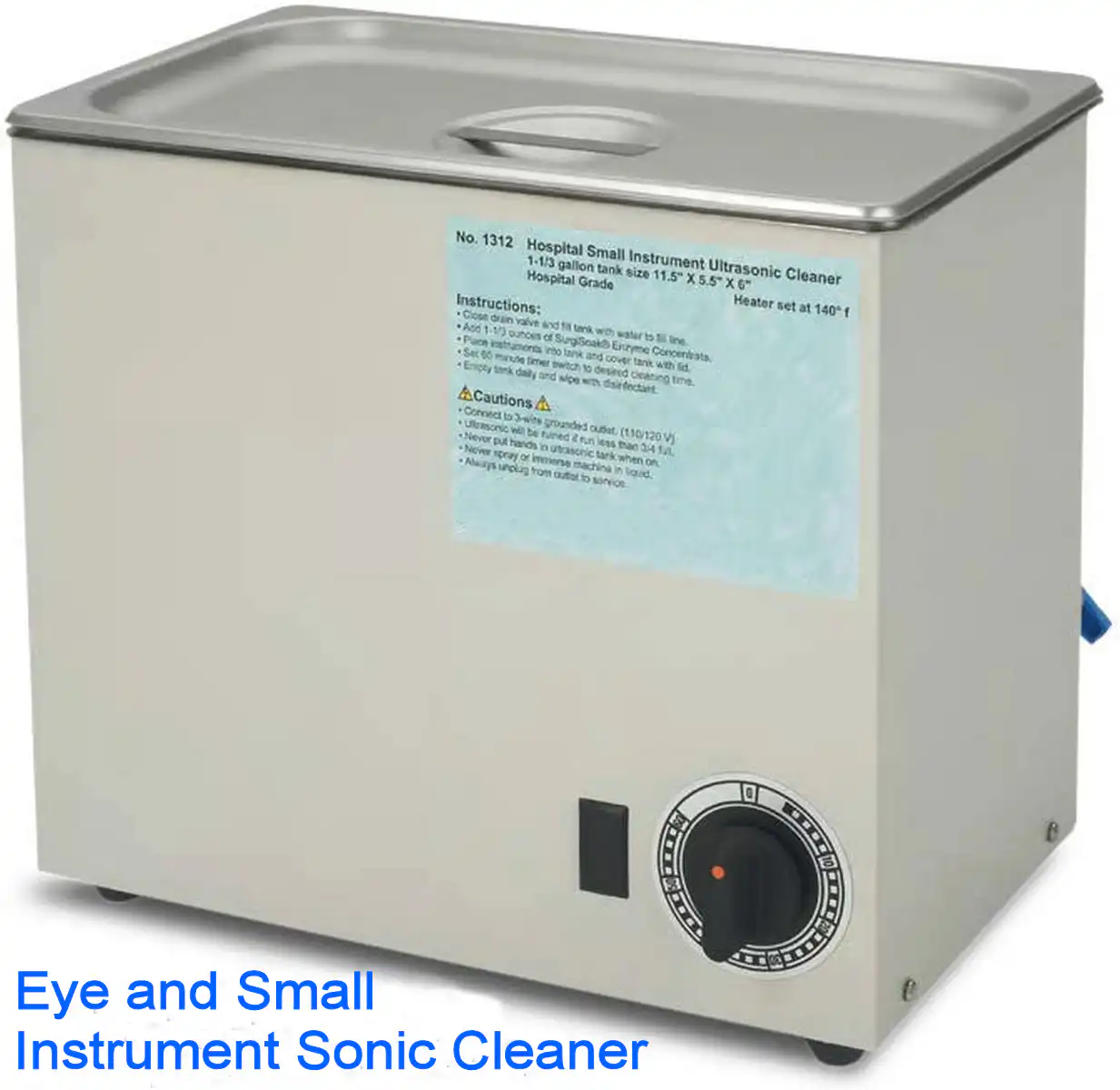

SurgiClean® 1312
Hospital Grade Ultrasonic Cleaner
The No. 1312 Ultrasonic Cleaner for Eye and Small Instruments is ideal for cleaning all small instruments and parts and it fits in easily wherever counter top space is limited. It comes with a lid, a basket, a drain tube, a hospital grade power cord, a 60 minute timer switch, and a heater. The timer switch automatically turns the heater on and off, and the heater automatically adjusts the temperature of the cleaning solution so that it does not go below 100 degrees Fahrenheit or above 120 degrees Fahrenheit.
Also included are an operating manual and a repair manual. All repairs can easily be done in the hospital in about one to two hours, and all repair parts are shipped Monday through Friday by next day air.
Ultrasonic Tank Size: 11.5 Wide x 5.5 Front to Back x 6 inches Deep
Overall Size: 12.5 Wide x 7 Front to Back x 11 inches Tall
Electrical: 150 Watts, 110/120VAC, Hospital grade power cord -

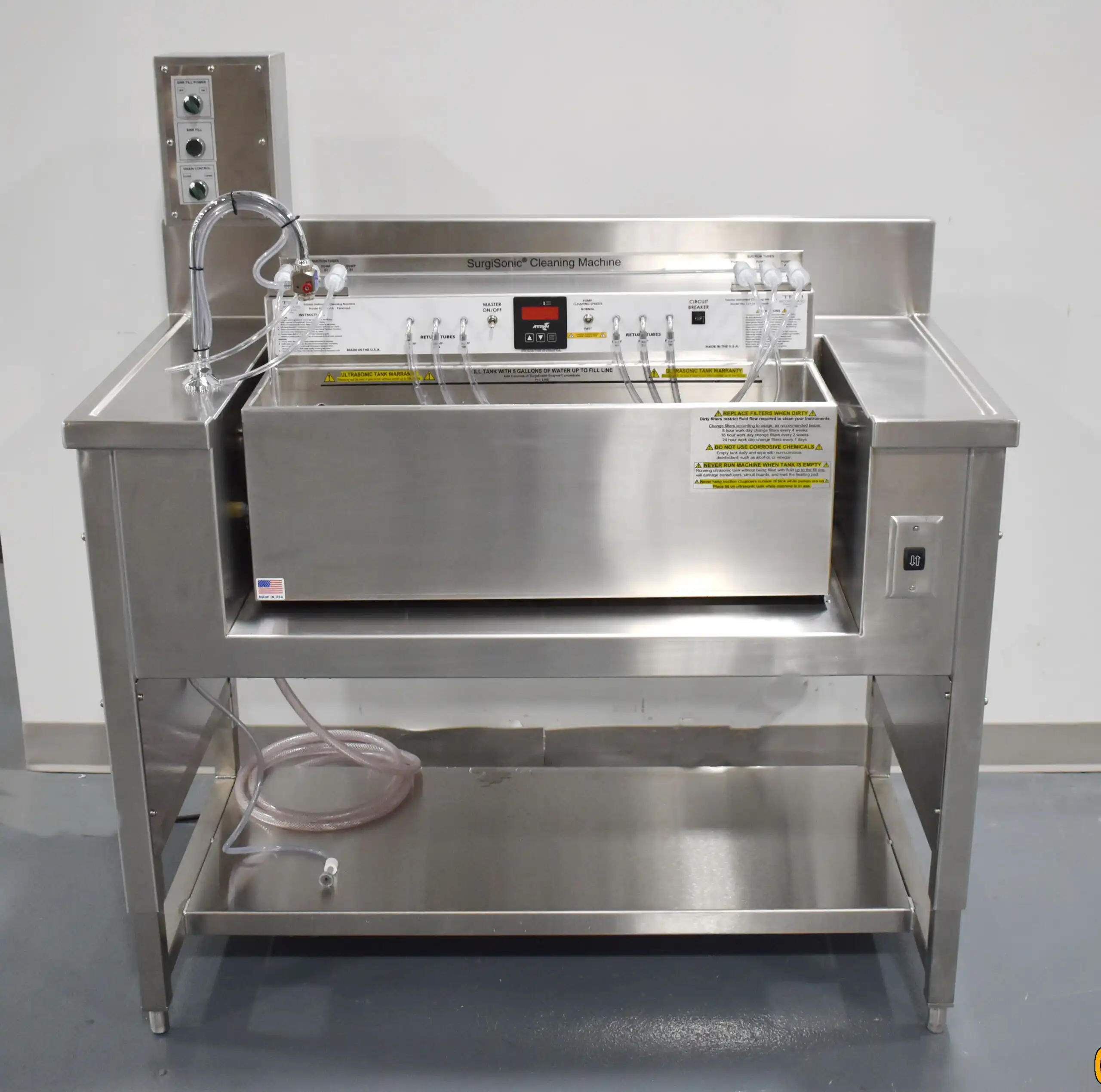

MODEL 26-48-AH WORK STATION
The Model 26-48-AH Workstation is designed to enable the SurgiSonic 1211X to be integrated into an ergonomic, height adjustable table to automate the 1211X with features including automatic ultrasonic tank filling, automatic ultrasonic tank draining and detergent dispensing. The unit requires hot and cold water connections, drain connection and a plug in electrical connection. (Ref. Dwg. R21203)
PDF Information Sheet
-

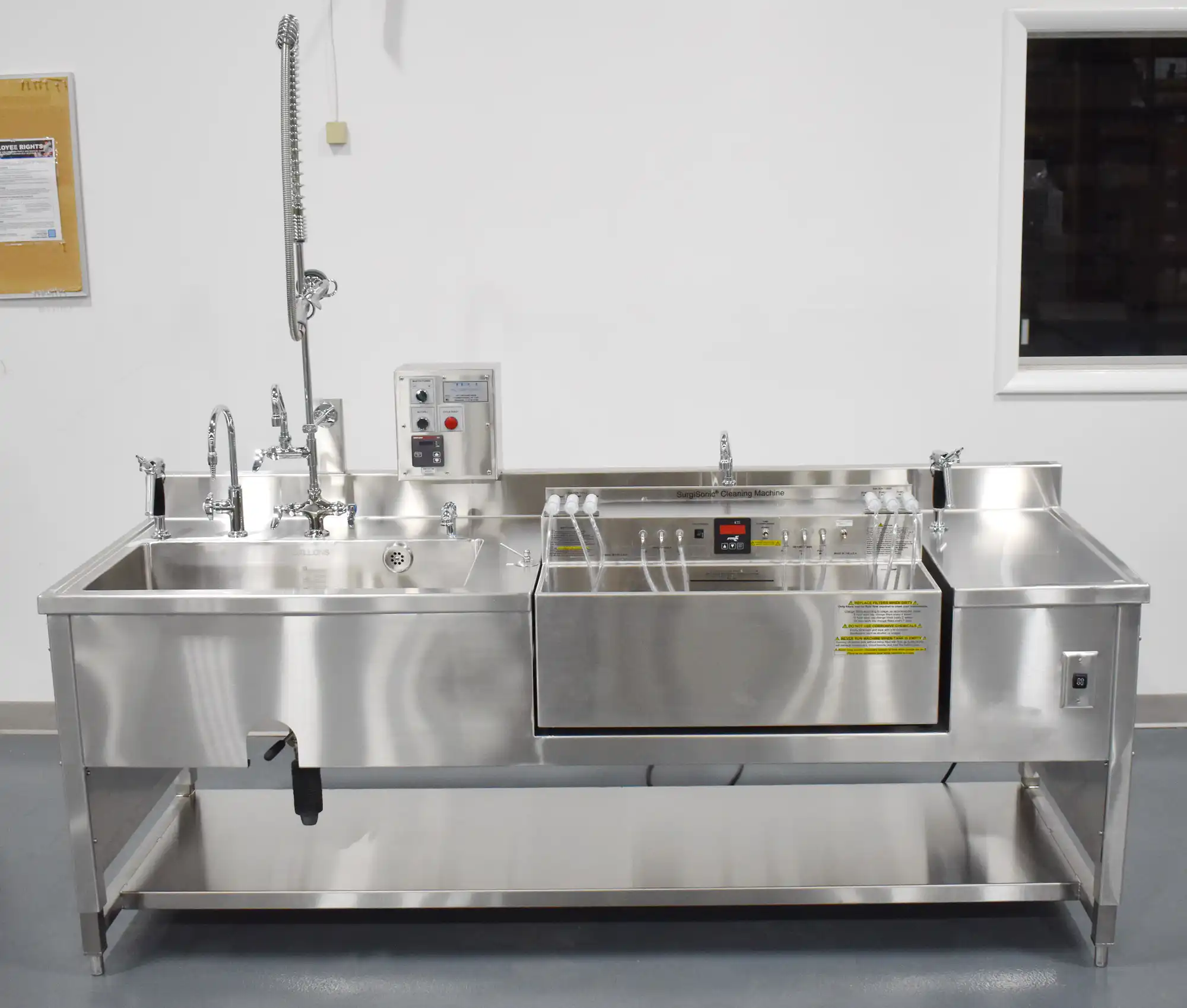

MODEL 30-85-1B-AH SINK WORK STATION
The Model 30-85-1B-AH Sink Workstation is designed to enable the SurgiSonic 1211X to be integrated into an ergonomic, height adjustable work sink to automate the 1211X with features including an easy access faucet for ultrasonic tank filling, tank draining and detergent dispensing. The unit includes a 30” x 16” sink to accommodate da Vinci instruments for soaking prior to ultrasonic and flushing processing in the 1211X. Sink fixtures include a DI/RO faucet, spray rinse and tap water faucet, air pistol and water pistol. (Ref. Dwg. R20272)
PDF Information Sheet
-

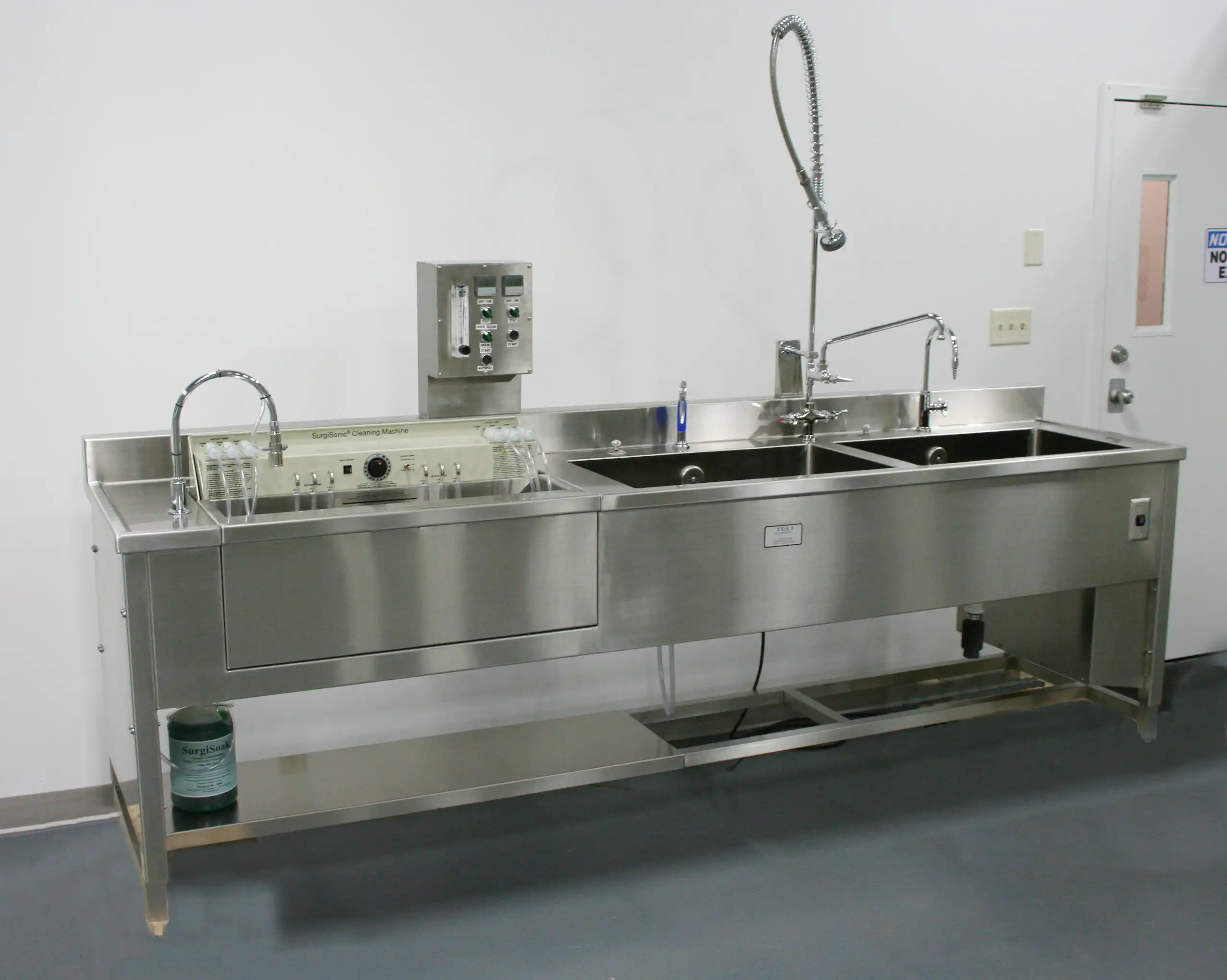

MODEL 26-108-2B-AH SINK WORK STATION
The Model 26-108-2B-AH Sink Workstation is designed to enable the SurgiSonic 1211X to be integrated into an ergonomic, height adjustable work sink to automate the 1211X with features including an easy access faucet for ultrasonic tank filling, tank draining and detergent dispensing. The unit includes (2) 30” x 16” sink bowls to accommodate da Vinci instruments for processing prior to ultrasonic and flushing processing in the 1211X. Sink fixtures include a DI/RO faucet, spray rinse and tap water faucet, air pistol and water pistol. (Ref. Dwg. R Stock 783)
PDF Information Sheet
-

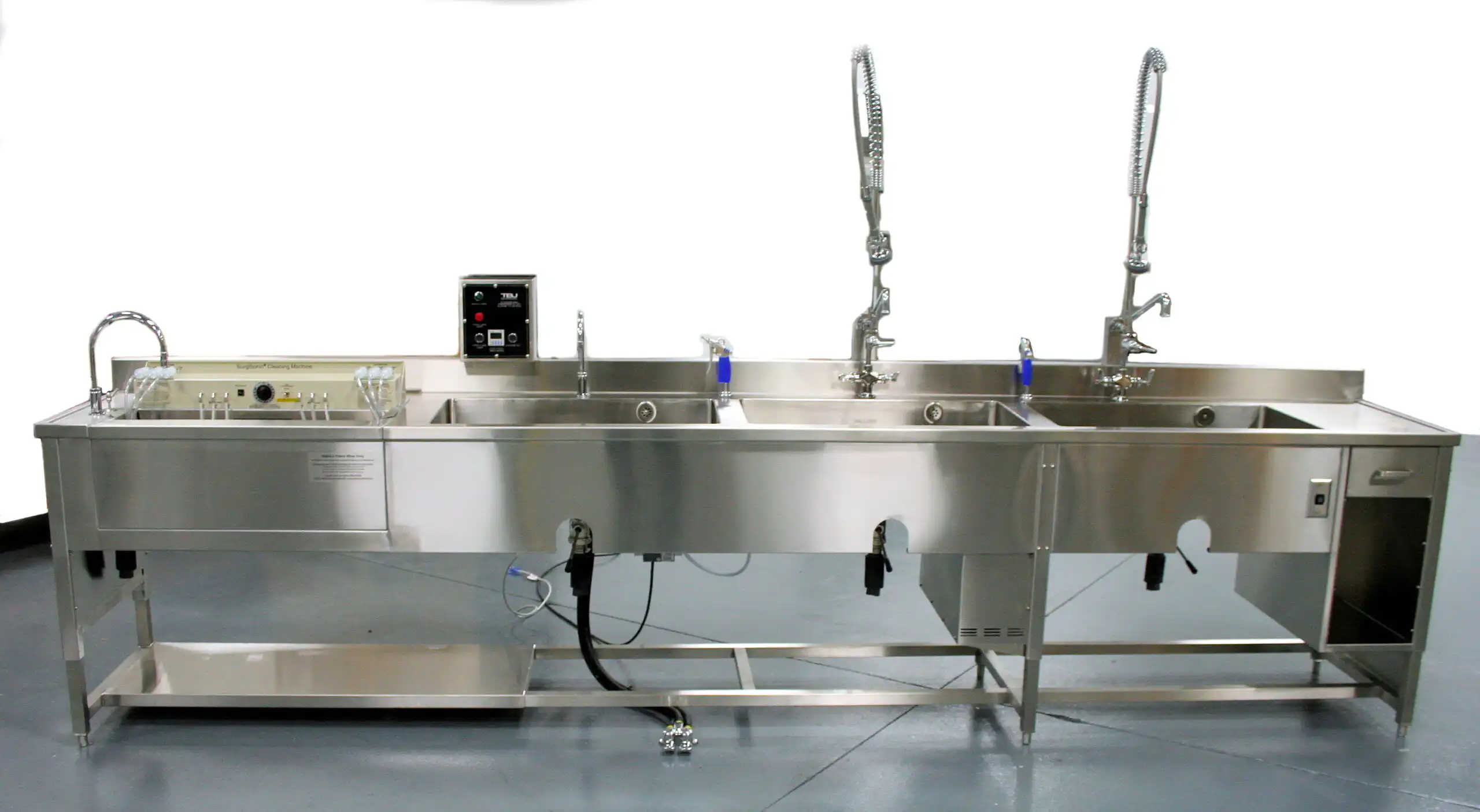

MODEL 26-160-3B-AH SINK WORK STATION
The Model 26-160-3B-AH Sink Workstation is designed to enable the SurgiSonic 1211X to be integrated into an ergonomic, height adjustable work sink to automate the 1211X with features including an easy access faucet for ultrasonic tank filling, tank draining and detergent dispensing. The unit includes (3) 32” x 17” sink bowls to accommodate da Vinci instruments for processing prior to ultrasonic and flushing processing in the 1211X. Sink fixtures include a DI/RO faucet, spray rinse and tap water faucet, air pistol and water pistol. (Ref. Dwg. R16170)
PDF Information Sheet
-

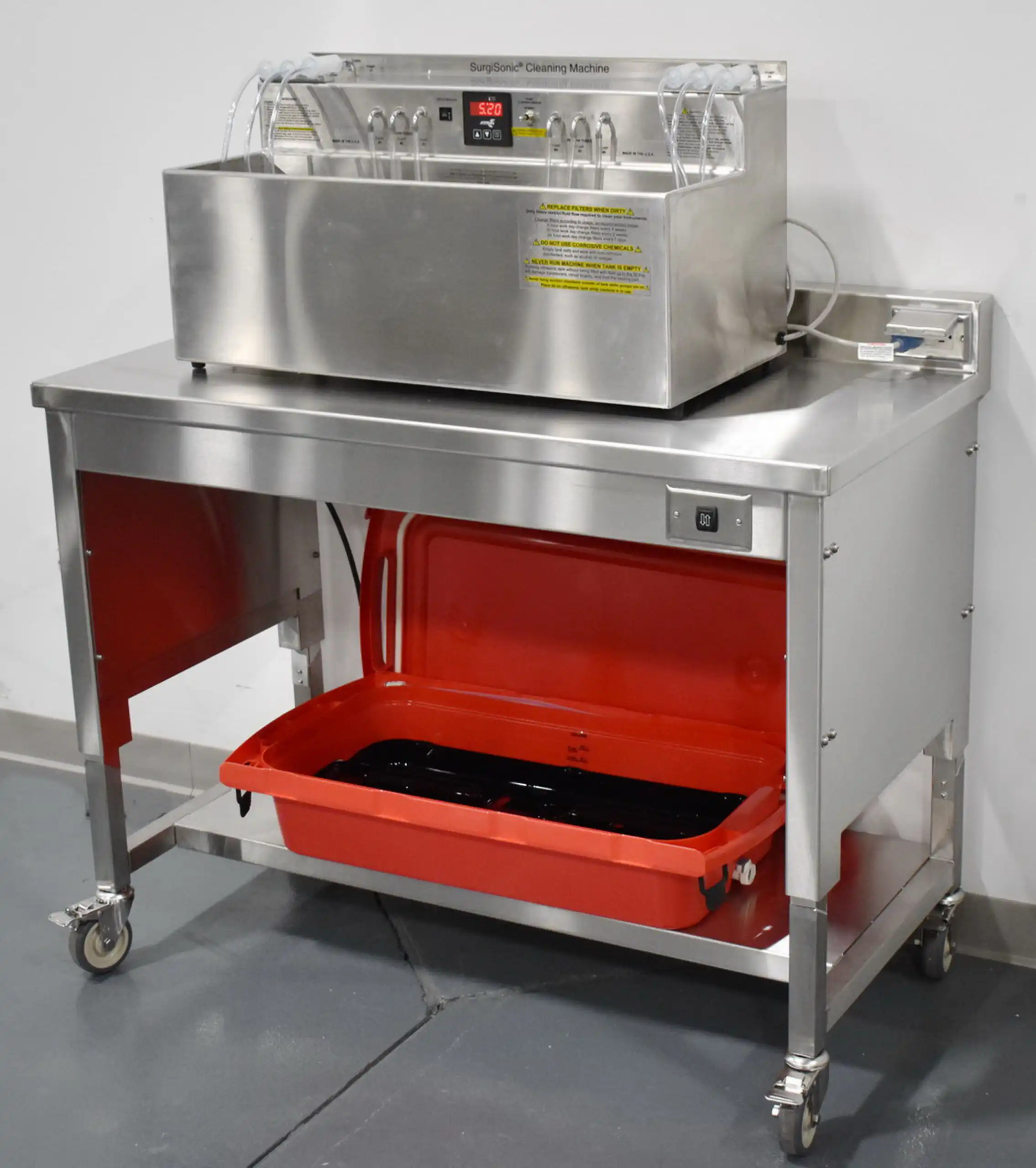

MODEL 28-48-WT-AH-M
The Model 24-48 WT-AH-M provides an ergonomic, mobile height adjustable work table for the SurgiSonic 1211X. The table includes push-button height adjustment, a GFCI outlet for powering the 1211X, a da Vinci transport container with drain and (4) swivel casters. The table allows the 1211X to be easily moved for tank filling, tank draining and for storage when not in use. (Ref. Dwg. R19315)
PDF Information Sheet
