Backdraft Workstation Model 35-104 BD-WM
Product Gallery:
(CLICK FOR LARGER IMAGE)
Description:

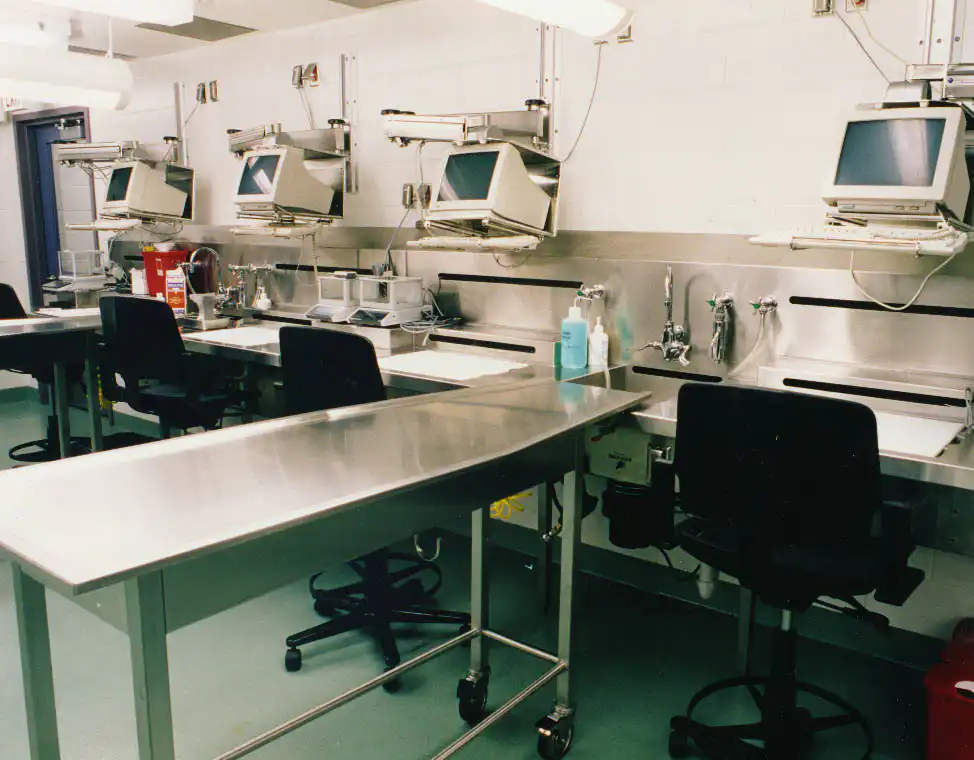

The TBJ Model 35-104 BD-WM is a dual user wall mounted backdraft workstation separated by a central sink. Each work area includes two backdraft slots to ventilate the work area from two levels and the sink also includes a vent slot. An optional mobile necropsy table can be docked to the sink to enable users to work on both sides of the necropsy table.

Features:
  • Overall dimensions: 35″ deep x 104″ wide
  • Standard features include 2 integral recessed cutting boards, 1 HP disposer, hot/cold water faucet, two low flow cold water outlets for rinsing specimens and a hydro-aspirator
  • Requires two 6 1/2″ x 12 1/2″ duct connections and two 6 1/2″ x 8 1/2″ duct connections
Information Sheets:
Backdraft Workstation Model 35-104 BD-WM
Description:

The TBJ Model 35-104 BD-WM is a dual user wall mounted backdraft workstation separated by a central sink. Each work area includes two backdraft slots to ventilate the work area from two levels and the sink also includes a vent slot. An optional mobile necropsy table can be docked to the sink to enable users to work on both sides of the necropsy table.

Features:
  • Overall dimensions: 35″ deep x 104″ wide
  • Standard features include 2 integral recessed cutting boards, 1 HP disposer, hot/cold water faucet, two low flow cold water outlets for rinsing specimens and a hydro-aspirator
  • Requires two 6 1/2″ x 12 1/2″ duct connections and two 6 1/2″ x 8 1/2″ duct connections
