TBJ offers a wide variety of ergonomic ventilated small animal surgery workstations designed to control, capture and exhaust waste anesthesia gases to protect technicians and keep exposure limits well below NIOSH recommended limits. Available in both backdraft and downdraft designs, workstations can be equipped with numerous options including adjustable scavenging arms, height adjustment, GFCI outlets, LED surgery lights, storage drawers, pullout Mayo tray, integral vaporizer and casters for portability.
Downdraft Surgery Table Model 32-26 DD-SC-VST
Downdraft Surgery Table Model 30-52 DD-SC VST
Small Animal Surgery Table Model 24-60 BD-SC-VST
Backdraft Surgery Table Model 30-48 BD-SC-VST
Rodent Surgery Table Model 30-60 DD-VST
Backdraft Surgery Table Model 30-68-S BD-VST
Downdraft Surgery Table Model 30-72-S DD-SC-VST
Backdraft Surgery Table Model 31-48 BD-VST
Animal Surgery Table Model 31-60 BD-SC-AH VST
Backdraft Surgery Workstation Model 31-60 BD-VST
Backdraft Surgery Table Model 31-72 BD-VST
Downdraft Surgery Table Model 32-26 DD-VST
Downdraft Surgery Table Model 32-32 DD-SC-VST
Downdraft Surgery Table Model 32-48 DD-VST
Backdraft Surgery Table Model 32-50 BD-VST-SC
Backdraft Surgery Table Model 32-50 BD-VST
Backdraft Surgery Table Model 32-60 BD-VST
Backdraft Surgery Table Model 36-162 BD-VST
Backdraft Surgery Table Model 36-60 BD-VST
Backdraft Surgery Table Model 36-60-S BD-VST
Backdraft Surgery Table Model SNS-42-M VST
-

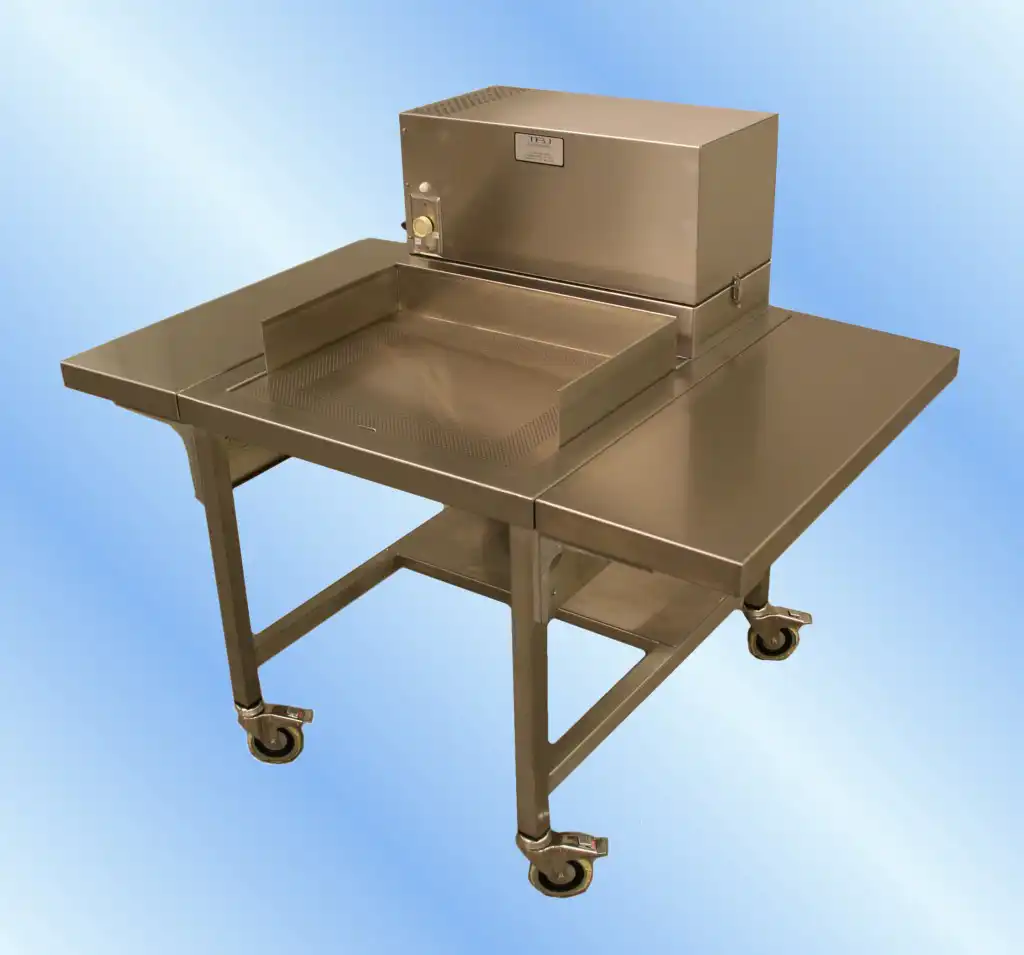

Downdraft Surgery Table Model 32-26 DD-SC-VST
The TBJ Model 32-26 DD-SC-VST downdraft surgery table is almost identical to the 32-26 DD except this model includes a self-contained blower/filter module to eliminate the need to connect to a building exhaust source. The filter media is specifically designed to filter anesthesia gases and re-circulate the purified air back into the room. The table is shown here with the optional adjustable snorkel arm that enables users to locate additional point of use exhaust ventilation at locations such as the induction box or nose cone. The optional halogen exam light is also shown on the surgery table.
Features:
- Overall table dimensions are 28" wide x 34" deep x 30" high work surface. Two hinged fold down shelves designed to provide additional non-vented work area increases the width to 52 1/2" in the up position.
- 22" x 18" perimeter downdraft work area
- 28" wide under counter storage shelf
- 4" diameter swivel casters with brakes
PDF Information Sheet
-

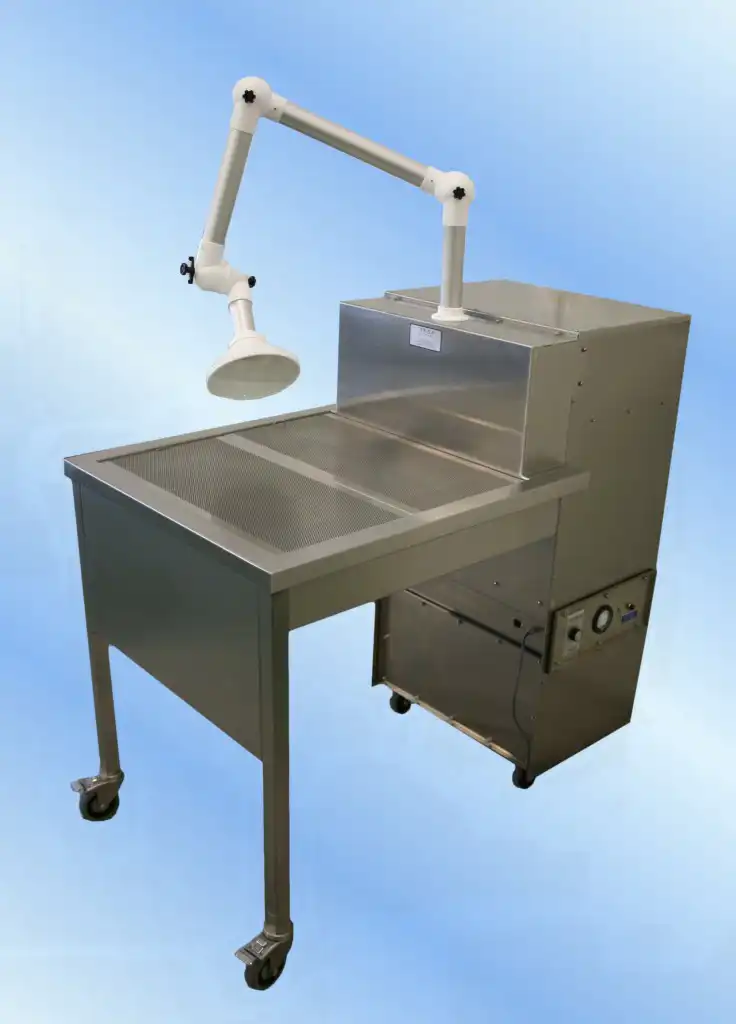

Downdraft Surgery Table Model 30-52 DD-SC VST
The TBJ Model 30-52 DD-SC is a compact, mobile downdraft surgery table that includes a self-contained blower/filter module to eliminate the need to connect to a building exhaust source. The filter media is specifically designed to filter anesthesia gases and recirculate the purified air back into the room and includes a variable speed blower. The table is shown here with the optional adjustable snorkel arm that enables users to locate additional point of use exhaust ventilation at locations such as the induction box or nose cone.
Features:
- Overall table dimensions are 20" wide x 52" deep x 45 1/2" high (37" high work surface)
- 26" x 26" downdraft work area
- Swivel casters with brakes
- 115 V plug in electrical connection
PDF Information Sheet
-

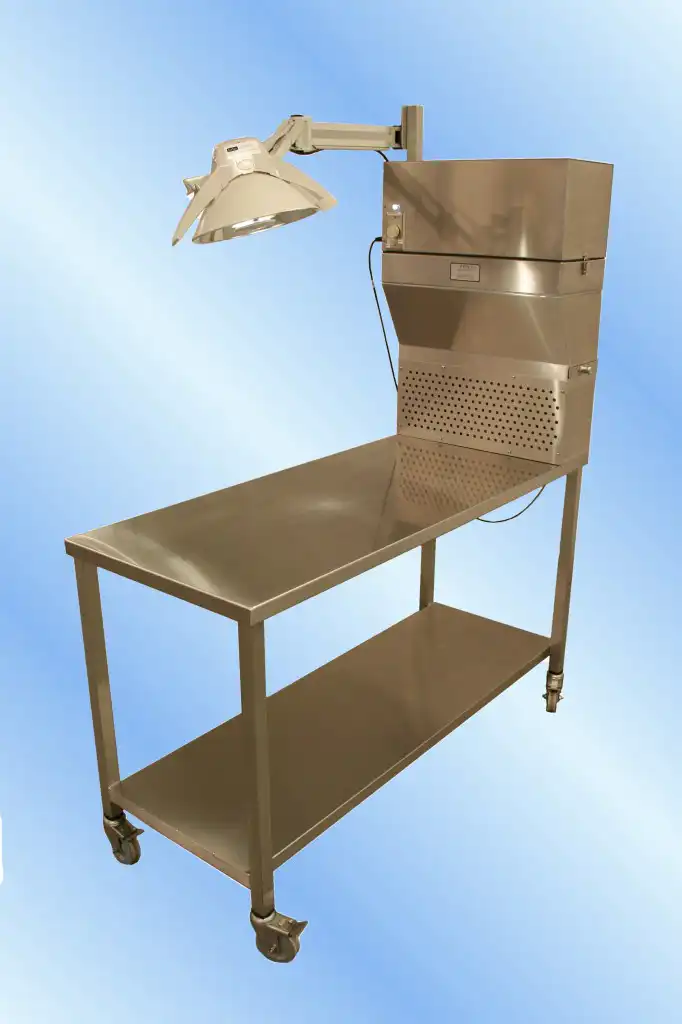

Small Animal Surgery Table Model 24-60 BD-SC-VST
The TBJ Model 24-60 BD-SC-VST is a mid size backdraft small animal surgery table designed to capture and exhaust waste anesthesia gases such as halothane or isoflurane during small animal surgery procedures. It is designed so that two people can work across from one another and includes a self-contained blower/filter module to eliminate the need to connect to a building exhaust source. The filter media is specifically designed to filter anesthesia gases and recirculate the purified air back into the room. The table is shown here with an optional adjustable arm swivel type surgical light.
Features:
- Overall dimensions: 24" wide x 60" x 36"high work surface
- 10" high x 24""side draft" plenum
- Includes backsplash and spacious 52" x 24" work surface.
- 4" diameter swivel casters with brakes
PDF Information Sheet
-

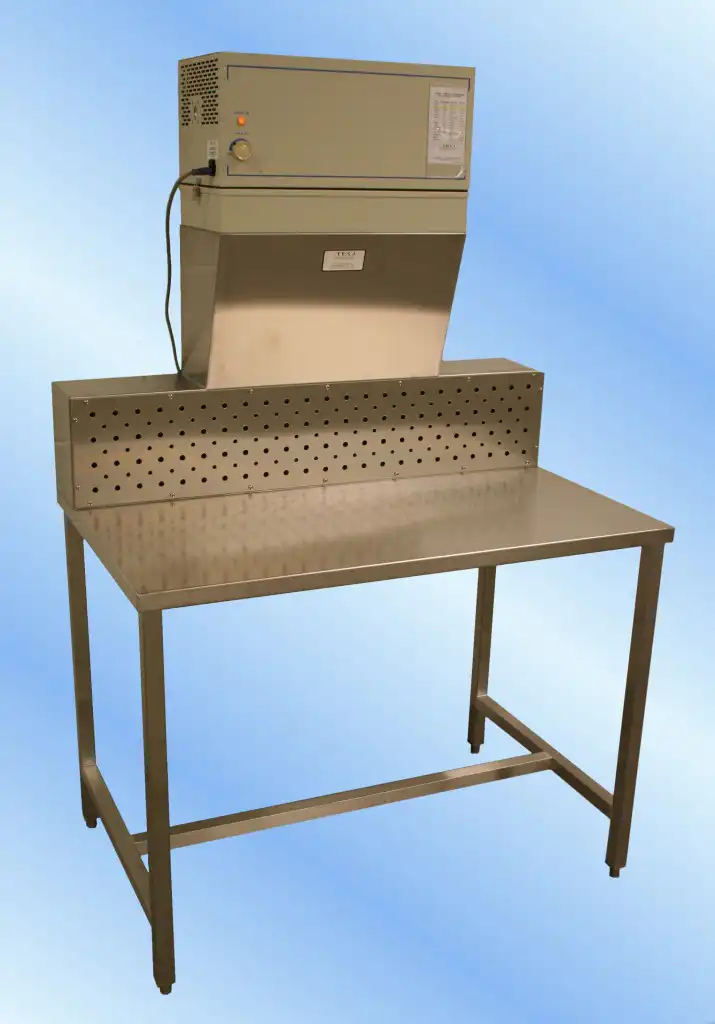

Backdraft Surgery Table Model 30-48 BD-SC-VST
The Model 30-48-BD-SC-VST is a compact backdraft surgery table designed to capture and exhaust waste anesthesia gases such as halothane or isoflurane during small animal surgery procedures. It includes a self-contained blower/filter module to eliminate the need to connect to a building exhaust source. The filter media is specifically designed to filter anesthesia gases and recirculate the purified air back into the room.
Features:
- Blower system includes adjustable speed control and ON/OFF switch.
- 48" wide x 22" work surface area.
- Overall dimensions: 30" wide x 48" x 36" high work surface.
PDF Information Sheet
-

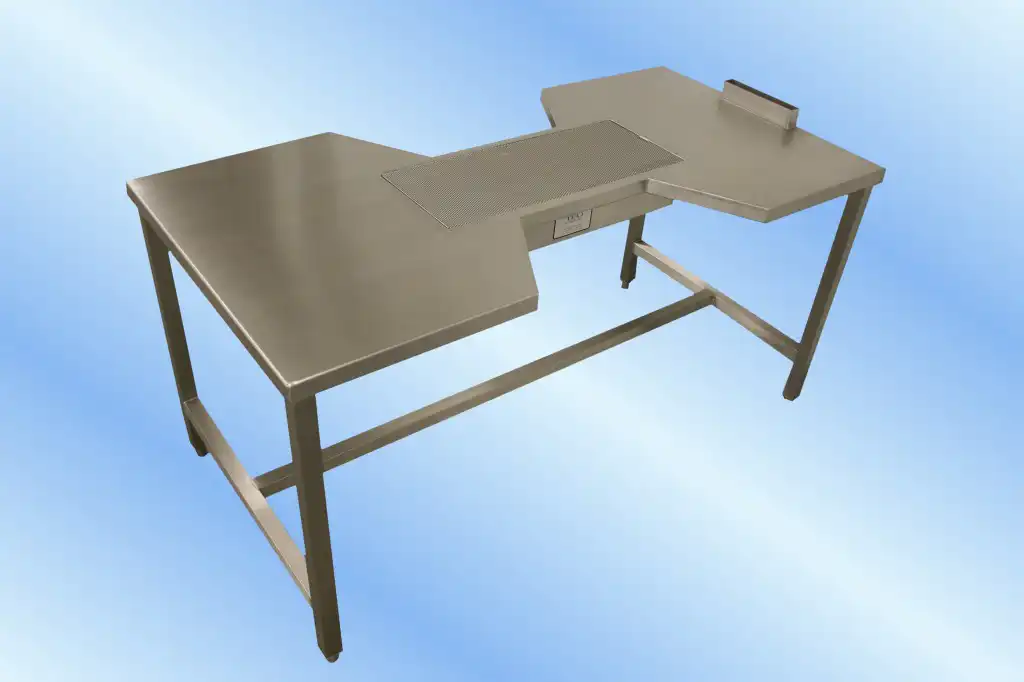

Rodent Surgery Table Model 30-60 DD-VST
The TBJ Model 30-60 DD-ST is a custom downdraft rodent surgery table designed so that two researchers can set comfortably across from one another during micro surgery procedures on rodents. Space is provided on both sides of the table for a microscope and other surgical instrumentation.
Features:
- 25" x 10" downdraft work surface.
- 1 1/2" x 9" duct connection.
- Type 304 stainless steel construction.
- Heavy duty tubular base frame with adjustable leveling feet.
- Overall dimensions: 30" x 60" x 30" high work surface.
PDF Information Sheet
-

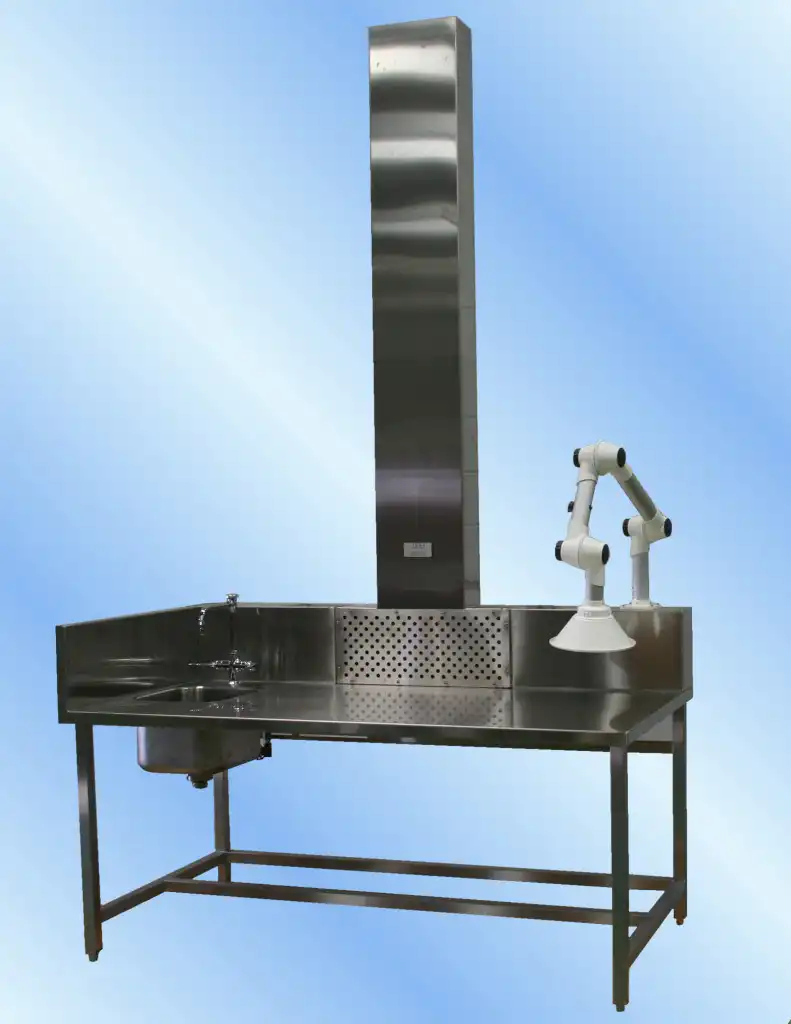

Backdraft Surgery Table Model 30-68-S BD-VST
The TBJ Model 36-68 BD-VST is a spacious backdraft surgery table designed to capture and exhaust waste anesthesia gases such as halothane or isoflurane during small animal surgery procedures. The table includes a compact, integrated sink with hot/cold water faucet and optional snorkel arm for additional point of use exhaust.
Features:
- Type 304 stainless steel construction
- 10" high backsplash and side splash
- 24" wide x 10" high backdraft plenum
- Optional duct extension to ceiling
- Heavy duty tubular base frame with adjustable leveling feet
- Overall dimensions: 36" x 68" x 30" high work surface.
- 6" x 12" duct connection
PDF Information Sheet
-

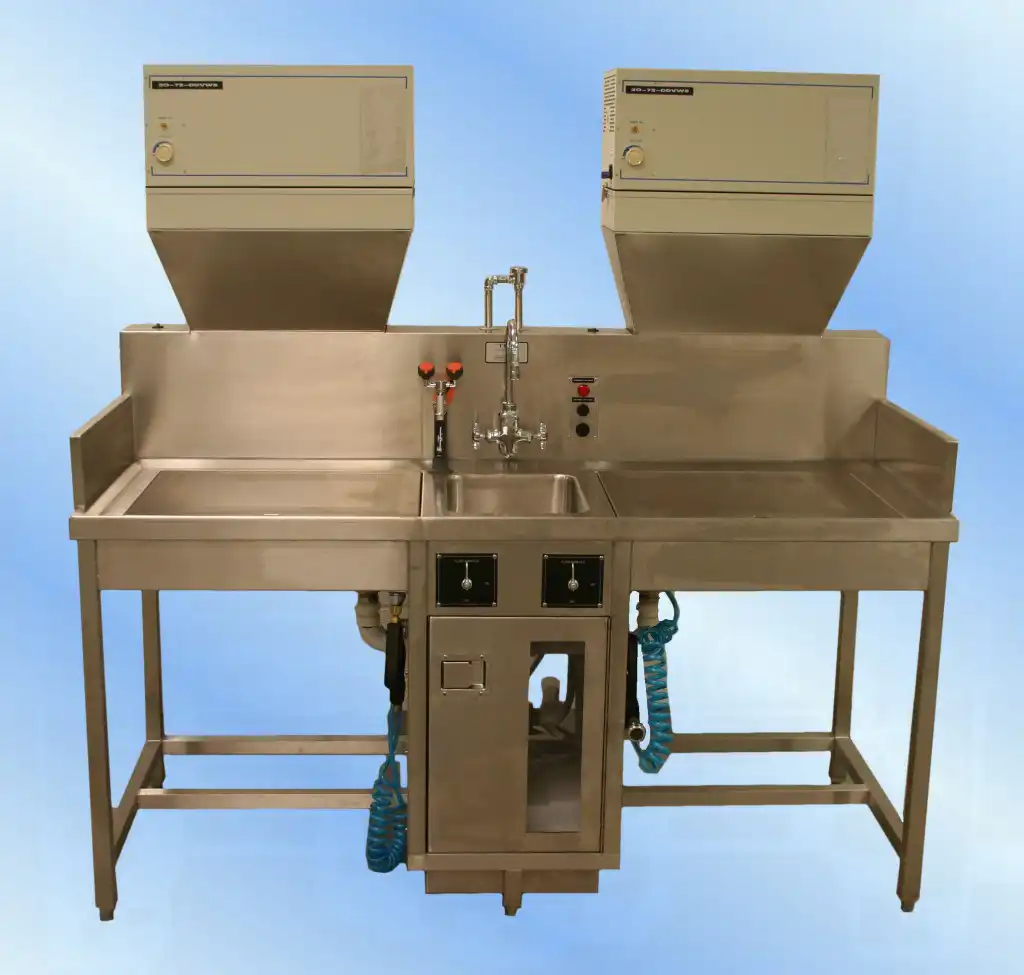

Downdraft Surgery Table Model 30-72-S DD-SC-VST
The TBJ Model 30-72-S DD-SC-DS-VST is a compact dual user animal downdraft surgery table designed for small animal surgical procedures. The table includes two blower/filter modules with variable speed control for ductless operation. The filters shall be designed to neutralize isolfurane and halothane anesthesia gases.
Features:
- Includes an integral sink with hot/cold water faucet
- Includes two spray guns and two rinse manifolds below the work surface.
- Two 24" x 19" work surface area with perimeter perforations.
- Six adjustable leveling feet
- Overall dimensions: 30" x 72" x 36" high work surface
PDF Information Sheet
-
Backdraft Surgery Table Model 31-48 BD-VST

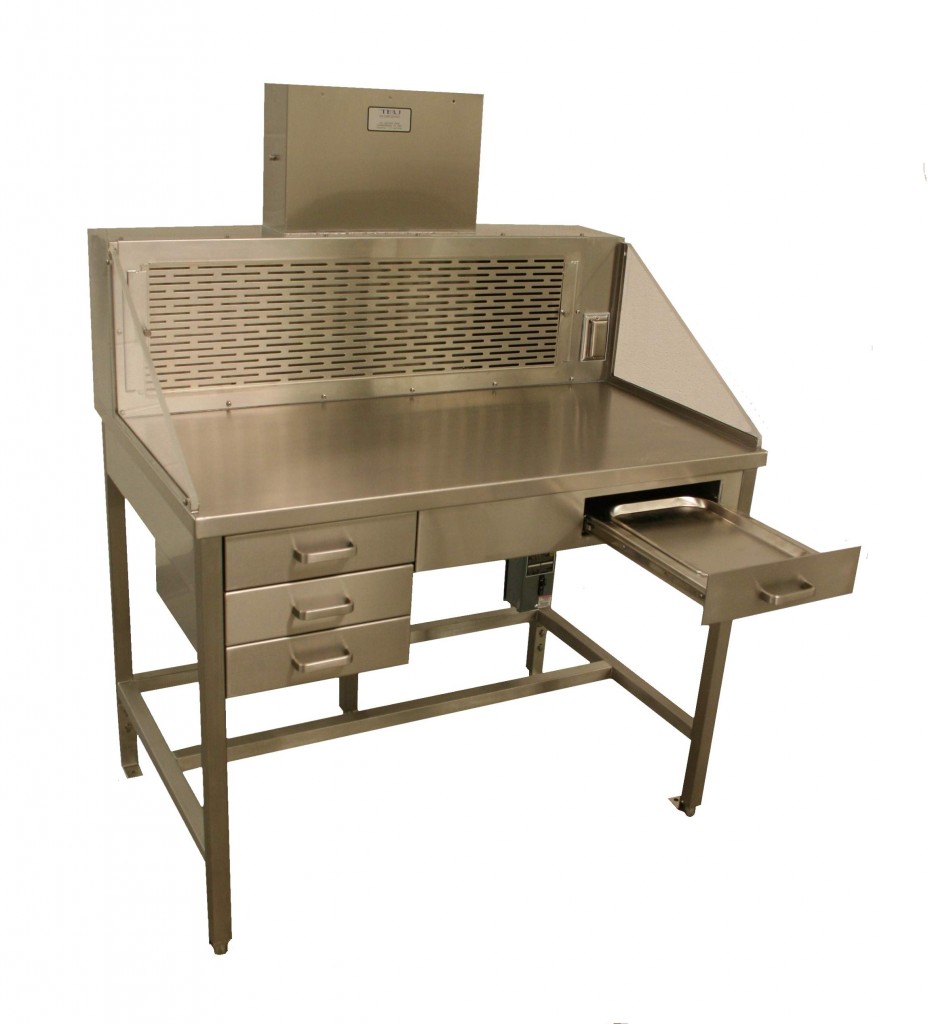

The TBJ Model 31-48 BD-VST is a compact backdraft surgery table shown here with optional storage drawers, pull out mayo tray, GRCI receptacle and duct extension above finished ceiling. The unit shown here with lexan side panels.
Features:
- 10" high x 8" deep by 48" wide backdraft plenum with adjustable slide damper to adjust face velocity
- 23" x 48" wide stainless steel work surface area
- 36" high work surface
- Heavy duty tubular base frame with adjustable leveling feet
PDF Information Sheet
-

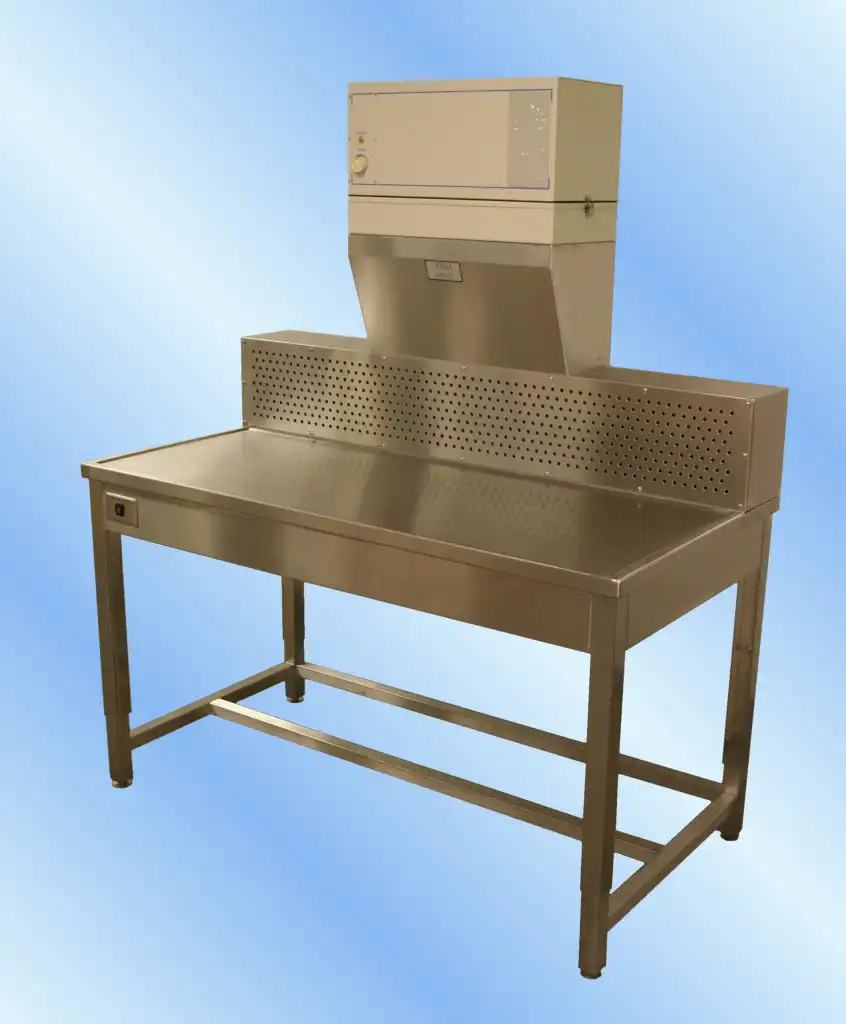

Animal Surgery Table Model 31-60 BD-SC-AH VST
The TBJ Model 30-60 BD-AH-SC is a compact, self-contained vented small animal surgery table that includes an integral blower and filter module to eliminate the need to connect to a remote exhaust source. The filter media can be customized to control and treat fumes from chemicals such as formalin and anesthesia gases. The filter module can also be equipped with a HEPA filter. The unit as shown includes the optional push-button height adjustment feature.
Features:
- Overall dimensions: 31" x 60" x 68 3/8" high with a 32-40" high work surface
- 23" x 60" wide work surface.
- Exhaust blower module with ON/OFF blower speed control
- 115V, 1 PH 60 HZ, 15 amps
PDF Information Sheet
-
Backdraft Surgery Workstation Model 31-60 BD-VST

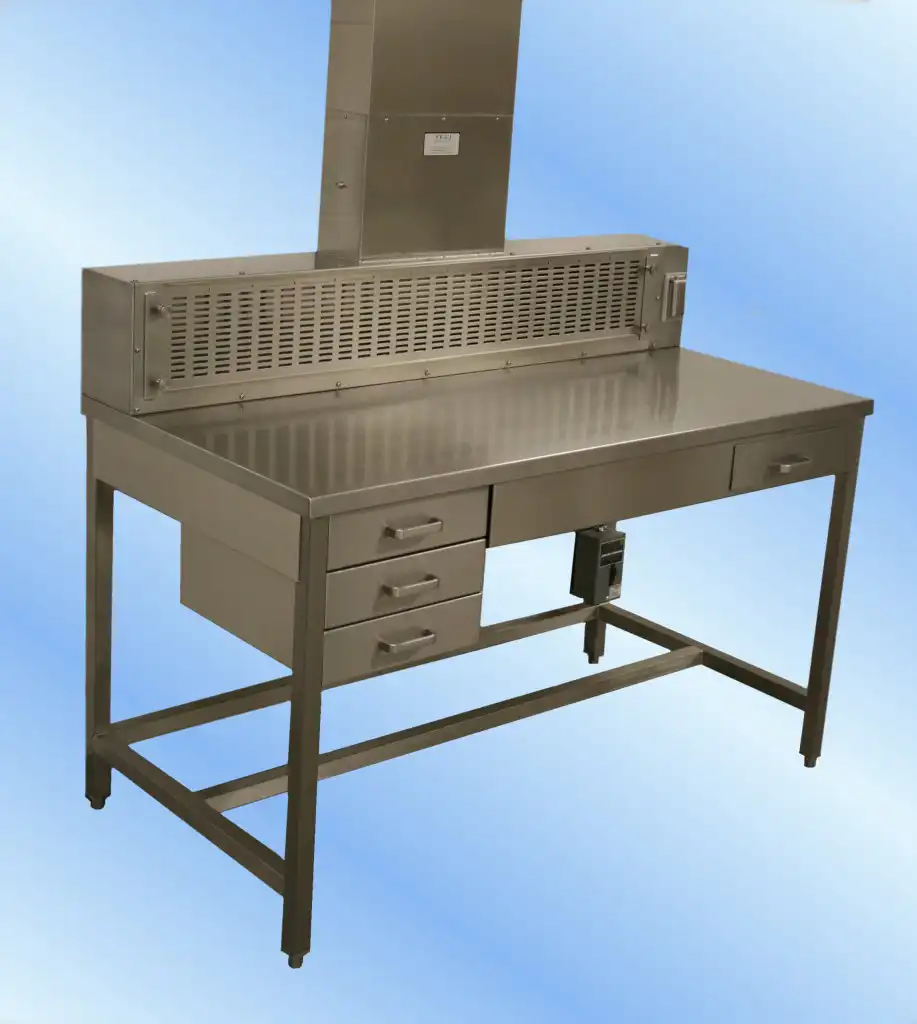

The TBJ Model 31-60 BD-VST is a spacious backdraft surgery table designed to capture and exhaust waste anesthesia gases such as halothane or isoflurane during small animal surgery procedures.
Features:
- Overall dimensions: 31" wide x 60" x 36" high work surface.
- 10" high x 56" backdraft plenum
- Spacious 23" x 60" work surface.
- 6" x 16" duct connection.
- Adjustable leveling feet
PDF Information Sheet
-

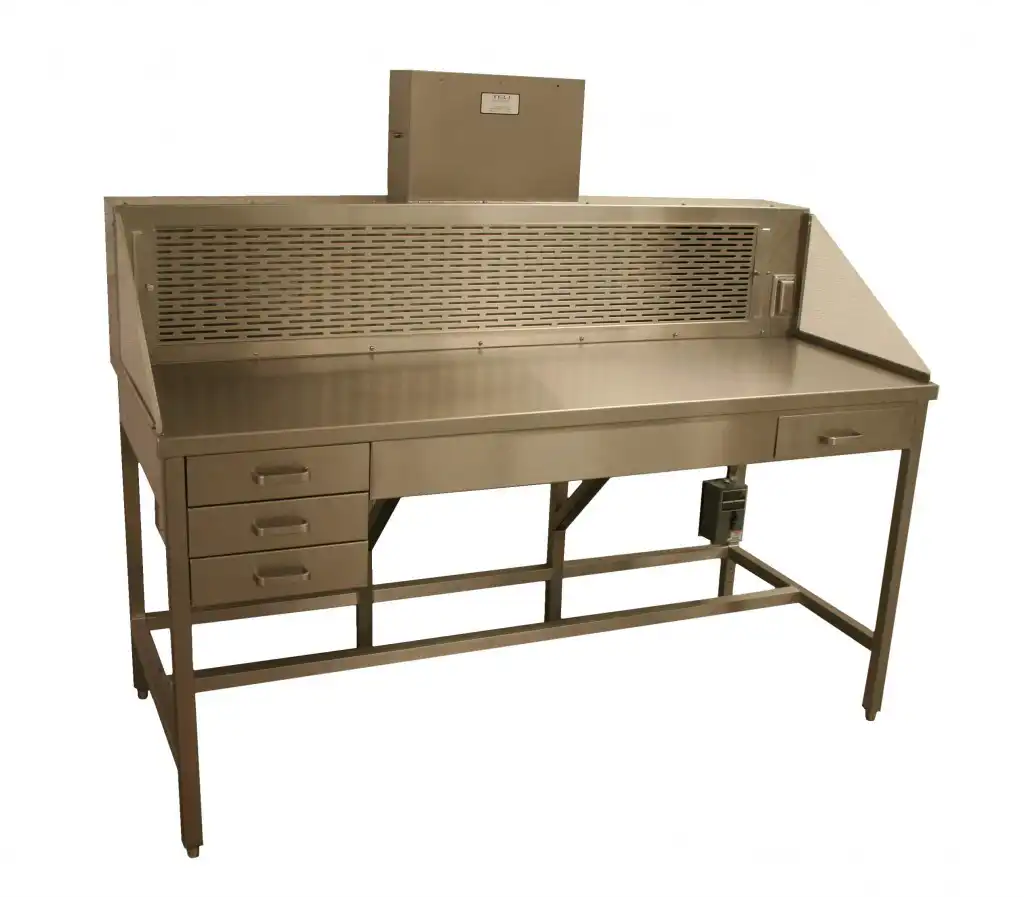

Backdraft Surgery Table Model 31-72 BD-VST
The TBJ Model 31-72 BD-VST is a 72" wide backdraft surgery table designed to capture and exhaust waste anesthesia gases such as halothane or isoflurane during small animal surgery procedures.
Features:
- Overall dimensions: 31" wide x 72" x 32 to 39" high work surface.
- 10" high x 64" backdraft plenum
- Spacious 23" x 60" work surface.
- 6" x 16" duct connection.
- Adjustable leveling feet.
PDF Information Sheet
-
Downdraft Surgery Table Model 32-26 DD-VST

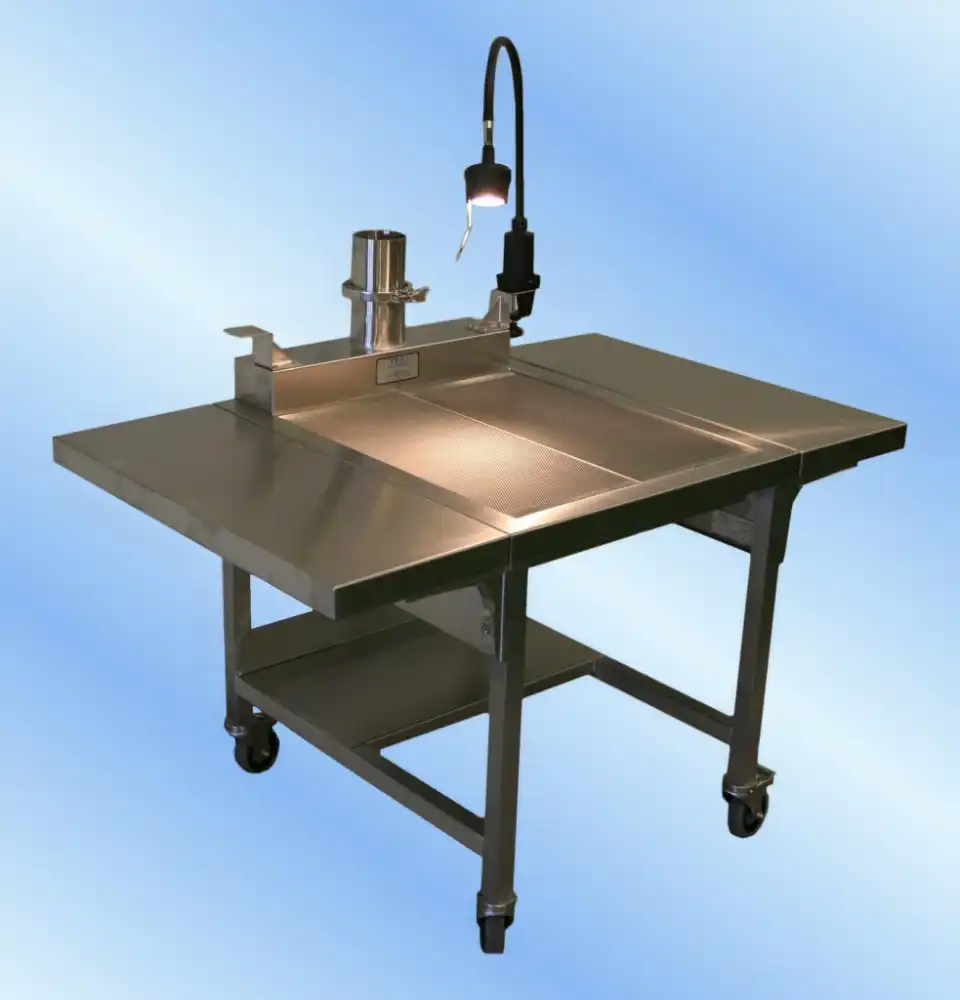

The TBJ Model 32-26 is a compact downdraft surgery table designed to capture and exhaust waste anesthesia gases such as halothane or isoflurane during small animal surgery procedures. This animal surgery table is shown here with the optional adjustable snorkel arm that enables users to locate additional point of use exhaust ventilation at locations such as the induction box or nose cone. The optional halogen exam light is also shown on the surgery table. Overall table dimensions are 26" wide x 32" deep x 30" high work surface. Two hinged fold down shelves designed to provide additional non-vented work area increases the width to 50 1/2" in the up position.
Features:
- 22" x 25" downdraft work area
- 26" wide under counter storage shelf
- 4" diameter duct connection
- 4" diameter swivel casters with brakes
PDF Information Sheet
-
Downdraft Surgery Table Model 32-32 DD-SC-VST

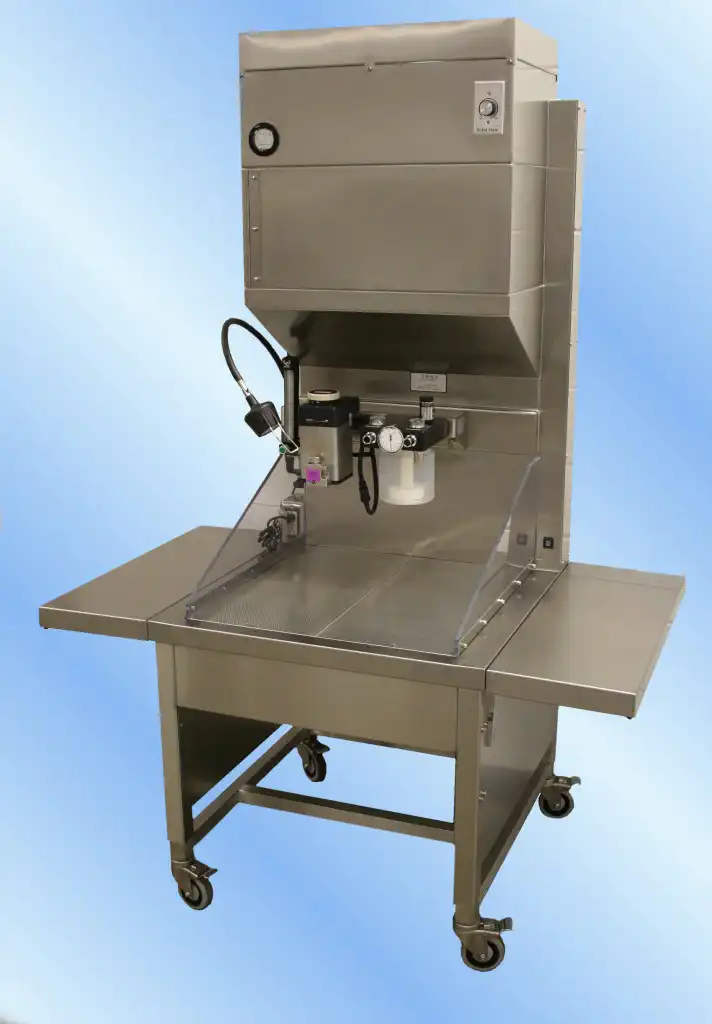

The TBJ Model 32-32 DD-SC-VST is a compact, mobile downdraft surgery table that includes a self-contained blower/filter module to eliminate the need to connect to a building exhaust source. It includes both charcoal filter media specifically designed to filter anesthesia gases and a HEPA filter. Air is drawn down from through the perforated work area and purified air is re-circulated back into the room. A variable speed control is provided to allow for adjustment of the blower speed. The table is shown here with the optional anesthesia vaporizer, push-button height adjustment, halogen surgery lamp and GFCI outlet.
Features:
- Overall table dimensions are 32" wide x 32" deep x 83" high.
- The work surface is adjustable from 30" to 36" high.
- 26" x 26" downdraft work area
- Two fold-down shelves to increase the work area.
- Four swivel casters with brakes
- 115 Volt plug in electrical connection.
PDF Information Sheet
-

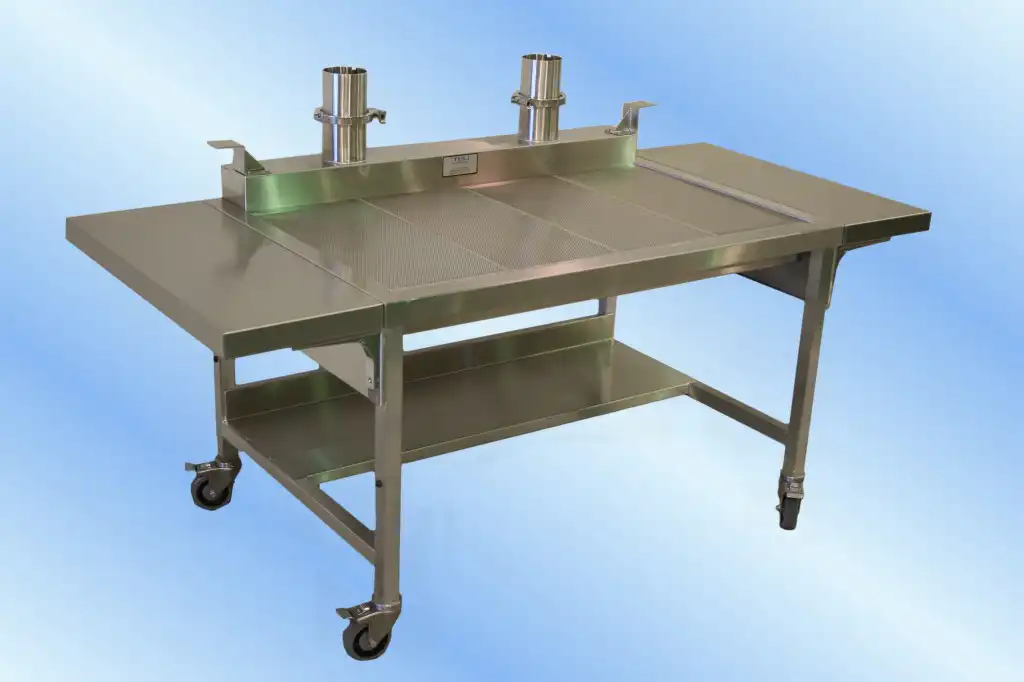

Downdraft Surgery Table Model 32-48 DD-VST
The TBJ Model 32-48 DD downdraft surgery table is designed to capture and exhaust waste anesthesia gases such as halothane or isoflurane during small animal surgery procedures. The table is shown here with two optional halogen exam lights and two adjustable snorkel arms that enable users to locate additional point of use exhaust ventilation at locations such as the induction box or nose cone.
Features:
- Overall table dimensions are 48" wide x 32" deep x 30" high work surface. Two hinged fold down shelves designed to provide additional non-vented work area increases the width to 72 1/2" in the up position.
- 44" x 25" downdraft work area
- 48" wide under counter storage shelf
- Two 4" diameter duct connections
- 4" diameter swivel casters with brakes
PDF Information Sheet
-
Backdraft Surgery Table Model 32-50 BD-VST-SC

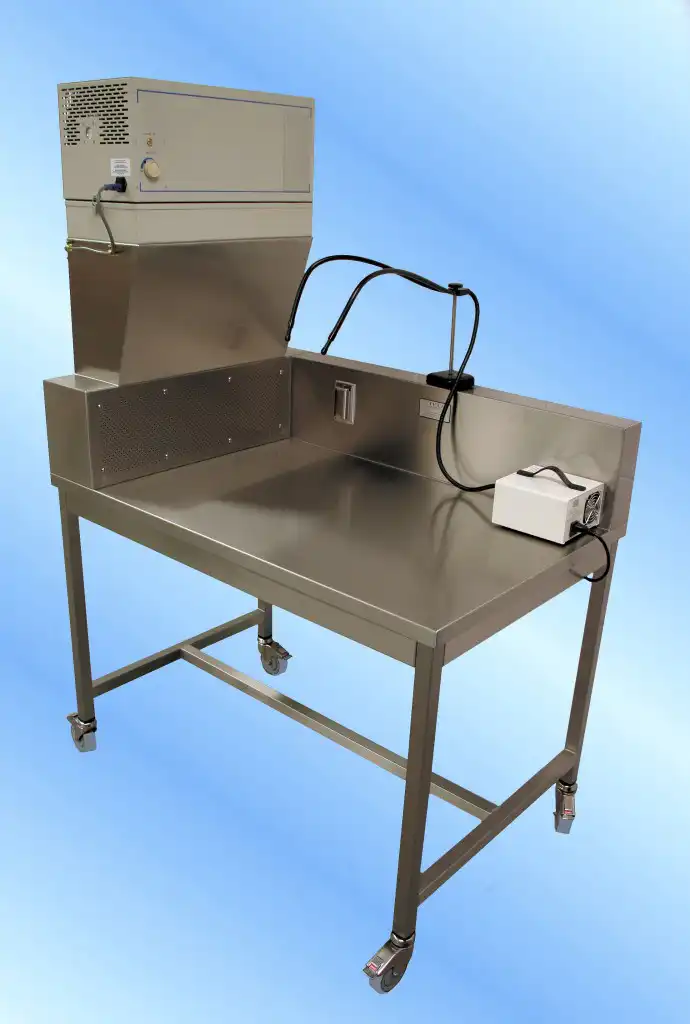

The TBJ Model 32-50 BD-SC-VST is a mid size backdraft surgery table designed to capture and exhaust waste anesthesia gases such as halothane or isoflurane during small animal surgery procedures. It includes a self-contained blower/filter module to eliminate the need to connect to a building exhaust source. The filter media is specifically designed to filter anesthesia gases and recirculate the purified air back into the room. The table is shown here with push-button height adjustment and a halogen surgery light.
- Overall dimensions: 32" wide x 50" x 30" to 36"high work surface
- 10" high x 32""side draft" plenum
- Includes backsplash and spacious 42" x 28" work surface
- 4" diameter swivel casters with brakes
Features:
PDF Information Sheet
-
Backdraft Surgery Table Model 32-50 BD-VST
The TBJ Model 32-50 BD is a mid size backdraft surgery table designed to capture and exhaust waste anesthesia gases such as halothane or isoflurane during small animal surgery procedures. The table is shown here with the optional adjustable snorkel arm that enables users to locate additional point of use exhaust ventilation at locations such as the induction box or nose cone. The table as shown also includes push-button height adjustment and a GFCI outlet.
Features:
- Overall dimensions: 32" wide x 50" x 32" to 38" high work surface
- 10" high x 32""side draft" plenum
- Backsplash and spacious 42" x 28" work surface
- 6" duct connection
- 4" diameter swivel casters with brakes
PDF Information Sheet
-
Backdraft Surgery Table Model 32-60 BD-VST
The TBJ Model 32-60 is a mid size backdraft surgery table designed to capture and exhaust waste anesthesia gases such as halothane or isoflurane during small animal surgery procedures. The surgery table is shown here with the optional adjustable snorkel arm that enables users to locate additional point of use exhaust ventilation at locations such as the induction box or nose cone. The table as shown also includes push-button height adjustment, two GFCI outlets, a two tier back shelf, three storage drawers and a pull-out mayo tray.
Features:
- Overall dimensions: 32" wide x 60" x 30" to 36" high work surface
- 10" high x 32""side draft" plenum
- Spacious 52" x 28" work surface.
- 6" duct connection
- 4" diameter swivel casters with brakes for portablility are optional
PDF Information Sheet
-
Backdraft Surgery Table Model 36-162 BD-VST

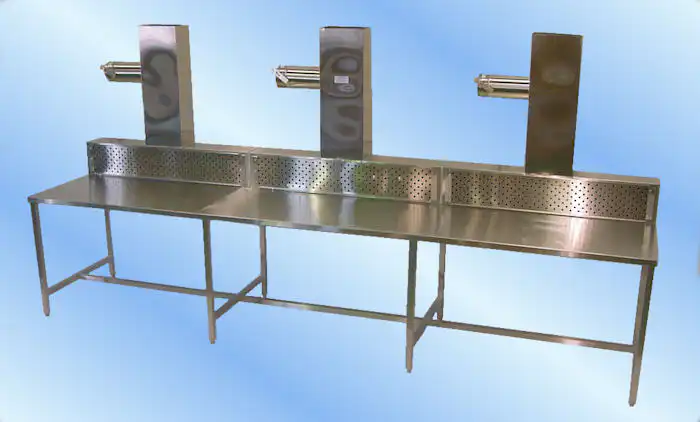

The TBJ Model 36-162 BD-VST is a 3-station backdraft surgery table designed for small animal surgical procedures.
Features:
- Backdraft plenum with three adjustable slide dampers and three barometric dampers enable users to control the airflow at each workstation.
- Overall dimensions: 36" wide x 162" long x 36" high worksurface.
- Mechanical field joint enable the unit to be broken down into two pieces for egress through hallways and doorways.
- Three 8" x 12" duct connections.
PDF Information Sheet
-

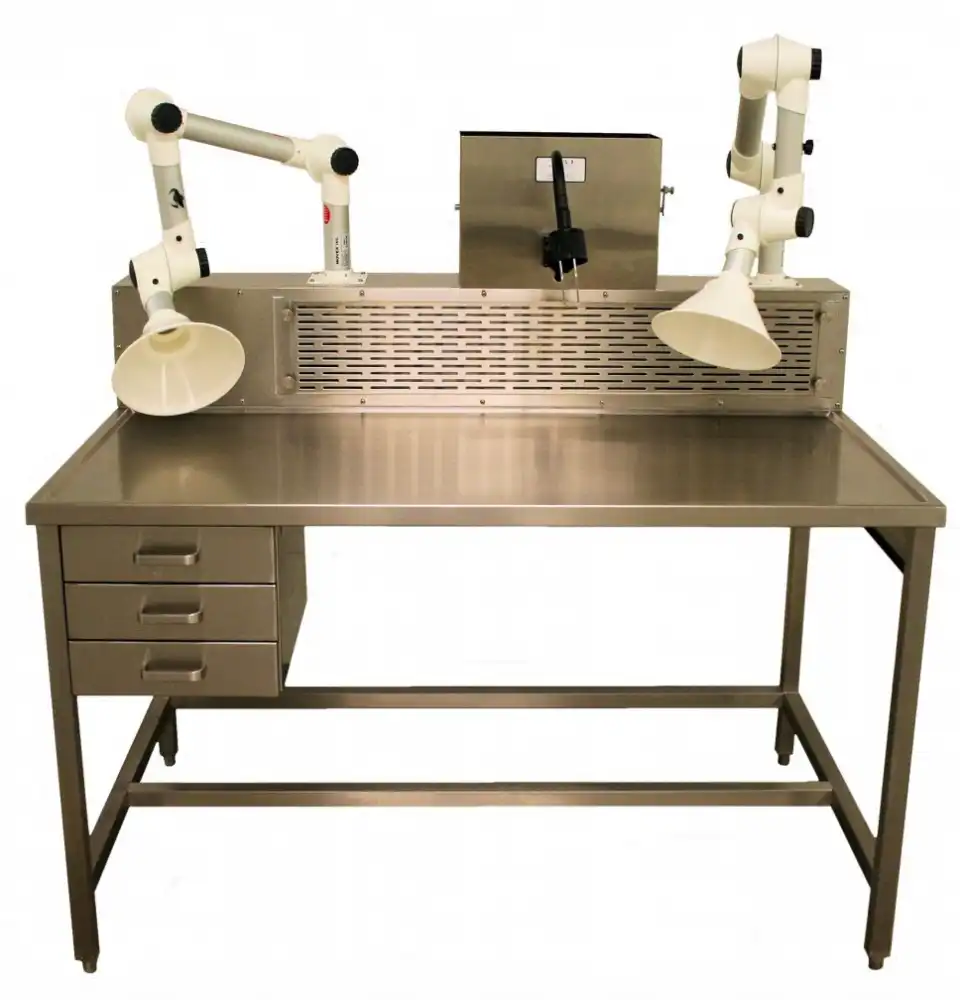

Backdraft Surgery Table Model 36-60 BD-VST
The TBJ Model 36-60 BD-VST is a spacious backdraft surgery table designed to capture and exhaust waste anesthesia gases such as halothane or isoflurane during small animal surgery procedures. The table includes three storage drawers and is shown here with two optional snorkel arms and halogen surgery lamp.GFCI receptacle and a pull out may tray.
Features:
- Additional options include GFCI receptacles, pull out mayo tray and push-button height adjustment.
- Overall dimensions: 36" wide x 60" x 36" high work surface.
- 10" high x 56" backdraft plenum.
- Spacious 28" x 60" work surface.
- 8" x 16" duct connection.
- Adjustable leveling feet.
PDF Information Sheet
-
Backdraft Surgery Table Model 36-60-S BD-VST
The TBJ Model 36-60-S BD-VST is a spacious backdraft surgery table designed to capture and exhaust waste anesthesia gases such as halothane or isoflurane during small animal surgery procedures. This surgery table includes and integral sink and faucet and is shown here with an optional hydro aspirator and spray gun.
Features:
- 10" high x 60" wide backdraft plenum with slide damper face velocity control
- Spacious 28" x 60" work surface.
- 6" x 16" duct connection with option duct extension
- Overall dimensions: 36" wide x 60" x 36" high work surface.
- Adjustable leveling feet.
PDF Information Sheet
-
Backdraft Surgery Table Model SNS-42-M VST

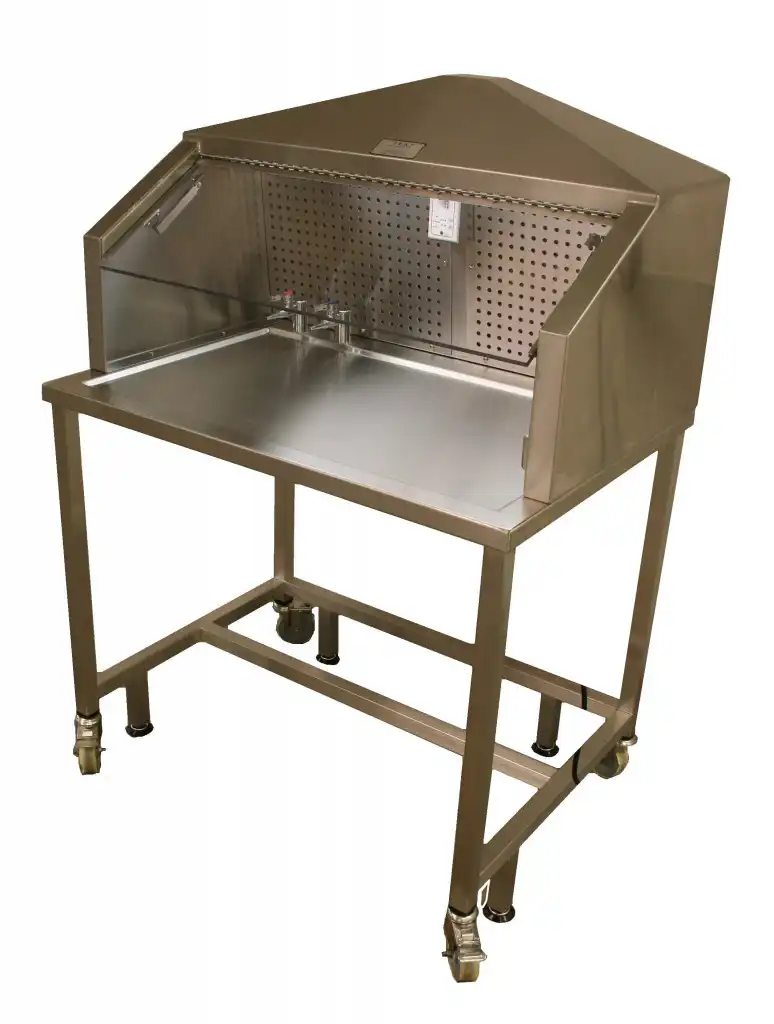

TBJ Model SNS-42-M is a compact semi-enclosed mobile backdraft surgery table. It includes four swivel casters with brakes as well as four legs with leveling feet to provide additional stability when the table is in use in a stationary position.
Features:
- Overall dimensions: 30" deep x 42" wide x 36"high work surface
- 38" wide x 26" backdraft ventilated work area
- Standard features include integral fluorescent light fixture with ON/OFF switch and hinged viewing window with stainless steel lid stays.
- Shown here with optional CO2 and Isoflurane outlets and velocity monitor.
- 6" duct connection" can be rear mounted as shown or top mounted.
PDF Information Sheet
