Single user dual draft workstations provide ventilation integrating both downdraft and backdraft technologies for a single user. Airflow is drawn through perforated work surface panels and a backdraft grill located vertically behind the work surface panels.
Dual Draft Workstation Model 21-36 DD-BD SC
Dual Draft Workstation Model 28-36 DD-BD-SE
Table Top Dual Draft Workstation Model 29-36 DD-BD-SE TT
Dual Draft Workstation Model 30-34 DD-BD
Mobile Dual Draft Workstation Model 30-46 DD-BD-M
Dual Draft Trim Station Model 30-48 DD/BD
Dual Draft WorkstationModel 30-48 SE-DD/BD
Dual Draft Workstation Model 30-48-S DD-BD-H
Dual Draft Workstation Model 30-60-S DD/BD
Dual Draft Workstation Model 34-60-S DD-BD
Dual Draft Workstation Model 36-60 DD-BD
Dual Draft Workstation Model 36-61 DD-BD
Dual Draft Workstation Model 30-34 DD/BD AH
-
Dual Draft Workstation Model 21-36 DD-BD SC
Features:
- Overall dimensions: 36" wide x 27" deep x 37" high work surface
- 32" wide x 19" perforated downdraft work surface
- 28" wide x 6" high adjustable backdraft grille
- Fluorescent light fixture with ON/OFF switch
- GFCI receptacle
- Integral filter usage timer with"filter change" indicator light
- 115V, 20 amp operation
PDF Information Sheet
-
Dual Draft Workstation Model 28-36 DD-BD-SE
The TBJ Model 28-36 DD-BD-SE dual draft workstation is a semi enclosed combination downdraft and backdraft station designed for fume control in a wide variety of applications.
Features:
- Overall dimensions: 28" deep x 36" wide x 34"high work surface.
- 8" wide x 28" backdraft vent grill
- Two hinged viewing windows for semi-enclosed use.t fixture with
- Two removable work surface panels
- 4" duct connection
- Type 304 stainless steel construction
PDF Information Sheet
-

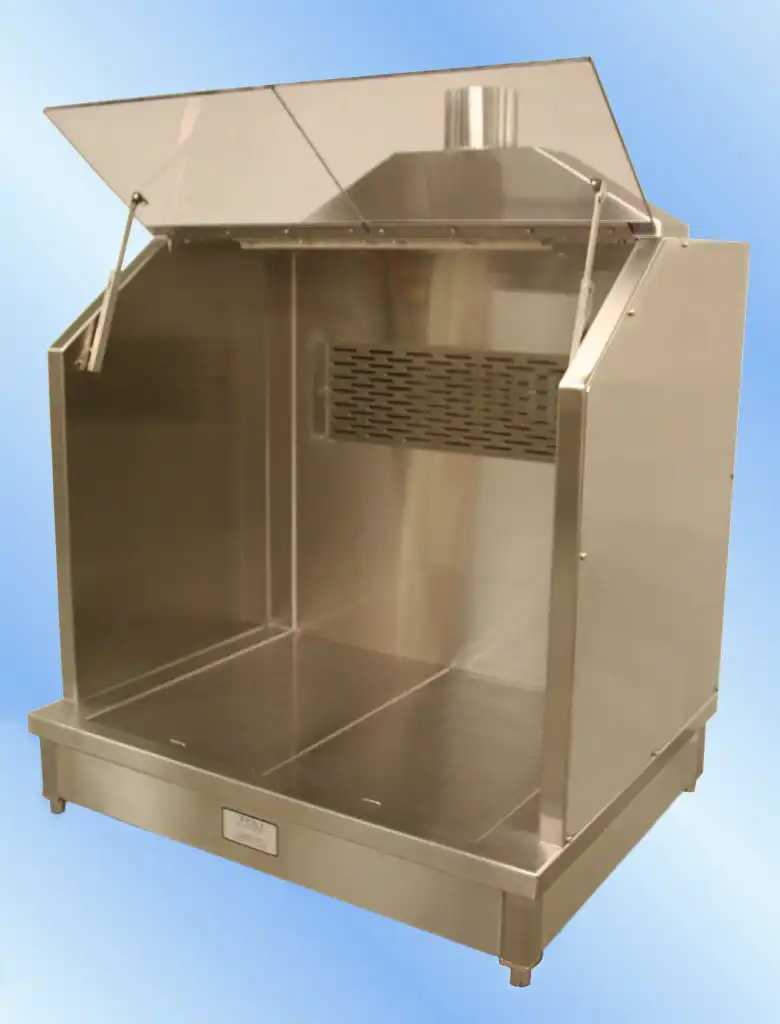

Table Top Dual Draft Workstation Model 29-36 DD-BD-SE TT
The TBJ Model 29-36 DD-BD-SE-TT table top dual draft workstation is a semi enclosed, table top design that utilizes a combination of downdraft and backdraft ventilation for fume control for use in a wide variety of applications.
Features:
- Overall dimensions: 29" deep x 36" wide x 34"high work surface
- 8" wide x 28" backdraft vent grill
- Two hinged viewing windows for semi-enclosed use
- Two removable perforated downdraft work surface panels
- 4" duct connection
- Type 304 stainless steel construction
- Adjustable leveling feet
PDF Information Sheet
-

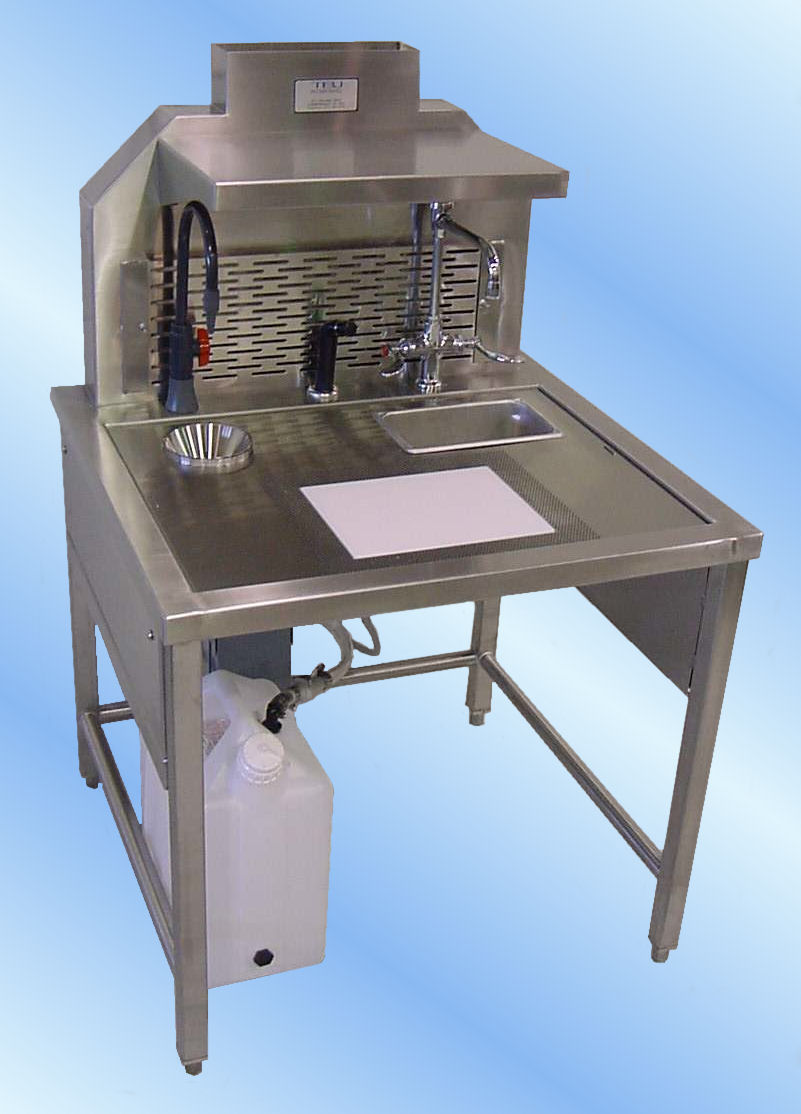

Dual Draft Workstation Model 30-34 DD-BD
TBJ Model 30-34 DD-BD dual draft workstation is a combination downdraft and backdraft station designed for trimming procedures as well as small animal necropsy procedures. The station shown in the first two photos includes a recessed cutting board with perimeter downdraft ventilation. The station shown in the third photo below includes a small sink with hot and cold water faucet while the station shown in the fourth photo below includes a full perforated work surface panel without recessed cutting board.
Features:
- Overall dimensions: 30" deep x 34" wide x 30"high work surface
- 8" wide x 28" backdraft vent grill
- Standard features include integral fluorescent light fixture with ON/OFF switch, stainless steel shelf and formalin cup sink with collection carboy
- 4" x 12" duct connection
PDF Information Sheet
-

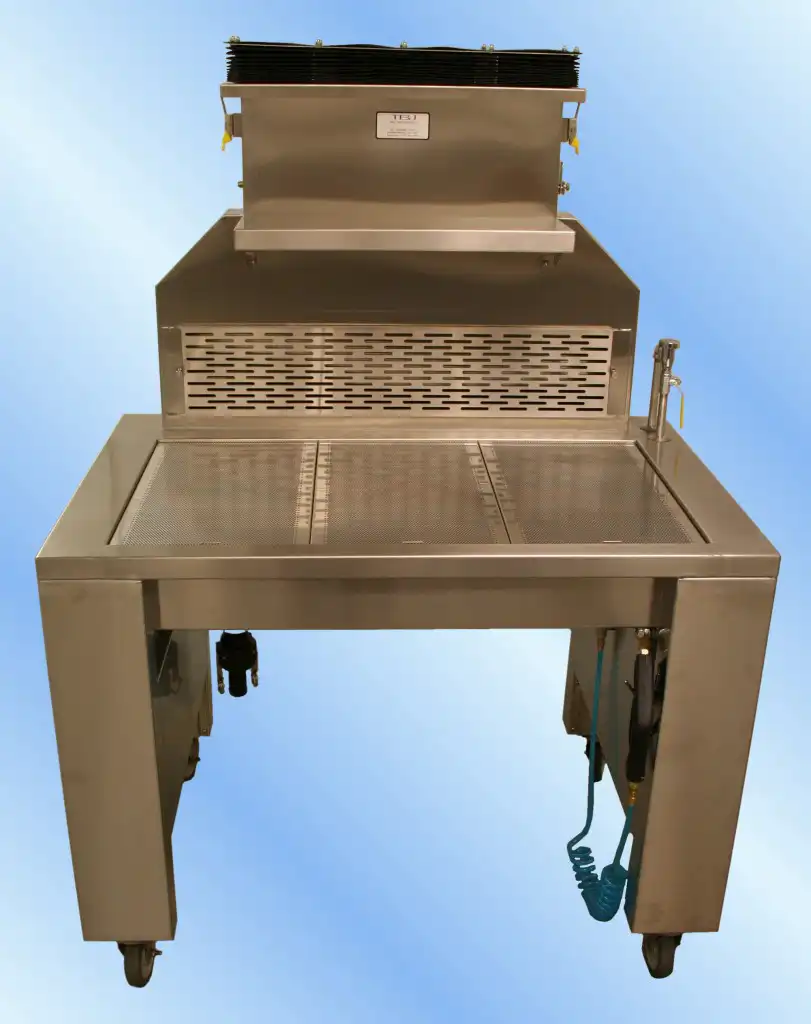

Mobile Dual Draft Workstation Model 30-46 DD-BD-M
The TBJ Model 30-46 DD-BD-M is a mobile dual draft workstation that utilizes a combination of downdraft and backdraft ventilation. It includes quick connection fittings for the duct connection and could water and drain connections.
Features:
- Overall dimensions: 30" deep x 46" wide x 36"high work surface
- 9" wide x 36" long adjustable backdraft vent grill
- 21" x 38" downdraft surface with three removable panels
- Type 304 stainless steel construction with #4 finish
- Four swivel casters with brakes
- Flush down manifold system and spray gun with recoil hose
- 4" x 24" duct connection
PDF Information Sheet
-
Dual Draft Trim Station Model 30-48 DD/BD
TBJ Model 30-48 DD/BD dual draft trim station is a combination downdraft and backdraft station designed for trimming procedures as well as small animal necropsy procedures. The work surface includes a recessed cutting board with perimeter downdraft ventilation.
Features:
- Overall dimensions: 30" deep x 48" wide x 30"high work surface
- 8" wide x 40" backdraft vent grill
- Standard features include integral fluorescent light fixture with ON/OFF switch, stainless steel shelf and formalin cup sink with collection carboy and integral cutting board
- 4" x 12" duct connection
PDF Information Sheet
-
Dual Draft WorkstationModel 30-48 SE-DD/BD
The TBJ Model 30-48 SE-DD/BD is a Dual Draft Workstation that combines both downdraft and backdraft ventilation. The table includes a hood with lexan side panels, an integral fluorescent light fixture with ON/OFF switch and a sink with hot/cold water faucet.
Features:
- Additional optional features included on the table as shown include GFCI receptacle, (2) adjustable shelves, (2) halogen task lamps magnifiers
- Overall dimensions: 30" x 48" x 36" high work surface.
- 8" x 36" backdraft ventilation grill with adjustable slide damper
- 38" x 21" down draft work area.
- Table flush down system with on/off control valve.
- Spray gun with recoil hose
- 8" diameter duct connection
PDF Information Sheet
-
Dual Draft Workstation Model 30-48-S DD-BD-H
The TBJ Model 30-48-S DD-BD-H is a Dual Draft Workstation that combines both downdraft and backdraft ventilation. The table includes a hood with lexan side panels, an integral fluorescent light fixture with ON/OFF switch and a sink with hot/cold water faucet.
Features:
- Additional optional features included on the table as shown include GFCI receptacle, magnetic instrument holder and centimeter scale.
- Overall dimensions: 30" x 48" x 38" high work surface
- 8" x 36" backdraft ventilation grill with adjustable slide damper
- 38" x 21" down draft work area.
- Table flush down system with on/off control valve/li>
- Spray gun with recoil hose
- 8" x 12" duct connection
PDF Information Sheet
-

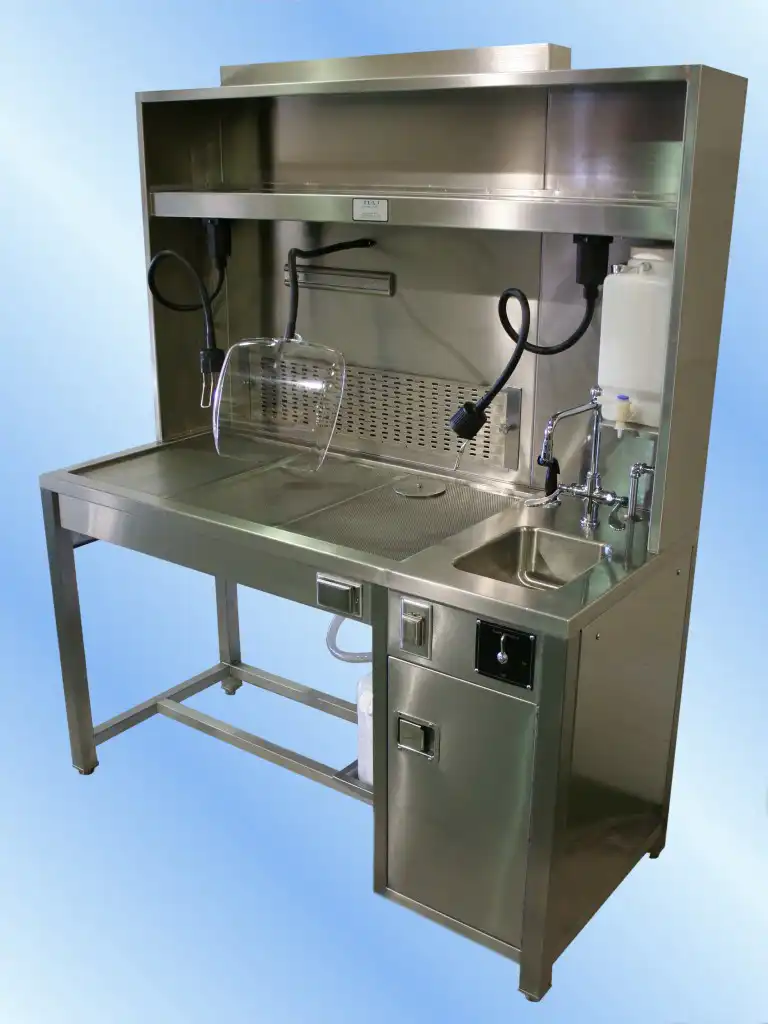

Dual Draft Workstation Model 30-60-S DD/BD
The TBJ Model 30-60-S DD/BD Dual Draft Workstation is designed for gross dissection, trimming and necropsy procedures. It employs both downdraft and backdraft ventilation. It is shown here with dual task lights, safety splash shield, formalin cup sink with collection carboy, magnetic tool bar and and formalin dispensing carboy.
Features:
- Overall dimensions: 30" wide x 60" x 34-40" high work surface
- 41" wide x 24" downdraft work area
- 41" wide x 10" high adjustable backdraft grille
- Spray gun, flush manifold, sink with hot/cold water faucet, fluorescent light fixture standard
- 4" x 40" duct connection
PDF Information Sheet
-

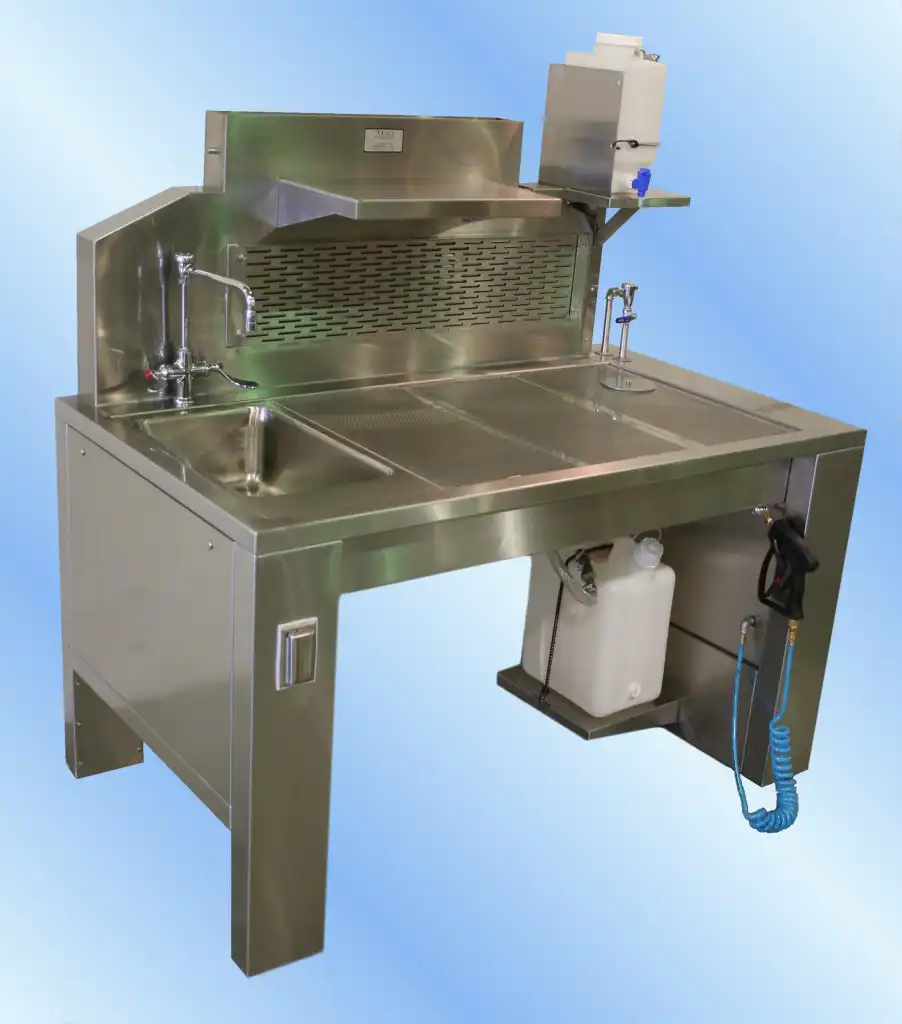

Dual Draft Workstation Model 34-60-S DD-BD
The TBJ Model 34-60-S DD-BD dual draft workstation is a mid-size combination downdraft and backdraft station designed for small animal surgery and necropsy procedures.
Features:
- Overall dimensions: 34" deep x 60" wide x 34"high work surface
- 9" wide x 38" backdraft vent grill
- Standard features include sink with hot/cold water faucet, spray gun with recoil hose and slide damper back draft exhaust control.
- 4" x 30" duct connection
PDF Information Sheet
-
Dual Draft Workstation Model 36-60 DD-BD
The TBJ Model 36-60 DD-BD is a dual draft workstation that utilizes a combination of downdraft and backdraft ventilation. It is shown here with an optional HEPA filter housing.
Features:
- Overall dimensions: 36" deep x 60" wide x 34"high work surface
- 9" wide x 52" long backdraft vent grill with adjustable dampers
- 52" x 28" perimeter downdraft surface with two removable panels
- Type 304 stainless steel construction with #4 finish
- Adjustable leveling feet
- 14" x 28" duct connection
PDF Information Sheet
-

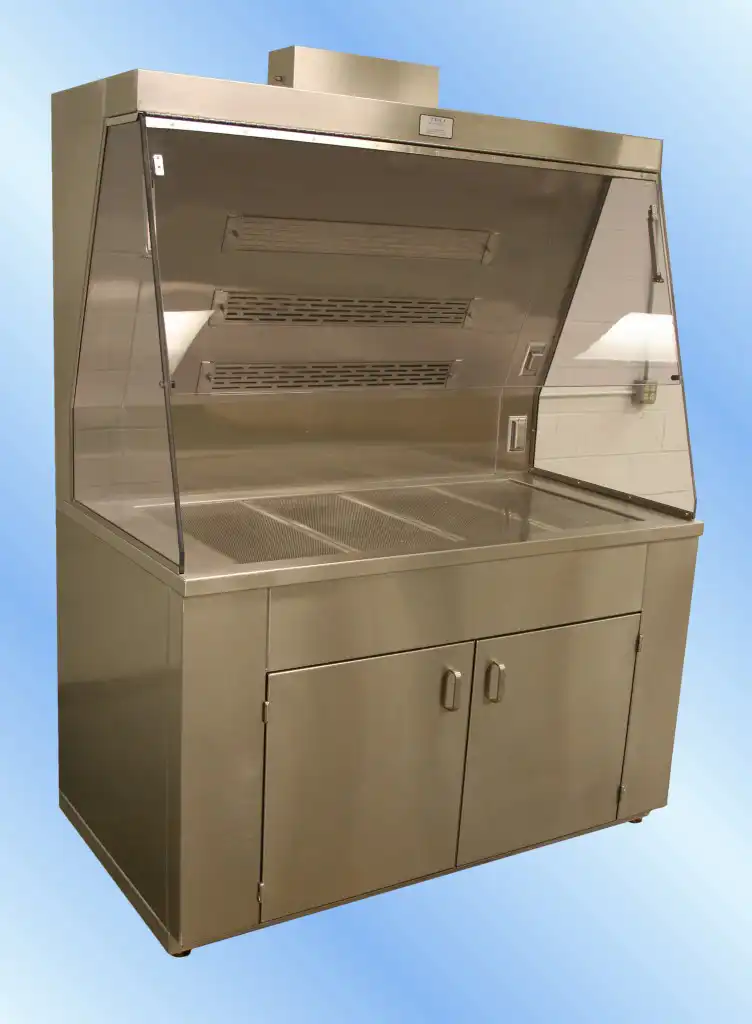

Dual Draft Workstation Model 36-61 DD-BD
The TBJ Model 36-61 DD-BD is a dual draft workstation that utilizes a combination of downdraft and backdraft ventilation for fume control for use in a wide variety of applications. It is shown below with three units positioned side by side to create an in-line 184" work bench.
Features:
- Overall dimensions: 36" deep x 61" wide x 37" high work surface
- Three 2" wide x 30" long backdraft vent grill with adjustable dampers
- 49" x 23" downdraft surface with four removable panels
- Below surface base cabinet with two hinged access doors
- Two removable work surface panels
- Drain collection carboy with pull out shelf
- Lexan side panels on each side
- 6" x 18" duct connection
- Type 304 stainless steel construction
PDF Information Sheet
-

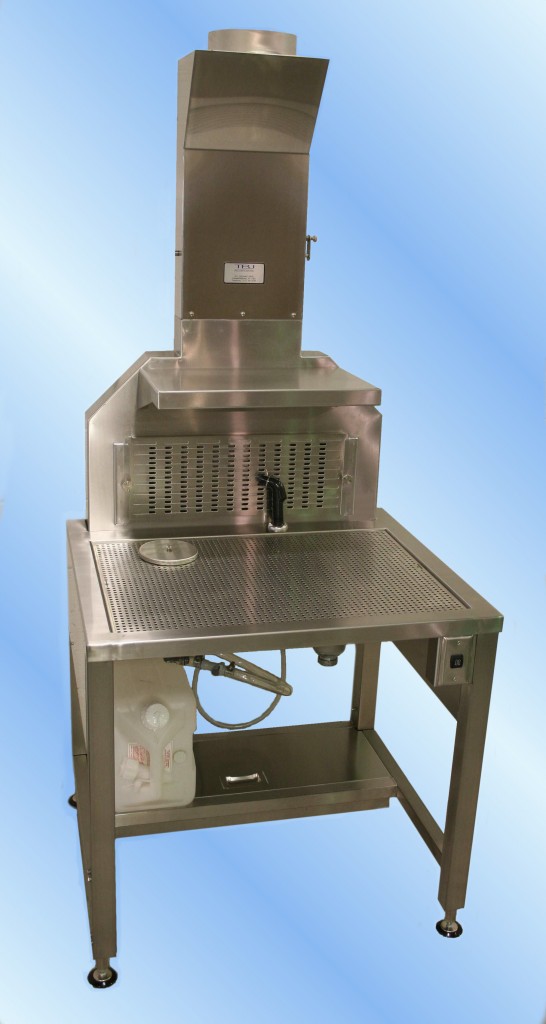

Dual Draft Workstation Model 30-34 DD/BD AH
The TBJ Model 30-34 DD/BD AH is dual draft workstation combining both downdraft and backdraft ventilation technologies. These dual draft workstations are designed for trimming procedures as well as small animal necropsy procedures.
Features:
- Overall dimensions: 30" deep x 34" wide x 30" to 36" high work surface
- 8" wide x 28" backdraft vent grill
- Standard features include integral fluorescent light fixture with ON/OFF switch, stainless steel shelf and push-button height adjustment.
- 4" x 12" duct connection
PDF Information Sheet
