Each dual user dual draft workstations utilizes both downdraft ventilation and backdraft ventilation like our single user units and are designed to provide two workstations within one unit so that two users can work simultaneously. Floor space and utilities are economized with this design.
Dual User Dual Draft Workstation Model 30-96-S DD-BD DU
Dual Draft Grossing Station Model 30-96-S DD-BD GS
Dual Draft Workstation Model 36-120-S DD/BD-DU
Dual Draft Workstation Model 36-156-S DD/BD DU
-
Dual User Dual Draft Workstation Model 30-96-S DD-BD DU

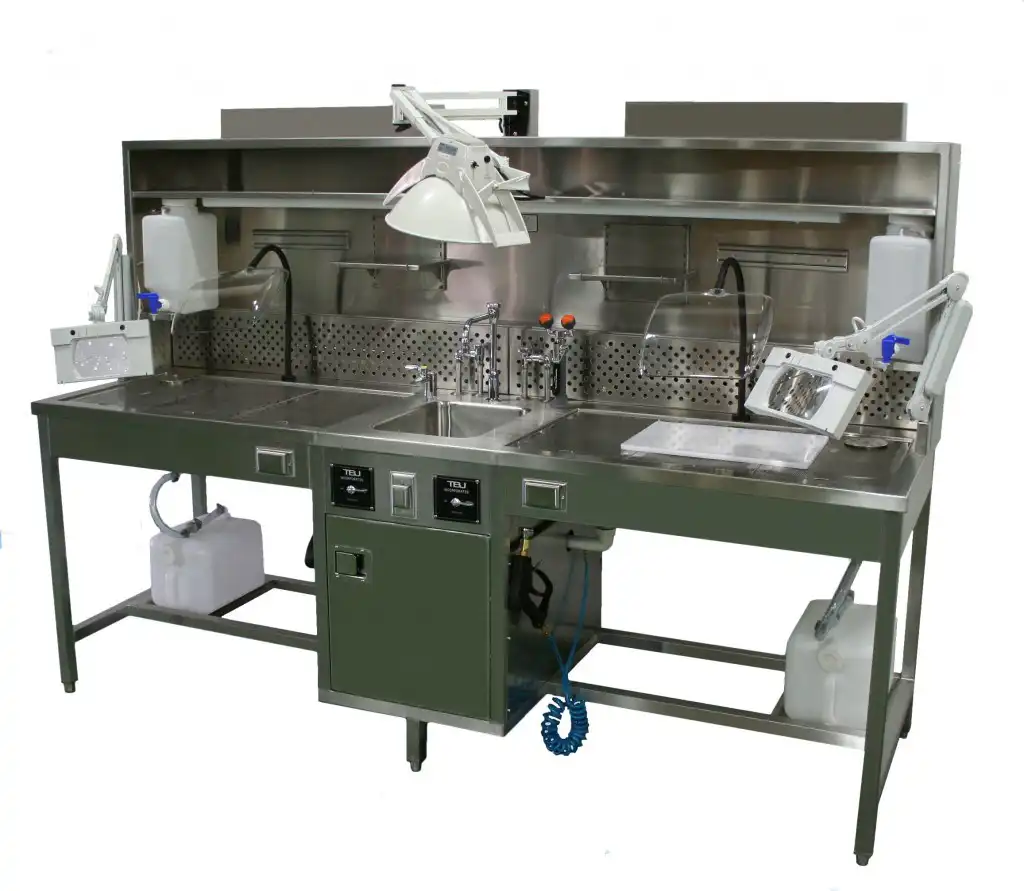

The TBJ Model 30-96-S DD-BD DU is a dual user dual draft workstation that is designed for 2 users to work side by side separated by a central sink. It is shown here with optional features that include fluorescent magnifiers, recessed cutting boards, GFCI outlets and formalin disposal cup sinks with collection carboys.
Features:
- Features two 7" high x 30" backdraft grilles and two 30" x 19" downdraft work areas.
- Includes central sink with hot/cold water faucet and carboy storage cabinet below.
- 5" x 54" duct connection.
- Overall dimensions: 96" wide x 30" deep x 33" high work surface.
- Two units can be set back to back to form and"island style" workstation for four users.
PDF Information Sheet
-
Dual Draft Grossing Station Model 30-96-S DD-BD GS
The TBJ Model 30-96 DD/BD-DU GS is a dual user dual draft Grossing Station designed to accommodate two users simultaneously in one space saving design. It includes a central sink and is loaded with a variety of standard feature while numerous optional accessories enable you to customize the table around your specific needs.
Features:
- Standard features include sink with hot/cold water, two spray guns with recoil hoses, fluorescent lighting, two table rinse/flush manifolds, two magnetic tool bars, paper towel holder and storage shelving.
- Optional features include: 3.5 diopter fluorescent magnifiers, deck mounted eye wash, safety splash shields, formalin cup sinks with collection carboys, foot pedal controlled faucet, four GFCI receptacles and a gas outlet
- Overall dimensions: 34" deep x 96" wide x 36" high work surface
- 92" wide x 24" backdraft ventilated work area
- Two 4" x 30" duct connections standard
PDF Information Sheet
-
Dual Draft Workstation Model 36-120-S DD/BD-DU

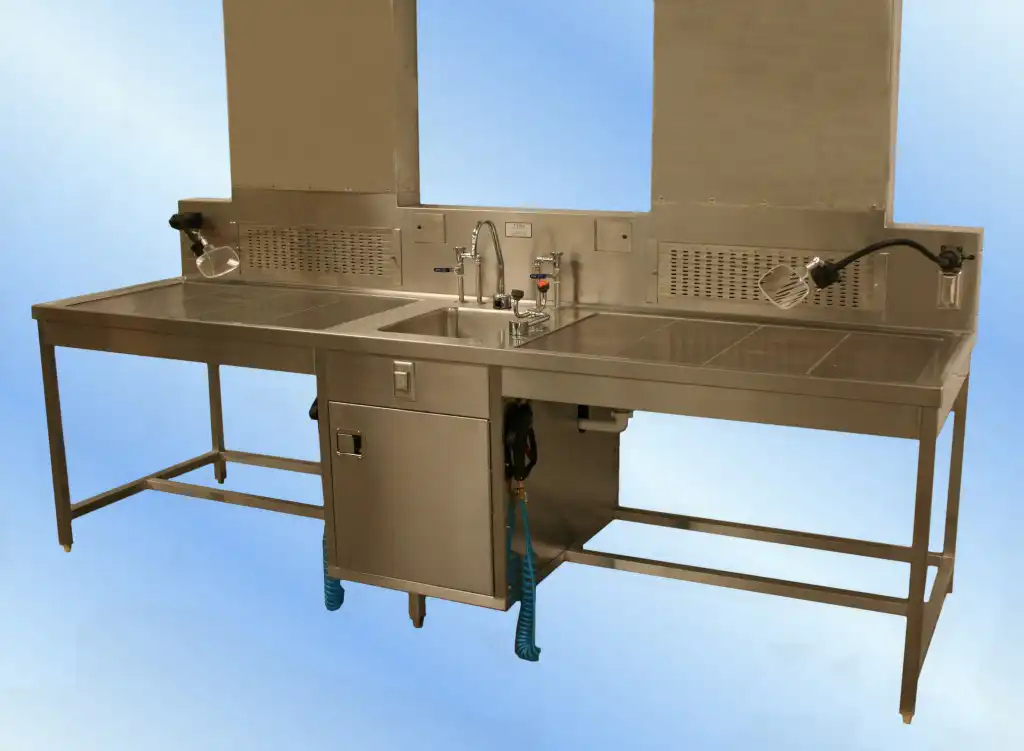

The TBJ Model 30-120-S DD/BD-DU is a dual user workstation designed to accommodate two users simultaneously in one space saving design. It includes a central sink which is easily accessible to both users. It is shown here with the optional deck mounted eye wash, halogen task lamps, sensor controlled faucet and 1 HP heavy duty disposer.
Features:
- Overall dimensions: 36" deep x 120" wide x 36" high work surface.
- 44" wide x 25" downdraft ventilated work area.
- Two backdraft grills with adjustable slide damper.
- Standard features include sink with hot/cold water faucet, two spray guns with recoil hoses and two table rinse/flush manifolds.
- Two 6" x 30" duct connections.
PDF Information Sheet
-
Dual Draft Workstation Model 36-156-S DD/BD DU

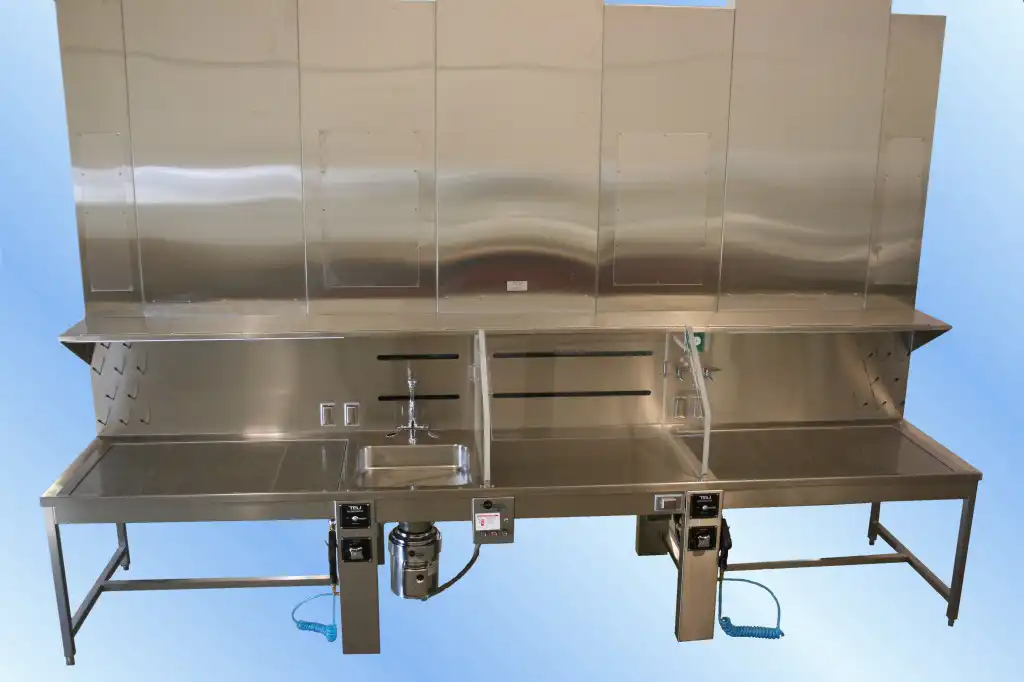

TBJ Model 30-156-S is an example of a custom workstation designed around the specific needs of the customer. Contact TBJ to discuss your custom requirements when one of our standard models doesn"t meet you requirements.
PDF Information Sheet
