TBJ will work with you to provide custom downdraft workbenches for all your fume extraction requirements. Workbenches are typically designed with economy in mind and don’t include a lot of standard built-in features and accessories.
Downdraft Workbench Model 22-36 DD-WB
Downdraft Workbench Model 30-42 DD WB
Downdraft Workbench Model 30-48 DD-WB
Downdraft Workbench Model 30-60 DD-WB
Downdraft Workbench Model 30-60 DD WB
Downdraft Workbench Model 31-60 DD WB
-

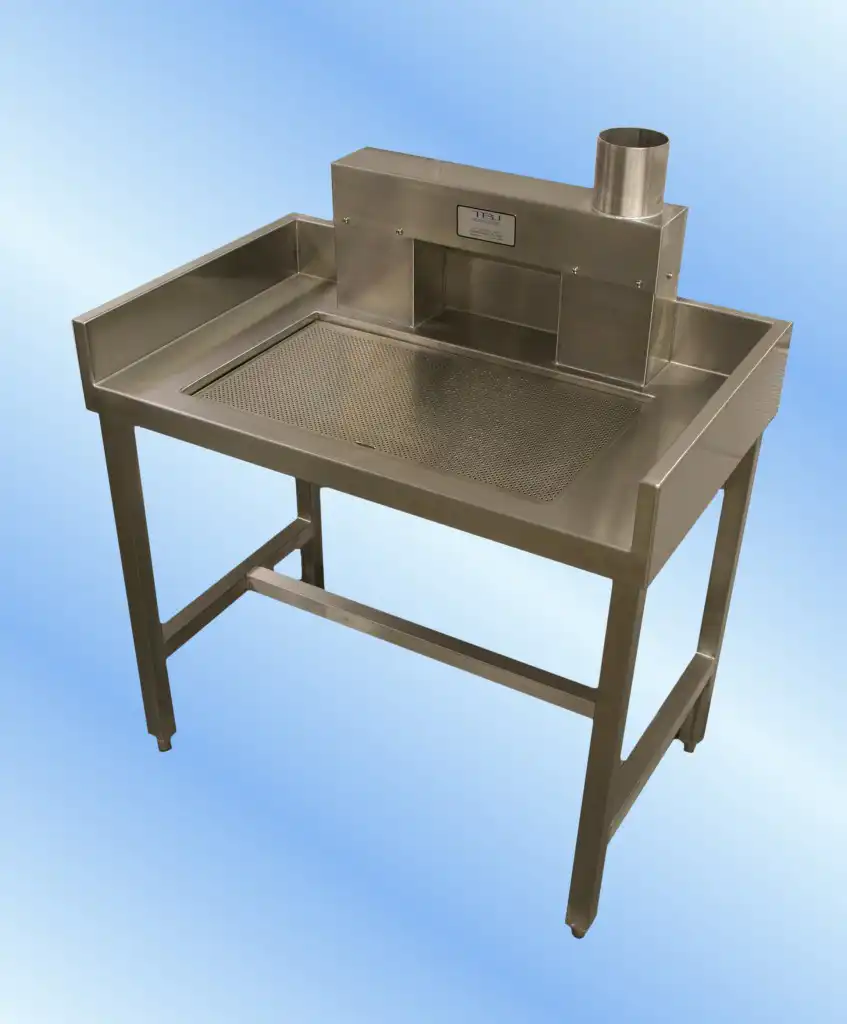

Downdraft Workbench Model 22-36 DD-WB
The TBJ Model 22-36 DD-WB is a compact downdraft workbench made of all stainless steel construction.
Features:
- 24" x 14 downdraft work surface.
- Type 304 stainless steel construction.
- 4" high side splashes and back splash.
- Heavy duty tubular base frame with adjustable leveling feet.
- 4" diameter duct connection.
- Overall dimensions: 24" x 36" x 30" high work surface.
PDF Information Sheet
-
Downdraft Workbench Model 30-42 DD WB
The TBJ Model 30-42 DD-WB Downdraft Workbench has a tapered front to allow adequate knee space for sitting while also providing a deep enough plenum for efficient downdraft airflow.
Features:
- Overall dimensions: 30" deep x 42" wide x 35" high.
- 24" wide x 20" downdraft work area
- 4" x 10" duct connection standard
PDF Information Sheet
-

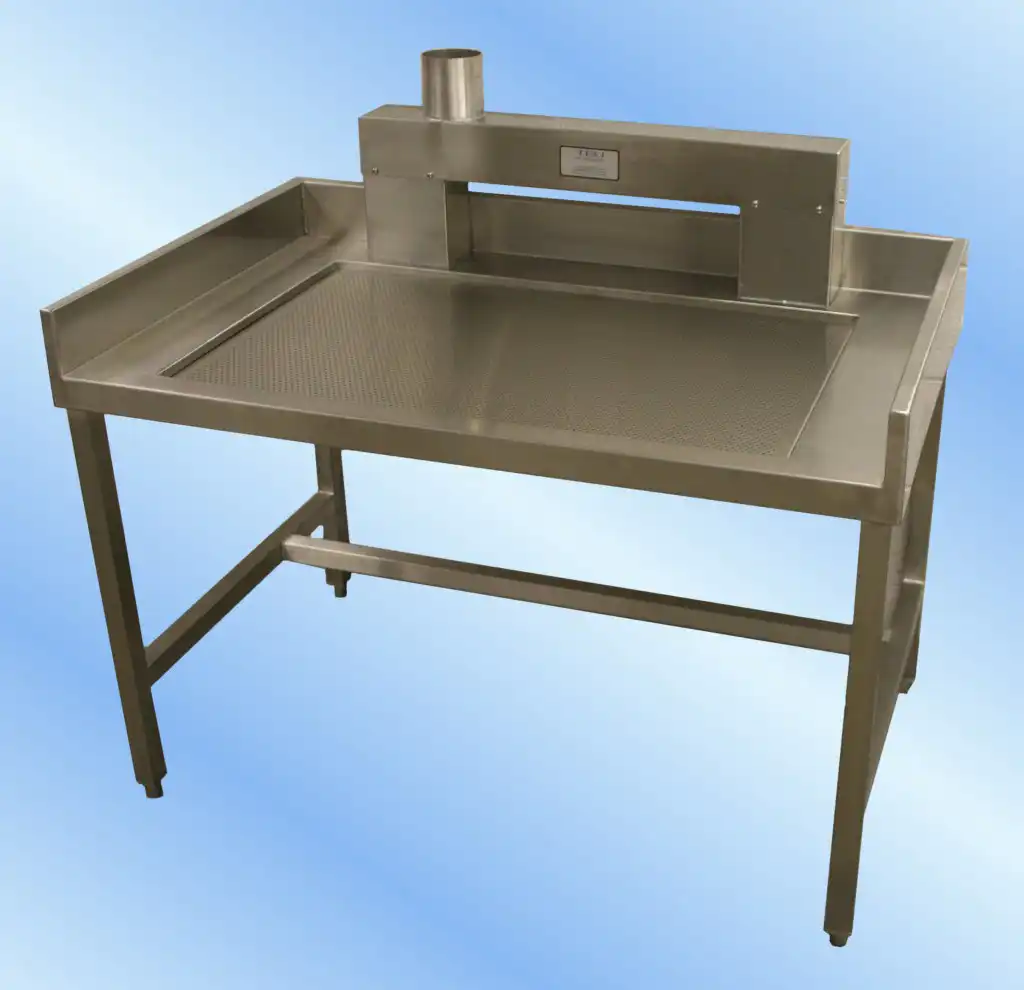

Downdraft Workbench Model 30-48 DD-WB
TBJ Model 30-48 DD-WB is a compact downdraft workbench made of all stainless steel construction.
Features:
- 36" x 22" downdraft work surface.
- Type 304 stainless steel construction.
- 4" high side splashes and back splash.
- Heavy duty tubular base frame with adjustable leveling feet.
- 4" diameter duct connection.
- Overall dimensions: 30" x 48" x 30" high work surface
PDF Information Sheet
-

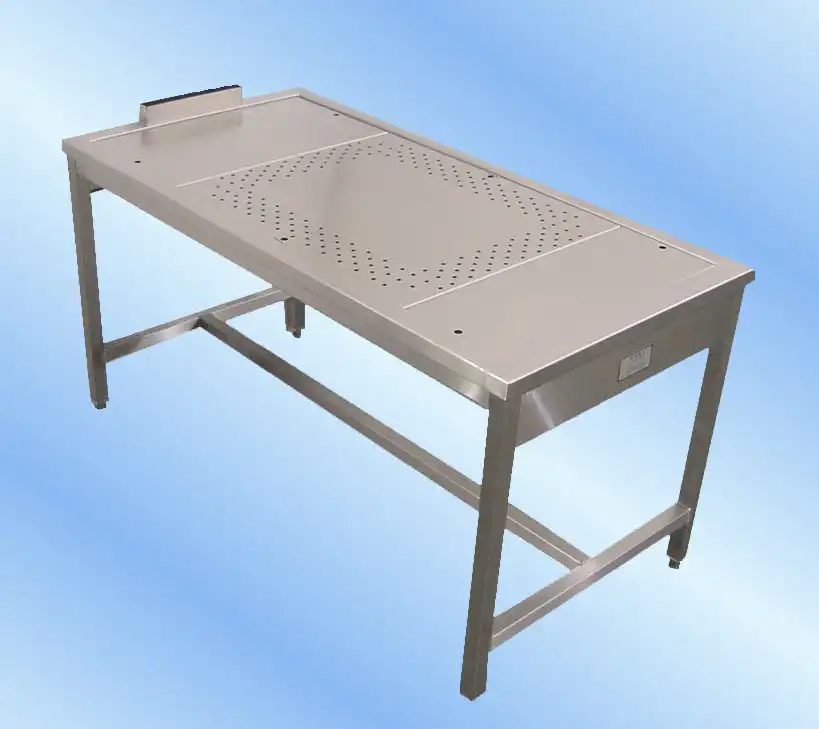

Downdraft Workbench Model 30-60 DD-WB
The TBJ Model 30-60 DD WB is a compact downdraft workbench that is shown here with a 21" x 26" perimeter downdraft work surface panel. Two solid panels provide additional non-vented work area.
Features:
- Overall dimensisons: 30" x 30" x 30" high
- 1 1/2" x 12" duct connection
- Sturdy heavy gauge tubular base frame
PDF Information Sheet
-

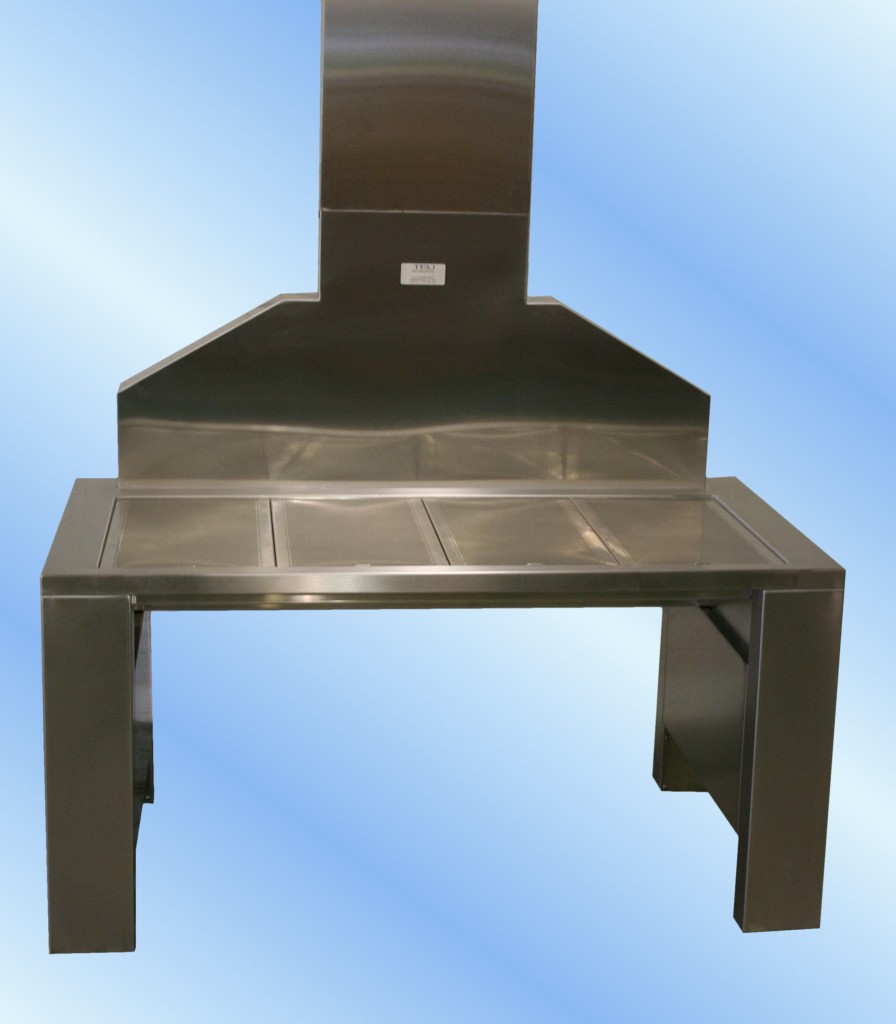

Downdraft Workbench Model 30-60 DD WB
The TBJ Downdraft Workbench Model 30-60 DD WB is a mid size downdraft work table with the option of a full length duct extension.
Features:
- The 30-60 is a mid size downdraft work bench shown here with full length duct extension.
- 21" x 52" downdraft work area
- Overall dimensions" 30" x 60" x 30" high work surface
- 4" x 18" duct connection
PDF Information Sheet
-

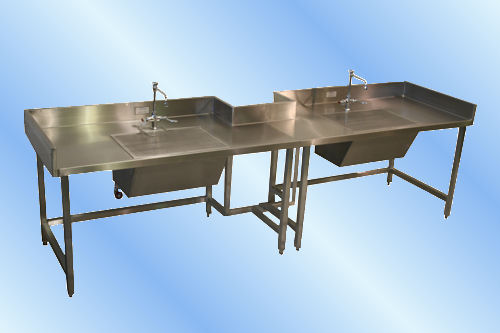

Downdraft Workbench Model 31-60 DD WB
The TBJ Model 31-60-DD WB is a single station downdraft workbench that is shown here with two stations joined together by a mechanical field joint.
Features:
- Standard features include a deep plenum that also acts as a sink and a hot and cold water faucet.
- Overall dimensions: 31" x 60" x 36" high work surface.
- 24" x 18" downdraft work area
- 4" O.DD duct connection
PDF Information Sheet
