On occasions when a greater degree of containment is needed, TBJ semi-enclosed downdraft workstations are the ideal choice. These units feature a semi-enclosed hood with a hinged viewing window that gives the user the option of working with the window in the open position on less critical procedure or closing the window to contain aerosols and particulate on more critical procedures.
Semi-Enclosed Downdraft Workstation Model 26-60-S DD-SE
Semi-Enclosed Downdraft Workstation Model 30-48 DD-SE
Demonstration Hood Model 30-60-H DD
Semi-Enclosed Downdraft Workstation Model 30-72-S DD-SE
-

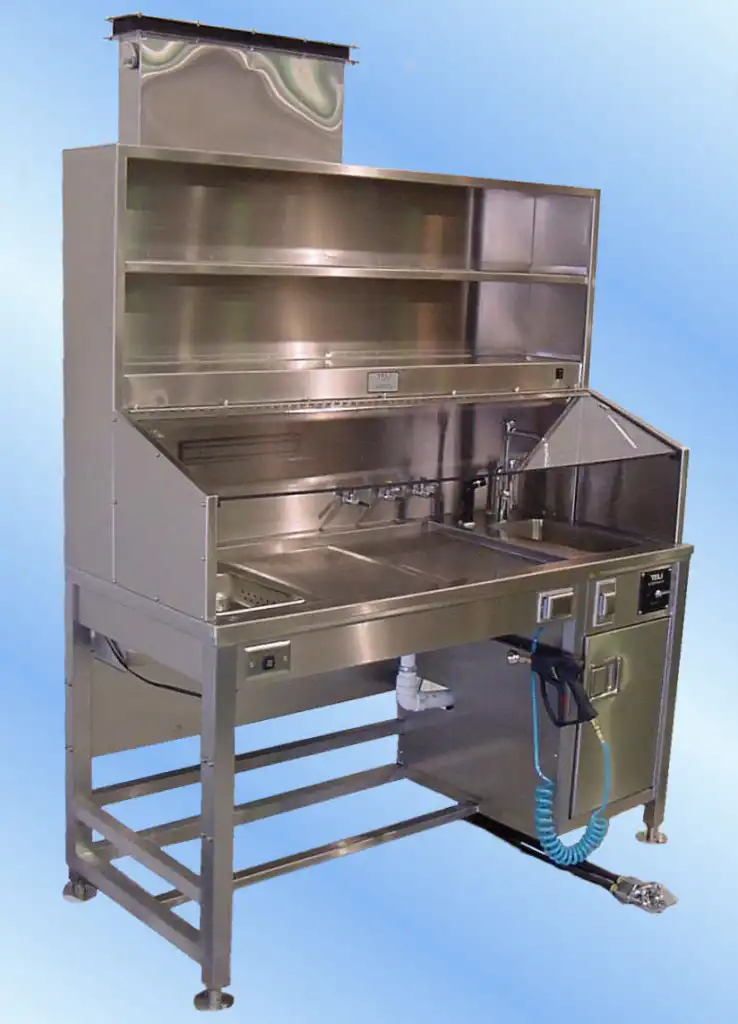

Semi-Enclosed Downdraft Workstation Model 26-60-S DD-SE
The TBJ Model 26-60-S DD-SE is a mid size semi-enclosed downdraft workstation with hinged viewing window for necropsy or gross dissection procedures. The model is shown here with optional push-button height adjustment, 1 HP disposer with ON/OFF switch, recessed perforated pan , GFCI outlets, lab gas outlets and foot pedal controlled faucet.
Features:
- Overall dimensions: 30" wide x 60" x 34-40" high work surface.
- 42" wide x 24" downdraft work area.
- Spray gun, flush manifold, sink with hot/cold water faucet, fluorescent light fixture standard.
- 4" x 24" duct connection
PDF Information Sheet
-
Semi-Enclosed Downdraft Workstation Model 30-48 DD-SE
The TBJ Model 30-48 DD-SE is a semi-enclosed downdraft workstation that includes a hood with hinged viewing window with integral fluorescent light. It is shown here with an optional surgical light, magnetic tool bar and recessed cutting board.
Features:
- 21" x 40" wide downdraft work area.
- Overall dimensions : 30" x 48" x 30" high work surface
- Spray gun, flush manifold and GFCI outlet standard
- 4" x 18" duct connection
PDF Information Sheet
-

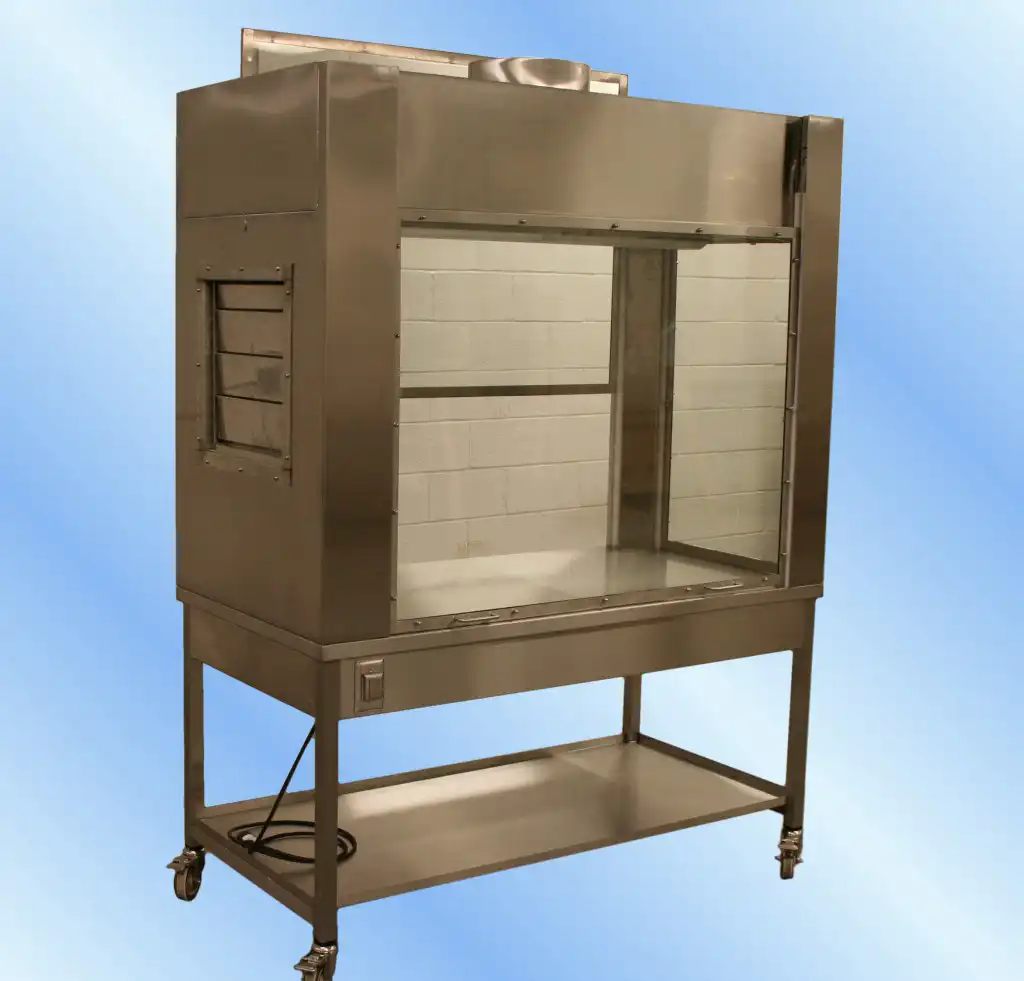

Demonstration Hood Model 30-60-H DD
TBJ Model 30-60-H DD is an educational demonstration hood designed for use by teachers and students in the classroom setting. The hood has laminated safety glass viewing window around all four sides. The front has an 18" x 53" opening for access inside the hood.
Features:
- Type 304 stainless and glass construction
- 8" x 48" downdraft area with removable perforated panel
- Two internal ducts to pull air from the top and down
- Fluorescent light fixture with ON/OFF switch
- Laboratory air and gas outlets
- Lower storage shelf
- Four swivel casters with brakes
- 8" diameter duct connection
PDF Information Sheet
-

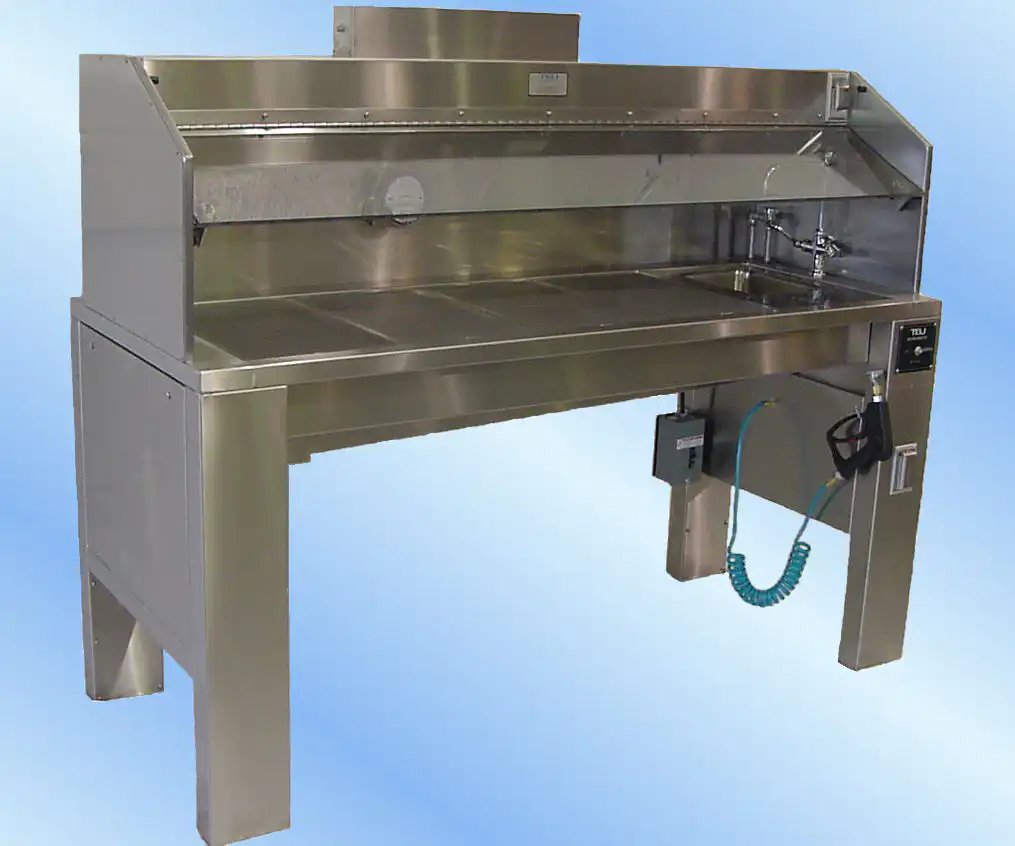

Semi-Enclosed Downdraft Workstation Model 30-72-S DD-SE
The TBJ Model 30-72-S DD-SE is a semi-enclosed downdraft workstation that includes a hood with hinged viewing window with integral fluorescent light.
Features:
- 21" x 50" wide downdraft work area.
- Overall dimensions : 30" x 72" x 30" high work surface
- Sink with hot/cold faucet, spray gun, flush manifold and GFCI outlet standard
- 4" x 24" duct connection
PDF Information Sheet
