Mobile downdraft workstations with quick-connect duct and utility fittings are available for custom applications. Mobile tables enable the table to be disconnected and moved for cleaning purposes or to be moved from room to room.
Mobile Downdraft Surgery Table Model 32-48 DD-M
Mobile Downdraft Workstation Model 32-26 DD-SC-M
Mobile Downdraft Workstation Model 30-72-S DD-M
Mobile Downdraft Workstation Model 30-60 DD-M
-
Mobile Downdraft Surgery Table Model 32-48 DD-M
The TBJ Model 32-48 DD-M mobile downdraft surgery table is designed to capture and exhaust waste anesthesia gases such as halothane or isoflurane during small animal surgery procedures. The table is shown here with two optional halogen exam lights.
Features:
- Overall table dimensions are 48" wide x 32" deep x 30" high work surface.
- Two hinged fold down shelves designed to provide additional non-vented work area increases the width to 72 1/2" in the up position.
- 44" x 25" downdraft work area
- 48" wide under counter storage shelf
- Two 4" diameter duct connections
- 4" diameter swivel casters with brakes
PDF Information Sheet
-
Mobile Downdraft Workstation Model 32-26 DD-SC-M
The TBJ Model 32-26 DD-SC-M mobile downdraft workstation includes a self-contained blower/filter module to eliminate the need to connect to a building exhaust source. Various filter types including potassium permanganate, activated charcoal and HEPA are available. The table is shown here with the optional adjustable snorkel arm that enables users to locate additional point of use exhaust ventilation at locations such as the induction box or nose cone. The optional halogen exam light is also shown on the table.
Features:
- Overall table dimensions are 28" wide x 34" deep x 30" high work surface. Two hinged fold down shelves designed to provide additional non-vented work area increases the width to 52 1/2" in the up position.
- 22" x 18" perimeter downdraft work area
- 28" wide under counter storage shelf
- 4" diameter swivel casters with brakes
PDF Information Sheet
-

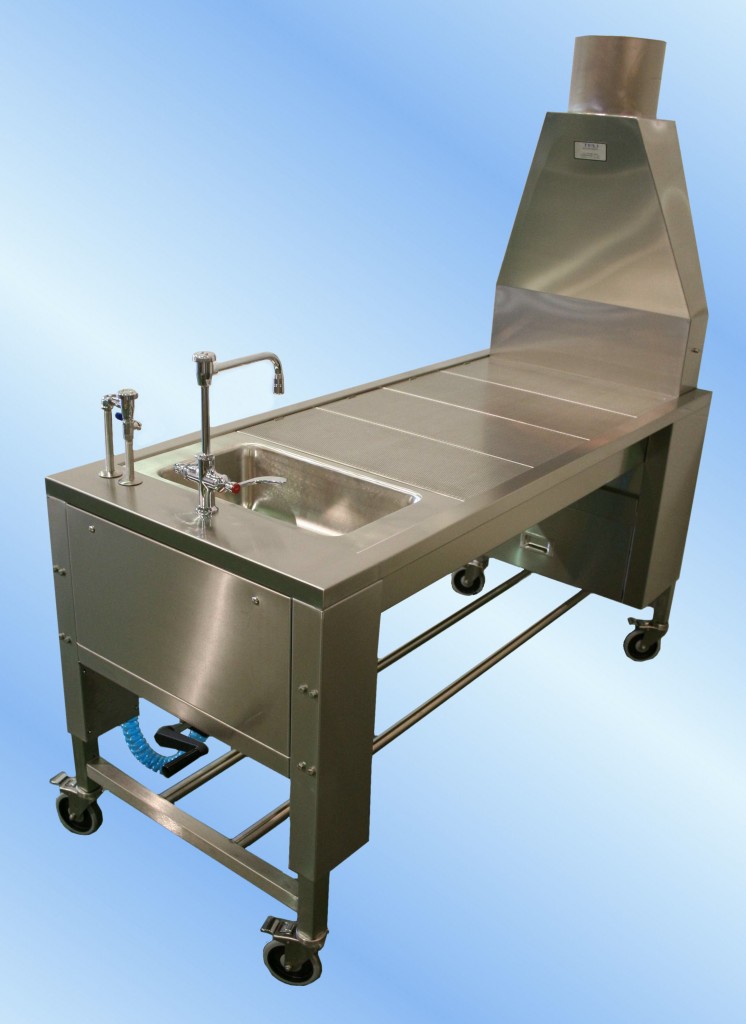

Mobile Downdraft Workstation Model 30-72-S DD-M
The TBJ Model 30-72-S DD-M is a mobile downdraft workstation designed to be able to be easily disconnected from utility connections to enable the room to be easily cleaned and disinfected or for ease in moving from room to room so that multiple tables are not needed.
Features:
- Standard features include flush manifold system, spray gun with recoil hose, and sink with hot/cold water faucet
- The table as shown in the photos includes the optional manual work surface height adjustment from 36" to 42" high
- Flexible line utility connections are included
- (4) swivel casters with brakes
- 10" OD duct connection
- Type 316 stainless steel construction
PDF Information Sheet
-
Mobile Downdraft Workstation Model 30-60 DD-M
The TBJ Model 30-60 DD-M mobile downdraft workstation is a basic, compact mobile downdraft table with swivel casters with locking brakes.
Features:
- Overall table dimensions are 30" wide x 60" deep x 36" high work surface
- 56" x 26" downdraft work area
- 6" duct connection
PDF Information Sheet
