TBJ’s LSD Series downdraft workstations are similar to the 24, 30 and 36 series except the duct connection is on the “long” side of the table. These tables are typically installed against a wall so that access to the work area is from the front side of the table only, opposite the duct connection.
Downdraft Workstation Model 24-48 DD LSD
Downdraft Workstation Model 28-72-S DD LSD
Downdraft Workstation Model 30-48 DD LSD
Downdraft Workstation Model 30-48-S DD LSD
Downdraft Workstation Model 30-60 DD LSD
Downdraft Workstation Model 30-60-S DD LSD
Downdraft Workstation Model 31-36 DD LSD
Downdraft Workstation Model 33-60-S DD LSD
Downdraft Workstation Model 34-42 DD LSD
Downdraft Workstation Model 34-48 DD LSD
Downdraft Workstation Model 34-48-S DD LSD
Downdraft Workstation Model 34-60 DD LSD
Downdraft Workstation Model 34-60-S DD LSD
Downdraft Workstation Model 34-72 DD LSD
Downdraft Workstation Model 34-72-S DD LSD
Downdraft Workstation Model 36-72-S DD LSD
-

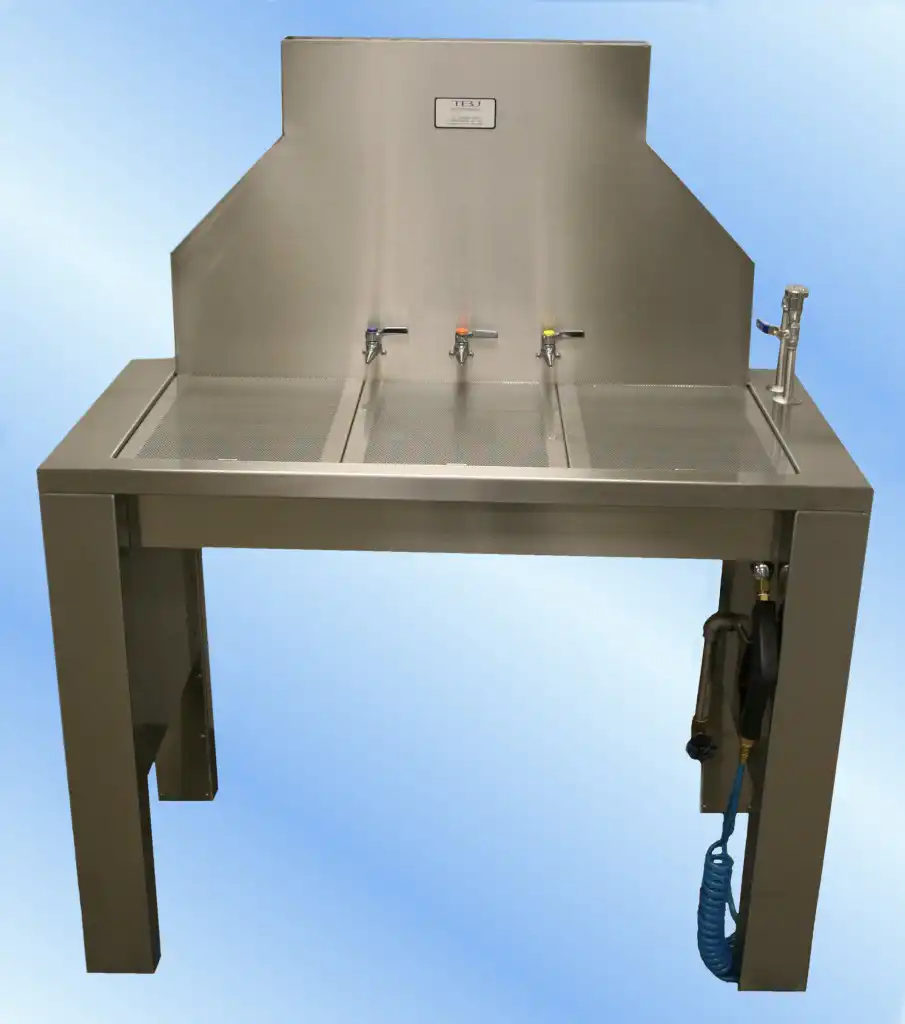

Downdraft Workstation Model 24-48 DD LSD
Features:
- Overall dimensions: 24" wide x 48" x 36" high work surface
- 40" wide x 18" downdraft work area
- Spray gun and flush manifold standard
- 4" x 24" duct connection standard
PDF Information Sheet
-

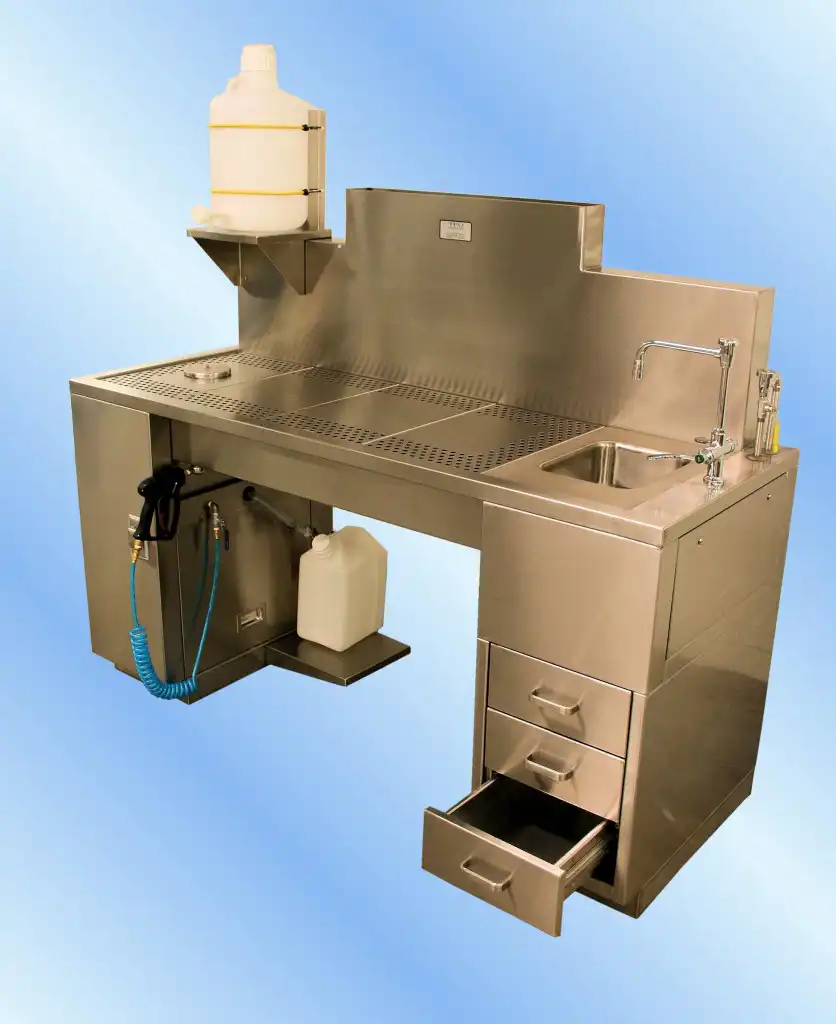

Downdraft Workstation Model 28-72-S DD LSD
The TBJ LSD series Model 28-72-S downdraft workstation is loaded with features including three spacious drawers located on one side of the front table pedestal. As shown here, the 28-72-S is equipped with a 5 gallon formalin dispensing carboy, a cup sink with 5 gallon formalin collection carboy and a 1 HP heavy duty disposer.
Features:
- Overall dimensions: 28" wide x 72" x 37" high work surface
- 22" wide x 52" perimeter downdraft work area
- Spray gun, flush manifold, sink with hot/cold water faucet included
- 4" x 30 duct connection
PDF Information Sheet
-

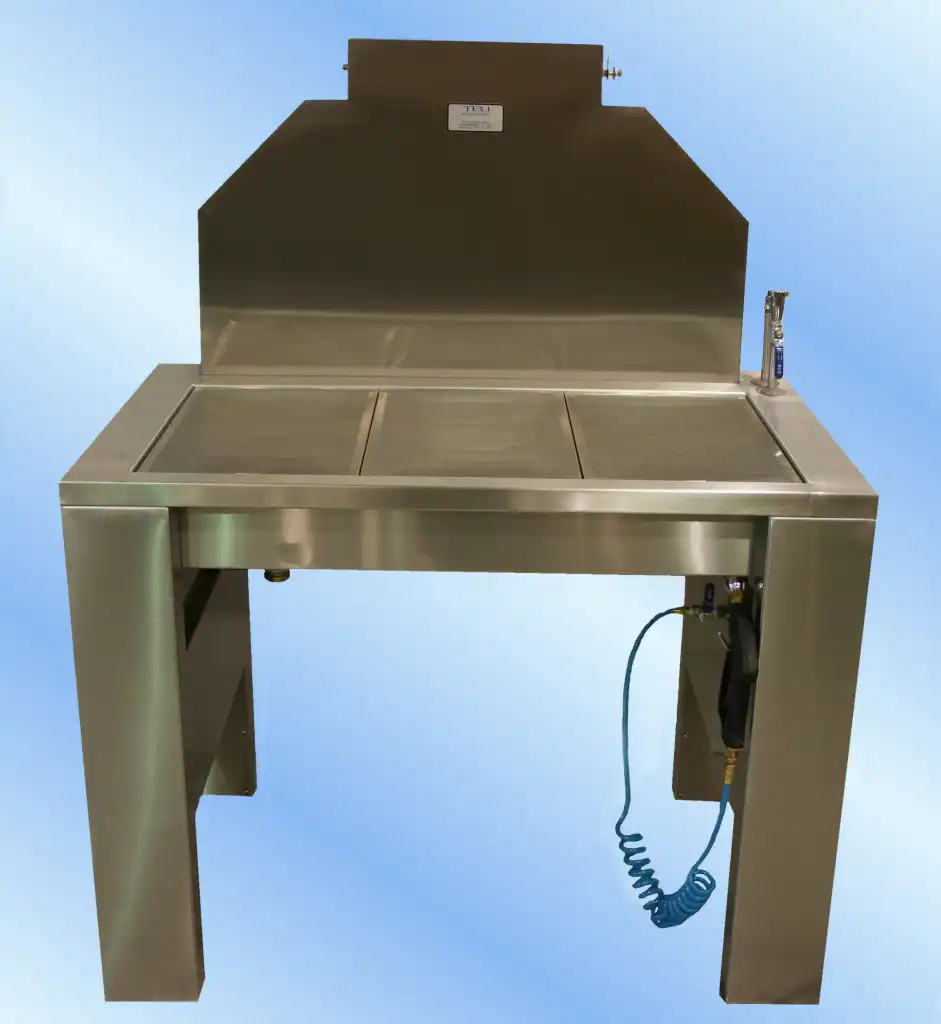

Downdraft Workstation Model 30-48 DD LSD
Features:
- Overall dimensions: 30" wide x 48" x 37" high work surface
- 40" wide x 25" downdraft work area
- Spray gun and flush manifold standard
- 4" x 18" duct connection standard
PDF Information Sheet
-

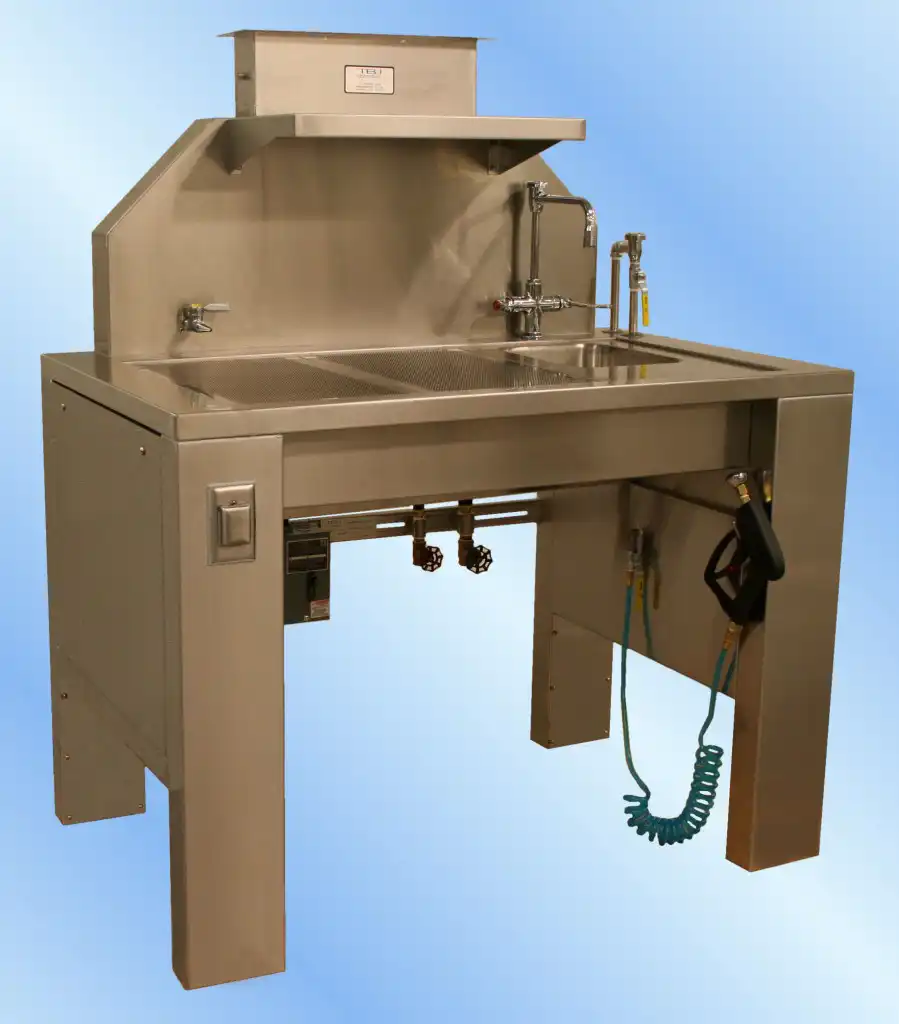

Downdraft Workstation Model 30-48-S DD LSD
Features:
- Overall dimensions: 30" wide x 48" x 37" high work surface
- Includes sink with hot/cold water faucet
- 27" wide x 21" downdraft work area
- Spray gun and flush manifold standard
- 4" x 18" duct connection standard
PDF Information Sheet
-

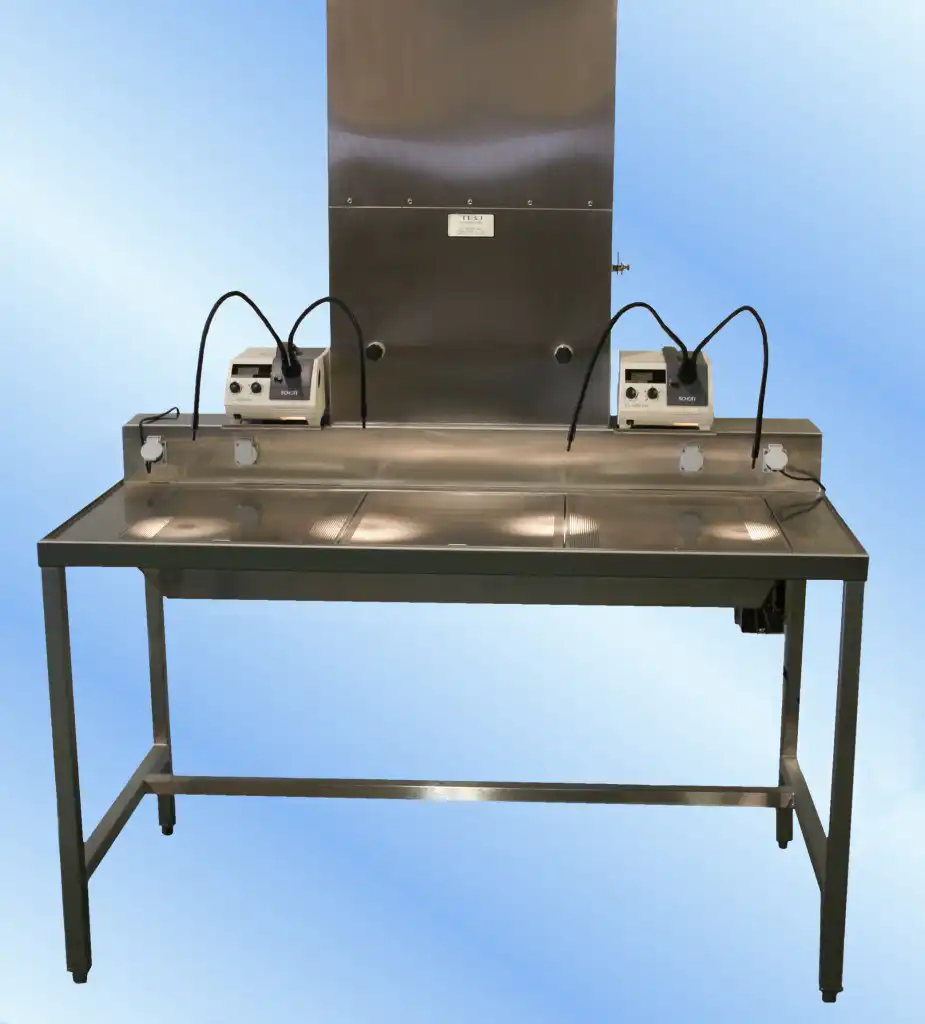

Downdraft Workstation Model 30-60 DD LSD
Features:
- Overall dimensions: 30" wide x 60" x 36" high work surface
- 50" wide x 20" downdraft work area with three removable panels
- The table is shown here with a rectangular duct that transitions to an 8" diameter connection.
PDF Information Sheet
-

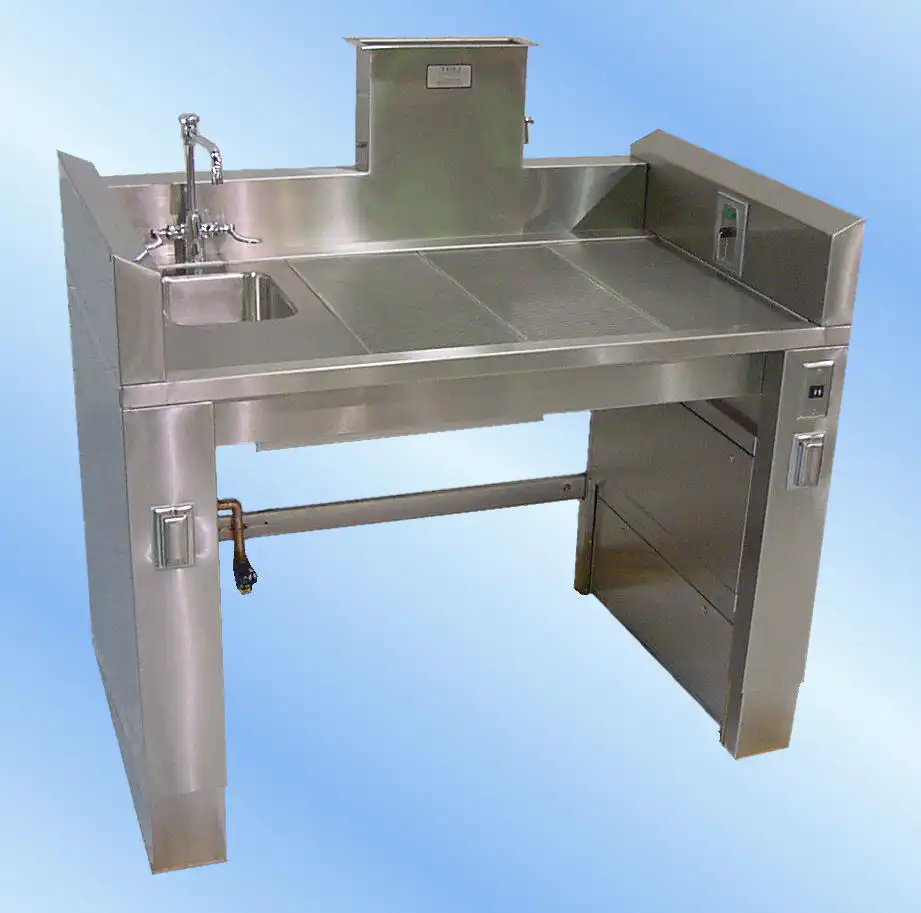

Downdraft Workstation Model 30-60-S DD LSD
Features:
- A mid size downdraft table shown here with the optional push-button height adjustment, anesthesia gas outlet and GFCI outlets.
- Overall dimensions: 30" wide x 60" x 32 to 38" high work surface
- 40" wide x 23" downdraft work area
- Spray gun, flush manifold, sink with hot/cold water faucet standard
- 4" x 14" duct connection standard, the table is shown here with a full length duct extension
PDF Information Sheet
-

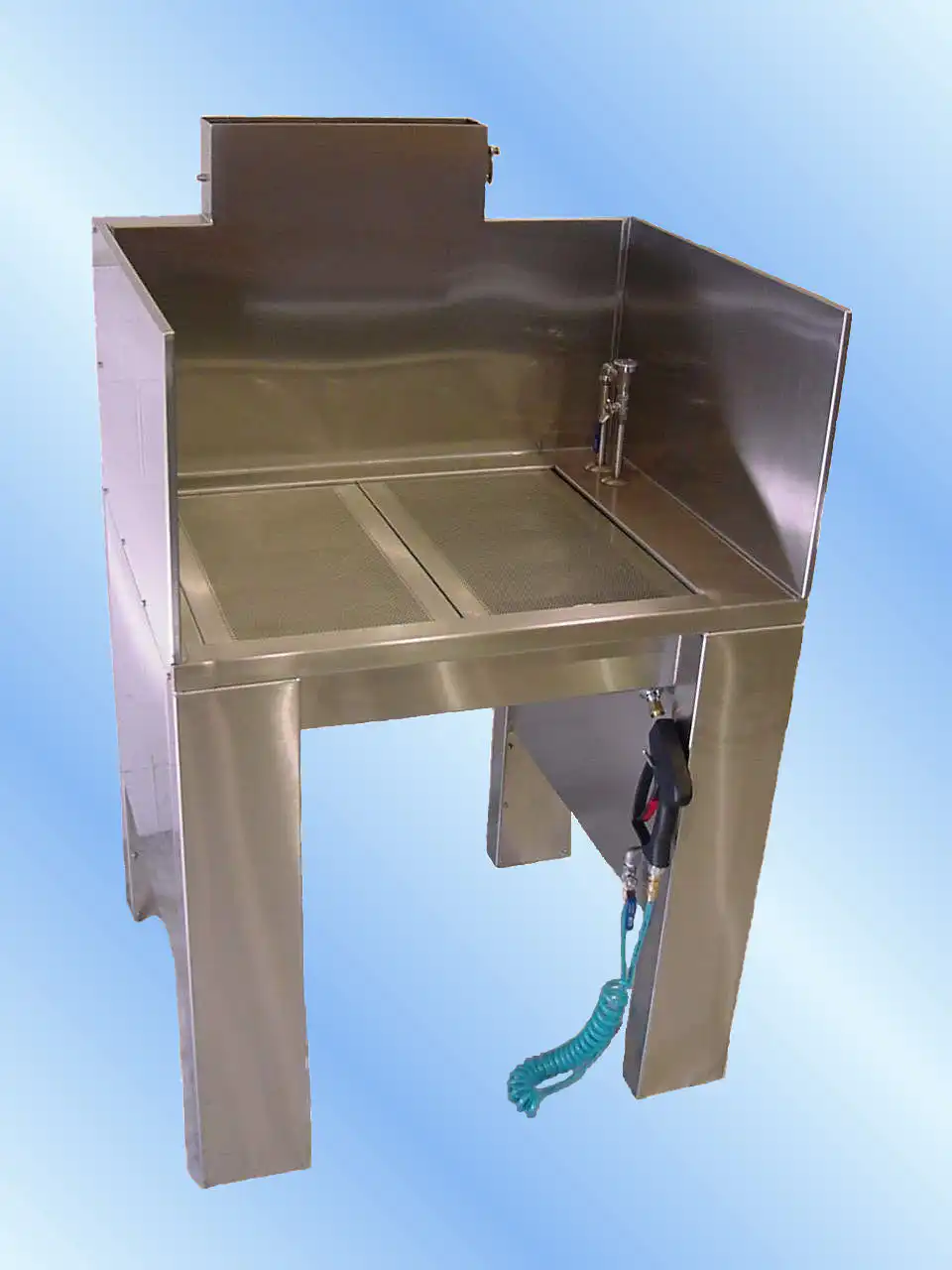

Downdraft Workstation Model 31-36 DD LSD
The TBJ Model 31-36 DD LSD is downdraft workstation is a compact table designed for a single user. Downdraft ventilated workstations can include optional back and side panels to enclose the work surface on three sides.
Features:
- Overall dimensions: 36" wide x 31" x 36" high work surface
- 28" wide x 22" perimeter downdraft work area
- Spray gun and flush manifold standard
- 4" x 18" duct connection
PDF Information Sheet
-

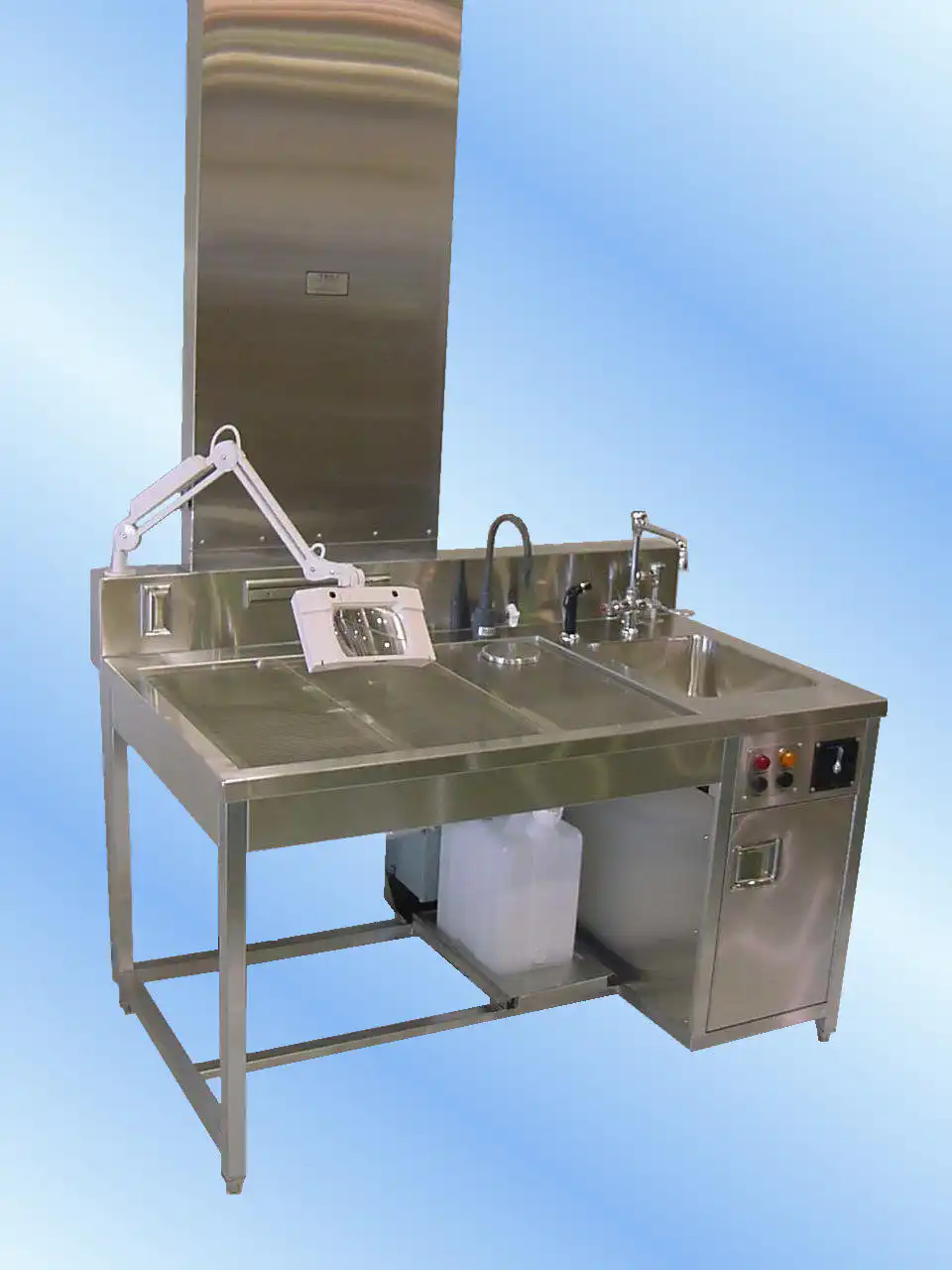

Downdraft Workstation Model 33-60-S DD LSD
The TBJ Model 33-60-S DD LSD is a downdraft workstation puts all of the conveniences and features needed for your procedures right at your finger tips. Specific features on this model include GFCI receptacles, formalin cup sink with shelf mounted collection carboy with audible and visual carboy"full" alarms, formalin dispensing system with fresh formalin carboy, pump and faucet with foot pedal control, 3.5 diopter fluorescent magnifier and stainless steel magnetic tool bar.
Features:
- Overall dimensions: 36" wide x 60" x 34" high work surface
- 39" wide x 26" perimeter downdraft work area
- Spray gun, flush manifold, sink with hot/cold water faucet included
- 4" x 24" duct connection
PDF Information Sheet
-

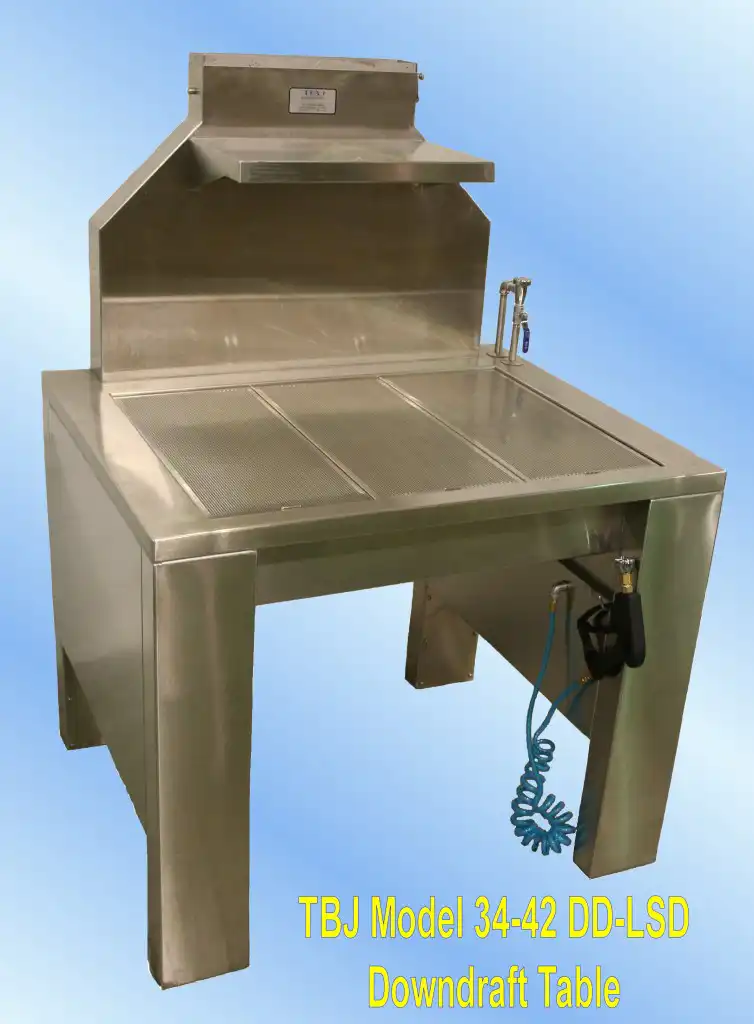

Downdraft Workstation Model 34-42 DD LSD
The TBJ Model 34-42 DD LSD is a compact downdraft workstation with duct mounted shelf.
Features:
- Overall dimensions: 34" wide x 48" x 36" high work surface
- 34" wide x 25" downdraft work area
- Spray gun and flush manifold standard
- 4" x 18" duct connection standard
PDF Information Sheet
-

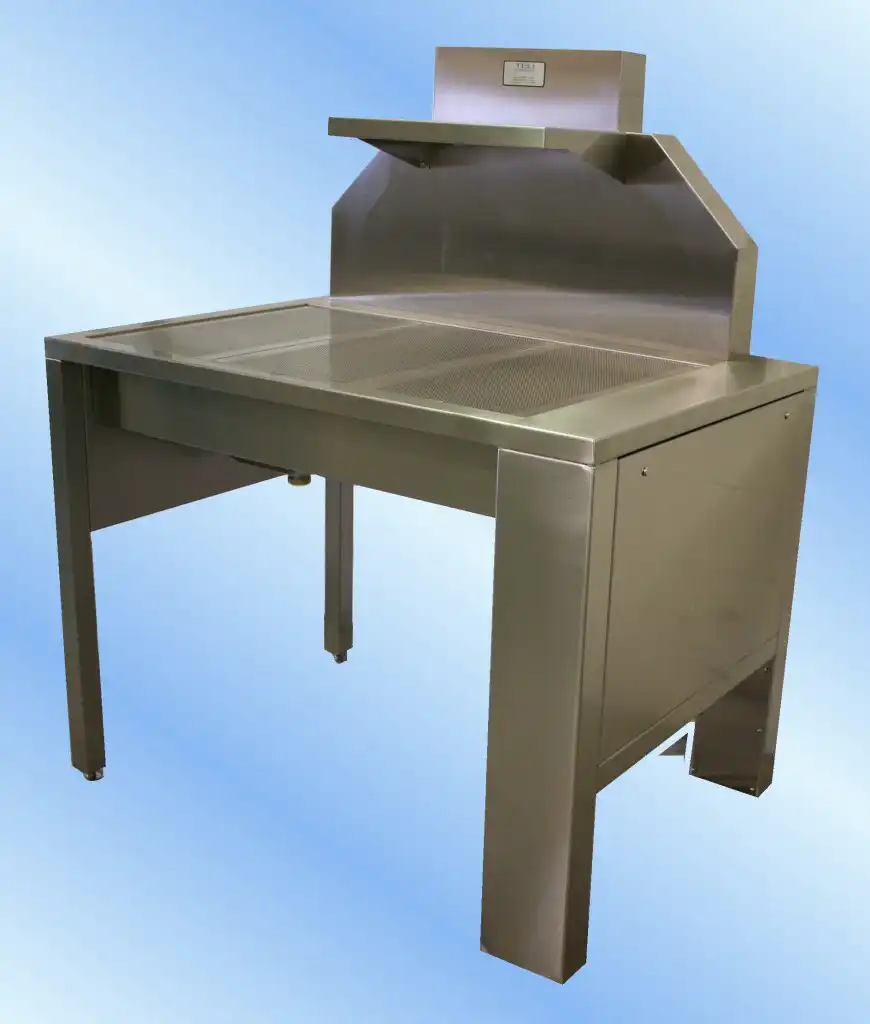

Downdraft Workstation Model 34-48 DD LSD
The TBJ Model 34-48 DD LSD is a compact downdraft workstation shown here with a duct mounted shelf. A wide variety of optional accessories are available to customize the table around your specific needs.
Features:
- Overall dimensions: 34" wide x 48" x 37" high work surface
- 40" wide x 25" downdraft work area
- Spray gun and flush manifold standard
- 4" x 18" duct connection standard
PDF Information Sheet
-

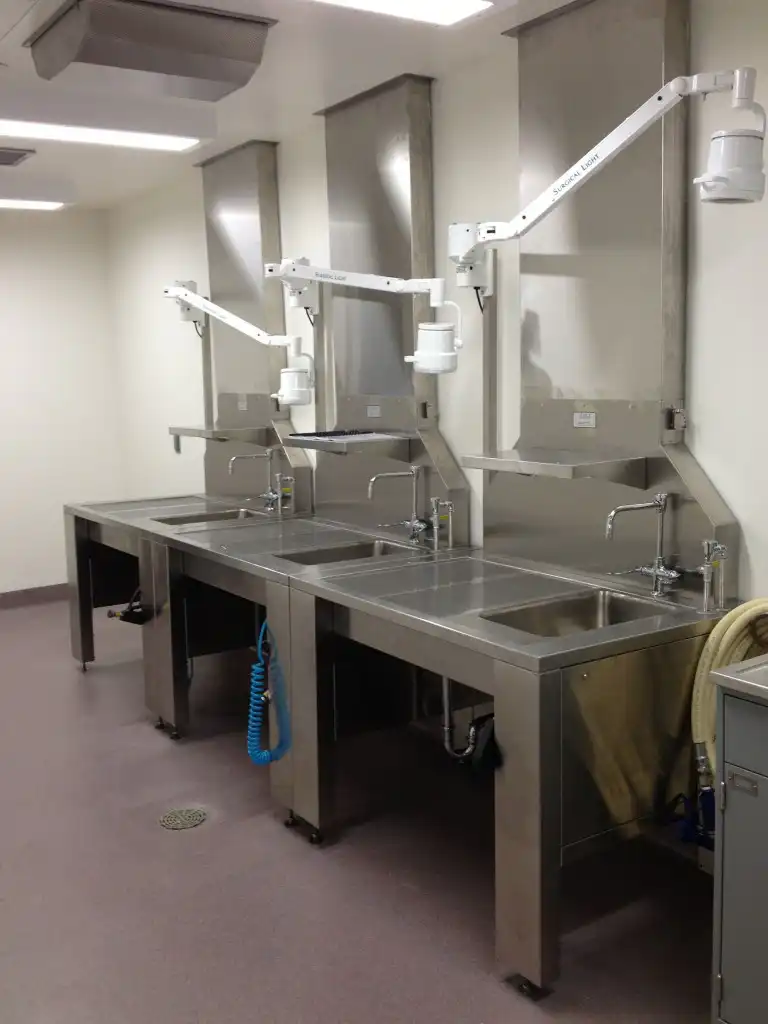

Downdraft Workstation Model 34-48-S DD LSD
The TBJ Model 34-48-S DD LSD is a compact downdraft workstation shown here with the swivel type surgical light option.
Features:
- Sink with hot/cold water faucet, spray gun and flush manifold are standard
- Duct mounted stainless steel shelf
- Overall dimensions: 34" x 48" x 37" high work surface
- 26" x 25" downdraft work area
- 4" x 24" duct connection
PDF Information Sheet
-
Downdraft Workstation Model 34-60 DD LSD
The TBJ Model 34-60 DD LSD Downdraft Workstation has a spacious downdraft work area and includes a duct mounted shelf.
Features:
- Overall dimensions: 34" wide x 60" x 36" high work surface
- 52" wide x 25" downdraft work area
- Spray gun and flush manifold standard
- 4" x 30" duct connection standard
PDF Information Sheet
-

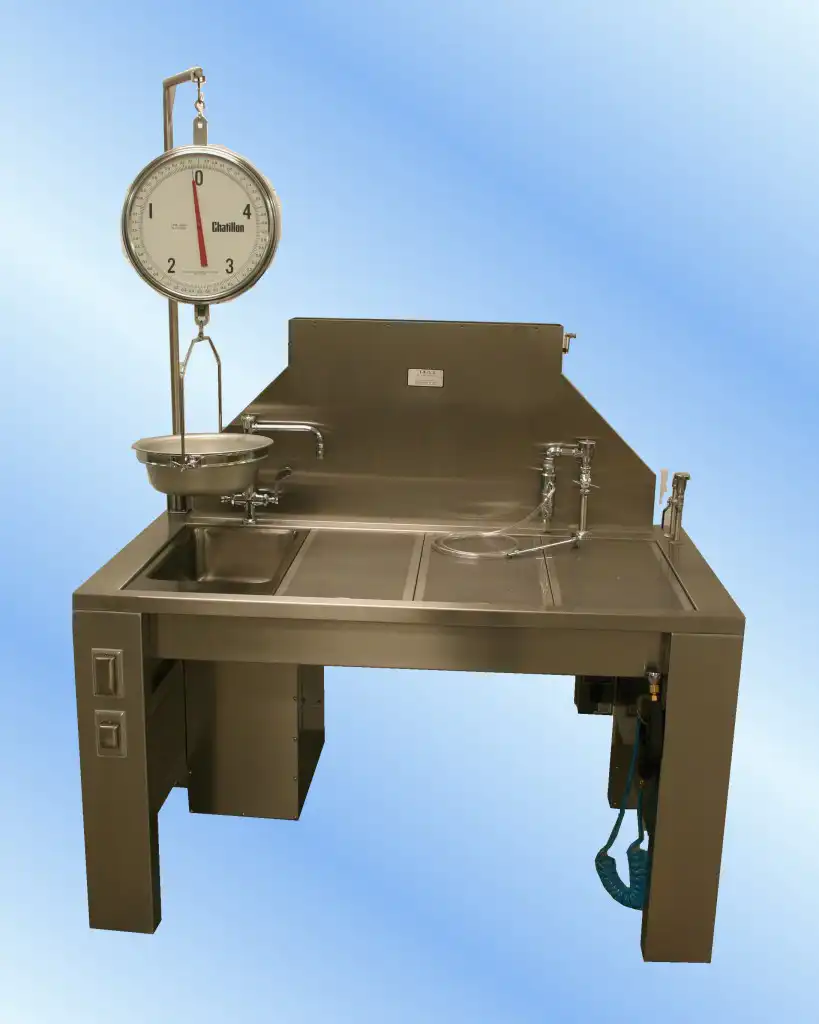

Downdraft Workstation Model 34-60-S DD LSD
TBJ Model 34-60-S DD LSD is a mid-size downdraft workstation shown to the right with removable side splashes and a"through wall" duct connection. The installation photo shows the standard duct connection with a duct extension terminating above the finished ceiling.
Features:
- Sink with hot/cold water faucet, spray gun and flush manifold are standard
- Overall dimensions: 34" x 60" x 37" high work surface
- 27" x 38" downdraft work area
- 4" x 30" duct connection
PDF Information Sheet
-
Downdraft Workstation Model 34-72 DD LSD
The TBJ Model 34-72 DD LSD Downdraft Workstation includes a spacious downdraft work area with a full width under shelf below the work surface. It is shown here with an optional halogen task lamp, GFCI outlet and gas and vacuum outlets.
Features:
- Designed for sitting height at 30" high.
- Overall dimensions: 34" wide x 72" x 30" high work surface
- 67" wide x 25" downdraft work area
- 4" x 36" duct connection standard
PDF Information Sheet
-
Downdraft Workstation Model 34-72-S DD LSD
The TBJ Model 34-72-S DD LSD is a 6 foot wide downdraft workstation shown here with the optional 1 horsepower heavy duty disposer.
Features:
- Overall dimensions: 34" wide x 72" x 36" high work surface
- 50" wide x 25" downdraft work area
- Spray gun, flush manifold, sink with hot/cold water faucet standard
- 4" x 36" duct connection standard, the table is shown here with a full length duct extension
PDF Information Sheet
-

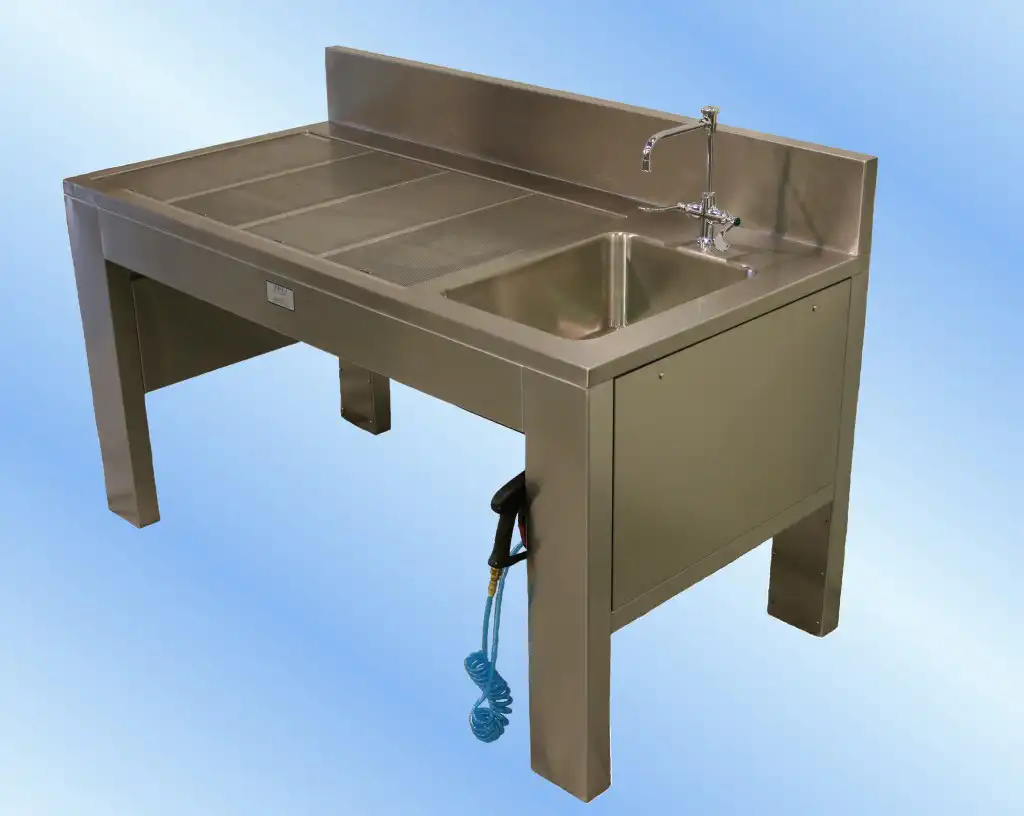

Downdraft Workstation Model 36-72-S DD LSD
The TBJ Model 36-72-S DD LSD is a 6 foot wide downdraft workstation shown here with a custom duct connection designed to connect to a facility duct coming up through the floor.
Features:
- Overall dimensions: 36" wide x 72" x 38" high work surface
- 48" wide x 30" downdraft work area
- Spray gun, flush manifold, sink with hot/cold water faucet standard
- 4 1/2" x 30" duct connection standard, the table is shown here with a full length duct extension
PDF Information Sheet
