TBJ Downdraft Grossing Stations are designed to provide a compact, economical ventilated workstation for your most demanding grossing procedures as well as tissue trimming and dissection procedures. The table shall function to pull air, odors, vapors and aerosols down and away from the face of personnel when connected to a negative air source. Chemicals such as formalin, alcohol and xylene are controlled and can be kept below OSHA permissible exposure limits thus providing a healthier, safer work environment. We offer many standard models that can be equipped with a wide variety of optional features which enable units to be customized to your exact needs. In addition to our standard models, we can also customize sizes and features to meet your exact needs.
Downdraft Grossing Station Model 30-48 DD-GS
Downdraft Grossing Station Model 33-60-S DD-GS
Downdraft Grossing Station Model 26-60-S DD-GS
Downdraft Grossing Station Model 30-84-S DD-GS
Downdraft Trim Station Model 33-60-S DD-TS
Downdraft Grossing Station Model 30-78-S DD-AH-GS
-
Downdraft Grossing Station Model 30-48 DD-GS
Features:
- All type 316 stainless steel construction.
- Hot/cold water faucet with foot pedal controls.
- Deck mounted spray gun assembly.
- Spacious 36" x 22" downdraft work area.
- Two 6" x 4" duct connections.
- 4" sidesplashes and backsplash
- Overall dimensions: 30" x 48" x 30" high work surface
- Available options include heavy duty disposer, formalin collection cup sink, collection carboy, drain diverter valve and custom duct connection (see lower photo).
PDF Information Sheet
-

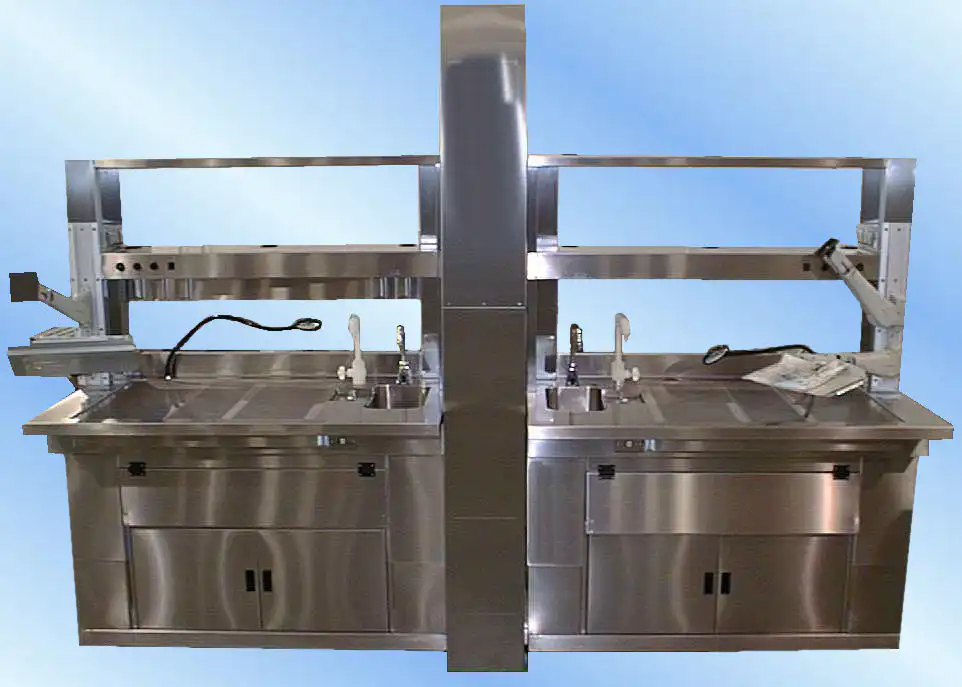

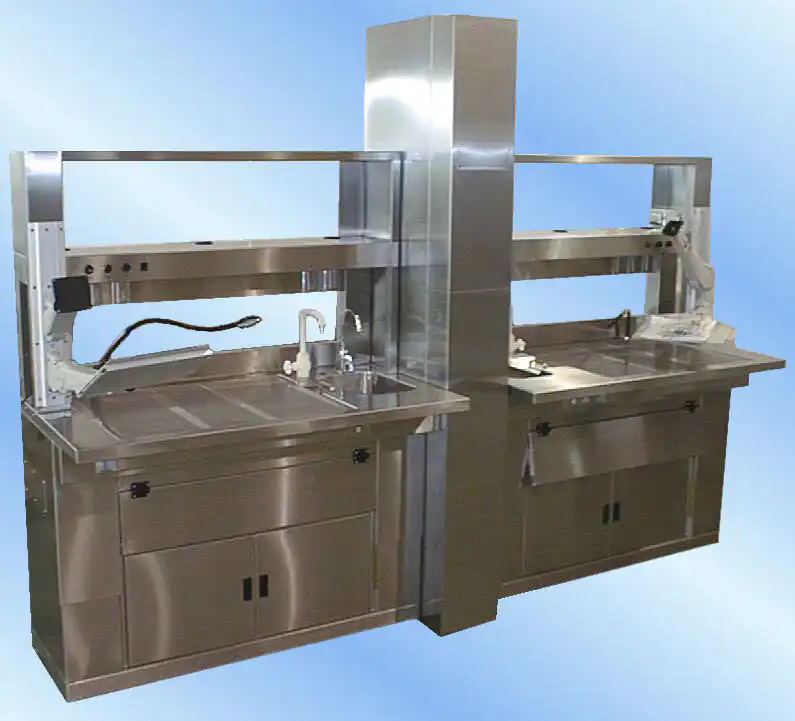

Downdraft Grossing Station Model 33-60-S DD-GS
The TBJ Model 33-60-S DD- GS Downdraft grossing station is designed specifically for gross dissection procedures. It is shown here with a"right hand" and"left hand" unit located side by side. Features included are computer keyboard and monitor arm, magnifier, formalin dispensing faucet, cup sink and collection carboy, GFCI outlets, data connections, 1 HP disposer and rinse bar system with hands free proximity sensors and push-button height adjustment.
Features:
- Overall dimensions: 33" wide x 60" x 34-42" high work surface
- 36" wide x 26" downdraft work area
- Spray gun, flush manifold, sink with hot/cold water faucet, fluorescent light fixture standard
- 4" x 13" duct connection
PDF Information Sheet
-

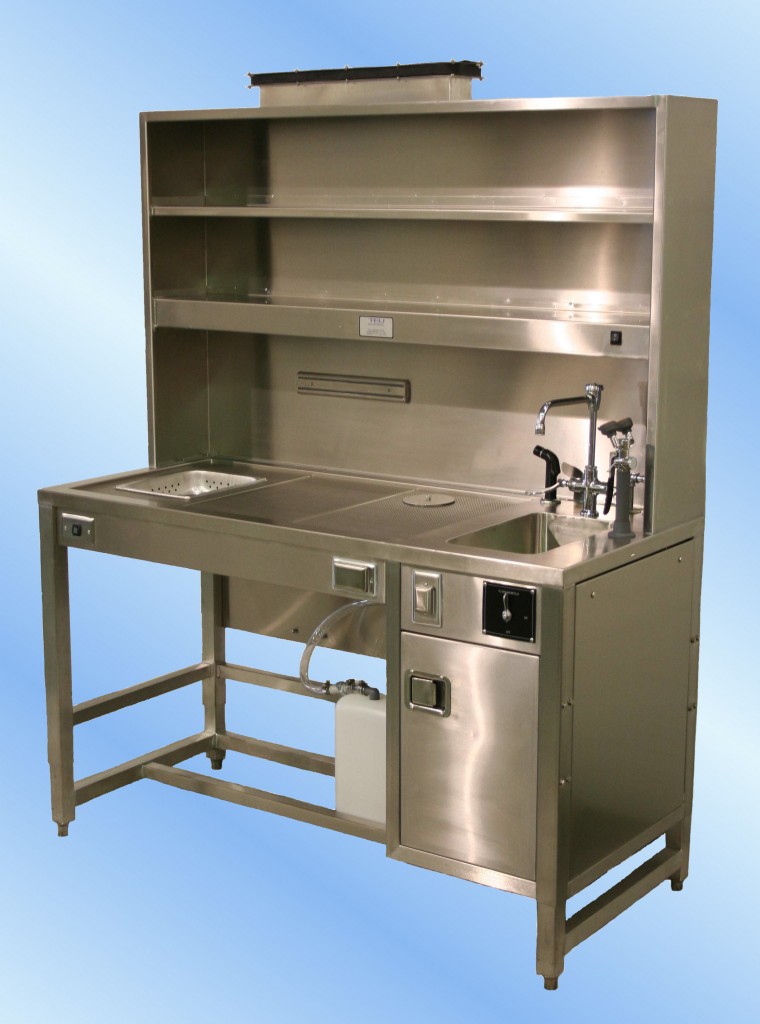

Downdraft Grossing Station Model 26-60-S DD-GS
The TBJ Model 26-60-S DD-GS is a compact downdraft grossing station designed for gross dissection procedures. The 26-60-S is shown below with optional push-button height adjustment, 1 HP disposer with ON/OFF switch, recessed perforated pan, GFCI outlets, deck mounted eyewash and formalin cup sink with collection carboy.
Features:
- Overall dimensions: 30" wide x 60" x 34-40" high work surface
- 41" wide x 24" downdraft work area
- Spray gun, flush manifold, sink with hot/cold water faucet, fluorescent light fixture standard
- 4" x 24" duct connection
PDF Information Sheet
-

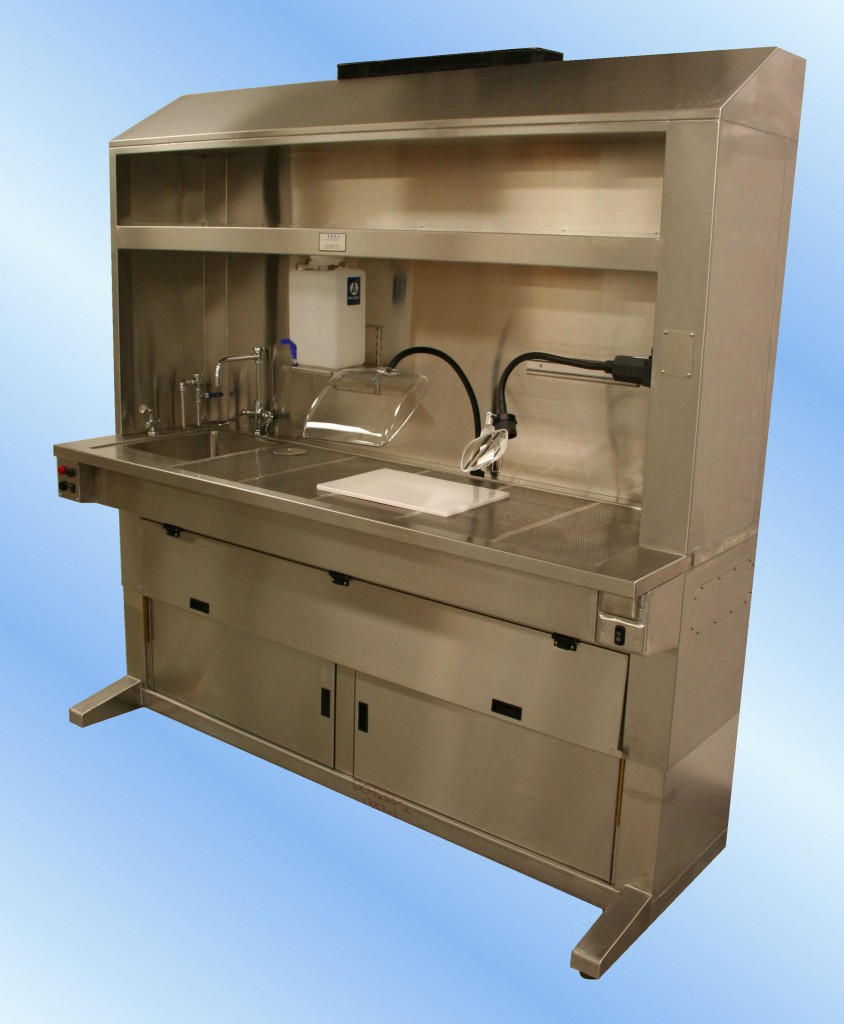

Downdraft Grossing Station Model 30-84-S DD-GS
The TBJ Model 30-84-S DD-GS is a large downdraft grossing station for necropsy or gross dissection procedures. It is shown below with a variety of standard and optional features including push-button height adjustment, 1 HP disposer with ON/OFF switch, formalin dispensing system with pump and holding carboy, formalin cup sink with collection carboy, halogen task lamp with magnifier, paper towel dispenser, safety splash shield and magnetic instrument holder.
Features:
- Overall dimensions: 30" wide x 84" x 33-41" high work surface
- 21 1/2" wide x 58" downdraft work area
- Spray gun, flush manifold, sink with hot/cold water faucet, fluorescent light fixture standard
- 4" x 30" duct connection with flexible exhaust bellows
PDF Information Sheet
-

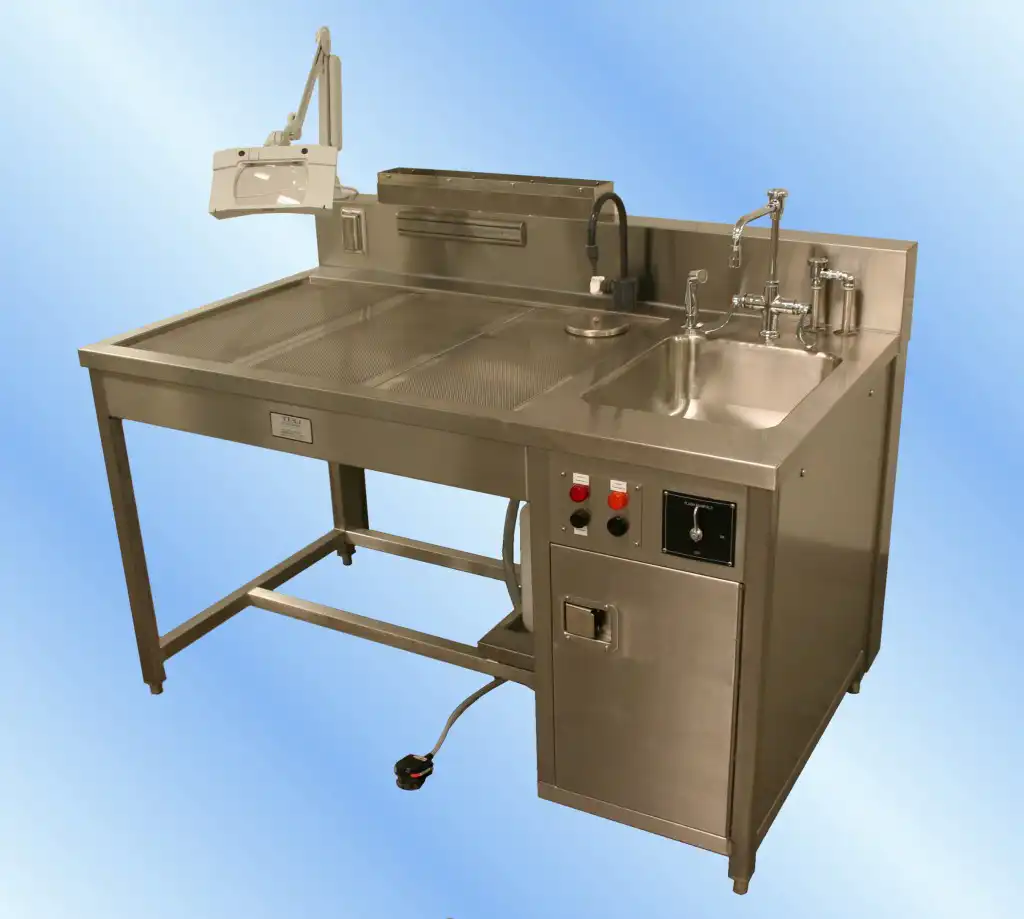

Downdraft Trim Station Model 33-60-S DD-TS
The TBJ Model 33-60-S Downdraft Trim Station puts all of the conveniences and features needed for your trimming procedures right at your finger tips.
Features:
- Overall dimensions: 36" wide x 60" x 34" high work surface
- 39" wide x 26" perimeter downdraft work area
- Spray gun, flush manifold, sink with hot/cold water faucet included
- 4" x 24" duct connection
PDF Information Sheet
-

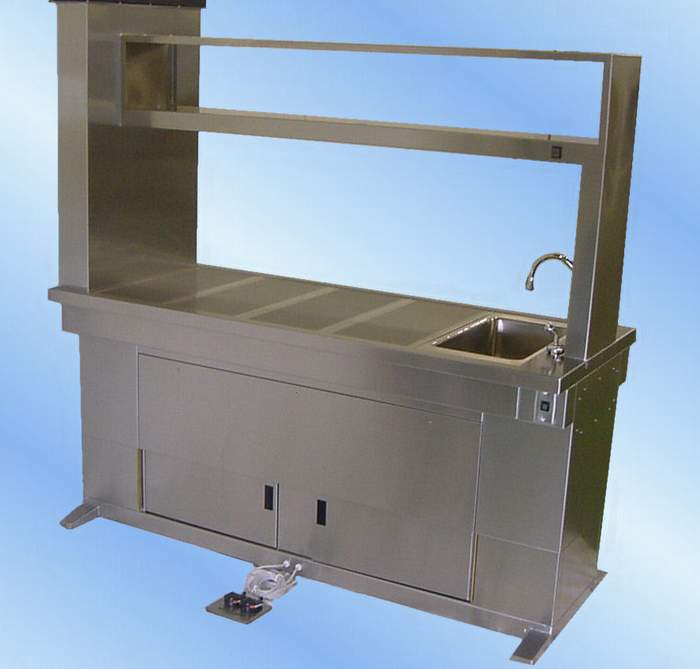

Downdraft Grossing Station Model 30-78-S DD-AH-GS
The TBJ Model 30-78-S DD-AH-GS is an adjustable height downdraft grossing station with a large downdraft work area to accommodate 2 or more users. An overhead canopy with integral fluorescent lighting provides a well lit work area and also provides a spacious storage shelf within easy reach for added storage. It can be installed as peninsula unit with access on only 3 sides or as an island unit with access around all 4 sides.
Features:
- Work surface height adjustment from 32" to 40" high.
- 26" x 52" downdraft work area.
- Integral sink with hot/cold water faucet with foot pedal controls on each side of the table.
- Deck mounted spray rinse.
- Rinse manifold with ON/OFF control for table clean up.
- Available with many optional features including halogen task lighting, adjustable camera bracket, formalin dispensing and collection and many more.
- Outside dimensions: 30" wide x 78" long.
PDF Information Sheet
