Dual-user workstations are designed to incorporate two workstations in to one space saving unit so that two users can work simultaneously. The work areas are typically separated by a centrally located sink.
Downdraft Grossing Station Model 30-72-S DD-DS
Downdraft Grossing Station Model 30-84-S DD-DS
Dual User Downdraft Workstation Model 30-96-S DD-DU
Downdraft Dual User Grossing Station Model 36-120-S DD-DS
Dual User Downdraft Grossing Station Model 36-88-S DD-DS
Dual User Downdraft Grossing Station Model 36-96-DD-DS
-

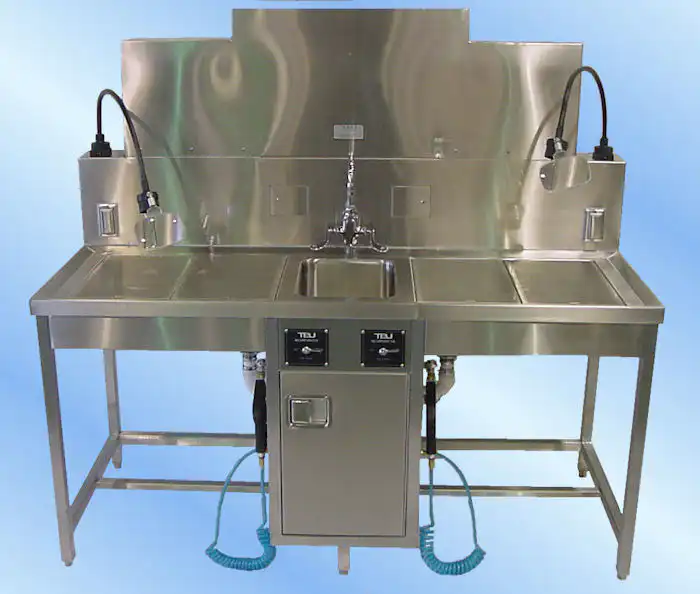

Downdraft Grossing Station Model 30-72-S DD-DS
The TBJ Model 30-72-S DD-DS is a compact, dual user downdraft grossing station that provides two downdraft work areas joined by a central sink to enable two users to comfortably work side by side. It is shown here with optional halogen task lamps with magnifiers.
Features:
- Overall dimensions: 30" x 72" long x 36" high work surface.
- Two 24" x 19" downdraft work areas
- Center sink with hot/cold water faucet, two spray guns and two flush manifold are standard.
- 6" x 30" duct connection
PDF Information Sheet
-
Downdraft Grossing Station Model 30-84-S DD-DS
The TBJ Model 30-84-S-DS is a mid-size, dual user downdraft grossing station that provides two downdraft work areas joined by a central sink to enable two users to comfortably work side by side.
Features:
- Overall dimensions: 30" x 84" long x 36" high work surface.
- Two 30" x 19" downdraft work areas
- Center sink with hot/cold water faucet, two spray guns and two flush manifold are standard.
- 6" x 30" duct connection
PDF Information Sheet
-

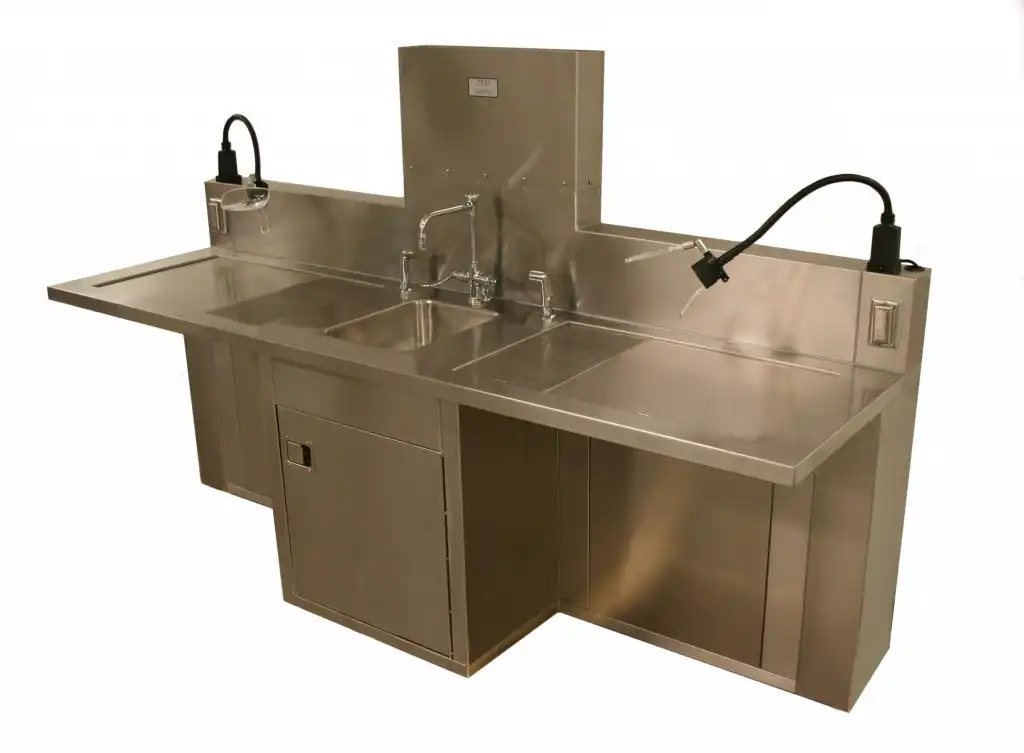

Dual User Downdraft Workstation Model 30-96-S DD-DU
The TBJ Model 30-96-S DD-DU is a dual-user downdraft workstation that is designed for two users to work side by side separated by a central sink. It is shown here with optional features that include two halogen task lamps with magnifiers and two GFCI receptacles.
Features:
- Features two 10" x 19" perforated downdraft work areas and two 20" x 19" solid work areas
- Includes central sink with hot/cold water faucet and two spray guns.
- 5" x 24" duct connection.
- Overall dimensions: 96" wide x 30" deep x 33" high work surface.
- Two units can be set back to back to form and"island style" work station for two users.
PDF Information Sheet
-
Downdraft Dual User Grossing Station Model 36-120-S DD-DS
The TBJ Model 36-120-S DD-DS is a spacious, dual user grossing station that provides two downdraft workstations joined by a central sink to enable two users to comfortably work side by side. It is shown here with optional halogen task lamps with magnifiers, swivel type surgical light and deck mounted eyewash.
Features:
- Overall dimensions: 36" x 120 long x 36" high work surface.
- Two 44" x 27" downdraft work areas
- Center sink with hot/cold water faucet, two spray guns and two flush manifold are standard.
- 6" x 30" duct connection
PDF Information Sheet
-
Dual User Downdraft Grossing Station Model 36-88-S DD-DS
The TBJ Model 36-88-S DD-DS is a dual user downdraft grossing station for two users to work side by side. The downdraft workstation areas are separated by an integral sink with hot/cold water faucet and a storage cabinet with integral trash chute.
Features:
- Overall dimensions: 36" x 88 long x 32" high work surface.
- Two 32" x 24" downdraft work areas with perimeter perforated panels.
- Sink with hot/cold water faucet, two spray guns and GFCI receptacles are standard.
- 5" x 24" duct connection.
PDF Information Sheet
-

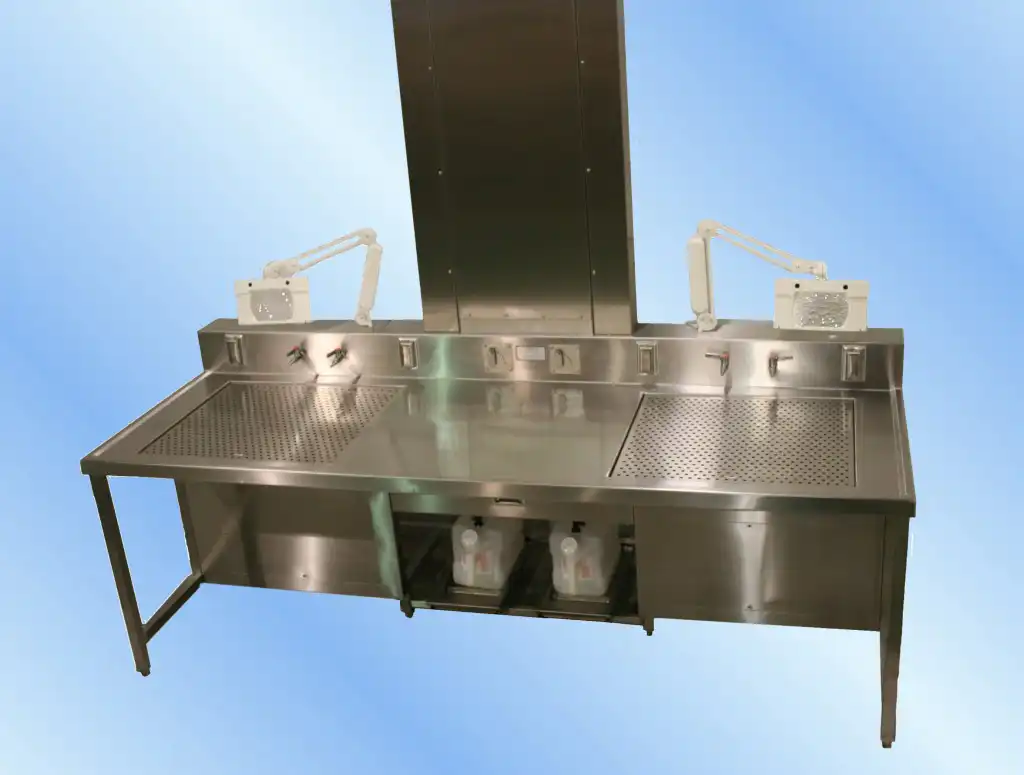

Dual User Downdraft Grossing Station Model 36-96-DD-DS
The TBJ Model 36-96-S is a dual user downdraft grossing station with two compact downdraft work areas. It is shown here with optional fluorescent magnifiers and laboratory compressed air and carbon dioxide outlets.
Features:
- Overall dimensions: 36" x 96" x 32" high work surface
- Two 26" x 28" downdraft work areas
- Two cold water spray guns and four GFCI outlets
- 5" x 20" duct connection
PDF Information Sheet
