TBJ Drop-in downdraft workstations are designed to drop in to both new and existing counter tops and case work to provide a quick, economical solution to adding downdraft ventilation to your lab.
Drop-In Downdraft Workstation Model 19-14 DD
Drop-In Downdraft Workstation Model 22-18 DD
Drop-In Downdraft Workstation Model 22-18 DD-KS
Drop-In Downdraft Workstation Model 25-18 DD
Drop-In Downdraft Station Model 30-42 with 24-20 DD
Drop-In Downdraft Workstation Model 40-20 DD
-

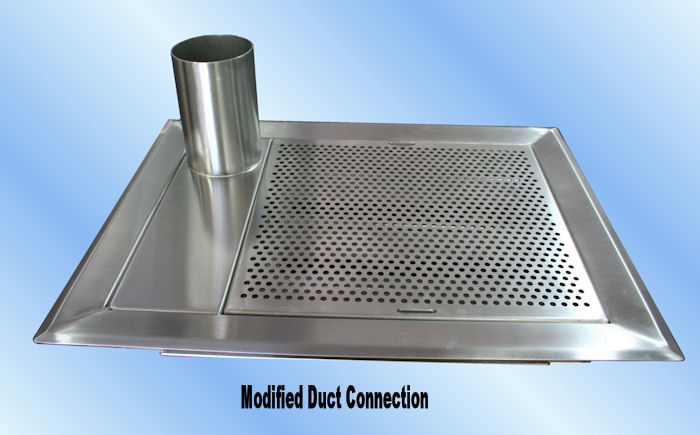

Drop-In Downdraft Workstation Model 19-14 DD
The TBJ Model 19-14 DD downdraft workstation is designed with an exposed duct connection on the top for connection to the building exhaust source through the ceiling. It is a compact unit designed for small procedures.
Features:
- Overall dimensions: 23" wide x 18"
- 14" wide x 15" downdraft work area
- 4" x 8" duct connection standard
PDF Information Sheet
-
Drop-In Downdraft Workstation Model 22-18 DD
Our drop-in downdraft workstation are designed to"drop-in" to a cut out in new or existing table tops, counter tops or casework. The 22-18 DD is one of our most popular drop-in style downdraft workstations.
Features:
- Overall dimensions: 28" wide x 25"
- 24" wide x 18" downdraft work area
- Hot/cold water faucet standard
- 4" or 6" O.D. duct connection standard
PDF Information Sheet
-
Drop-In Downdraft Workstation Model 22-18 DD-KS
A variation of our standard downdraft workstation Model 22-18 is shown here with a"knee space" design to allow for knee clearance for seated use.
Features:
- A variation of our standard model 22-18 is shown here with a"knee space" design to allow for knee clearance for seated use.
- Overall dimensions: 28" wide x 25"
- 24" wide x 18" downdraft work area
- Hot/cold water faucet standard
- 4" or 6" O.D. duct connection standard
PDF Information Sheet
-
Drop-In Downdraft Workstation Model 25-18 DD
The TBJ Model 25-18 DD downdraft workstation is designed to easily fit in to a standard counter top. Connection to the building exhaust source is through a duct connection located on the bottom of the unit.
Features:
- Overall dimensions: 27" wide x 20"
- 25" x 18" perforated work surface area
- 8" diameter duct connection with removable perforated screen
- Removable perforated deflector
- 1 1/2" drain connection with 5 gallon collection carboy with quick connect fittings
PDF Information Sheet
-

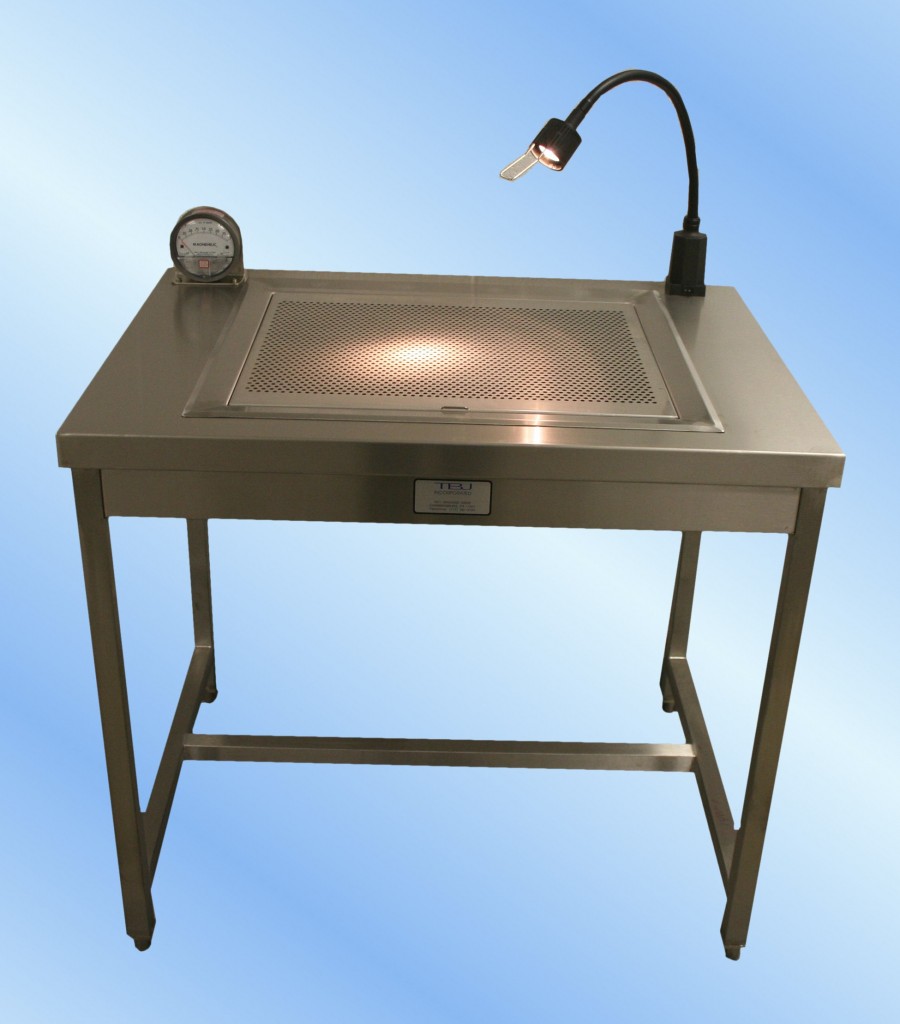

Drop-In Downdraft Station Model 30-42 with 24-20 DD
The Model 30-42 Work Table is shown here with a 24-20 drop-in downdraft station. This drop-in downdraft station has a tapered front to allow adequate knee space for sitting while also providing a deep enough plenum for efficient downdraft airflow.
Features:
- Overall dimensions: 30" deep x 42" wide x 35" high.
- 24" wide x 20" downdraft work area
PDF Information Sheet
-
Drop-In Downdraft Workstation Model 40-20 DD
The TBJ Model 40-20 DD downdraft workstation is designed is a large size drop-in unit that will easily fit in to a standard counter top. Connection to the building exhaust source is through a duct connection on the back of the unit.
Features:
- Overall dimensions: 44" wide x 24"
- 20" x 40" perforated work surface area
- 3" x 8" duct connection
- Integral overflow
- Removable inner baffling system to assure balanced air flow
- Knee space design.
PDF Information Sheet
