TBJ’s Downdraft Workstations are designed to provide a ventilated workstation for animal grossing, necropsies, surgeries, perfusions, and dissections. Downdraft workstation pulls air, odors, vapors, and aerosols down and away from the face of personnel when connected to a negative air source. Chemicals such as formalin, alcohol, and xylene are controlled and can be kept below OSHA-permissible exposure limits, providing a health-safe work environment.
Downdraft Workstation Model 26-78-S DD
Downdraft Workstation Model 34-84 DD-C
Downdraft Workstation Model 36-78 DD-C
Downdraft Workstation Model 40-48 DD
Downdraft Workstation Model 42-70 DD
Downdraft Workstation Model 72-36 DD
-

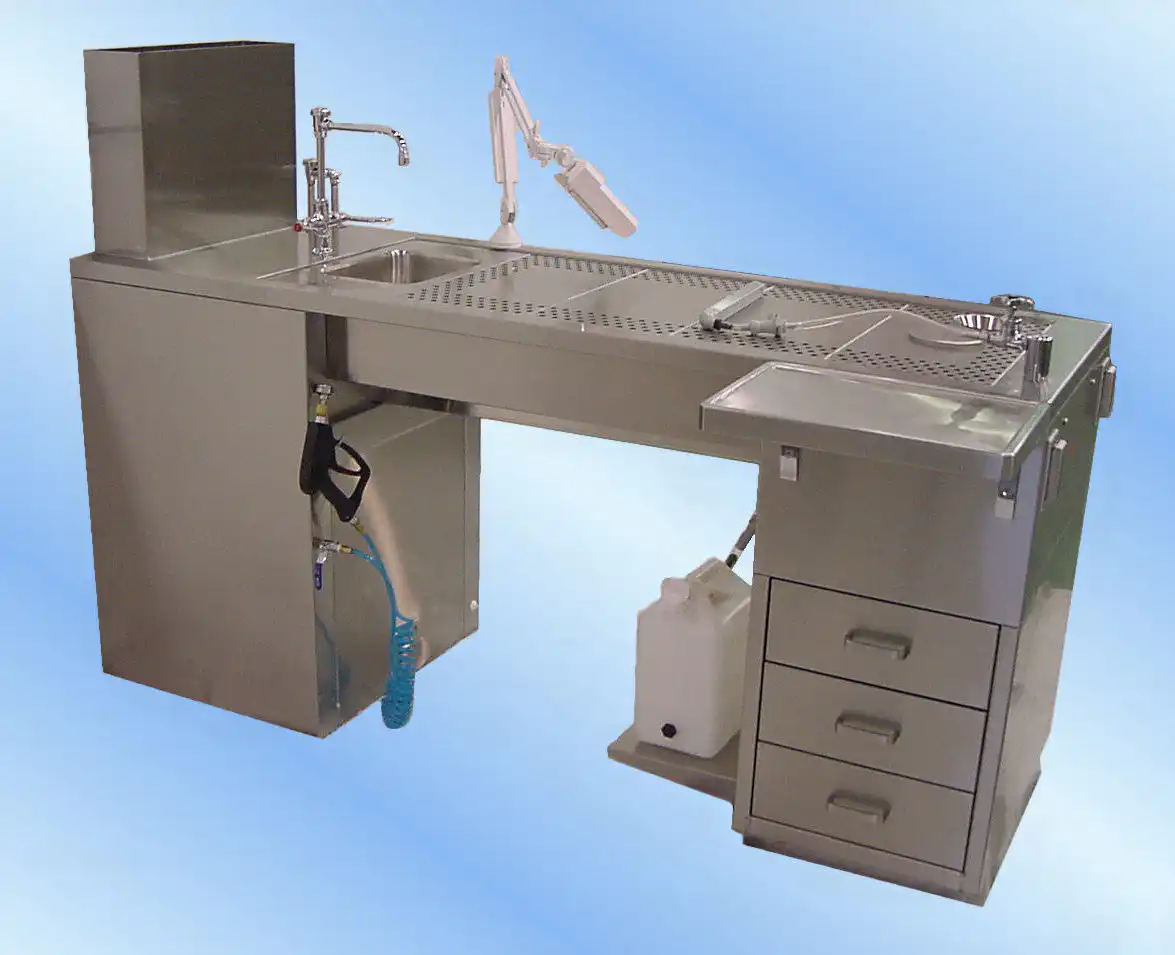

Downdraft Workstation Model 26-78-S DD
Features:
- Overall dimensions: 26" wide x 78" x 37 1/2" high work surface
- 22" wide x 44" perimeter downdraft work area
- Spray gun, flush manifold, sink with hot/cold water faucet included
- 6" x 18" duct connection
PDF Information Sheet
-

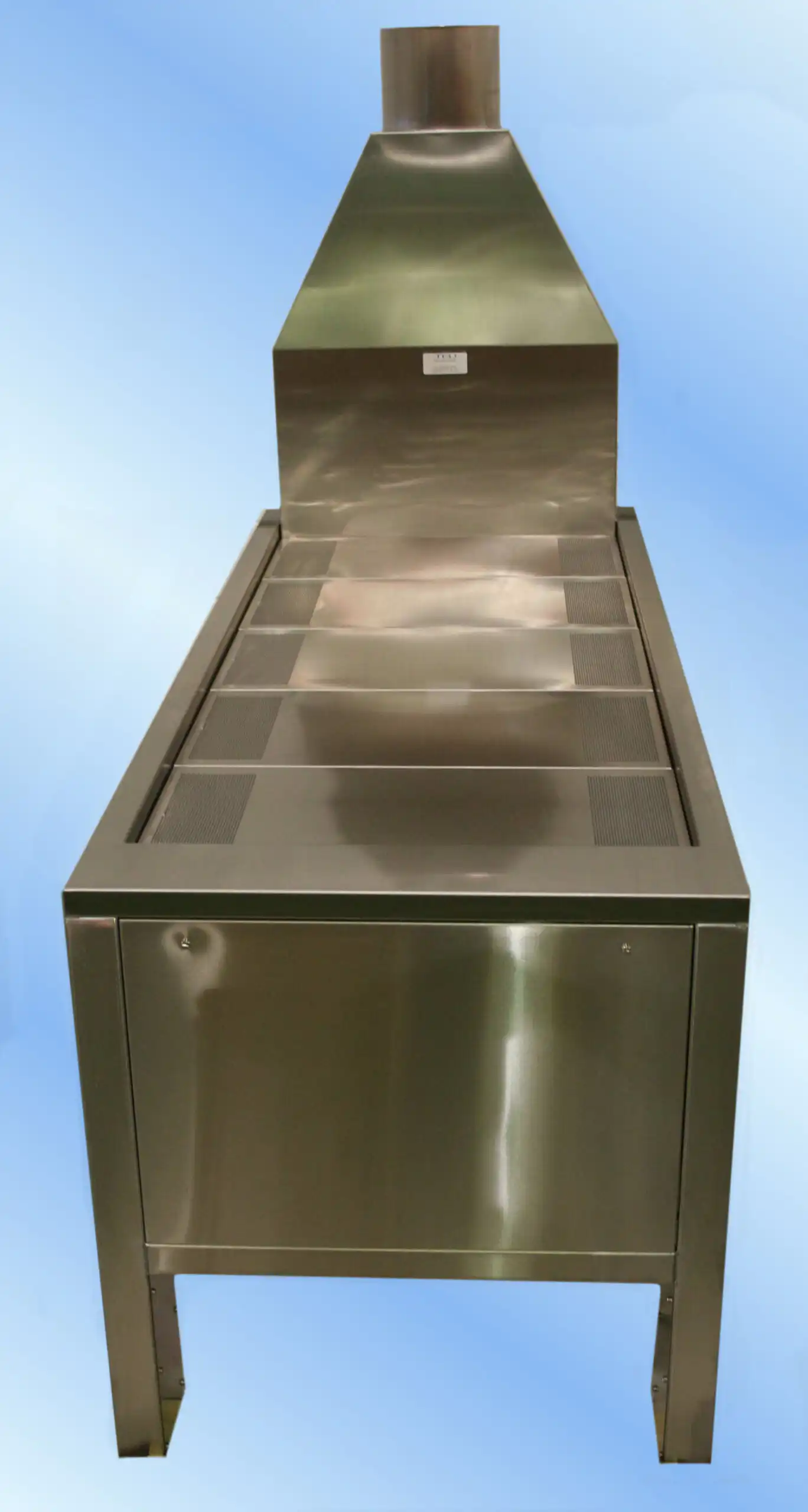

Downdraft Workstation Model 34-84 DD-C
TBJ Model 34-84 is a custom variation of our 30 and 36 series downdraft workstations which was customized for anatomy dissection procedures.
Features:
- Overall dimensions: 34" x 84" x 37" work height
- 72" x 30" perimeter downdraft work surface
- 10" O.D duct connection
-
Downdraft Workstation Model 36-78 DD-C
Features:
- Overall dimensions: 36" x 78" x 36" high work surface
- 61 1/2" x 25 1/2" solid stainless steel work surface
- Spray gun and 1 HP disposer included
- 4" x 20" duct connection
PDF Information Sheet
-

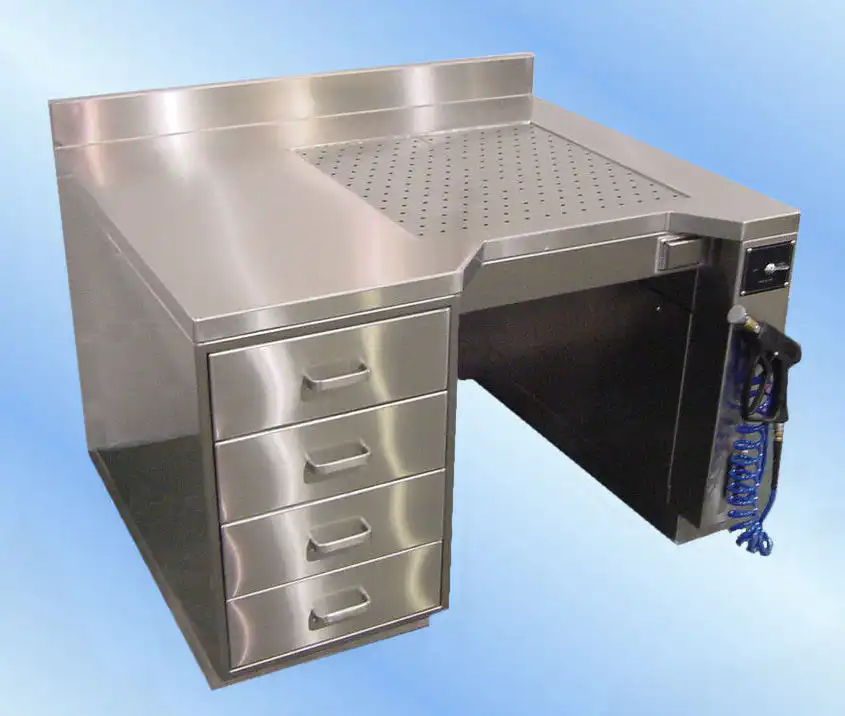

Downdraft Workstation Model 40-48 DD
The TBJ Model 40-48 DD-C is compact downdraft workstation that includes four sliding drawers for convenient storage of instruments, tools and associated accessories.
Features:
- Spray gun, flush manifold and GFCI outlet standard
- 24" x 24" downdraft work area
- Overall dimensions: 40" x 48" x 30" high 4" x 18" duct connection designed for a thru-wall connection
PDF Information Sheet
-
-

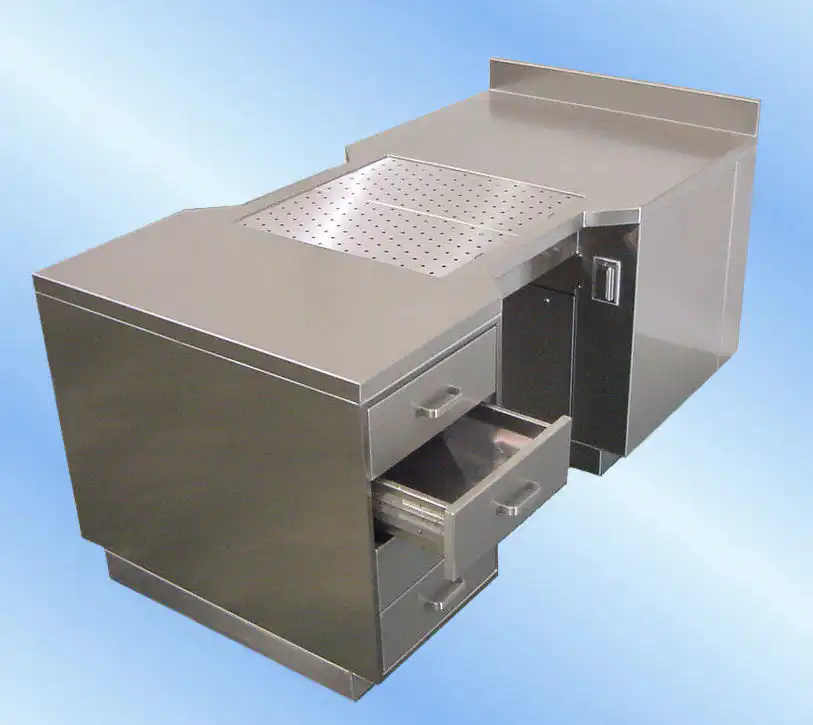

Downdraft Workstation Model 72-36 DD
The TBJ Model 72-36 DD downdraft workstation is designed for two users to work simultaneously across from one another and includes four storage drawers on each side of the table.
Features:
- Overall dimensions: 36" wide x 72" x 30" high work surface.
- 24" x 24" downdraft work area 4" x 18" duct connection designed for a thru-wall connection
- Spray gun and flush manifold are standard
PDF Information Sheet
