30 inch Table Width (‘S’ suffix indicates the table includes a sink and faucet). Table Lengths 48 | 60 | 72 | 84 | 96 | 108 | 120 (inch).

Downdraft Workstation Model 30-42-S DD

Downdraft Workstation Model 30-48 DD

Downdraft Workstation Model 30-48-S DD

Downdraft Workstation Model 30-54-S DD

Downdraft Workstation Model 30-60 DD

Downdraft Workstation Model 30-60-S DD

Downdraft Workstation Model 30-70 DD

Downdraft Workstation Model 30-72 DD

Downdraft Workstation Model 30-72-S DD

Downdraft Workstation Model 30-78-S DD

Downdraft Workstation Model 30-78 S DD CP

Downdraft Workstation Model 30-84 DD

Downdraft Workstation Model 30-84-S DD

Downdraft Workstation Model 30-96 DD

Downdraft Workstation Model 30-96-S DD

Downdraft Workstation Model 30-108 DD

Downdraft Workstation Model 30-108-S DD

Downdraft Workstation Model 30-120 DD

Downdraft Workstation Model 30-120-S DD

<

>
Downdraft Workstation Model 30-42-S DD
The TBJ Model 30-42-S downdraft workstation is a compact unit that includes a sink with hot and cold water as a standard feature. It is designed to be installed in a corner with the duct running down the corner wall. The faucet, sink and flush manifold control are located on the long side of the table for convenient access from the other side of the table.

Features:
- Overall dimensions: 30" wide x 42" x 36" high work surface
- 22" wide downdraft work area
- Spray gun, flush manifold standard
- 4" x 18" duct connection standard
PDF Information Sheet
View Product
<

>

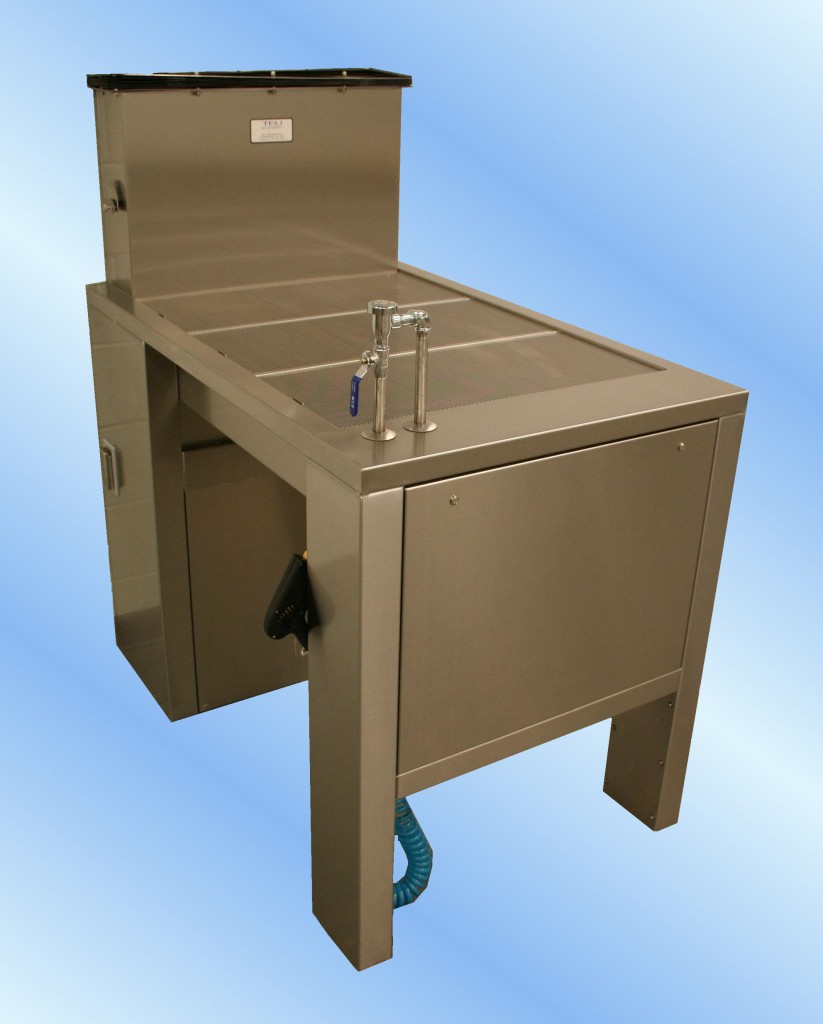

Downdraft Workstation Model 30-48 DD
The TBJ Model 30-48 downdraft workstation is a compact unit designed specifically for procedures on small animals.

Features:
- Overall dimensions: 30" wide x 48" x 37" high work surface
- 36" wide x 24" downdraft work area
- Spray gun, flush manifold standard
- 6" x 26" duct connection standard
PDF Information Sheet
View Product
<

>

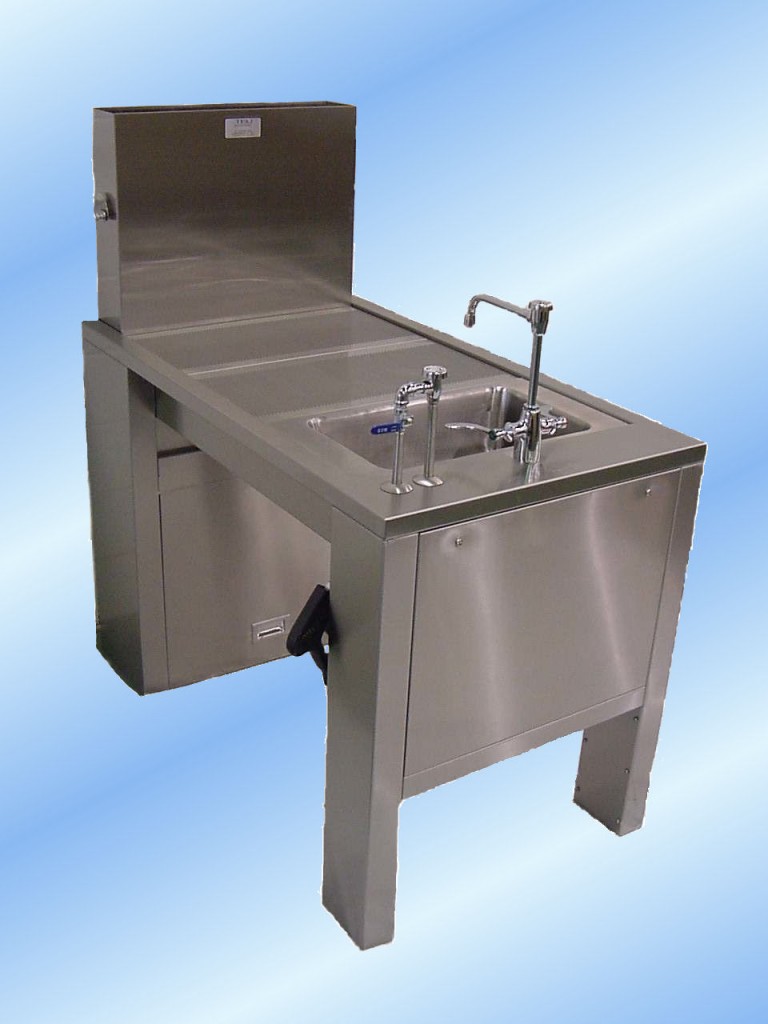

Downdraft Workstation Model 30-48-S DD
The TBJ Model 30-48-S downdraft workstation is a compact unit that includes a sink with hot and cold water as a standard feature.

Features:
- Overall dimensions: 30" wide x 48" x 37" high work surface
- 22" wide x 26" downdraft work area
- Spray gun, flush manifold standard
- 6" x 26" duct connection standard
PDF Information Sheet
View Product
<

>
Downdraft Workstation Model 30-54-S DD
The TBJ Model 30-54-S downdraft workstation is another compact model that includes a sink with hot and cold water as a standard feature.

Features:
- Overall dimensions: 30" wide x 69 1/2" x 37" high work surface
- 43 1/2" wide x 26" downdraft work area
- Spray gun, flush manifold standard
- 6" x 26" duct connection standard
PDF Information Sheet
View Product
<

>

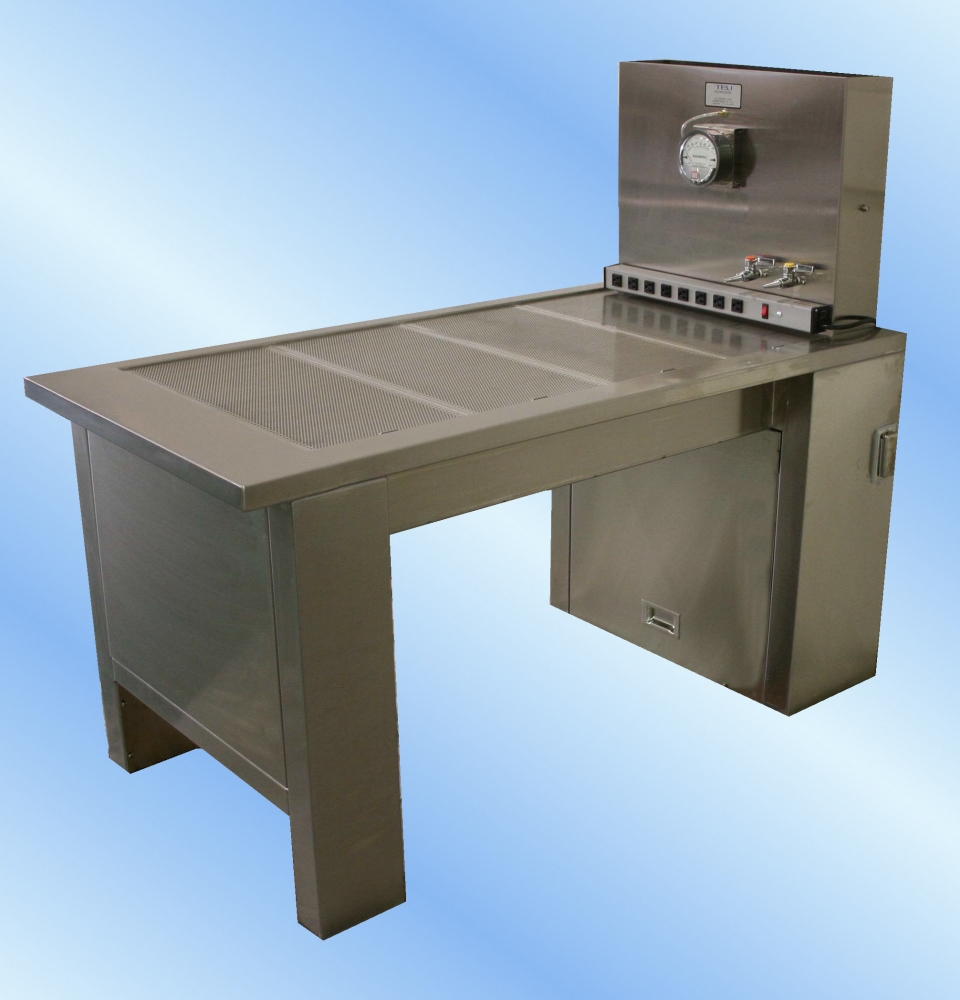

Downdraft Workstation Model 30-60 DD
The TBJ Model 30-60 DD is a mid size downdraft workstation shown here with the optional power strip, custom overhang extension, lab gas outlets and magnehelic gauge.

Features:
- Overall dimensions: 30" wide x 60" x 37" high work surface
- 27" wide x 48" downdraft work area
- Spray gun and flush manifold standard
- 6" x 26" duct connection standard
PDF Information Sheet
View Product
<

>
Downdraft Workstation Model 30-60-S DD
One of our most popular models, the 30-60-S is mid size downdraft workstation with our standard type 316 heavy duty construction.

Features:
- Overall dimensions: 30" wide x 60" x 37" high work surface
- 27" wide x 36" downdraft work area
- Spray gun, flush manifold, sink with hot/cold water faucet standard
- 6" x 26" duct connection standard
PDF Information Sheet
View Product
<

>

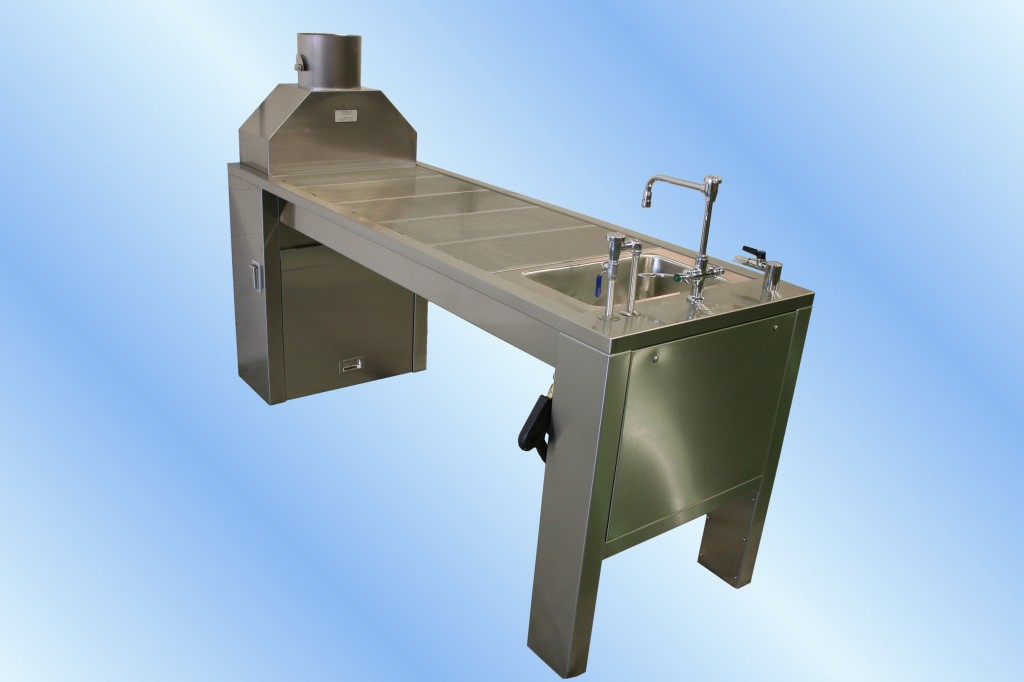

Downdraft Workstation Model 30-70 DD

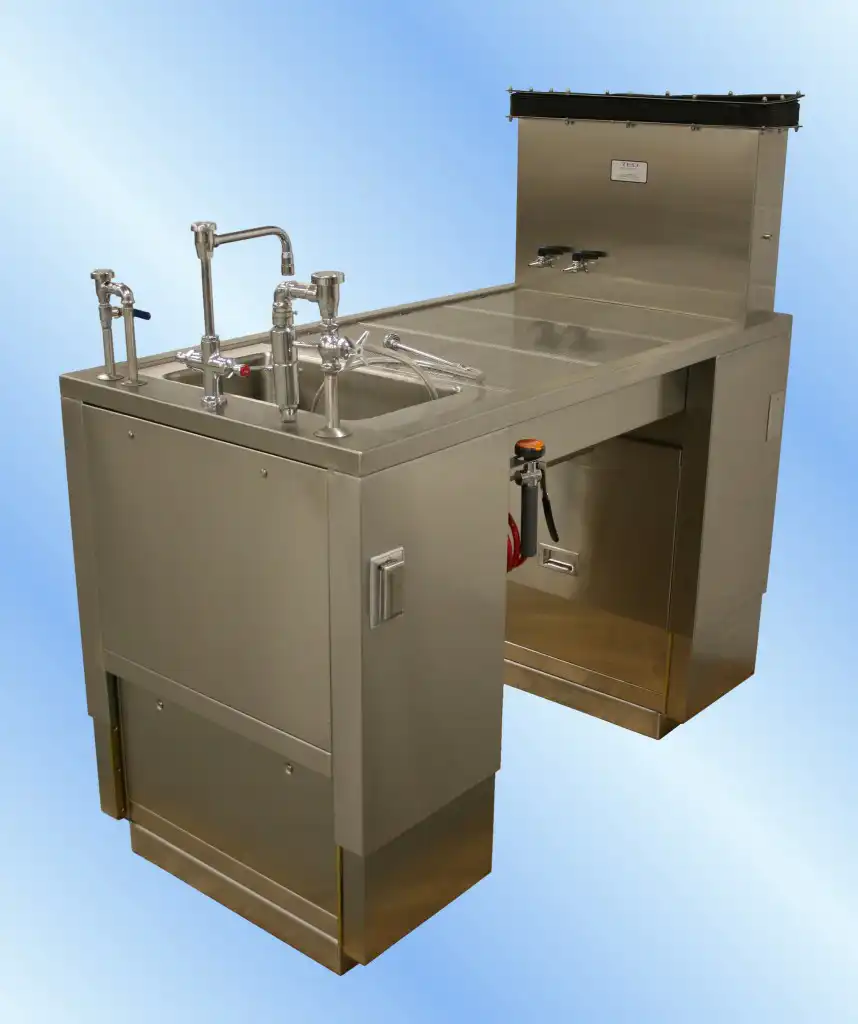

One of our original downdraft workstation models shown here with the push-button height adjustment feature, magnehelic velocity gauge, eye wash hose and GFCI outlet. The other photo shows the 30-70 with standard fixed height, IV post and side shelf with scale.

Features:
- Overall dimensions: 30" wide x 87 1/2" x 37" high work surface
- 26" wide x 55 1/2" downdraft work area
- Spray gun, flush manifold, sink with hot/cold water faucet standard
- 10" duct connection standard
PDF Information Sheet
View Product
<

>

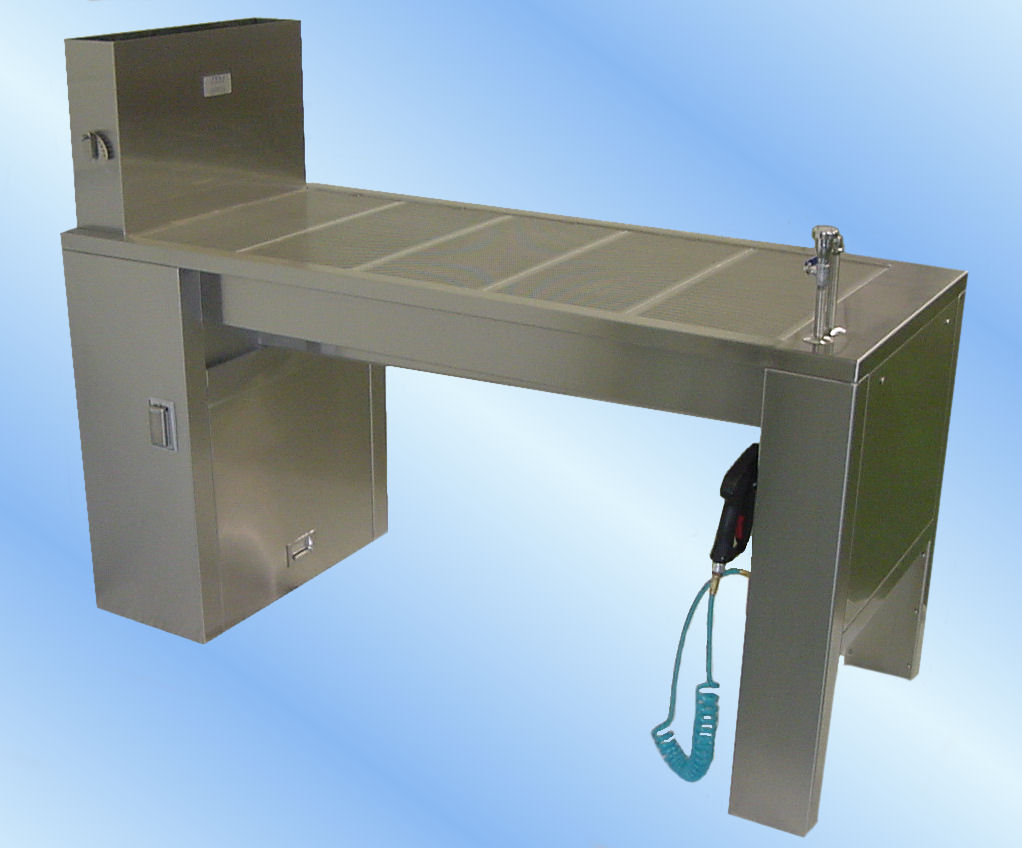

Downdraft Workstation Model 30-72 DD
TheTBJ Model 30-72 DD is a mid size downdraft workstation with a spacious 60" long downdraft work surface.

Features:
- Overall dimensions: 30" wide x 72" x 37" high work surface
- 26" wide x 60" downdraft work area
- Spray gun and flush manifold standard
- 6" x 26" duct connection standard
PDF Information Sheet
View Product
<

>
Downdraft Workstation Model 30-72-S DD
The Model 30-72-S DD is a mid size downdraft workstation shown here with the swivel type surgical light, drench hose, lab gas outlets and hydro-aspirator system options.

Features:
- Overall dimensions: 30" wide x 72" x 37" high work surface
- 26" wide x 46" downdraft work area
- Spray gun, flush manifold, sink with hot/cold water faucet standard
- 6" x 26" duct connection standard
PDF Information Sheet
View Product
<

>

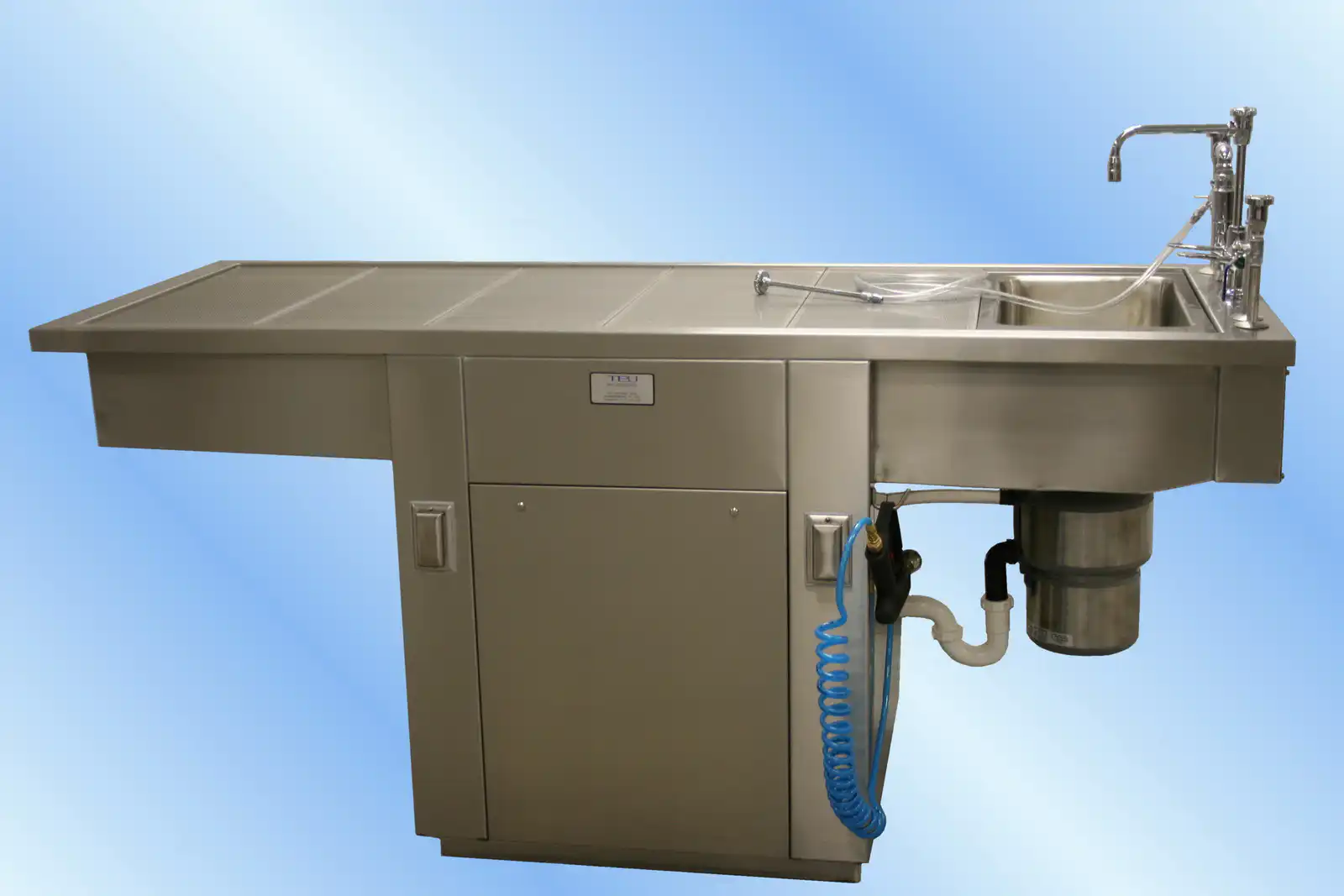

Downdraft Workstation Model 30-78-S DD
The TBJ Model 30-78-S DD is a mid sized downdraft workstation is shown here with optional hydro-aspirator and GFCI outlets.

Features:
- Overall dimensions: 30" wide x 78" x 37" high work surface
- 26" wide x 48" downdraft work area
- Spray gun, flush manifold, sink with hot/cold water faucet standard
- 6" x 26" duct connection standard
PDF Information Sheet
View Product
<

>
Downdraft Workstation Model 30-78 S DD CP
The TBJ Model 30-78-S DD AT is a center pedestal downdraft workstation shown here with an optional hydro-aspirator, GFCI outlets and heavy duty disposer. The table is designed for use in autopsy and necropsy applications.

Features:
- Overall dimensions: 30" wide x 78" x 37" high work surface
- 26" wide x 57 1/2" downdraft work area
- Spray gun, flush manifold, sink with hot/cold water faucet standard
- 30" x 30" center pedestal
- 10" diameter duct designed for a through-floor connection.
- Downdraft exhaust is provided by a raised duct with a removable cowl located with in the table"pan".
PDF Information Sheet
View Product
<

>
Downdraft Workstation Model 30-84 DD
Features:
- Overall dimensions: 30" wide x 84" x 37" high work surface
- 26" wide x 72" downdraft work area
- Spray gun and flush manifold standard
- 6" x 26" duct connection standard
PDF Information Sheet
View Product
<

>
Downdraft Workstation Model 30-84-S DD
The TBJ Model 30-84-S downdraft workstation is shown here with optional built-in storage drawers in the front pedestal for instrument and equipment storage.

Features:
- Overall dimensions: 30" wide x 84" x 37" high work surface
- 26" wide x 58" downdraft work area on standard models
- Spray gun, flush manifold, sink with hot/cold water faucet standard
- 6" x 26" duct connection standard
PDF Information Sheet
View Product
<

>
Downdraft Workstation Model 30-96 DD
Features:
- Overall dimensions: 30" wide x 96" x 37" high work surface
- 26" wide x 84" downdraft work area
- Spray gun and flush manifold standard
- 6" x 26" duct connection standard
PDF Information Sheet
View Product
<

>
Downdraft Workstation Model 30-96-S DD
The Model 30-96-S downdraft workstation is a spacious table with an 8 foot long overall length.

Features:
- Overall dimensions: 30" wide x 96" x 37" high work surface
- 26" wide x 70" downdraft work area on standard models
- Spray gun, flush manifold, sink with hot/cold waterfaucet standard
- 6" x 26" duct connection standard
PDF Information Sheet
View Product
<

>
Downdraft Workstation Model 30-108 DD
Features:
- Overall dimensions: 30" wide x 108" x 37" high work surface
- 26" wide x 96" downdraft work area
- Spray gun and flush manifold standard
- 6" x 26" duct connection
View Product
<

>
Downdraft Workstation Model 30-108-S DD
The TBJ Model 30-108-S downdraft workstation is a 9-foot long table shown here with the optional heavy duty disposer with ON/OFF switch.

Features:
- Overall dimensions: 30" wide x 108" x 37" high work surface
- 26" wide x 82" downdraft work area on standard models
- Spray gun, flush manifold, sink with hot/cold water faucet standard
- 6" x 26" duct connection standard
PDF Information Sheet
View Product
<

>
Downdraft Workstation Model 30-120 DD
Features:
- 26" x 108" downdraft work area
- Spray gun and flush manifold standard
- 6" x 26" duct connection standard
- Overall dimensions: 30" wide x 120" x 37" high work surface
PDF Information Sheet
View Product
<

>
Downdraft Workstation Model 30-120-S DD
The Model 30-120-S Downdraft Workstation is designed to pull air, hazardous odors, vapors, and aerosols down and away from the face and breathing zone of users thus providing a healthier and safer work area.

Features:
- Overall dimensions: 30" wide x 120" x 37" high work surface
- 26" wide x 108" downdraft work area
- Integral sink with hot/cold water faucet
- Spray gun and flush manifold standard
- 6" x 26" duct connection standard
PDF Information Sheet
View Product
