Downdraft Workstations – 24 Series

Downdraft Workstations – 24 SeriesOqobo Support2019-02-27T22:30:22-05:00

24 inch Table Width (‘S’ suffix indicates the table includes a sink and faucet). Table Lengths 48 | 60 | 72 | 84 | 96 | 108 | 120 (inch).

Downdraft Workstation Model 18-22 DD

Downdraft Workstation Model 24-36 DD

Downdraft Workstation Model 24-48 DD

Downdraft Workstation Model 24-48-S DD

Downdraft Workstation Model 24-60 DD

Downdraft Workstation Model 24-60-S DD

Downdraft Workstation Model 24-72 DD

Downdraft Workstation Model 24-72-S DD

Downdraft Workstation Model 24-84 DD

Downdraft Workstation Model 24-84-S DD

Downdraft Workstation Model 24-96 DD

Downdraft Workstation Model 24-96-S DD

Downdraft Workstation Model 24-108 DD

Downdraft Workstation Model 24-108-S DD

Downdraft Workstation Model 24-120 DD

Downdraft Workstation Model 24-120-S DD

<

>
Downdraft Workstation Model 18-22 DD
The Model 18-22 DD Downdraft Workstation is an economical, compact downdraft table that is ideal where space is at a premium.

Features:
- Overall dimensions: 25" wide x 36" x 36" high work surface
- 22" wide x 18" downdraft work area
- Hot/cold water faucet standard
- 8" diameter duct connection standard
PDF Information Sheet
View Product
<

>
Downdraft Workstation Model 24-36 DD
The TBJ Model 24-36 DD is a small, compact downdraft workstation available with a wide variety of optional features.

Features:
- Overall dimensions: 24" wide x 36" x 37" high work surface
- 21" wide x 24" downdraft work area
- Spray gun and flush manifold standard
- 6" x 20" duct connection standard
PDF Information Sheet
View Product
<

>
Downdraft Workstation Model 24-48 DD
The TBJ Model 24-48 DD is a small, compact downdraft workstation shown here with the optional swivel type surgical light, hot/cold water faucet and GFCI outlets.

Features:
- Overall dimensions: 24" wide x 48" x 37" high work surface
- 21" wide x 36" downdraft work area
- Spray gun and flush manifold standard
- 6" x 20" duct connection standard
PDF Information Sheet
View Product
<

>
Downdraft Workstation Model 24-48-S DD
The TBJ Model 24-48-S is a 4-foot long downdraft workstation shown here with the sink located on the exhaust end of the table in one photo and the non-exhaust end in the other.

Features:
- Overall dimensions: 24" wide x 48" x 37" high work surface
- 21" wide x 22" downdraft work area
- Integral sink with hot/cold water faucet
- Spray gun and flush manifold standard
- 6" x 20" duct connection standard
PDF Information Sheet
View Product
<

>
Downdraft Workstation Model 24-60 DD
The Model 24-60 DD is a mid size downdraft workstation shown here with the optional swivel type surgical light, deck mounted eye wash and removable side shelf.

Features:
- Overall dimensions: 24" wide x 60" x 37" high work surface
- 21" wide x 48" downdraft work area
- Spray gun and flush manifold standard
- 6" x 20" duct connection standard
PDF Information Sheet
View Product
<

>
Downdraft Workstation Model 24-60-S DD
Features:
- Overall Dimensions: 24" wide x 60" x 37" high work surface
- 21" wide x 34" downdraft work area
- Integral sink with hot/cold water faucet
- Spray gun and flush manifold standard
- 6" x 20" duct connection standard
PDF Information Sheet
View Product
<

>
Downdraft Workstation Model 24-72 DD
Features:
- Overall Dimensions: 24" wide x 72" x 37" high work surface
- 21" wide x 60" downdraft work area
- Spray gun and flush manifold standard
- 6" x 20" duct connection standard
- Shown below with optional push-button height adjustment and formalin collection cup sink and carboy.
PDF Information Sheet
View Product
<

>
Downdraft Workstation Model 24-72-S DD
The TBJ Model 24-72-S DD is a mid size downdraft workstation shown here with the optional push-button height adjustment, overhead canopy with fluorescent light and shelf, fluorescent task lamp, GFCI outlets and custom thru-floor duct connection

Features:
- Overall dimensions: 24" wide x 72" x 37" high work surface
- 21" wide x 46" downdraft work area
- Integral sink with hot/cold water faucet
- Spray gun and flush manifold standard
- 6" x 20" duct connection standard
PDF Information Sheet
View Product
<

>
Downdraft Workstation Model 24-84 DD
The 24-84 DD is designed to pull air, hazardous odors, vapors, and aerosols down and away from the face and breathing zone of users thus providing a healthier and safer work area.

Features:
- Overall Dimensions: 24" wide x 84" x 37" high work surface
- 21" wide x 72" downdraft work area
- Spray gun and flush manifold standard
- 6" x 20" duct connection standard
PDF Information Sheet
View Product
<

>
Downdraft Workstation Model 24-84-S DD
The TBJ Model 24-84-S is a 7-foot long downdraft workstation shown here with an optional second spray gun.

Features:
- Overall dimensions: 24" wide x 84" x 37" high work surface
- 21" wide x 58" downdraft work area
- Integral sink with hot/cold water faucet
- Spray gun and flush manifold standard
- 6" x 20" duct connection standard
PDF Information Sheet
View Product
<

>
Downdraft Workstation Model 24-96 DD
One of our larger downdraft workstations shown here with a custom thru-wall duct connection and optional hot/cold water faucet as well as the standard through ceiling duct connection.

Features:
- Overall dimensions: 24" wide x 96" x 37" high work surface
- 21" wide x 84" downdraft work area
- Spray gun and flush manifold standard
- 6" x 20" duct connection standard
PDF Information Sheet
View Product
<

>
Downdraft Workstation Model 24-96-S DD
The TBJ Model 24-96-S is an eight foot long downdraft workstation shown here with the standard sink with hot/cold and six removable perforated work surface panels.

Features:
- Overall dimensions: 24" wide x 96 x 37" high work surface
- 21" wide x 70" downdraft work area
- Spray gun, flush manifold, sink with hot/cold water faucet standard
- 6" x 20" duct connection standard
PDF Information Sheet
View Product
<

>

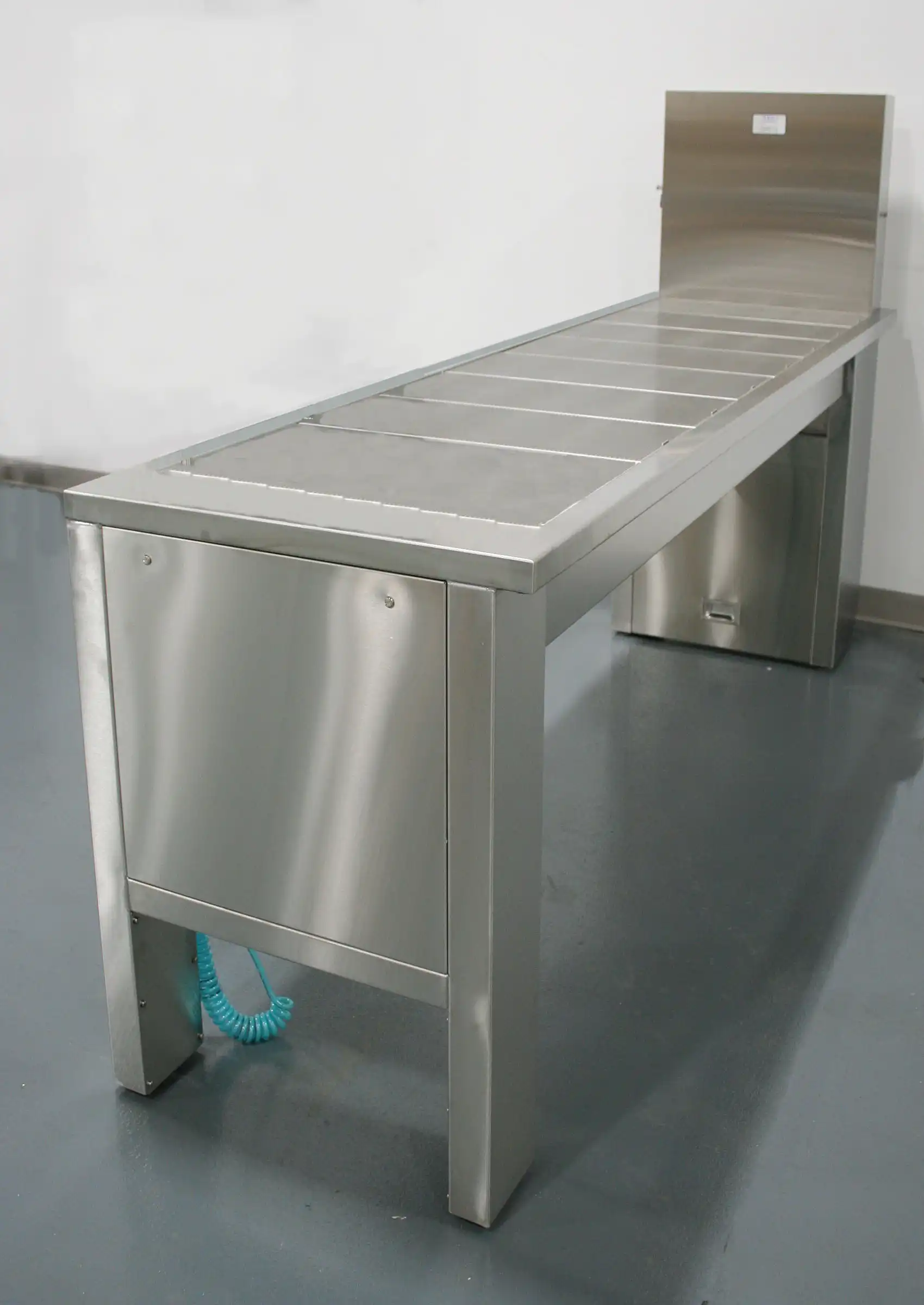

Downdraft Workstation Model 24-108 DD
Features:
- Overall dimensions: 24" wide x 108" x 37" high work surface
- 21" wide x 96" downdraft work area
- Spray gun and flush manifold standard
- 6" x 20" duct connection standard
PDF Information Sheet
View Product
<

>
Downdraft Workstation Model 24-108-S DD
Features:
- Overall dimensions: 24" wide x 108" x 37" high work surface
- 20" wide x 82" downdraft work area
- Integral sink with hot/cold water faucet
- Spray gun and flush manifold standard
- 6" x 20" duct connection standard
PDF Information Sheet
View Product
<

>
Downdraft Workstation Model 24-120 DD
Features:
- Overall Dimensions: 24" wide x 120" x 37" high work surface
- 21" wide x 108" downdraft work area
- Spray gun and flush manifold standard
- 6" x 20" duct connection standard
PDF Information Sheet
View Product
<

>
Downdraft Workstation Model 24-120-S DD
The Model 24-120-S DD, TBJ's largest 24" series downdraft table shown here with the push-button height work surface height adjustment feature that includes two telescoping pedestal bases and a flexible exhaust bellows connection.

Features:
- Overall dimensions: 24" wide x 120 x 37" high work surface. The push-button height adjustment option provides height adjustment from 30" to 38".
- 21" wide x 94" downdraft work area
- Spray gun, flush manifold, sink with hot/cold water faucet standard
- 6" x 20" duct connection standard
PDF Information Sheet
View Product
