TBJ’s Backdraft Work Bench Series backdraft tables incorporate a simple, economical design that provides an efficient and effective ventilated work area for a wide variety of applications and procedures. The standard design includes a stainless steel work surface with a full length backdraft plenum with exhaust duct connection(s), perforated exhaust panel(s) and a sturdy, heavy duty tubular base frame with adjustable leveling feet. Optional features include sinks, faucets, push-button height adjustment, gas outlets, drawers, cabinets, shelving, casters and wall mounting to name a few.
Backdraft Workbench Model 28-42 BD-WB
Backdraft Workbench Model 30-120 BD-WB
Backdraft Workbench Model 30-42 BD-WB
Backdraft Workbench Model 30-48 BD-WB
Backdraft Workbench Model 30-60-S BD-WB
Backdraft Workbench Model 30-72 BD-WB
Backdraft Workbench Model 30-96 BD-WB
Backdraft Workbench Model 30-96-S BD-WB
Backdraft Workbench Model 31-48 BD-WB
Backdraft Workbench Model 31-60 BD-WB
Backdraft Workbench Model 32-102-S BD-WB-VC
Backdraft Workbench Model 32-72 BD-WB-VC
Backdraft Workbench Model 36-120-S BD-WB
Backdraft Workbench Model 36-162 BD-WB
Backdraft Workbench Model 36-48 BD-WB
Backdraft Workbench Model 36-84 BD-WB
Backdraft Workbench Model 36-84-S BD-WB
Backdraft Workbench Model 36-88-S BD-WB
Backdraft Workbench Model 42-120 BD-WB
-
Backdraft Workbench Model 28-42 BD-WB
The TBJ Model 28-42 BD-WB Backdraft Workbench is designed to provide an economical vented workbench for controlling odors, gases and chemical fumes by capturing and exhausting air back and away from the work zone of users. The tabletop mounted backdraft plenum is designed to provide an even backdraft capture velocity to efficiently exhaust odors and fumes and provide a healthier, safer work environment.
Features:
- Integral storage drawer
- 6" x 8" duct connection
- Overall dimensions: 28" x 48 1/2" x 36" high work surface
PDF Information Sheet
-

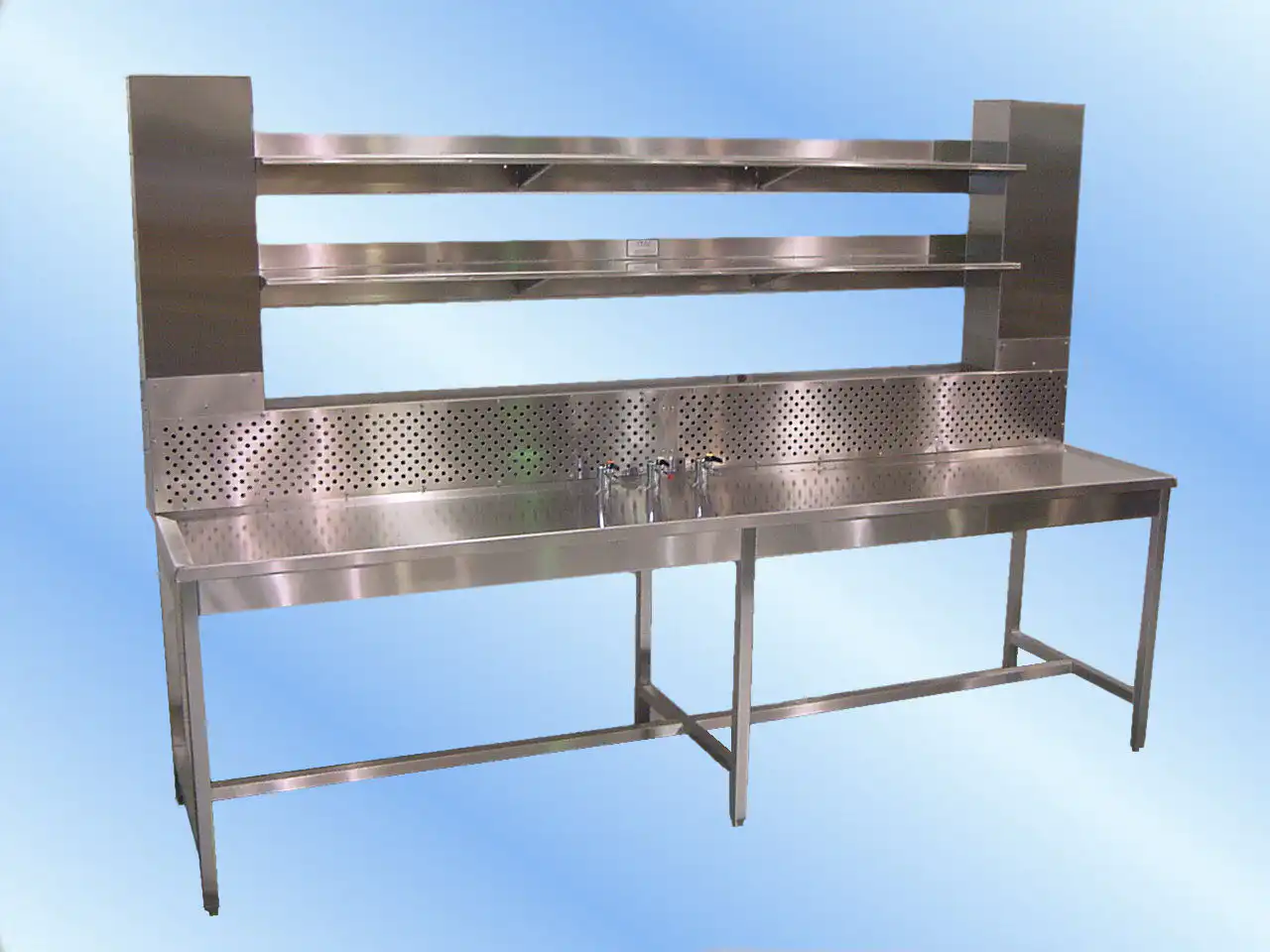

Backdraft Workbench Model 30-120 BD-WB
TBJ Backdraft Workbenches are designed to provide an economical vented work bench for controlling odors, gases and chemical fumes by capturing and exhausting air back and away from the work zone of users. The tabletop mounted backdraft plenum is designed to provide an even backdraft capture velocity to efficiently exhaust odors and fumes and provide a healthier, safer work environment.
Features:
- A wide variety of optional features including sinks, storage drawers and cabinets, lab gas fixtures, lighting and push-button height adjustment enable you to customize a work bench around your specific needs.
- 22" x 88" ventilated work top
- Two 8" x 12" duct connections
- Overall dimensions: 30" x 120" x 36" high work top
PDF Information Sheet
-

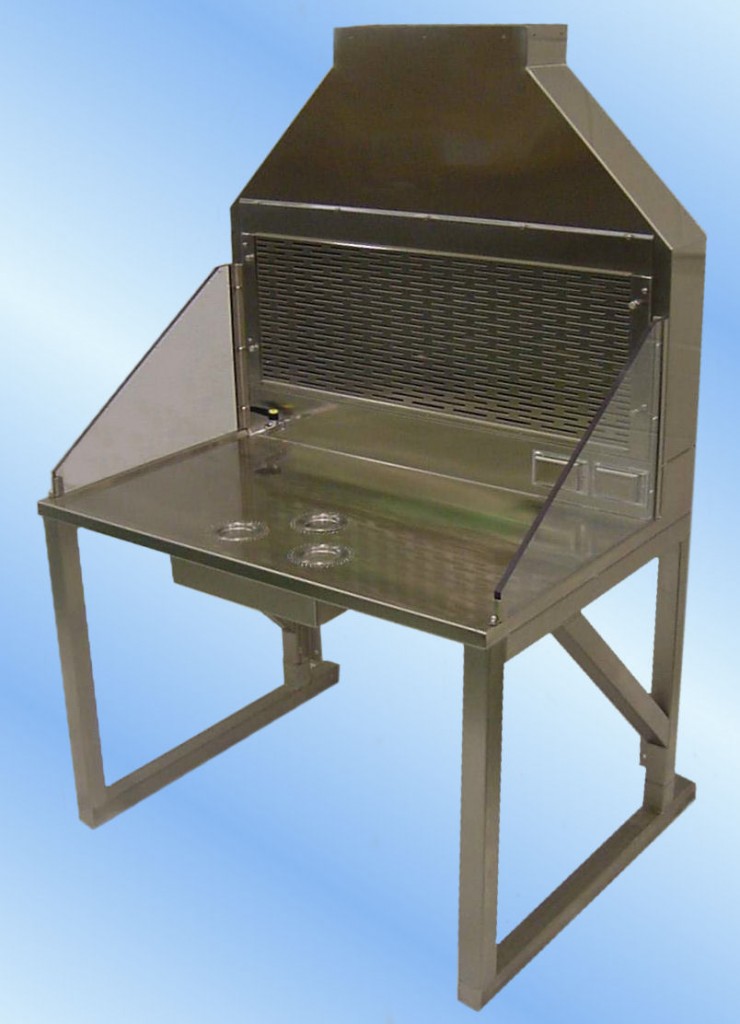

Backdraft Workbench Model 30-42 BD-WB
TBJ Backdraft Workbench are designed to provide an economical vented workbench for controlling odors, gases and chemical fumes by capturing and exhausting air back and away from the work zone of users. The tabletop mounted backdraft plenum is designed to provide an even backdraft capture velocity to efficiently exhaust odors and fumes and provide a healthier, safer work environment. A wide variety of optional features including sinks, storage drawers and cabinets, lab gas fixtures, lighting and push-button height adjustment enable you to customize a work bench around your specific needs.
PDF Information Sheet
-
Backdraft Workbench Model 30-48 BD-WB
The Model 30-48 BD-WB is designed to provide an economical vented workbench for controlling odors, gases and chemical fumes by capturing and exhausting air back and away from the work zone of users. The tabletop mounted backdraft plenum is designed to provide an even backdraft capture velocity to efficiently exhaust odors and fumes and provide a healthier, safer work environment.
Features:
- Optional features include: sinks, storage drawers and cabinets, lab gas fixtures, lighting and push-button height adjustment enable you to customize a work bench around your specific needs.
- 8" x 12" duct connection
- Overall dimensions: 30" x 48" wide
PDF Information Sheet
-
Backdraft Workbench Model 30-60-S BD-WB
TBJ Model 30-60-S BD-WB Backdraft Workbench is designed to provide an economical vented workbench for controlling odors, gases and chemical fumes by capturing and exhausting air back and away from the work zone of users. The tabletop mounted backdraft plenum is designed to provide an even backdraft capture velocity to efficiently exhaust odors and fumes and provide a healthier, safer work environment.
Features:
- A wide variety of optional features including sinks, storage drawers and cabinets, lab gas fixtures, lighting and push-button height adjustment enable you to customize a work bench around your specific needs.
- Integral sink with hot/cold water faucet
- Optional under counter cabinet and stainless back with paper towel holder and instrument holder.
- 8" x 12" duct connection
- Overall dimensions: 30" x 60" x 36" high work surface.
PDF Information Sheet
-

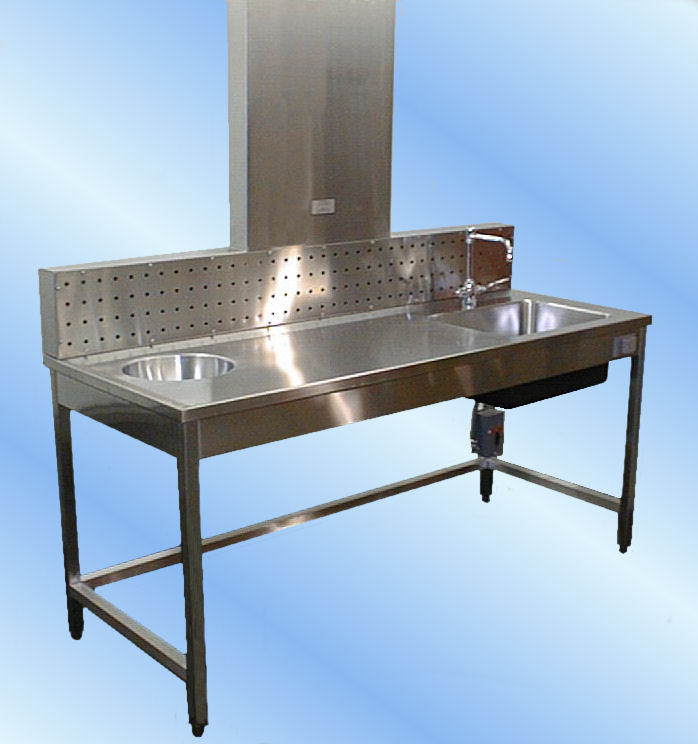

Backdraft Workbench Model 30-72 BD-WB
TBJ's Model 30-72 BD-WB Backdraft Workbench is designed to provide an economical vented workbench for controlling odors, gases and chemical fumes by capturing and exhausting air back and away from the work zone of users. The tabletop mounted backdraft plenum is designed to provide an even backdraft capture velocity to efficiently exhaust odors and fumes and provide a healthier, safer work environment.
Features:
- A wide variety of optional features including sinks, storage drawers and cabinets, lab gas fixtures, lighting and push-button height adjustment enable you to customize a work bench around your specific needs.
- 8" x 12" duct connection
- Overall dimensions: 30" x 72" x 36" high work surface
PDF Information Sheet
-

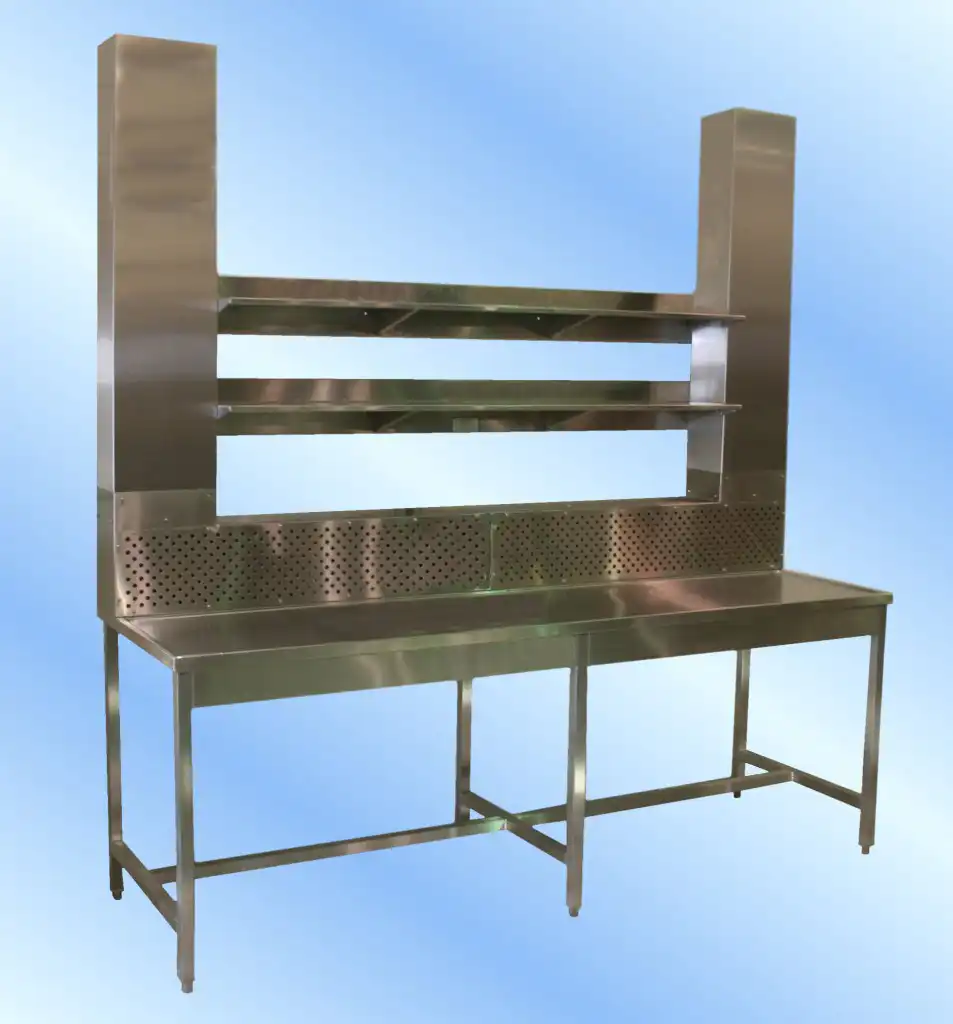

Backdraft Workbench Model 30-96 BD-WB
The TBJ Model 30-96 BD-WB Backdraft Workbench is designed to provide an economical vented workbench for controlling odors, gases and chemical fumes by capturing and exhausting air back and away from the work zone of users. The tabletop mounted backdraft plenum is designed to provide an even backdraft capture velocity to efficiently exhaust odors and fumes and provide a healthier, safer work environment.
Features:
- A wide variety of optional features including sinks, storage drawers and cabinets, lab gas fixtures, lighting and push-button height adjustment enable you to customize a work bench around your specific needs.
- Overall dimensions of 30" wide x 96" long x 36" high work surface.
- It is shown here with optional duct extensions with duct mounted shelves.
PDF Information Sheet
-

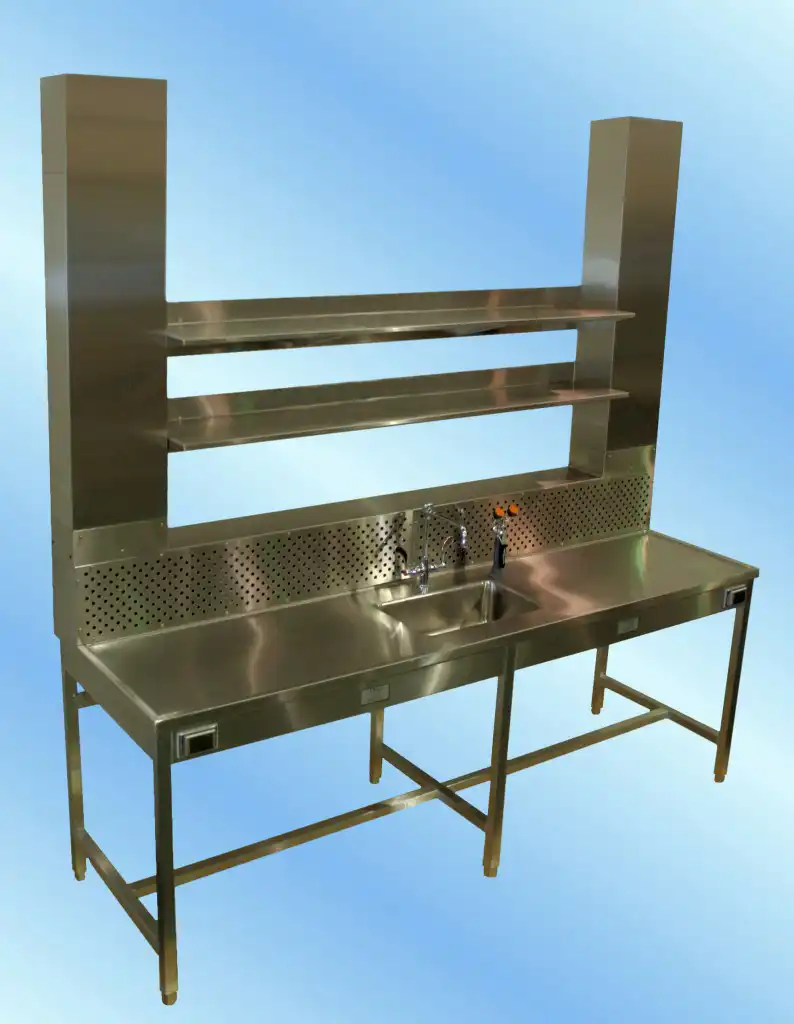

Backdraft Workbench Model 30-96-S BD-WB
The TBJ Model 30-96-S BD-WB Backdraft Workbench is designed to provide an economical vented workbench for controlling odors, gases and chemical fumes by capturing and exhausting air back and away from the work zone of users. The tabletop mounted backdraft plenum is designed to provide an even backdraft capture velocity to efficiently exhaust odors and fumes and provide a healthier, safer work environment.
Features:
- A wide variety of optional features including sinks, storage drawers and cabinets, lab gas fixtures, lighting and push-button height adjustment enable you to customize a work bench around your specific needs.
- Includes integral sink with hot/cold water faucet
- Two 8" x 12" duct connections
- Overall dimensions: 30" x 96" x 36" high work surface.
PDF Information Sheet
-
Backdraft Workbench Model 31-48 BD-WB
The TBJ Model 31-48 BD-WB is a compact backdraft workbench shown here with optional storage drawers, pull out mayo tray, GRCI receptacle and duct extension above finished ceiling.
Features:
- 10" high x 8" deep by 48" wide backdraft plenum with adjustable slide damper to adjust face velocity
- 23" x 48" wide stainless steel work surface area
- 36" high work surface
- Heavy duty tubular base frame with adjustable leveling feet
PDF Information Sheet
-

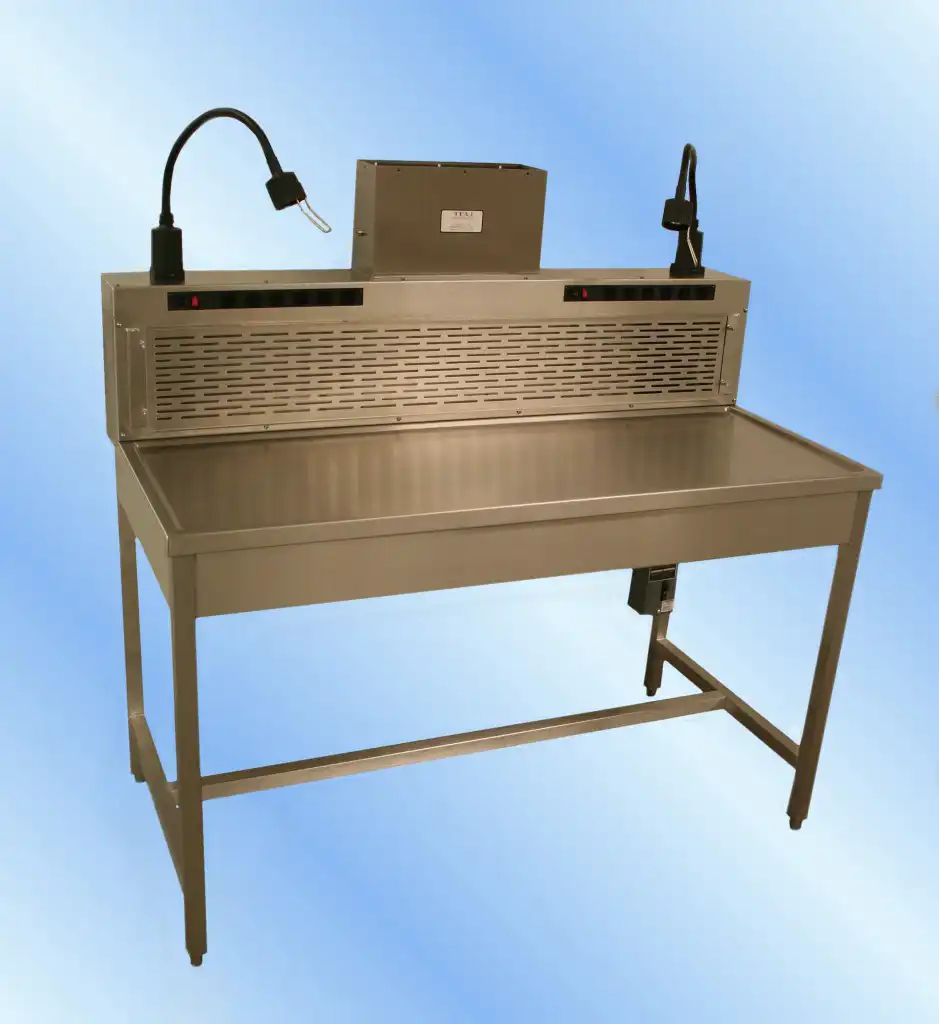

Backdraft Workbench Model 31-60 BD-WB
The TBJ Model 31-60 BD-WB is a mid size backdraft workbench shown here with optional push-button height adjustment which enables the work surface to be adjusted from 30" to 40" high.
Features:
- Overall dimensions: 30" wide x 60" x 30" to 40" high
- 10" high x 60" wide back draft exhaust grill
- 23" x 60" work surface.
- 8" x 12" duct connection
PDF Information Sheet
-

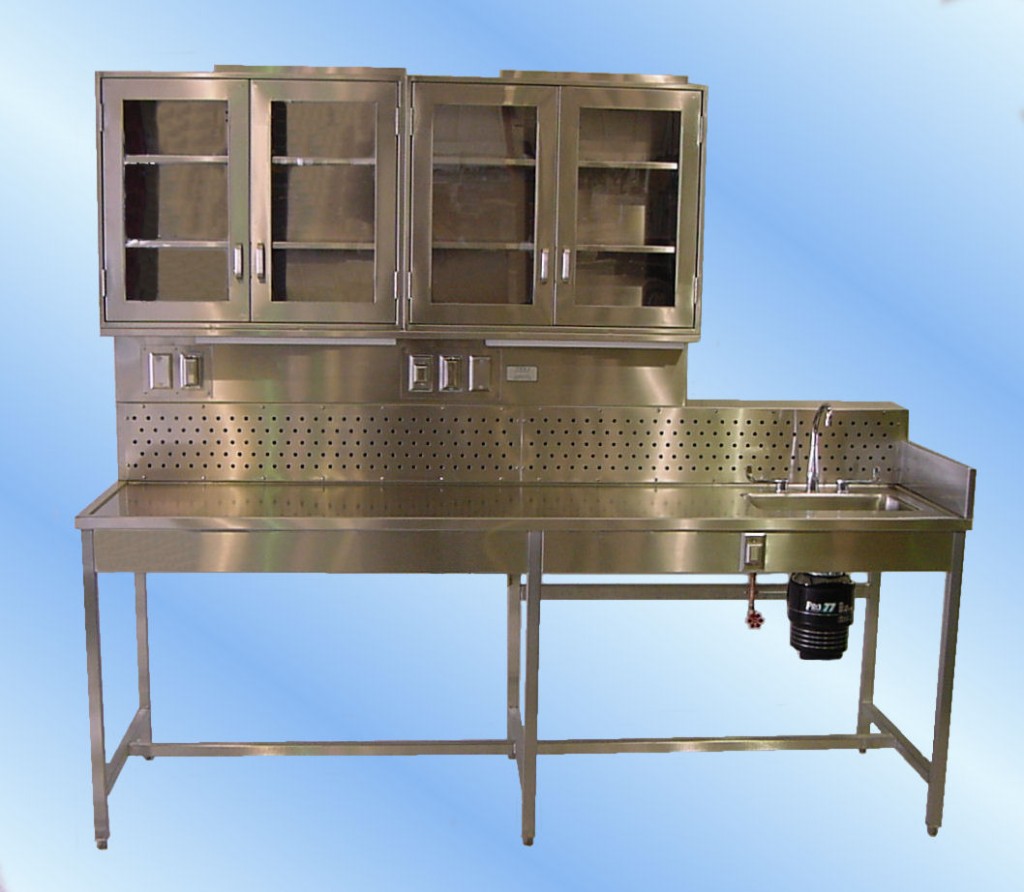

Backdraft Workbench Model 32-102-S BD-WB-VC
The TBJ Model 32-102-S BD-WB-VC backdraft workbench includes two integral vented storage cabinets with hinged doors. The standard design includes a sink with hot/cold water faucet, 1 horsepower disposer, two 24" under cabinet fluorescent light fixtures, two GFCI receptacles and two data ports.
Features:
- Each cabinet includes two adjustable shelves
- Two 4" x 24" duct connections
- 24" x 102" work surface
- Overall dimensions: 32" x 102" x 40" high work surface.
PDF Information Sheet
-

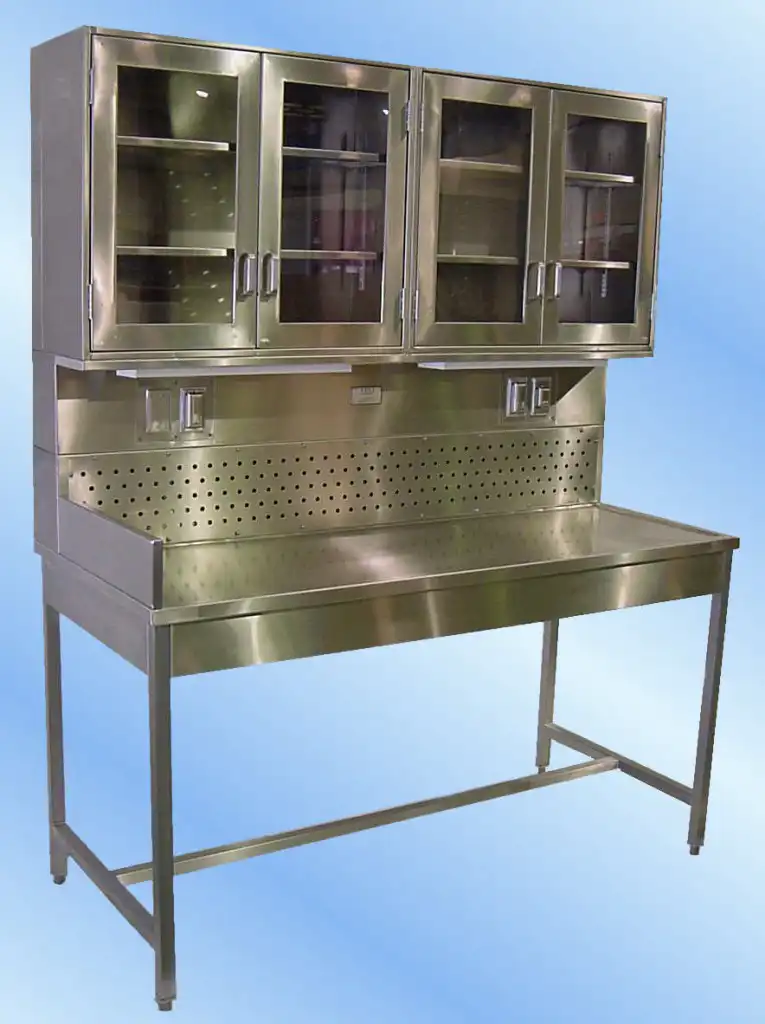

Backdraft Workbench Model 32-72 BD-WB-VC
The TBJ Model 32-72 BD-WB-VC backdraft workbench includes two integral vented storage cabinets with hinged doors. The standard design includes two 24" under cabinet fluorescent light fixtures, two GFCI receptacles and two data ports.
Features:
- Each cabinet includes two adjustable shelves
- 4" x 28" duct connection
- 24" x 72" work surface
- Overall dimensions: 32" x 72" x 40" high work surface.
PDF Information Sheet
-

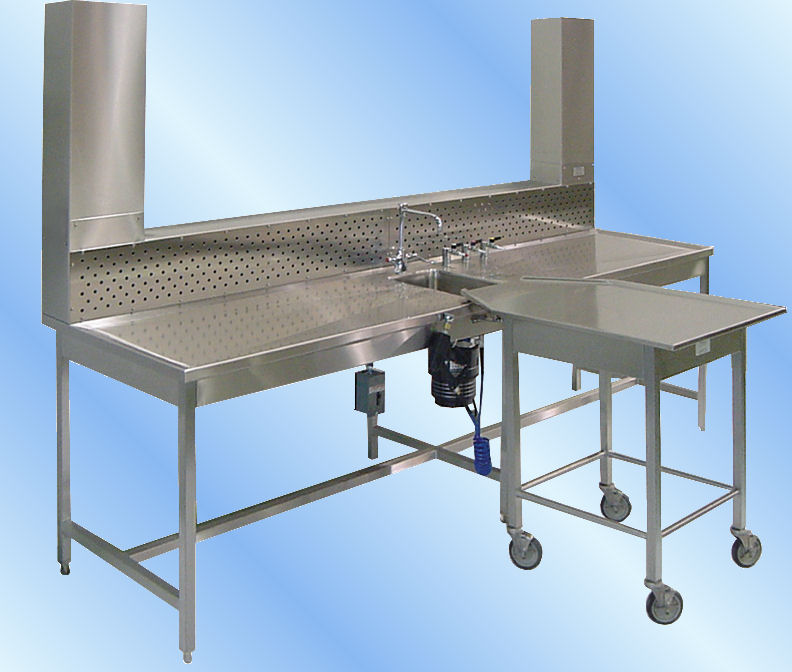

Backdraft Workbench Model 36-120-S BD-WB
The TBJ Model 36-120-S BD-WB Backdraft Workbench is designed to provide an economical vented workbench for controlling odors, gases and chemical fumes by capturing and exhausting air back and away from the work zone of users. The tabletop mounted backdraft plenum is designed to provide an even backdraft capture velocity to efficiently exhaust odors and fumes and provide a healthier, safer work environment.
Features:
- A wide variety of optional features including sinks, storage drawers and cabinets, lab gas fixtures, lighting and push-button height adjustment enable you to customize a work bench around your specific needs. Integral sink with hot/cold water faucet.
- Two 6" x 12" duct connections.
- 30" x 120" work surface area.
- Overall dimensions: 36" x 120" x 36" high work surface.
PDF Information Sheet
-

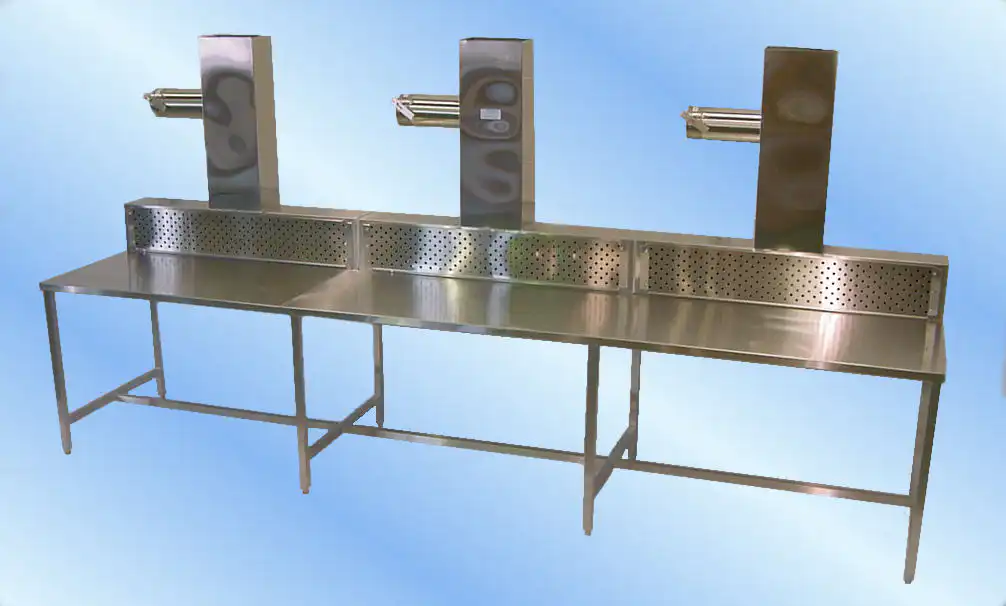

Backdraft Workbench Model 36-162 BD-WB
The TBJ Model 36-162 BD-WB Backdraft Workbench is designed to provide an economical vented workbench for controlling odors, gases and chemical fumes by capturing and exhausting air back and away from the work zone of users. The tabletop mounted backdraft plenum is designed to provide an even backdraft capture velocity to efficiently exhaust odors and fumes and provide a healthier, safer work environment. A wide variety of optional features including sinks, storage drawers and cabinets, lab gas fixtures, lighting and push-button height adjustment enable you to customize a work bench around your specific needs. -

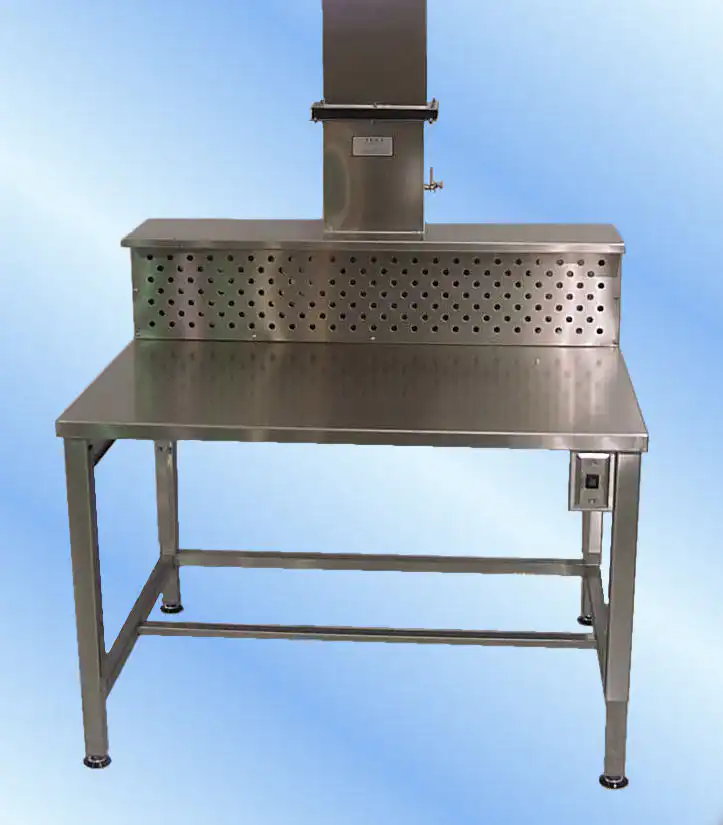

Backdraft Workbench Model 36-48 BD-WB
The TBJ Model 36-48 BD-WB Backdraft Workbench is designed to provide an economical vented work bench for controlling odors, gases and chemical fumes by capturing and exhausting air back and away from the work zone of users. The tabletop mounted backdraft plenum is designed to provide an even backdraft capture velocity to efficiently exhaust odors and fumes and provide a healthier, safer work environment.
Features:
- A wide variety of optional features including sinks, storage drawers and cabinets, lab gas fixtures, lighting and push-button height adjustment enable you to customize a work bench around your specific needs.
- 6" x 10" duct connection.
- Overall dimensions: 36" x 48" x 32" to 40" work surface height.
PDF Information Sheet
-

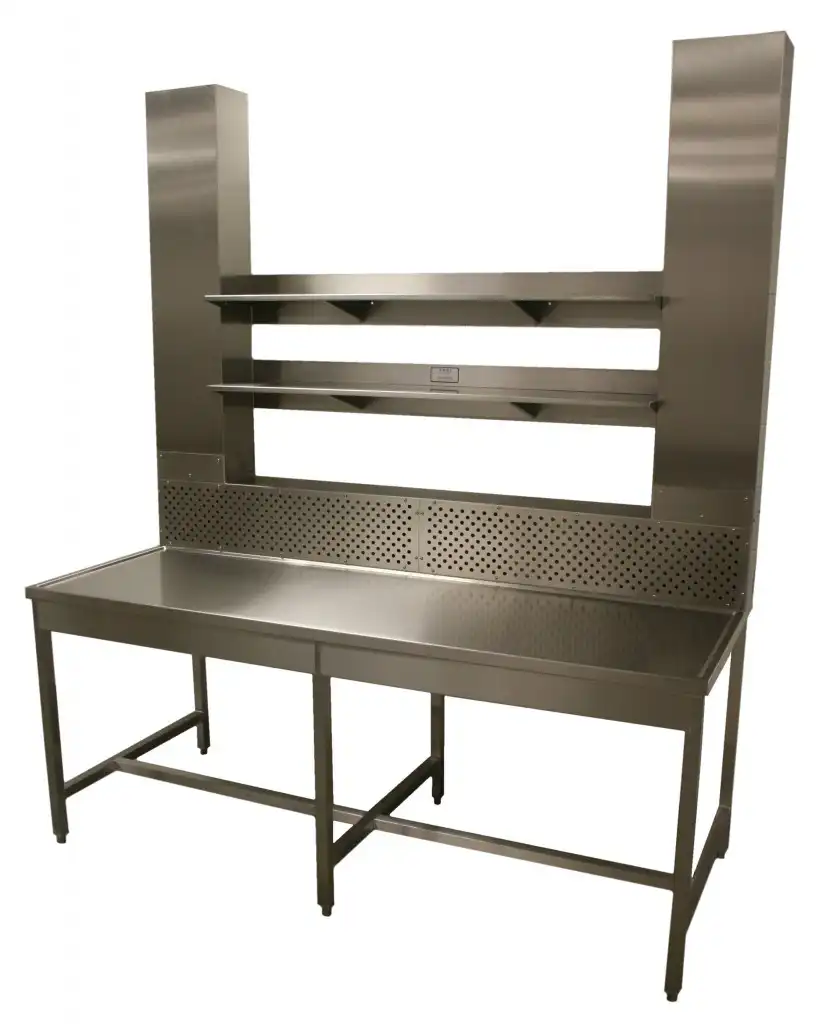

Backdraft Workbench Model 36-84 BD-WB
The TBJ Model 36-84-BD WB is a mid sized backdraft workbench with a spacious vented work area which is ideal for a variety of uses.
Features:
- Type 304 or 316 stainless steel construction
- 1 1/2" square heavy duty tubular base frame with adjustable leveling feet
- Full width backdraft plenum with two 8" x 12" duct extensions
- Two 12" x 60" fixed storage shelves
- 28" x 84" stainless steel work area with marine edge
- Overall table top dimensions: 36" x 84" x 36" high work surface
- 6 adjustable leveling feet
PDF Information Sheet
-

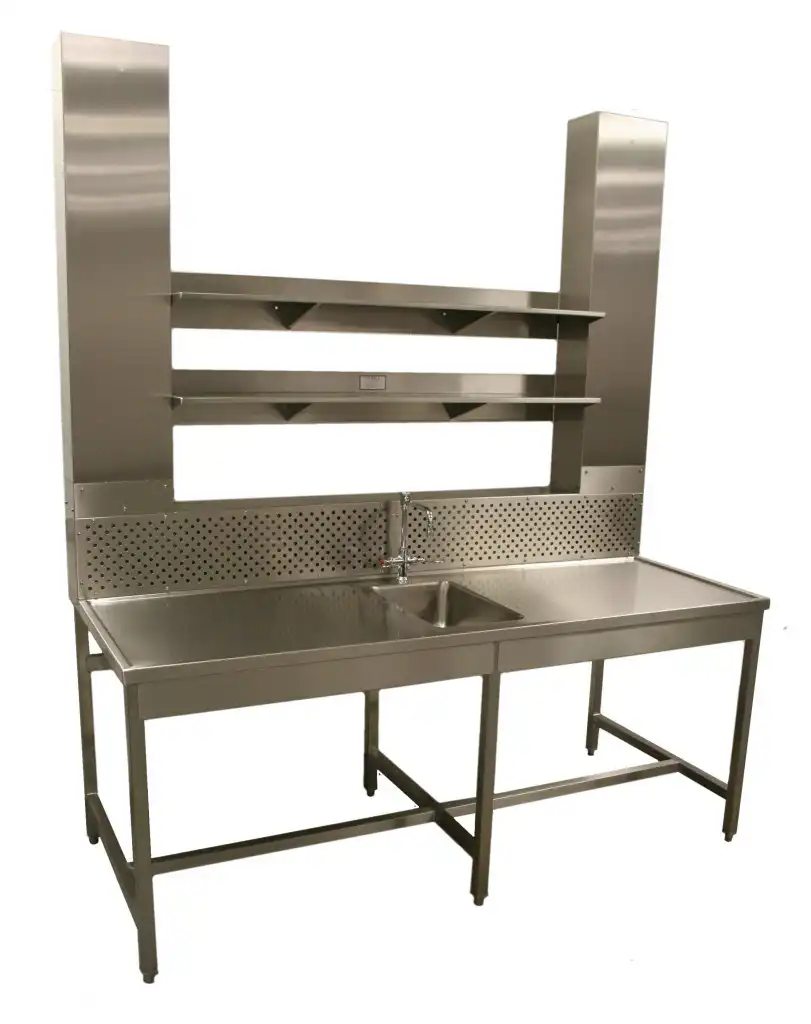

Backdraft Workbench Model 36-84-S BD-WB
The TBJ Model 36-84-S-BD WB is a mid sized backdraft work bench with a spacious area and integral sink and faucet.
Features:
- Type 304 or 316 stainless steel construction
- 1 1/2" square heavy duty tubular base frame with adjustable leveling feet.
- Full width backdraft plenum with two 8" x 12" duct extensions.
- Two 12" x 60" fixed storage shelves
- 28" x 84" stainless steel work area with marine edge.
- Integral 20" x 12" x 7" deep sink with hot/cold water faucet
- Overall table top dimensions: 36" x 84" x 36" high work surface
- 6 adjustable leveling feet
- Custom sizes and features available
PDF Information Sheet
-

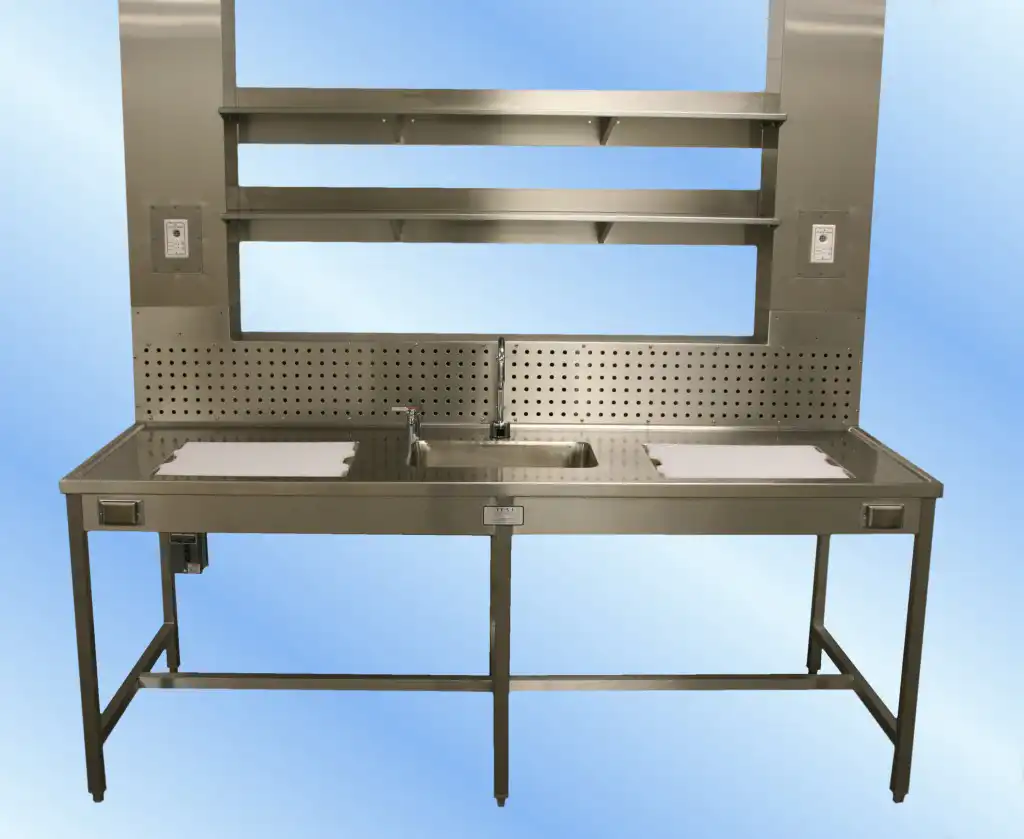

Backdraft Workbench Model 36-88-S BD-WB
The TBJ Model 36-88-S BD-WB Backdraft Workbench is designed to provide an economical vented workbench for controlling odors, gases and chemical fumes by capturing and exhausting air back and away from the work zone of users. The tabletop mounted backdraft plenum is designed to provide an even backdraft capture velocity to efficiently exhaust odors and fumes and provide a healthier, safer work environment.
Features:
- A wide variety of optional features including sinks, storage drawers and cabinets, lab gas fixtures, lighting and push-button height adjustment enable you to customize a work bench around your specific needs.
- 28" x 88" ventilated work top.
- Two 8" x 12" duct connections.
- Overall dimensions: 36" x 88" x 36" high work top.
PDF Information Sheet
-

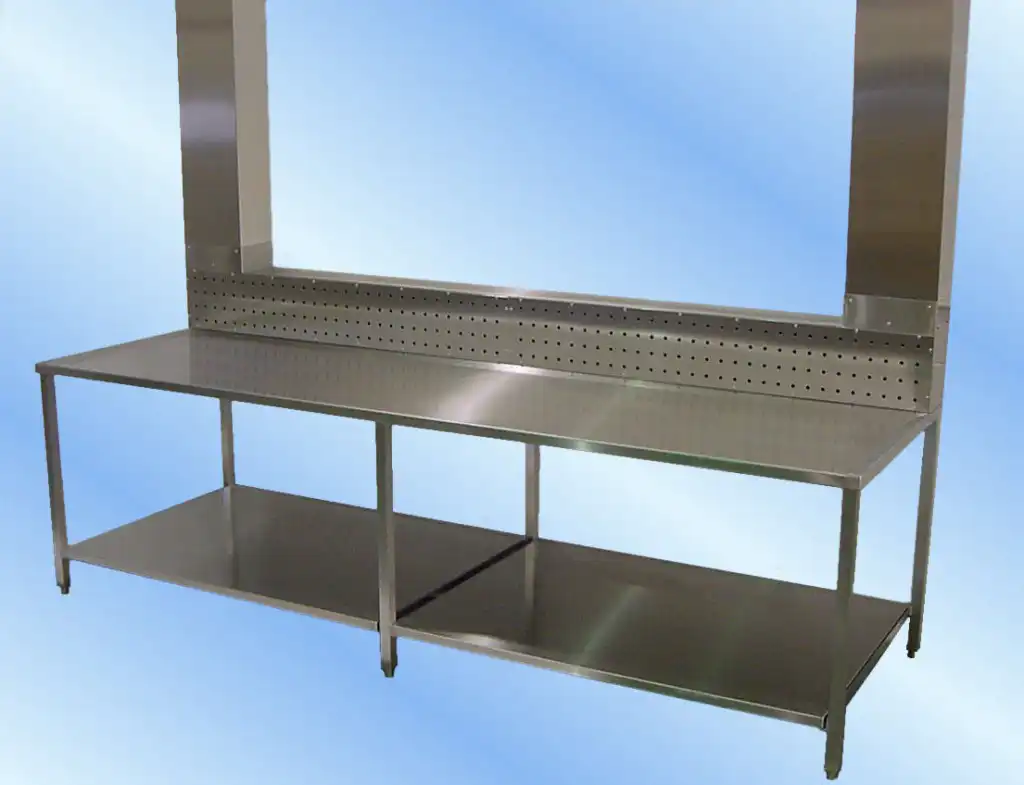

Backdraft Workbench Model 42-120 BD-WB
The TBJ Model 42-120 BD-WB Backdraft Workbench is designed to provide an economical vented workbench for controlling odors, gases and chemical fumes by capturing and exhausting air back and away from the work zone of users. The tabletop mounted backdraft plenum is designed to provide an even backdraft capture velocity to efficiently exhaust odors and fumes and provide a healthier, safer work environment.
Features:
- A wide variety of optional features including sinks, storage drawers and cabinets, lab gas fixtures, lighting and push-button height adjustment enable you to customize a work bench around your specific needs.
- 33" x 120" work surface
- Two 8" x 12" duct connections
- Overall dimensions: 41" x 120" x 36" high work surface
PDF Information Sheet
