On occasions when a greater degree of containment is needed, TBJ Single-User semi-enclosed backdraft workstations are the ideal choice. These units feature a semi-enclosed hood with a hinged viewing window that gives the user the option of working with the window in the open position on less critical procedure or closing the window to contain aerosols and particulate on more critical procedures.
Semi-Enclosed Backdraft Workstation Model 21-36 BD-SE
Semi-enclosed Backdraft Workstation Model 25-48 BD-SE
Semi-Enclosed Backdraft Tissue Trim Station Model 25-60-S BD-SE
Semi-Enclosed Backdraft Workstation Model 25-72 S BD-SE
Semi-Enclosed Backdraft Workstation Model 29-48-S BD-SE
Semi-Enclosed Backdraft Workstation Model 29-72 BD-SE
Semi-Enclosed Backdraft Workstation Model 30-72-S SE-BD
Semi-Enclosed Backdraft Workstation Model 30-96 BD-SE
Semi-Enclosed Backdraft Workstation Model 31-48 BD-SE
Semi-Enclosed Backdraft Workstation Model 31-48-S BD-SE
Semi-Enclosed Backdraft Workstation Model 34-60-BD SE
Semi-Enclosed Backdraft Workstation Model SNS-42-M
Backdraft Workstation Model SNS-48
Backdraft Workstation Model SNS-60
Backdraft Workstation Model 25-60-S BD-SE-DU
Backdraft Workstation Model 30-60 BD-SE-DU
Dual User Semi-Enclosed Backdraft Workstation Model 30-90 BD-SE-DU
Dual User Semi-Enclosed Backdraft Workstation Model 30-96 BD-SE-DU
Semi-Enclosed Backdraft Workstation Model 32-72 BD-SE-DU
-

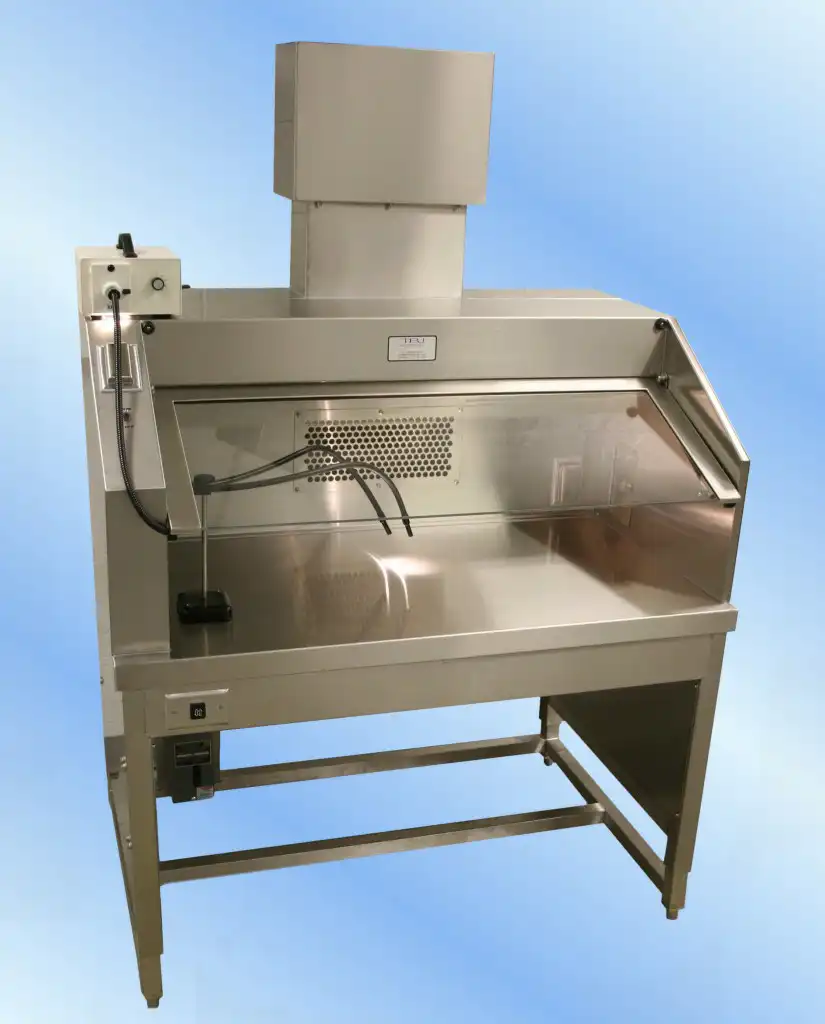

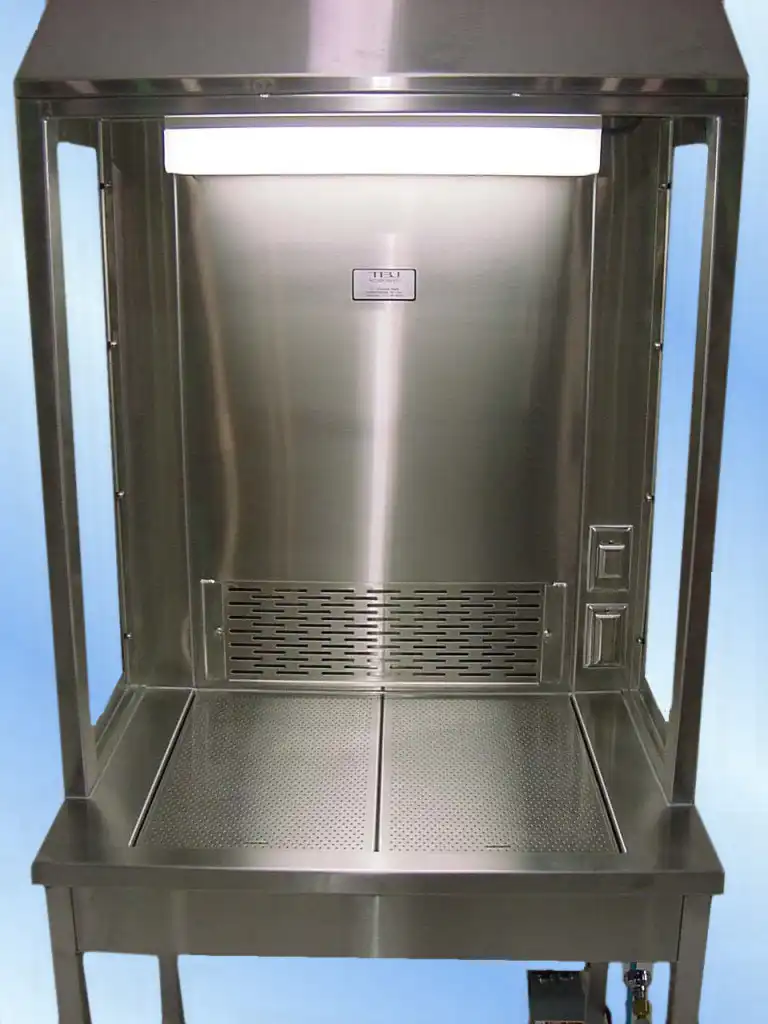

Semi-Enclosed Backdraft Workstation Model 21-36 BD-SE
The TBJ Model 21-36 BD-SE is an economically designed backdraft workstation for dissection and necropsy procedures.
Features:
- Integral fluorescent light fixture with ON/OFF switch
- GFCI receptacle
- Cold water spray gun with recoil hose
- 8" x 26" backdraft ventilation grill with adjustable slide damper
- Overall dimensions: 27" x 36" x 38" high work surface
- 8" x 12" duct connection
PDF Information Sheet
-

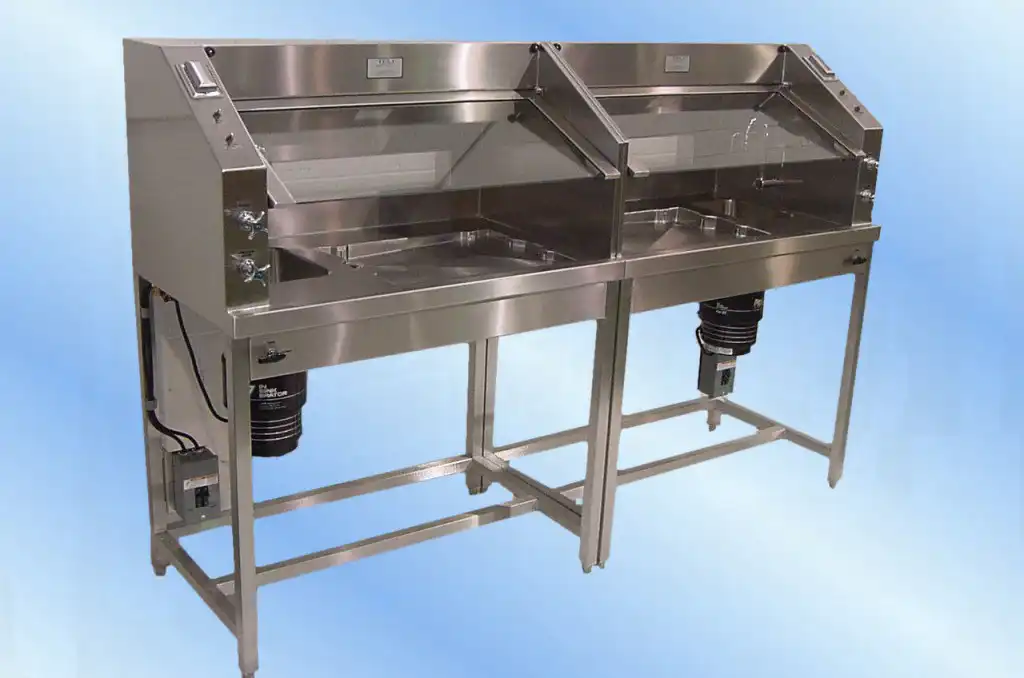

Semi-enclosed Backdraft Workstation Model 25-48 BD-SE
The TBJ Model 25-48-S BD-SE semi-enclosed backdraft workstation is a compact design shown here with two units side by side.
Features:
- Overall dimensions: 25" deep x 48" wide x 36" high work surface
- 37" wide x 24" backdraft ventilated work area
- Standard features include sink with cold water faucet, sealed fluorescent light fixture with ON/OFF switch, low flow cold water outlets with serrated ends for specimen rinsing, recessed cutting board area with drain, formalin cup sink with collection carboy and hinged viewing window with gas springs.
- 4" x 28" duct connection standard
PDF Information Sheet
-
Semi-Enclosed Backdraft Tissue Trim Station Model 25-60-S BD-SE
The TBJ Model 25-60-S BD-SE semi-enclosed backdraft tissue trim station is mid size unit designed specifically for tissue trimming procedures. It includes numerous features including sink with cold water faucet, recessed cutting board with sloped drain pan, low flow cold water outlet with serrated end for specimen rinsing, formalin dispensing faucet, 1 HP disposer, GFCI outlet and vented specimen storage holding area with mobile specimen cart.
Features:
- Overall dimensions: 29 1/2" deep x 60 1/2" wide x 34" high work surface
- 55" wide x 16" backdraft ventilated work area
- Standard features include sink with cold water, sealed fluorescent light fixture with ON/OFF switch and hinged viewing window with gas springs.
- Two 4" x 12" duct connections standard
PDF Information Sheet
-

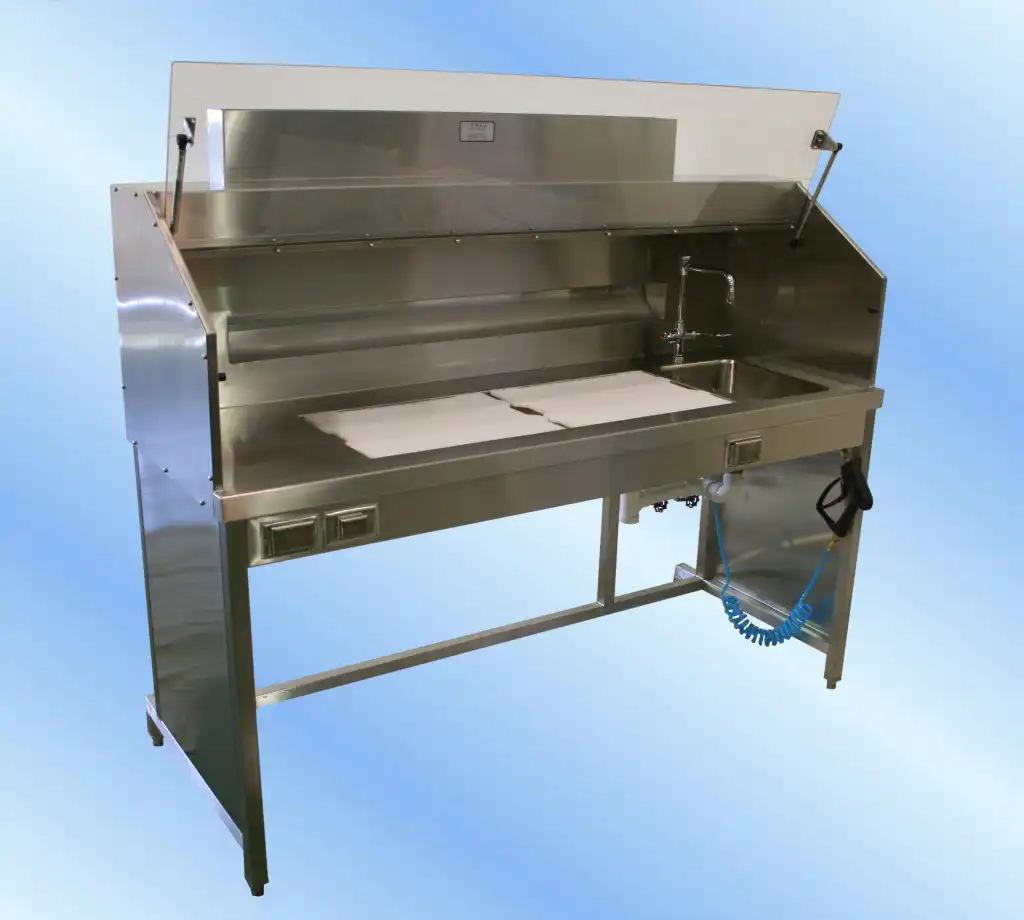

Semi-Enclosed Backdraft Workstation Model 25-72 S BD-SE
The TBJ Model 25-72 BD-SE semi-enclosed backdraft workstation is a mid size workstation with a spacious 70" backdraft ventilated work area. The workstation as shown here includes dual recessed cutting boards with drainage, two GFCI outlets and spray gun.
Features:
- Overall dimensions: 29" deep x 72" wide x 36" high work surface
- 70" wide x 25" backdraft ventilated work area
- Standard features include sink with cold water, sealed fluorescent light fixture with ON/OFF switch and hinged viewing window with gas springs.
- 4" x 52" duct connections standard
PDF Information Sheet
-
Semi-Enclosed Backdraft Workstation Model 29-48-S BD-SE
The TBJ Model 29-48-S BD-SE semi-enclosed backdraft workstation is shown here with a variety of optional features including formalin cups sink with collection carboy and audible and visual alarms, halogen task lamp with magnifier, heavy duty disposer, spray/rinse gun and magnehelic velocity indicator.
Features:
- Overall dimensions: 29" deep x 48" wide x 36" high work surface
- 42" wide x 22" backdraft ventilated work area
- Standard features include sink with cold water faucet, sealed fluorescent light fixture with ON/OFF switch, low flow cold water outlets with serrated ends for specimen rinsing, formalin cup sink with collection carboy and hinged viewing window with gas springs.
- 4" x 28" duct connection standard
PDF Information Sheet
-

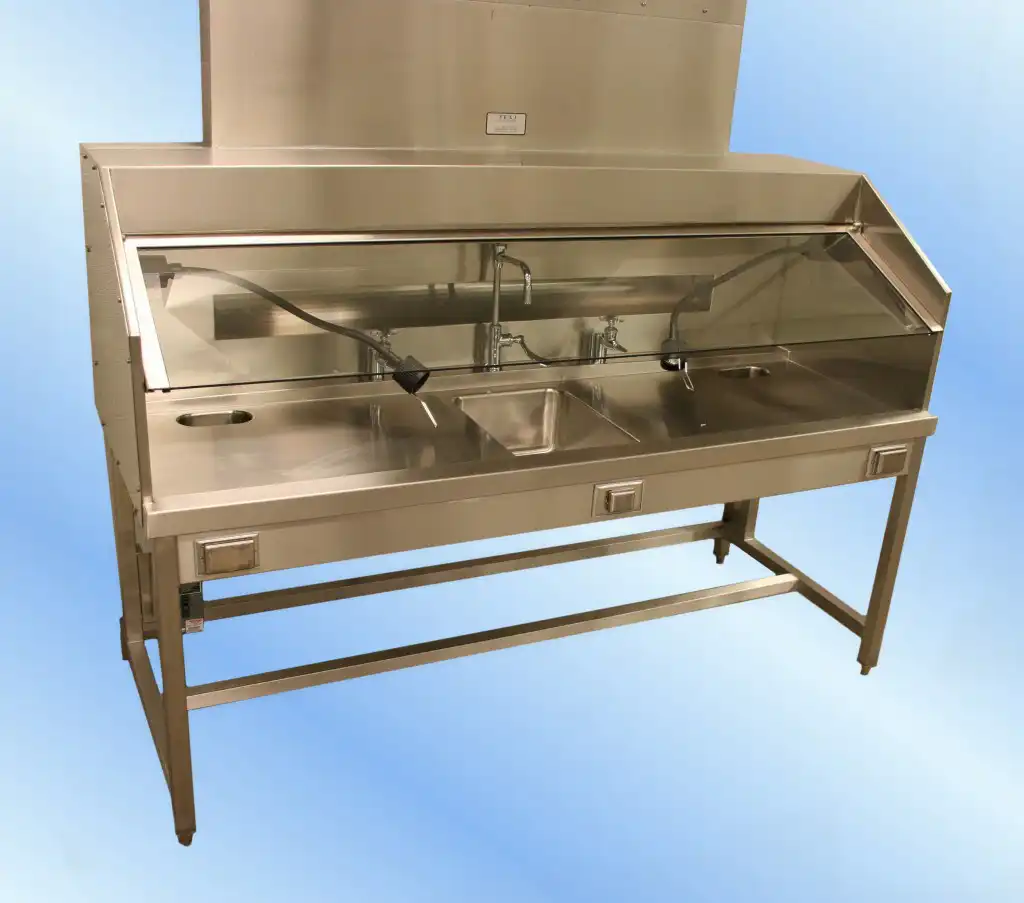

Semi-Enclosed Backdraft Workstation Model 29-72 BD-SE
The TBJ Model 29-72-S BD-SE semi-enclosed backdraft workstation is similar to the 25-60-S BD but is deeper and wider. It is shown here with a center sink with cold water faucet, two low flow cold water outlets with serrated ends for specimen rinsing, two formalin cup sinks with collection carboy connections, two task lights with magnifiers and two GFCI outlets.
Features:
- Overall dimensions: 29" deep x 72" wide x 29 1/2" high work surface
- 68" wide x 16" backdraft ventilated work area.
- Standard features include sink with cold water faucet, sealed fluorescent light fixture with ON/OFF switch and hinged viewing window with gas springs.
- 4" x 52" duct connection standard.
PDF Information Sheet
-

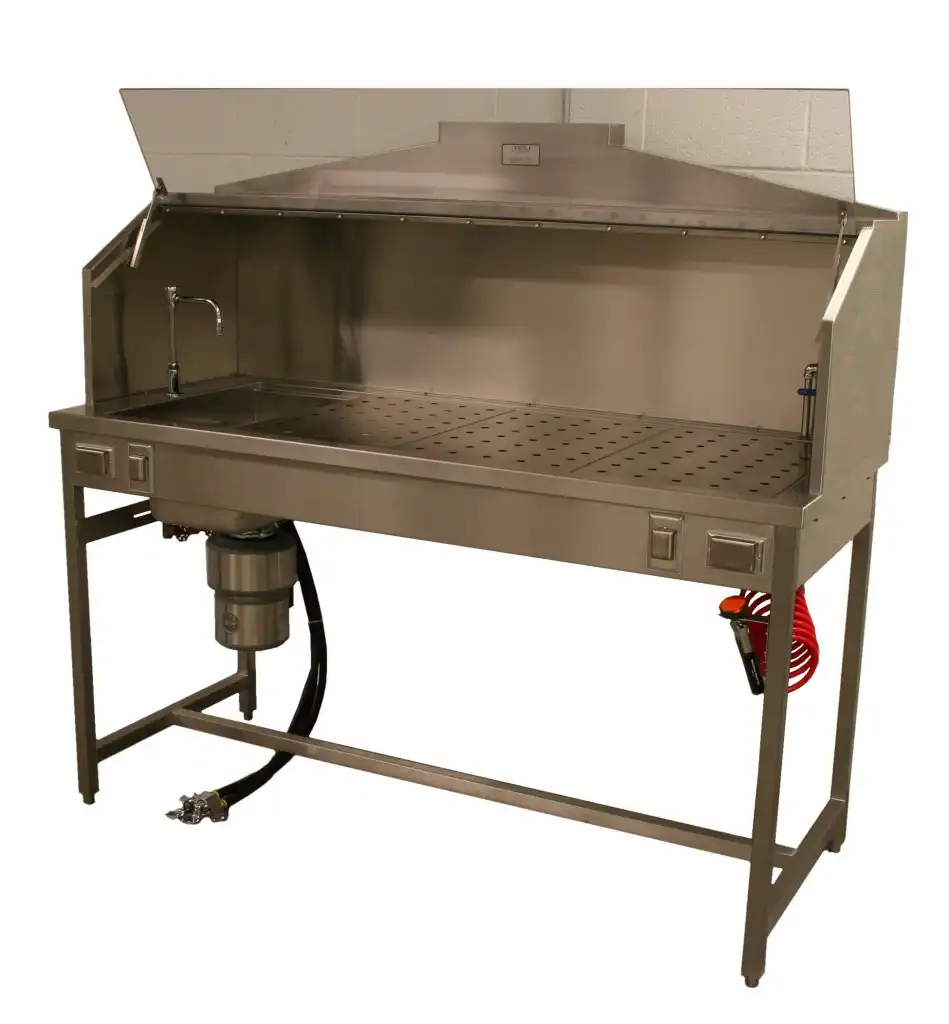

Semi-Enclosed Backdraft Workstation Model 30-72-S SE-BD
The TBJ Model 30-72-SE BD Semi-Enclosed Backdraft Workstation is a six foot wide workstation with hinged viewing. It is shown here with several optional features including a heavy duty 1 HP disposer, foot pedal controlled faucet, eyewash spray hose, table rinse system and GFCI outlets.
Features:
- Overall dimensions: 30" deep x 72" wide x 30" 36" or 40" high work surface
- 64" wide x 25" removable perforated work area
- Standard features include sink with hot/cold water faucet, fluorescent light fixture with ON/OFF switch and hinged viewing window with stainless steel lid stays.
- 4" x 18" duct connection standard
PDF Information Sheet
-

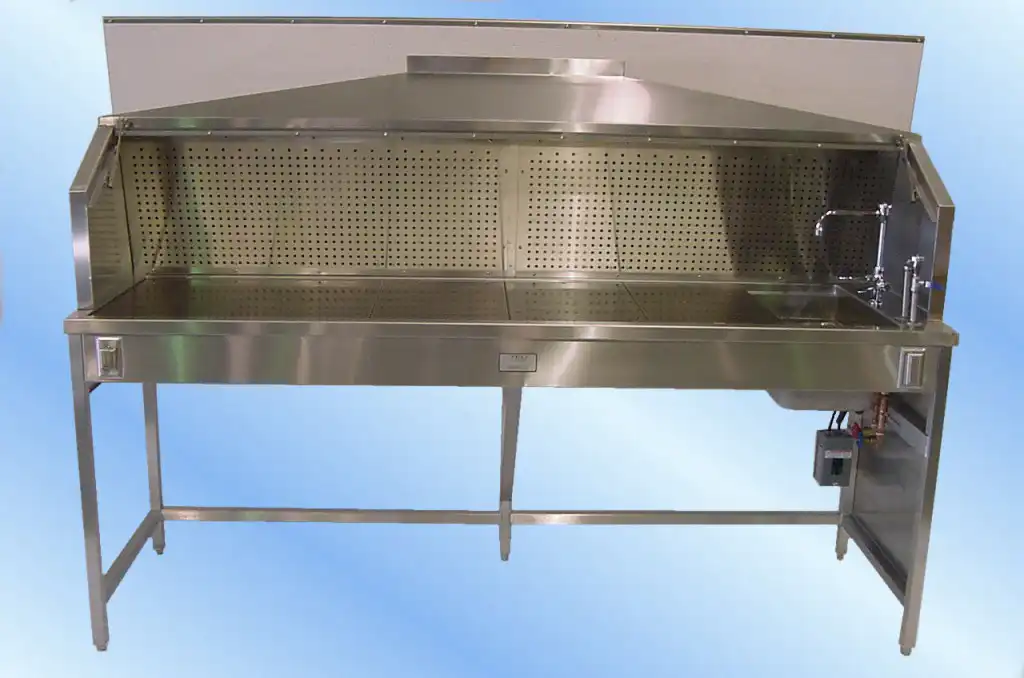

Semi-Enclosed Backdraft Workstation Model 30-96 BD-SE
The Model 30-96-BD-SE Semi-Enclosed is a spacious backdraft workstation which is available with a wide variety of optional features which enable you to customize the unit around your specific needs.
Features:
- Overall dimensions: 30" deep x 96" wide x 30" 36" or 40"high work surface
- 92" wide x 25" backdraft ventilated work area
- Standard features include sink with hot/cold water faucet, table rinse/flush manifold, fluorescent light fixture with ON/OFF switch and hinged viewing window with stainless steel lid stay.
- 6" x 26" duct connection standard
PDF Information Sheet
-
Semi-Enclosed Backdraft Workstation Model 31-48 BD-SE
The TBJ Model 31-48 BD-SE Semi-Enclosed Backdraft Workstation is shown here with the optional fiber optic light with dual light guides, GFCI outlets, magnetic instrument bar and optional push button height adjustment from 30" to 36".
Features:
- Overall dimensions: 31" deep x 48" wide x 30" to 36" high work surface.
- 42" wide x 25" backdraft ventilated work area.
- Standard features include a sealed fluorescent light fixture with ON/OFF switch and hinged viewing window with gas springs.
- 6" x 14" duct connection.
PDF Information Sheet
-

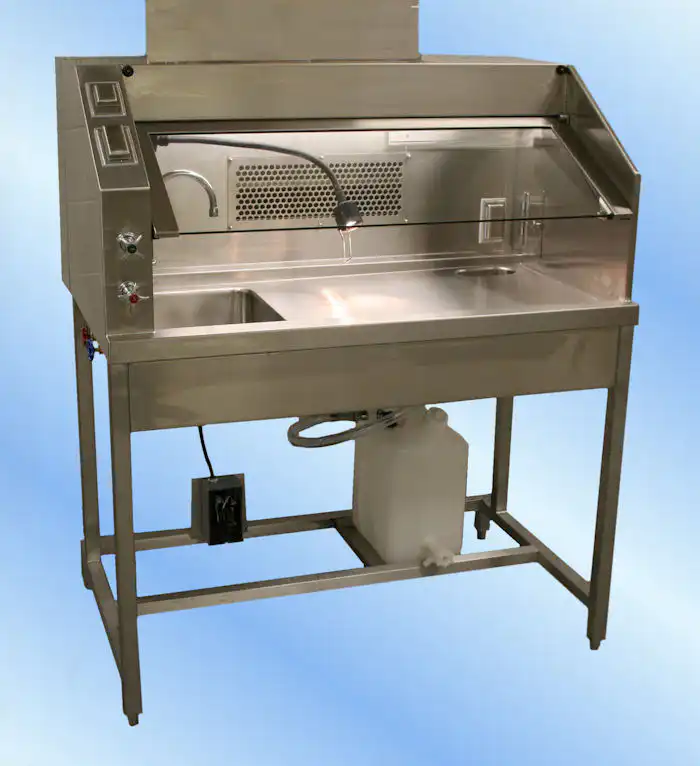

Semi-Enclosed Backdraft Workstation Model 31-48-S BD-SE
The TBJ semi-enclosed backdraft workstation is a compact workstation that includes an integral sink, cup sink with collection carboy and optional halogen task lamp.
Features:
- Overall dimensions: 31" deep x 48" wide x 36" high work surface.
- 42" wide x 25" backdraft ventilated work area.
- Standard features include a sealed fluorescent light fixture with ON/OFF switch and hinged viewing window with gas springs and two GFCI receptacles.
- 6" x 14" duct connection.
PDF Information Sheet
-
Semi-Enclosed Backdraft Workstation Model 34-60-BD SE
The TBJ Model 34-60-SE BD semi-enclosed backdraft workstation is a five foot wide workstation with hinged viewing. It is shown here with several optional features including computer monitor arm, GFCI outlet and halogen task lamp.
Features:
- 57" wide x 8" high removable perforated exhaust grill
- Integral fluorescent light fixture with ON/OFF switch and hinged viewing window with stainless steel lid stays.
- Storage compartment above work surface
- 4" x 36" duct connection standard
- Overall dimensions: 34" deep x 60" wide x 30" high work surface
-

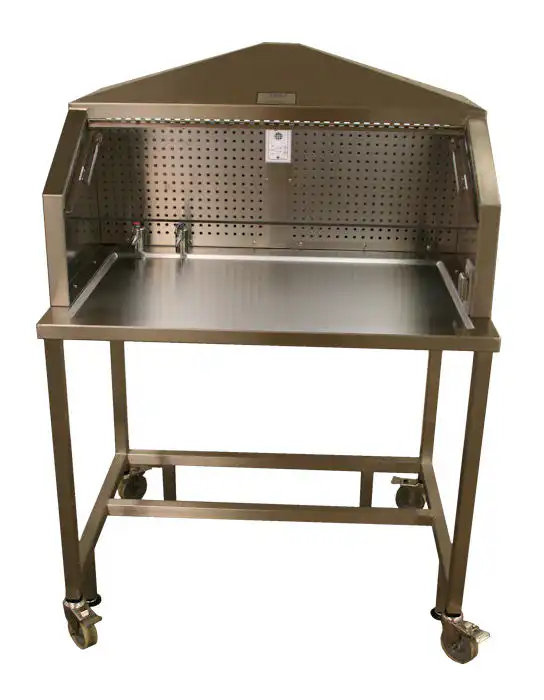

Semi-Enclosed Backdraft Workstation Model SNS-42-M
The TBJ Model SNS-42-M is a compact semi-enclosed mobile backdraft workstation. It includes four swivel casters with brakes as well as four legs with leveling feet to provide additional stability when the table is in use in a stationary position.
Features:
- Overall dimensions: 30" deep x 42" wide x 36"high work surface.
- 38" wide x 26" backdraft ventilated work area
- Standard features include integral fluorescent light fixture with ON/OFF switch and hinged viewing window with stainless steel lid stays.
- Shown here with optional CO2 and Isoflurane outlets and velocity monitor.
- 6" duct connection" can be rear mounted as shown or top mounted.
PDF Information Sheet
-

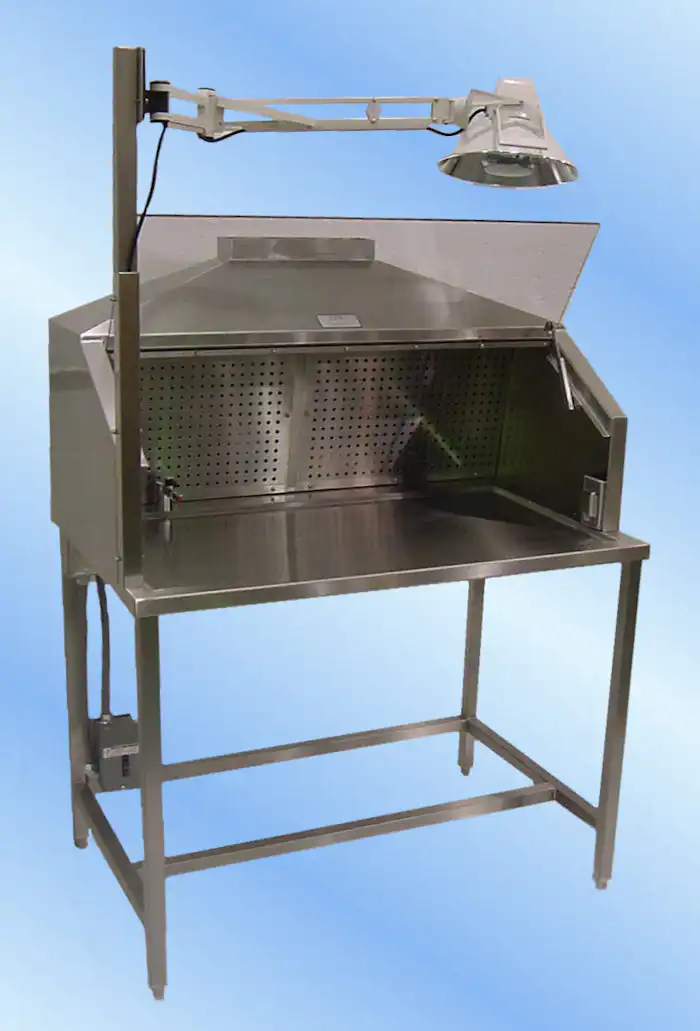

Backdraft Workstation Model SNS-48
The TBJ Model SNS-48 is a compact semi-enclosed backdraft workstation shown here with three optional laboratory gas outlets and two GFCI receptacles.
Features:
- Overall dimensions: 31" deep x 48" wide x 30"high work surface
- 46" wide x 26" backdraft ventilated work area
- Standard features include integral fluorescent light fixture with ON/OFF switch and hinged viewing window with stainless steel lid stays.
- 4" x 15" duct connection standard
PDF Information Sheet
-

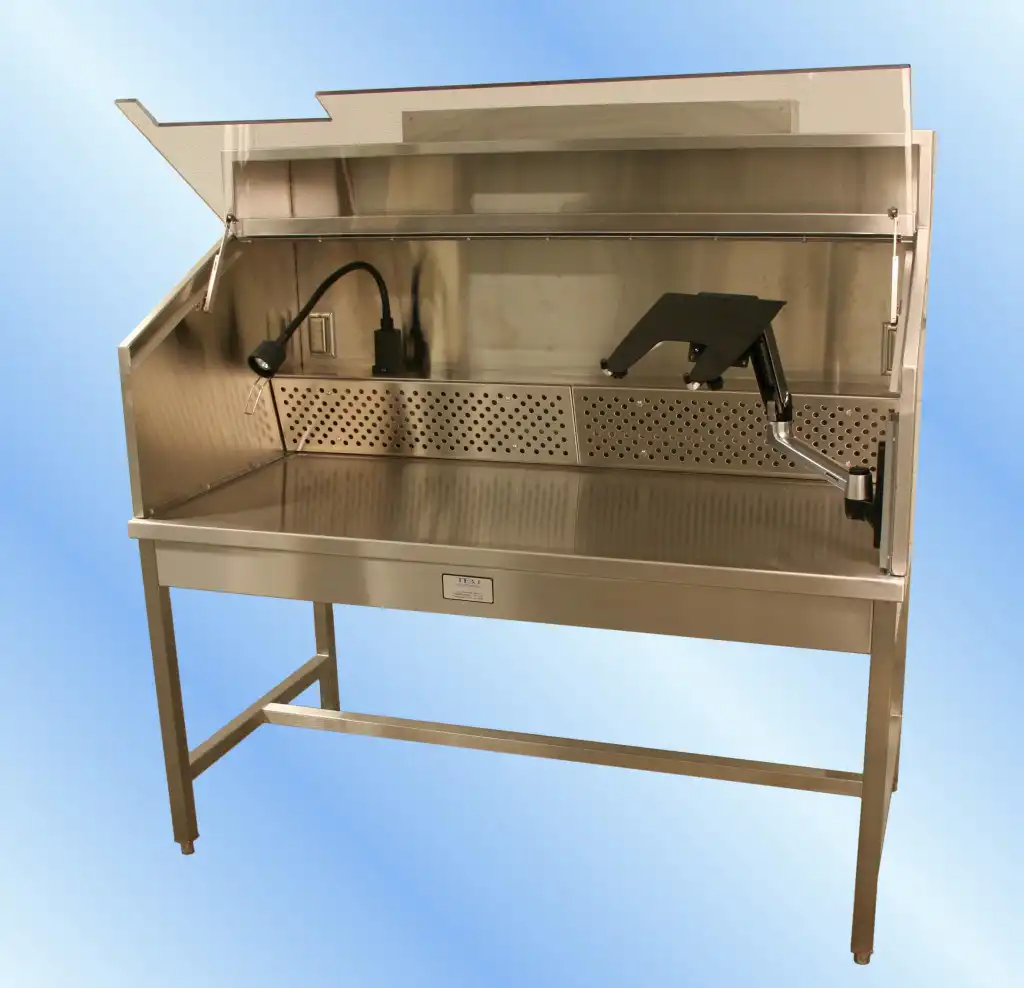

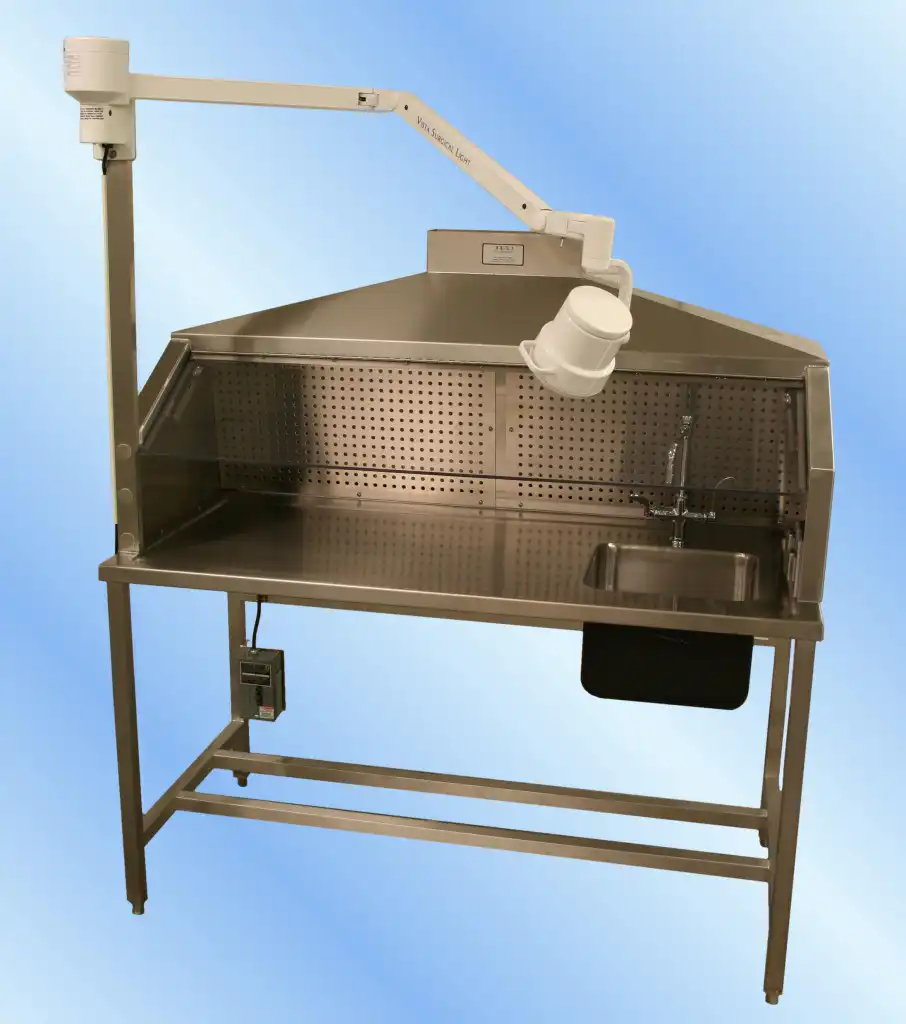

Backdraft Workstation Model SNS-60
The TBJ Model SNS-60 is a semi-enclosed backdraft workstation that allows you to add a variety of options so you can design the workstation around your specific needs. The unit shown on the right includes the optional swivel type surgical light. The unit shown in the first and second photos below includes the option integral sink, hot/cold water faucet and disposer. The unit in the third photo below includes the optional push-button height adjustment feature.
Features:
- Overall dimensions: 25" deep x 60" wide x 36"high work surface
- 58" wide x 25" backdraft ventilated work area
- Standard features include integral fluorescent light fixture with ON/OFF switch and hinged viewing window with stainless steel lid stays.
- 4" x 15" duct connection standard
PDF Information Sheet
-

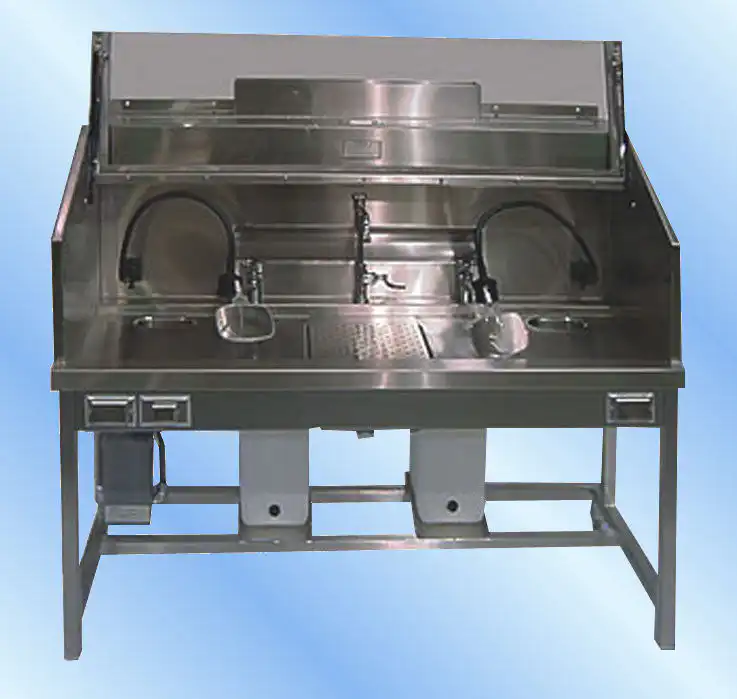

Backdraft Workstation Model 25-60-S BD-SE-DU
The TBJ Model 25-60 S BD semi-enclosed backdraft workstation is shown here with a center sink with cold water faucet and removable cover, two low flow cold water outlets with serrated ends for specimen rinsing, two formalin cup sinks with collection carboys, two task lights with magnifiers and two GFCI outlets.
Features:
- Overall dimensions: 25" deep x 60" wide x 29 1/2" high work surface
- 56" wide x 16" backdraft ventilated work area
- Standard features include sink with cold water faucet, sealed fluorescent light fixture with ON/OFF switch and hinged viewing window.
- 4" x 28" duct connection standard
PDF Information Sheet
-

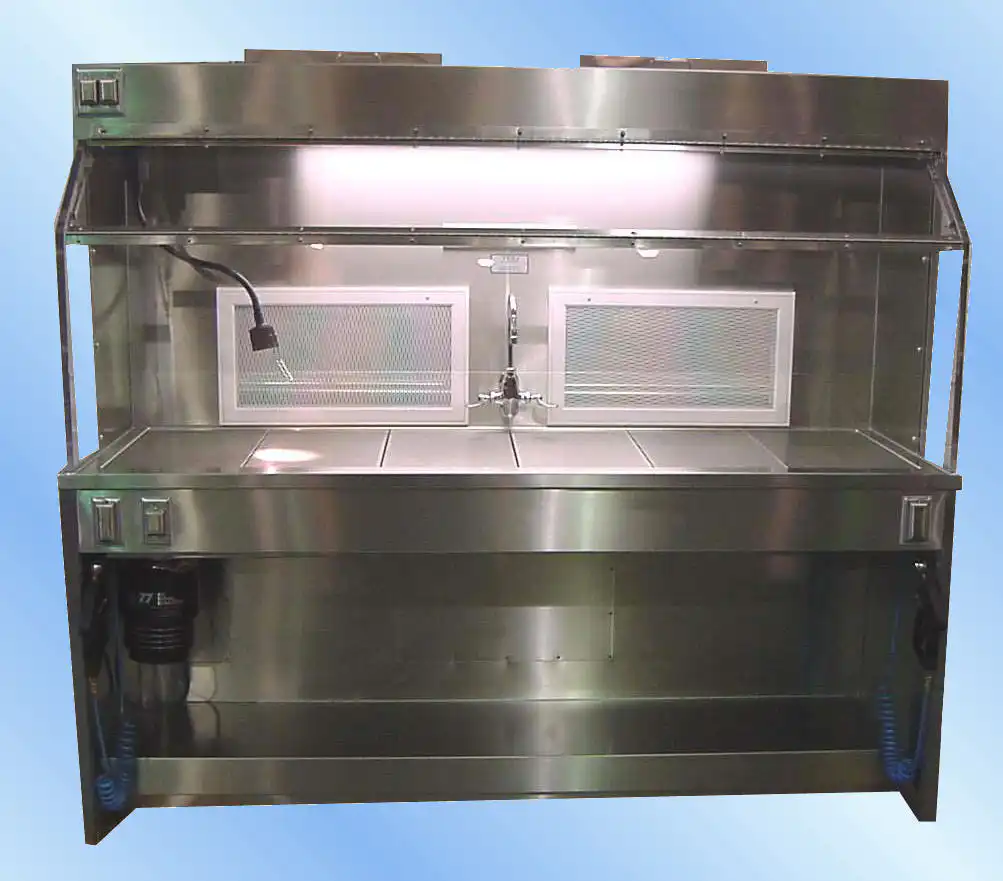

Backdraft Workstation Model 30-60 BD-SE-DU
The TBJ Model 30-60 BD-SE-DU semi-enclosed backdraft workstation is a dual station unit designed to accommodate 2 users simultaneously. Includes two unique sliding/removable viewing windows. It is shown here with three laboratory gas outlets.
Features:
- Overall dimensions: 30" deep x 60" wide x 31" high work surface
- Two 42" wide x 24" backdraft ventilated work areas
- Standard features include two work stations with hinged viewing windows, three fluorescent light fixtures with ON/Off switch for each workstation and a pull out writing desk for each workstation.
- Two 4" x 12" duct connections
PDF Information Sheet
-

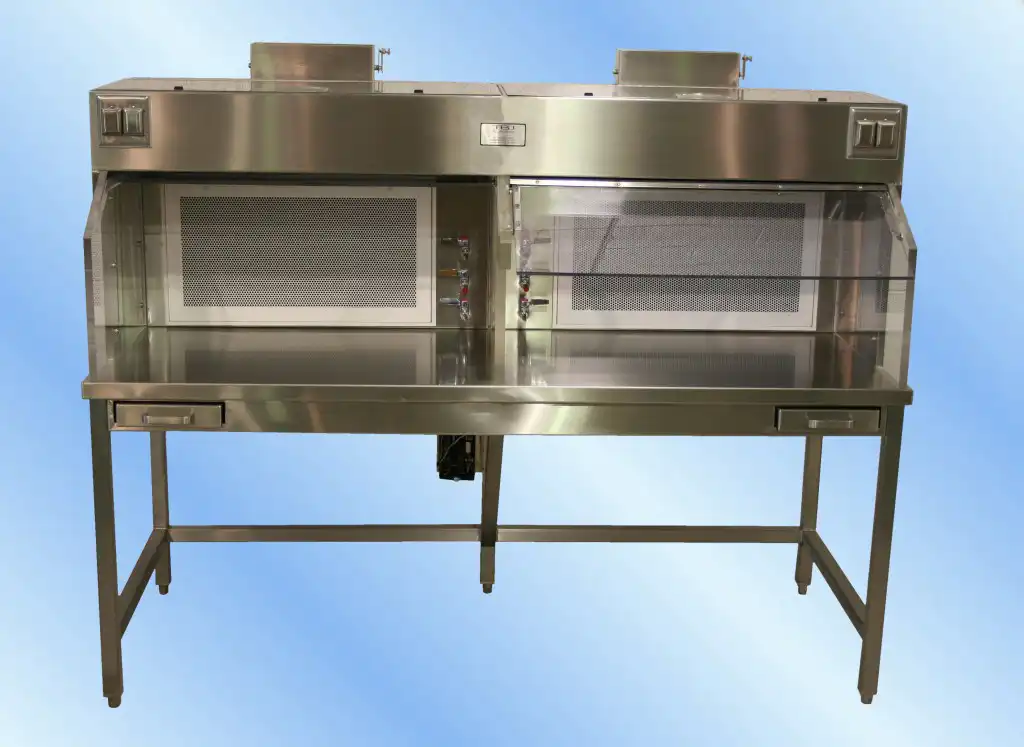

Dual User Semi-Enclosed Backdraft Workstation Model 30-90 BD-SE-DU
The TBJ Model 30-90 BD-SE-DU semi-enclosed backdraft workstation is a dual station unit designed to accommodate two users simultaneously. It includes two unique sliding/removable viewing windows. It is shown here with five laboratory gas outlets.
Features:
- Overall dimensions: 30" deep x 90" wide x 31" high work surface
- Two 42" wide x 24" backdraft ventilated work areas
- Standard features include two work stations with hinged viewing windows, three fluorescent light fixtures with ON/Off switch for each workstation and a pull out writing desk for each workstation.
- Two 4" x 12" duct connections
PDF Information Sheet
-

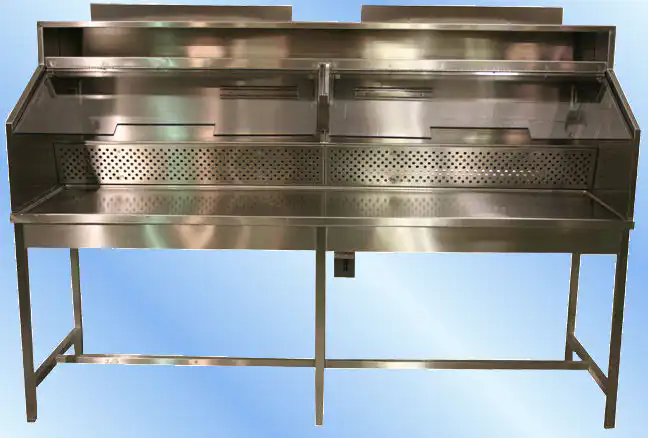

Dual User Semi-Enclosed Backdraft Workstation Model 30-96 BD-SE-DU
The TBJ Model 30-96-SE BD-DU semi-enclosed backdraft workstation is a spacious dual station unit with 2 work areas with individual hinged viewing windows.
Features:
- Overall dimensions: 30" deep x 96" wide x 36" high work surface
- 92" wide x 24" backdraft ventilated work area
- Standard features include two fluorescent light fixtures with ON/OFF switch. Two hinged viewing windows with stainless steel lid stay and shelf space.
PDF Information Sheet
-
Semi-Enclosed Backdraft Workstation Model 32-72 BD-SE-DU
The TBJ Model 32-72 BD-SE-DU semi-enclosed backdraft workstation is a dual station unit designed to accommodate 2 users simultaneously. It includes a hinged viewing window/splash shield. It is shown here with a halogen task lamp and 1 HP heavy duty disposer and GFCI outlets.
Features:
- Overall dimensions: 32" deep x 72" wide x 34" high work surface
- 65" wide x 24" backdraft ventilated work area
- Two 4" x 21" duct connections
PDF Information Sheet
