TBJ offers a variety of self-contained backdraft workstations that include an integral blower and filter module to eliminate the need to connect to a remote exhaust source.
Backdraft Workstation Model 28-48 BD-SC
Backdraft Workstation Model 30-48 BD-SC
Mobile Backdraft Workstation Model 32-50 BD-SC-M
Backdraft Workstation Model 31-60 BD-SC-AH
Mobile Backdraft Workstation Model 31-72-S BD-SC-M
-

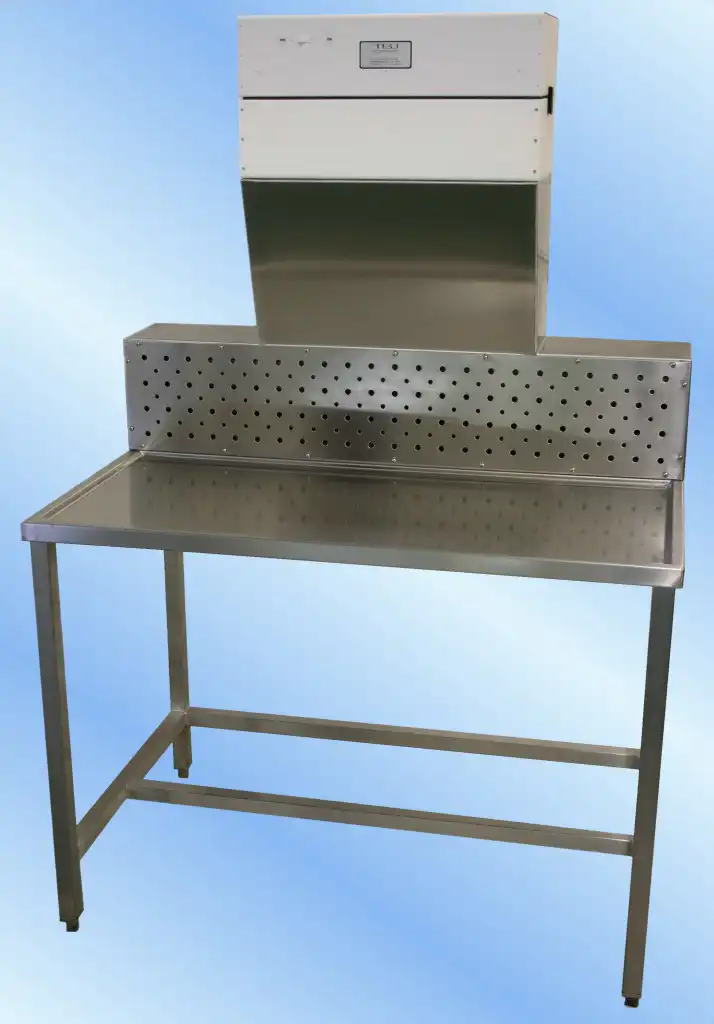

Backdraft Workstation Model 28-48 BD-SC
The TBJ Model 28-48 BD-SC backdraft workstation is a self-contained system that includes an integral blower and filter module to eliminate the need to connect to a remote exhaust source. The filter media can be customized to control and treat fumes from chemicals such as formalin and anesthesia gases. The filter module can also be equipped with a HEPA filter. It is shown here with the optional halogen task lamp with magnifier, pull-out shelf, GFCI receptacle and adjustable shelves.
Features:
- Overall dimensions: 28" x 48" x 90" high with a 36" high work surface.
- 22" x 48" wide work surface.
- Exhaust blower ON/OFF switch with filter change indicator light.
- 115V, 1 PH 60 HZ, 20 amps
PDF Information Sheet
-

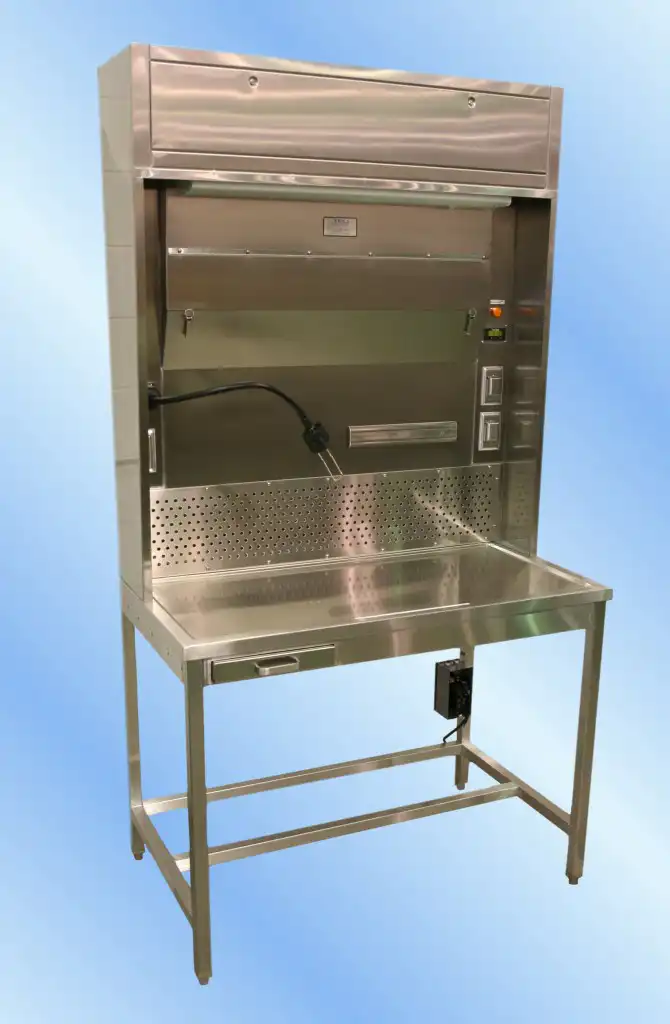

Backdraft Workstation Model 30-48 BD-SC
The TBJ Model 30-48 BD-SC backdraft workstation is a compact, self-contained unit that includes an integral blower and filter module to eliminate the need to connect to a remote exhaust source. The filter media can be customized to control and treat fumes from chemicals such as formalin, anesthesia gases and many other chemicals and gases. The filter module can also be equipped with a HEPA filter.
Features:
- Overall dimensions: 30" x 48" x 72" high with a 36" high work surface.
- 22" x 48" wide work surface.
- Exhaust blower module with ON/OFF blower speed control
- 115V, 1 PH 60 HZ, 15 amps
-
Mobile Backdraft Workstation Model 32-50 BD-SC-M
The TBJ Model 32-50 BD-SC mobile backdraft workstation is a self-contained unit that includes an integral blower and filter module to eliminate the need to connect to a remote exhaust source. The filter media can be customized to control and treat fumes from chemicals such as formalin and anesthesia gases. The filter module can also be equipped with a HEPA filter.
Features:
- Optional features include: halogen task lamp, push-button height adjustment, and fiber optic lighting.
- Overall dimensions: 32" x 50" with work surface height adjustment from 30" to 36" 28" x 42" wide work surface.
- Exhaust blower module with ON/OFF blower speed control
- 115V, 1 PH 60 HZ, 15 amps
PDF Information Sheet
-
Backdraft Workstation Model 31-60 BD-SC-AH
The TBJ Model 30-60 BD-AH-SC backdraft workstation is a compact, self-contained unit that includes an integral blower and filter module to eliminate the need to connect to a remote exhaust source. The filter media can be customized to control and treat fumes from chemicals such as formalin and anesthesia gases. The filter module can also be equipped with a HEPA filter. The unit as shown includes the optional push-button height adjustment feature.
Features:
- Overall dimensions: 31" x 60" x 68 3/8" high with a 32-40" high work surface
- 23" x 60" wide work surface
- Exhaust blower module with ON/OFF blower speed control
- 115V, 1 PH 60 HZ, 15 amps
-
Mobile Backdraft Workstation Model 31-72-S BD-SC-M
The TBJ Model 31-72-S BD-SC-M is a mobile backdraft workstation with two self-contained backdraft blower/filter housing for ductless operation.
Features:
- Includes an integral sink with hot/cold water faucet with flexible utility connections with quick-connect fittings.
- It is shown here with optional 1 horsepower disposer and GFCI receptacle.
- 23" x 72" work surface area.
- Four swivel casters with brakes.
- Overall dimensions: 31" x 72" x 36" high work surface
PDF Information Sheet
