TBJ backdraft ventilated workstations are multi-use, ventilated units for gross examination and sectioning of specimens, animal necropsies, surgeries, perfusions, dissections, and chemical handling. The tables use a negative air source to pull air, odors, vapors and aerosols back away from the faces of users. The backdraft design helps keep chemicals such as formalin, alcohol and xylene under control and below permissible OSHA exposure limits, making for a healthier, safer work environment.
Backdraft Grossing Station Model 28-48 BD
Table Top Grossing Station Model 29-48 BD-GS TT
Backdraft Grossing Station Model 30-48-S BD-GS
Dual Draft Workstation Model 21-36 DD-BD SC
Backdraft Grossing Station Model 30-60 BD-GS
Backdraft Grossing Station Model 30-72 BD-GS
Backdraft Bone Grossing Station Model 30-72-S BD BGT
Backdraft Grossing Station Model 34-60-S BD-GS
Backdraft Grossing Station Model 34-72-S BD-GS
Dual User Backdraft Grossing Station Model 30-108 BD-DU
Dual User Backdraft Grossing Station Model 30-114-S BD-DU
Dual User Backdraft Grossing Station Model 30-96-S BD-DU
Dual User Backdraft Grossing Station Model 36-120-S BD-DU
Dual User Backdraft Grossing Station Model 36-72-s BD-DU-GS
Backdraft Grossing Station Model 36-96 BD-DU
Backdraft Grossing Station Model 37-97-S BD
Dual Draft Grossing Station Model 30-96-S DD-BD GS
Backdraft Grossing Station Model 34-72-S BD-GS-AH
-

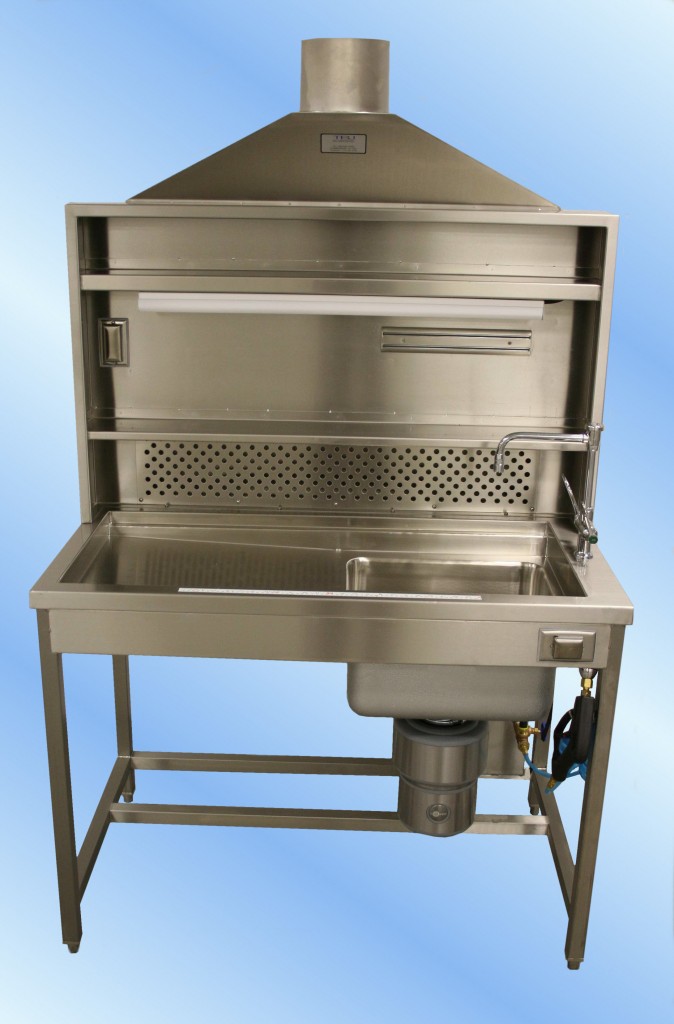

Backdraft Grossing Station Model 28-48 BD
TBJ backdraft grossing stations are multi-use, ventilated units for gross examination and sectioning of specimens, animal necropsy, surgeries, perfusions, dissections, and chemical handling.
Features:
- Overall dimensions: 28" deep x 48" wide x 28" to 38" high work surface
- 42" wide x 22" backdraft ventilated work area
- Standard features include sink with hot/cold water, spray gun with recoil hose, fluorescent lighting, and storage shelving.
- 8" diameter duct connection standard
PDF Information Sheet
-

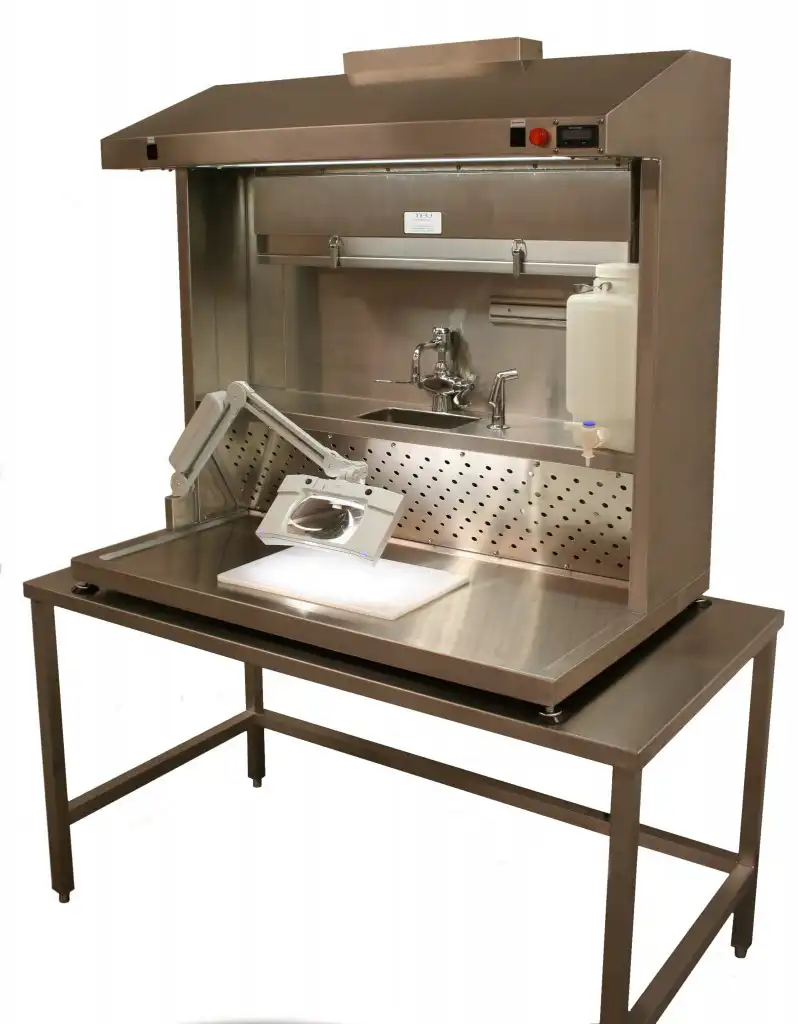

Table Top Grossing Station Model 29-48 BD-GS TT
TBJ backdraft grossing stations are multi-use, ventilated units for gross examination and sectioning of specimens, animal necropsy, surgeries, perfusions, dissections, and chemical handling.
Features:
- Standard features include sink with hot/cold water, spray gun, fluorescent lighting, magnetic tool bar, paper towel holder, GFCI receptacle and storage shelving
- Overall dimensions: 29" deep x 48" wide x 47" high
- 48" wide x 20" backdraft ventilated work surface
- Self-contained with filter system or duct connection to house exhaust
- Optional heavy duty stainless steel base frame for free standing installation.
PDF Information Sheet
-

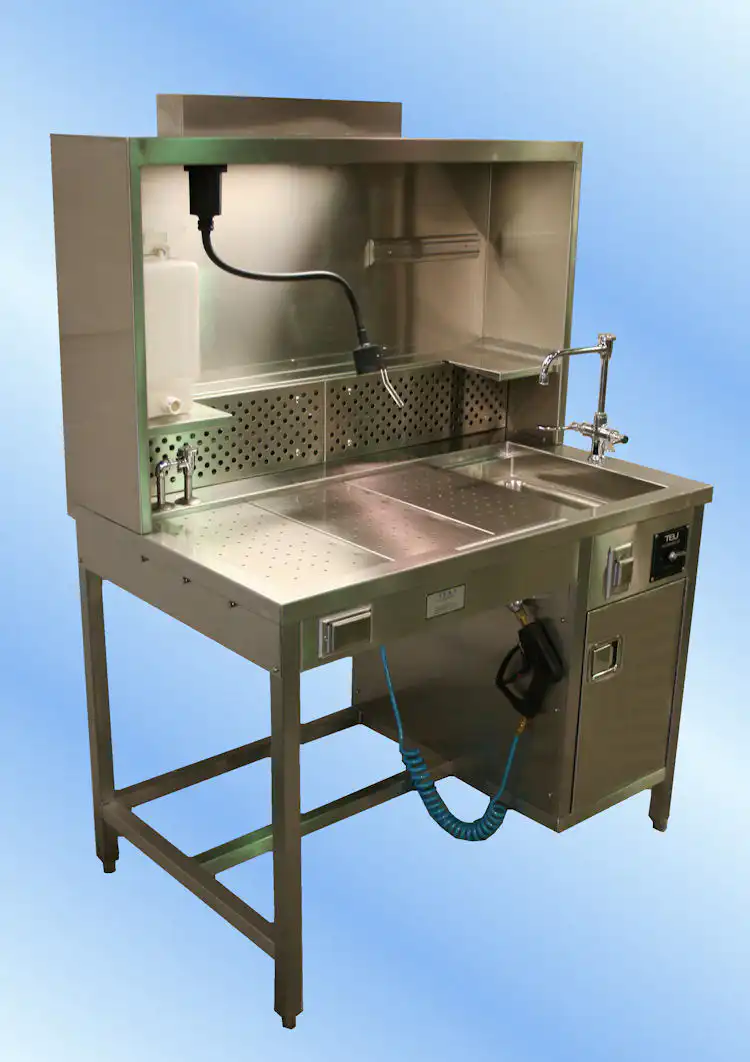

Backdraft Grossing Station Model 30-48-S BD-GS
The TBJ Model 30-48-S BD-GS backdraft grossing station that incorporates many of the same features as our larger units into one compact workstation. The 30-48-S BD-GS is shown here with the optional formalin dispensing carboy, halogen task lamp, electric scale and 1 HP disposer.
Features:
- Standard features include sink with hot/cold water, spray gun with recoil hose, fluorescent lighting, table rinse/flush manifold, magnetic tool bar, paper towel holder and storage shelving
- Overall dimensions: 34" deep x 48" wide x 36" high work surface
- 44" wide x 24" backdraft ventilated work area
- 4" x 24" duct connection standard
PDF Information Sheet
-
Dual Draft Workstation Model 21-36 DD-BD SC
Features:
- Overall dimensions: 36" wide x 27" deep x 37" high work surface
- 32" wide x 19" perforated downdraft work surface
- 28" wide x 6" high adjustable backdraft grille
- Fluorescent light fixture with ON/OFF switch
- GFCI receptacle
- Integral filter usage timer with"filter change" indicator light
- 115V, 20 amp operation
PDF Information Sheet
-

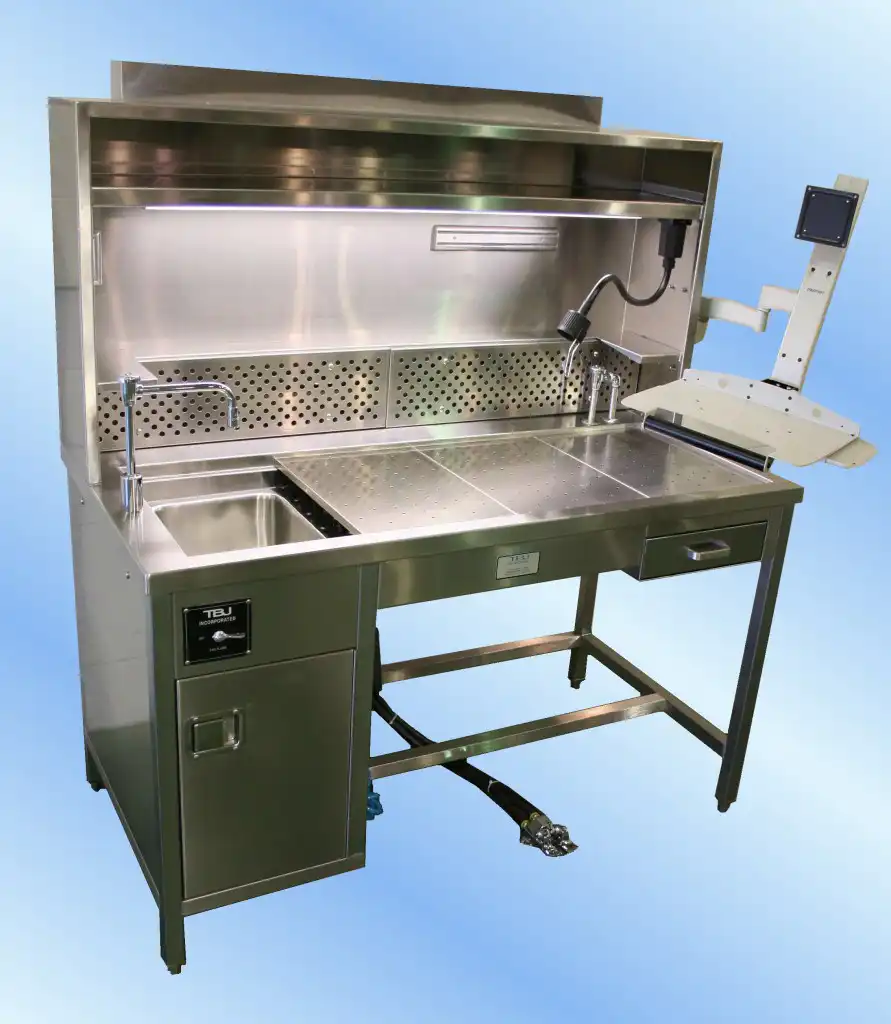

Backdraft Grossing Station Model 30-60 BD-GS
The TBJ Model 30-60 BD-GS is one of our most popular backdraft grossing stations. It is loaded with standard features and is also available with a host of optional features including push-button height adjustment and 3.5 diopter fluorescent magnifier as shown here.
Features:
- Standard features include sink with hot/cold water, spray gun with recoil hose, fluorescent lighting, table rinse/flush manifold, magnetic tool bar, paper towel holder and storage shelving.
- Overall dimensions: 34" deep x 60" wide x 36" high work surface
- 54" wide x 24" backdraft ventilated work area
- 4" x 48" duct connection standard
-

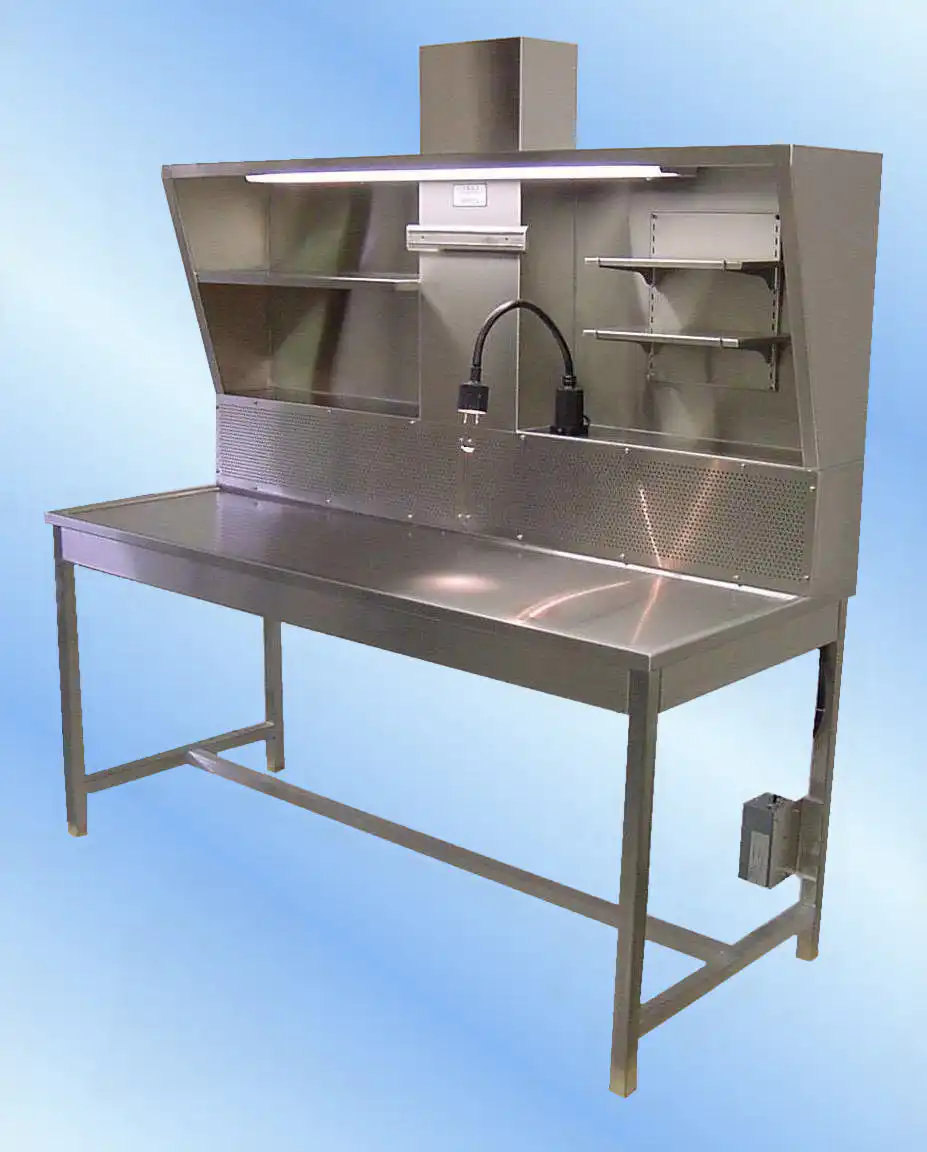

Backdraft Grossing Station Model 30-72 BD-GS
TBJ backdraft grossing stations are multi-use, ventilated units for gross examination and sectioning of specimens, animal necropsy, surgeries, perfusions, dissections, and chemical handling.
Features:
- Overall dimensions: 30" x 72" x 36" high work surface
- 10" high x 72" long backdraft exhaust plenum
- 22" x 72" wide backdraft ventilated work surface
- 8" x 12" duct connection
PDF Information Sheet
-

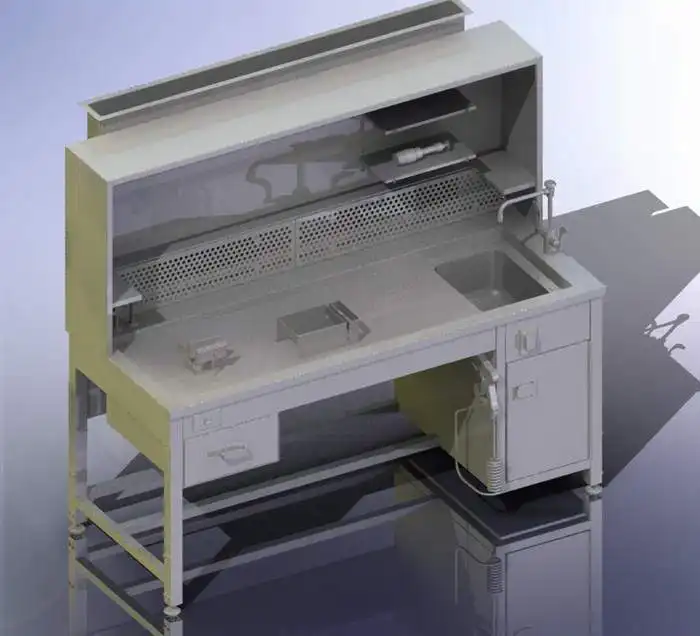

Backdraft Bone Grossing Station Model 30-72-S BD BGT
Backdraft Bone Grossing Station follows the contemporary trend of equipment standardization and specialization in clinical and research laboratories.
Features:
- Separate place for complete cycle of bone grossing from cutting to decalcification.
- Permanent and adjustable immobilization devices and cutting instruments.
- Efficient exhaust of bone dust, aerosols, and chemicals for fixation and decalcification.
- Variety of effective cleaning accessories to prevent biohazard contamination of the laboratory with bloody bone/tissue fragments.
- Dual use for bulky specimens (cysts, extremities, etc.), odorous specimens (necrotic bowel, gangrenous extremities, etc.), and gross photo stand for oversized specimens.
PDF Information Sheet
-

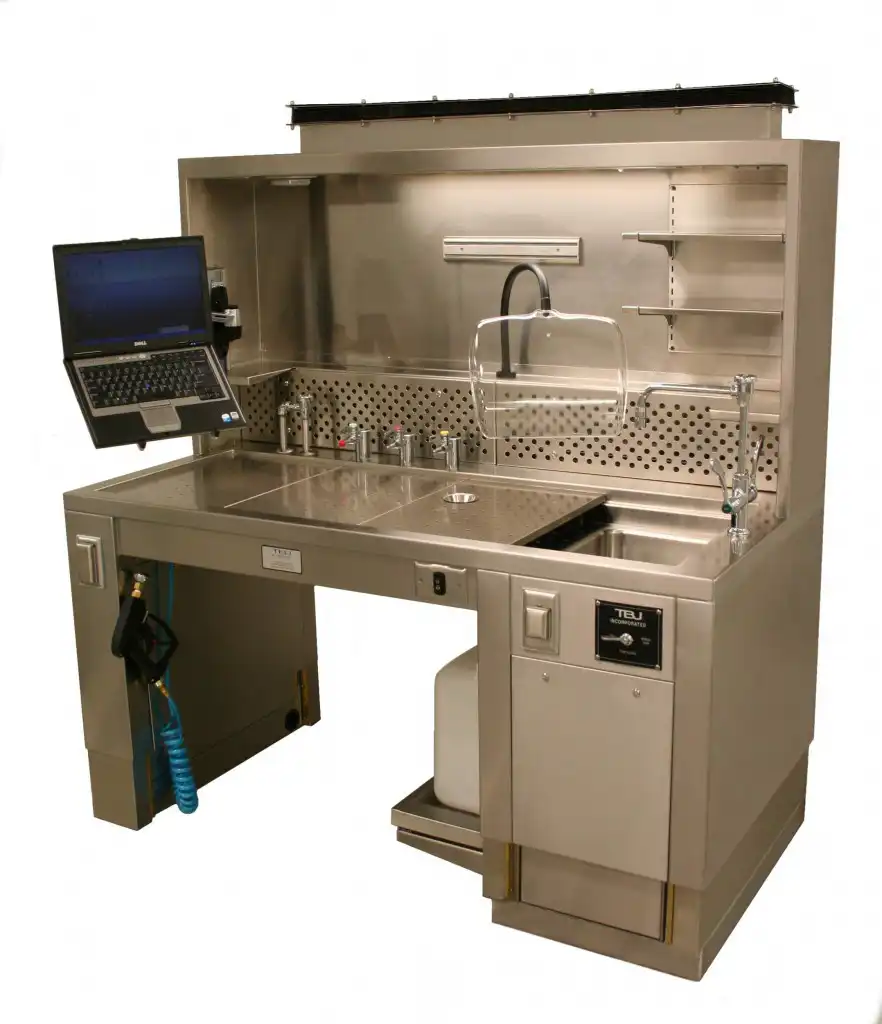

Backdraft Grossing Station Model 34-60-S BD-GS
The TBJ Model 34-60-S BD GS is a complete backdraft grossing station that incorporates numerous standard features. Some of the standard features shown here include shelf mounted dispensing carboy, two halogen task lamps, adjustable shelving, magnetic instrument holder, formalin cup sink with formalin collection carboy, adjustable splash shield, heavy duty disposer, spray gun, rinse manifold, and push-button height adjustment.
Features:
- Standard features include sink with hot/cold water, spray gun with recoil hose, fluorescent lighting, table rinse/flush manifold, magnetic tool bar, paper towel holder and storage shelving.
- Overall dimensions: 34" deep x 60" wide x 33" to 39" high adjustable work surface
- 54" wide x 24" backdraft ventilated work area
- 4" x 48" with flexible bellows duct connection standard
- Type 316 stainless steel construction
PDF Information Sheet
-

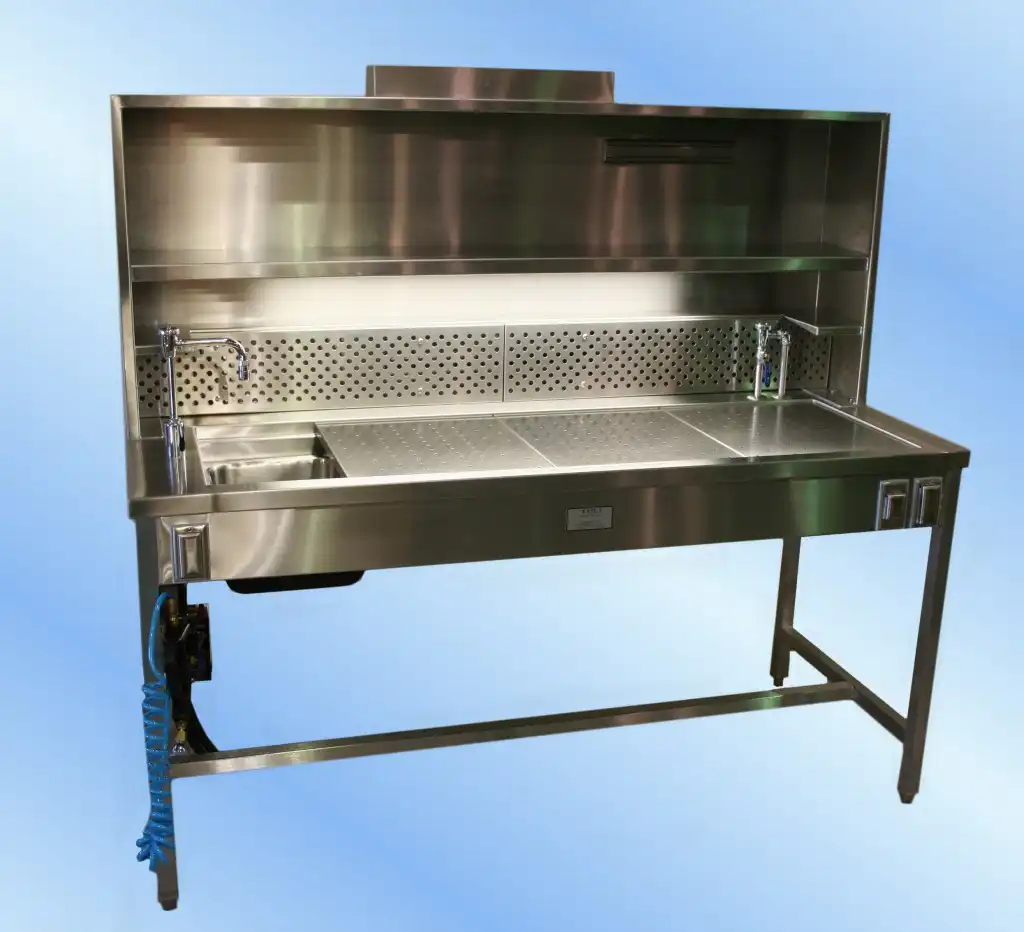

Backdraft Grossing Station Model 34-72-S BD-GS
The TBJ Model 34-72-BD-GS is a full size backdraft grossing station with a variety of standard and optional features. The grossing station is shown here with optional foot pedal faucet controls in lieu of wrist blade faucet.
Features:
- Standard features include sink with hot/cold water, spray gun with recoil hose, fluorescent lighting, table rinse/flush manifold, magnetic tool bar, paper towel holder and storage shelving.
- Overall dimensions: 34" deep x 72" wide x 36" high work surface
- 66" wide x 20" backdraft ventilated work area
- 4" x 24" duct connection
PDF Information Sheet
-

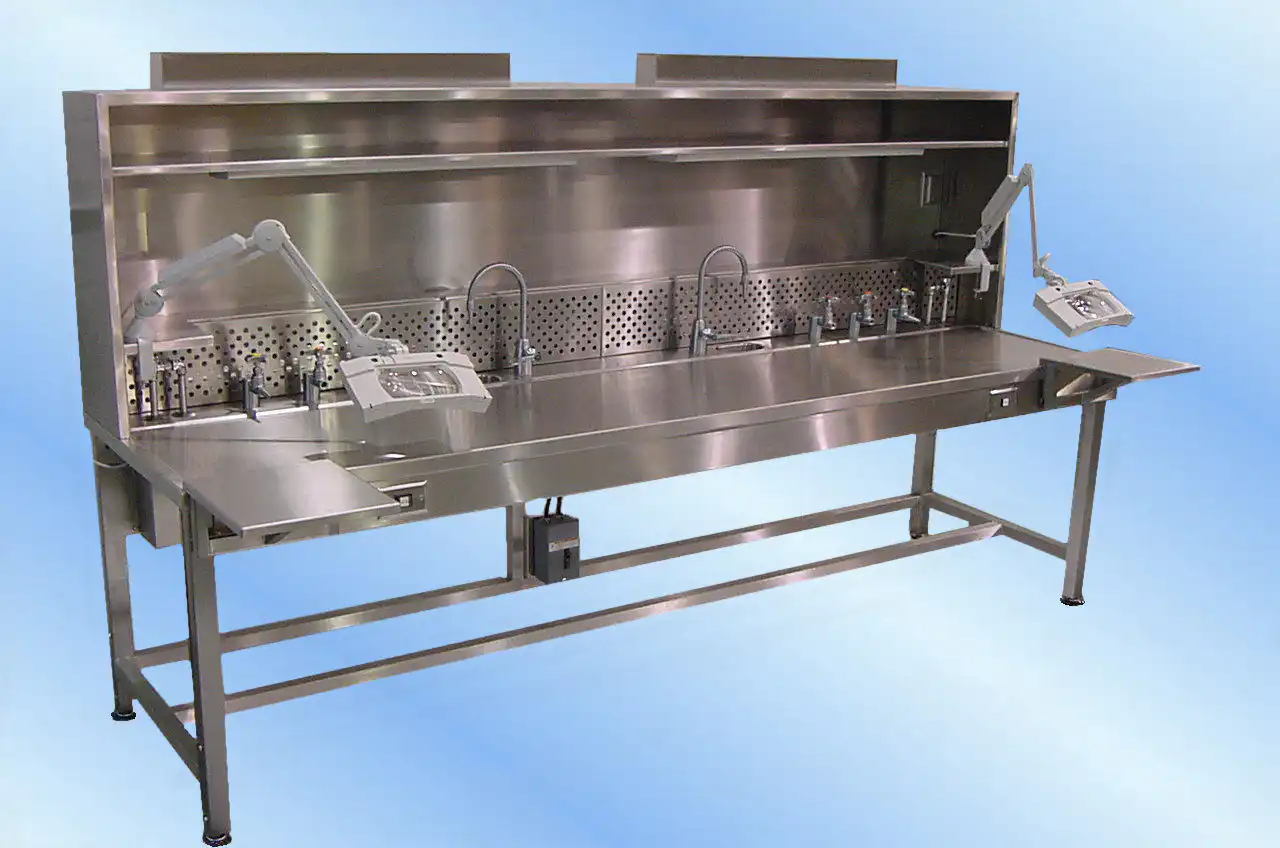

Dual User Backdraft Grossing Station Model 30-108 BD-DU
The TBJ Model 30-108 BD dual user backdraft grossing station is designed to accommodate two users simultaneously in one space saving design. It is shown here with a variety of optional features that include two 3.5 diopter fluorescent magnifiers, air, gas and vacuum outlets, two cold water faucets with cup sinks and push-button height adjustment.
Features:
- Overall dimensions: 34" deep x 108" wide x 30" to 36" high work surface
- 102" wide x 26" backdraft ventilated work area
- Two 4" x 36" duct connections standard
PDF Information Sheet
-

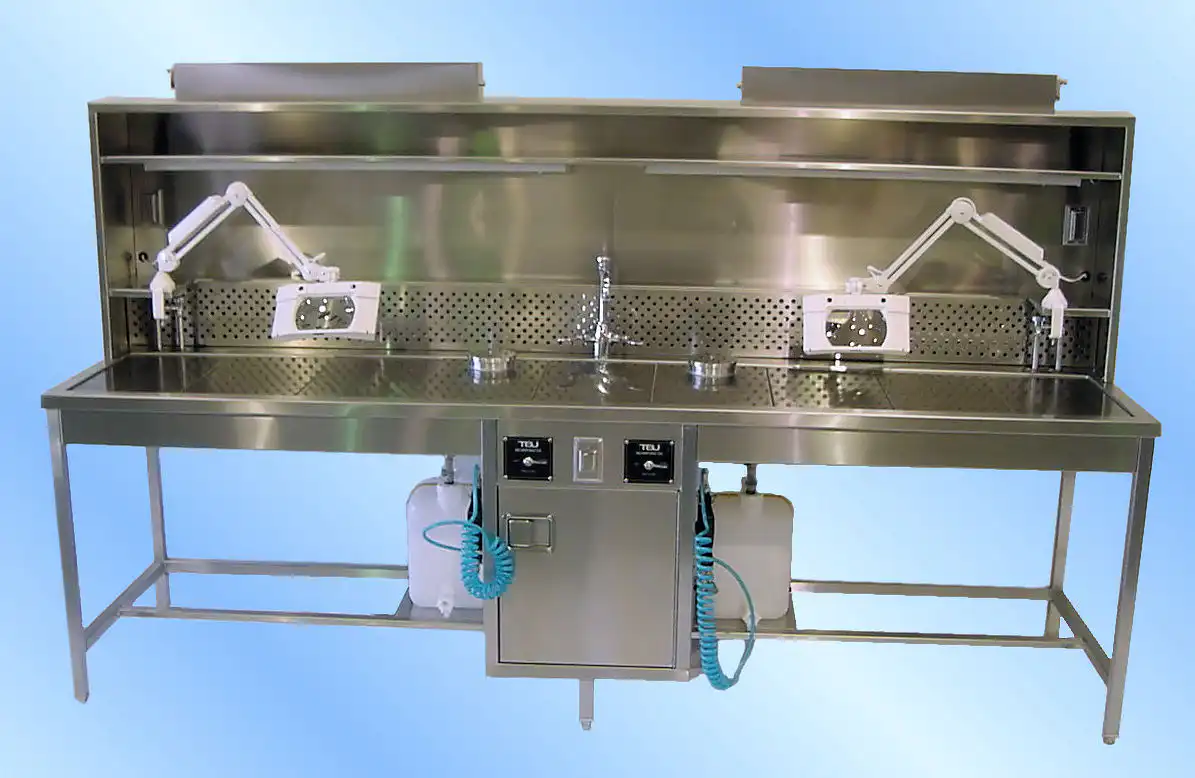

Dual User Backdraft Grossing Station Model 30-114-S BD-DU
The TBJ Model 30-114-S BD-DU is a dual user backdraft grossing station similar to our Model 30-96-S BD-DU but with a wider work area. It is shown here with the optional 3.5 diopter fluorescent magnifiers and storage drawers.
Features:
- Overall dimensions: 34" deep x 114" wide x 30" or 36" high work surface
- 110" wide x 24" backdraft ventilated work area
- Standard features include sink with hot/cold water, two spray guns with recoil hoses, fluorescent lighting, two table rinse/flush manifolds, two magnetic tool bars, two paper towel holders and storage shelving.
- Two 4" x 36" duct connections standard
PDF Information Sheet
-

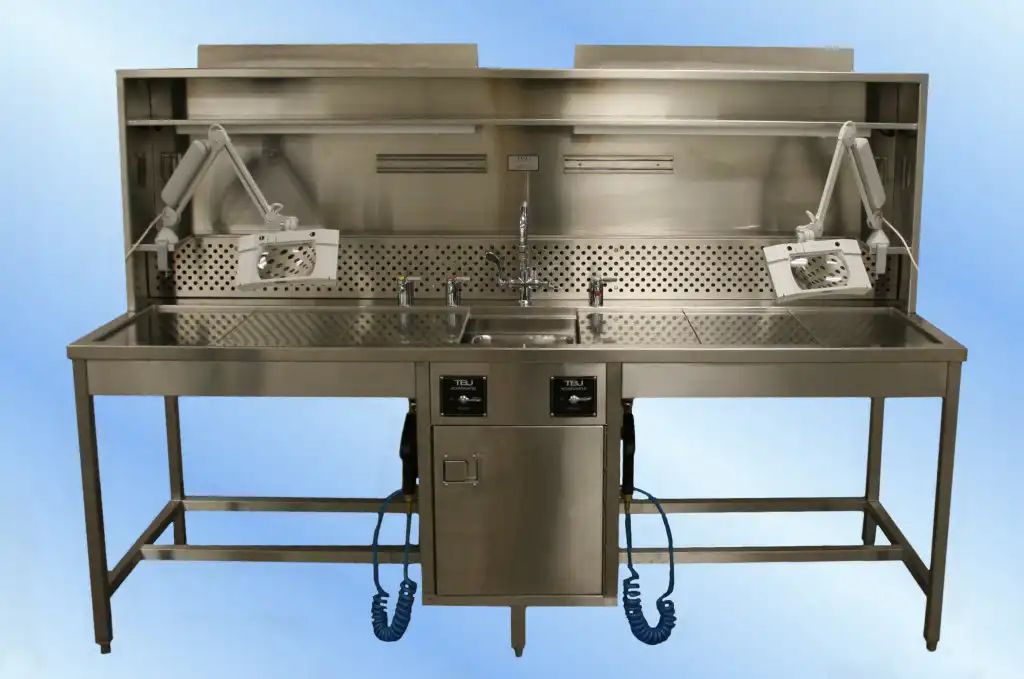

Dual User Backdraft Grossing Station Model 30-96-S BD-DU
The TBJ Model 30-96-S BD-DU dual user backdraft grossing station is designed to accommodate two users simultaneously in one space saving design. It includes a central sink and is loaded with the same standard features as our Model 34-60-S BD-GS. It is shown here with the optional 3.5 diopter fluorescent magnifiers and deck mounted eye wash.
Features:
- Overall dimensions: 34" deep x 96" wide x 36" high work surface
- 92" wide x 24" backdraft ventilated work area
- Standard features include sink with hot/cold water, two spray guns with recoil hoses, fluorescent lighting, two table rinse/flush manifolds, two magnetic tool bars, two paper towel holders and storage shelving.
- Two 4" x 36" duct connections standard
PDF Information Sheet
-

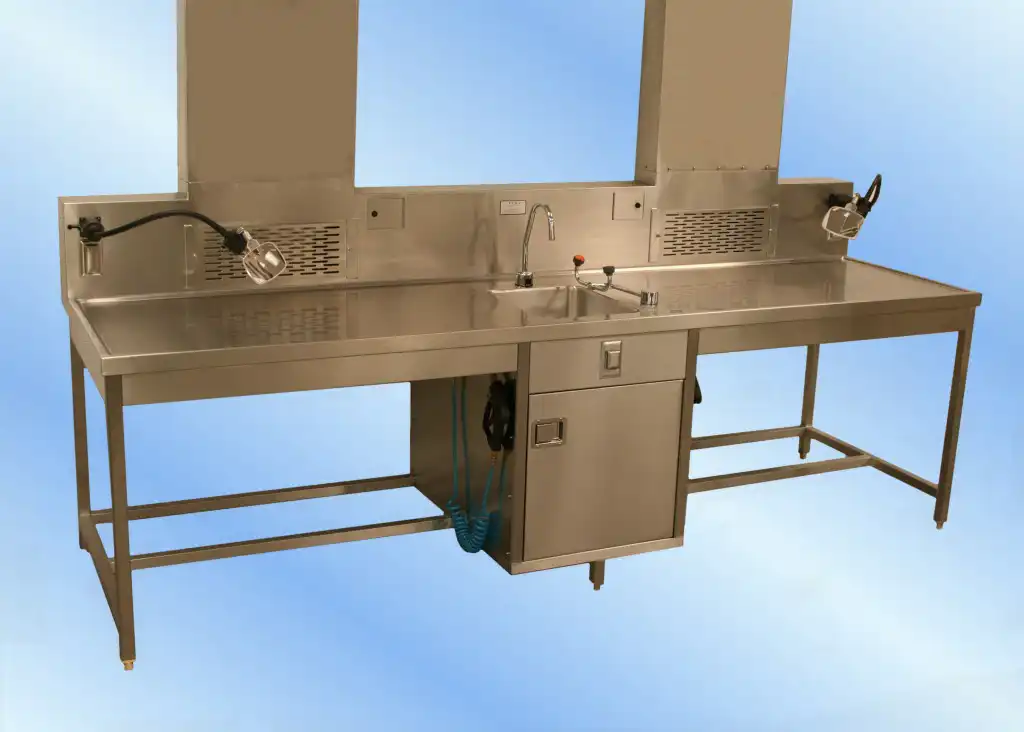

Dual User Backdraft Grossing Station Model 36-120-S BD-DU
The TBJ Model 36-120-S BD-DU dual user backdraft grossing station is designed to accommodate two users simultaneously in one space saving design. It includes a sink in the center of the table for easy access by both users. It is shown here with the optional deck mounted eye wash, halogen task lamps, sensor controlled faucet, GFCI outlets and 1 HP heavy duty disposer.
Features:
- Overall dimensions: 36" deep x 120" wide x 36" high work surface
- 30" wide x 8" high backdraft grill with slide damper
- Two spray guns with recoil hose standard
- Two 6" x 30" duct connections
PDF Information Sheet
-

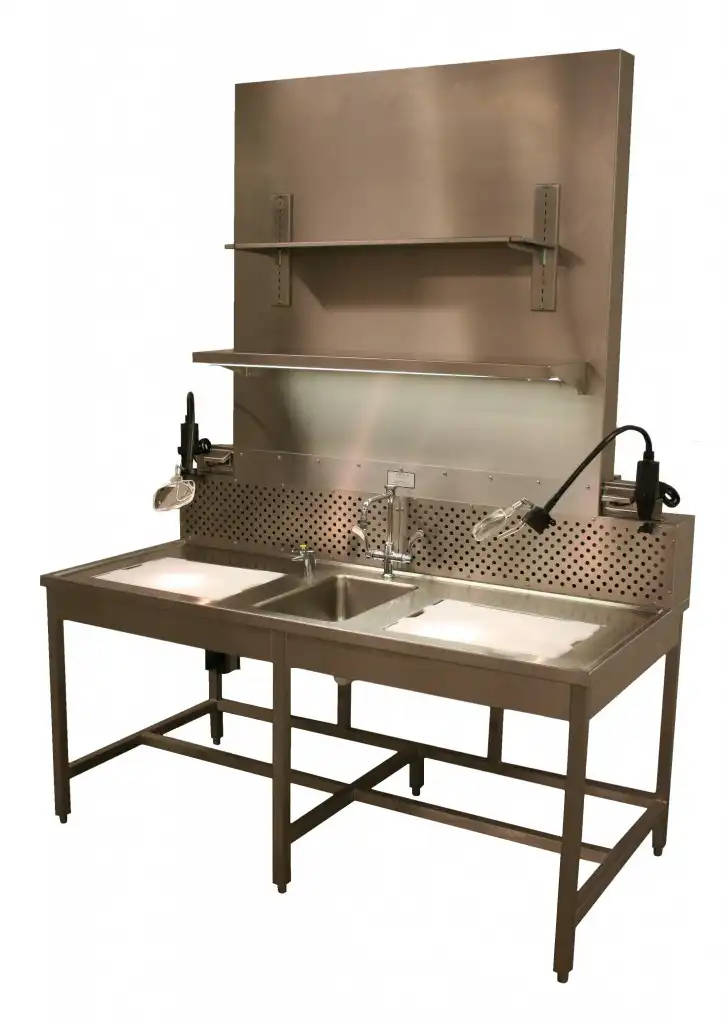

Dual User Backdraft Grossing Station Model 36-72-s BD-DU-GS
TBJ Model 36-72-S BD-GS dual user backdraft grossing station is a compact dual-user workstation that is designed to accommodate two users simultaneously in one space saving design. It includes a central sink and a recessed cutting board tray with drain and cutting board on each side of the sink. It is shown here with two halogen task lamps with magnifiers, two GFCI receptacles, adjustable shelving and a laboratory vacuum outlet.
Features:
- Overall dimensions: 36" deep x 72" wide x 34" high work surface
- 72" wide backdraft ventilated work area
- Standard features include sink with hot/cold water, two spray guns with recoil hoses, fluorescent lighting and storage shelving.
- 5" x 53" duct connection standard
PDF Information Sheet
-

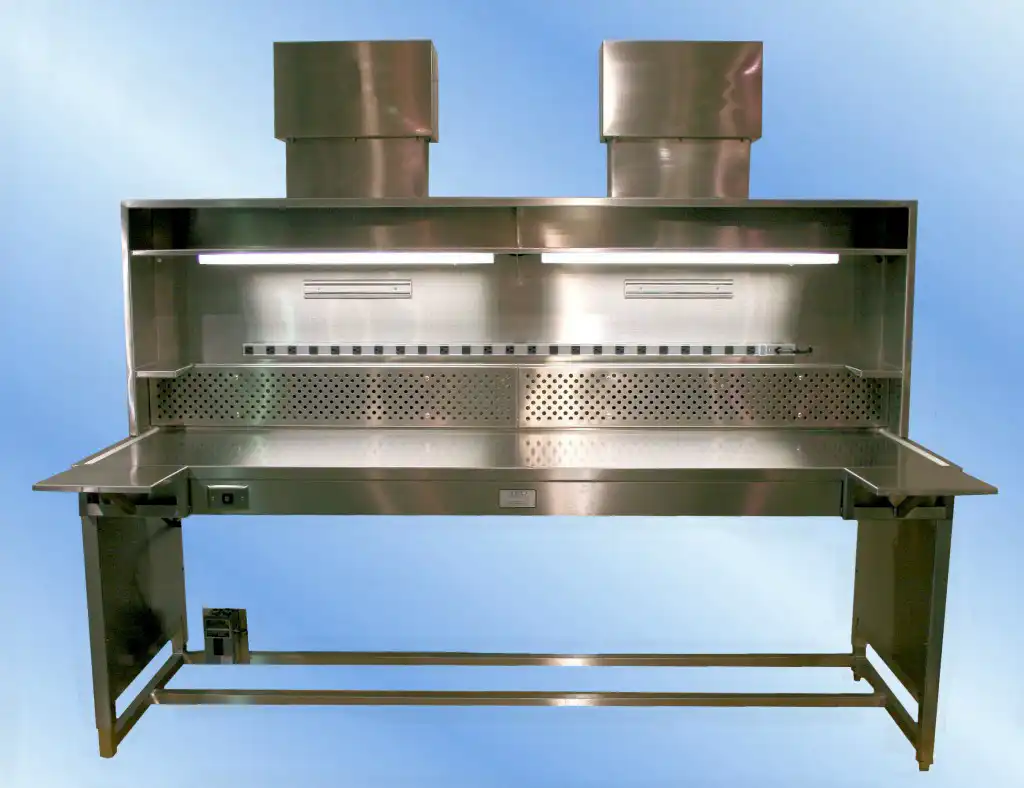

Backdraft Grossing Station Model 36-96 BD-DU
The TBJ Model 36-96 BD-DU dual user backdraft grossing station is designed to accommodate two users simultaneously in one space saving design. It is shown here with a variety of optional features that include two magnetic tool bars, push-button height adjustment, full length power strip and removable writing shelf.
Features:
- Overall dimensions: 36" deep x 96" wide x 36" to 42" high work surface
- 92" wide x 30" backdraft ventilated work area
- (2) 6" x 18" duct connections
PDF Information Sheet
-

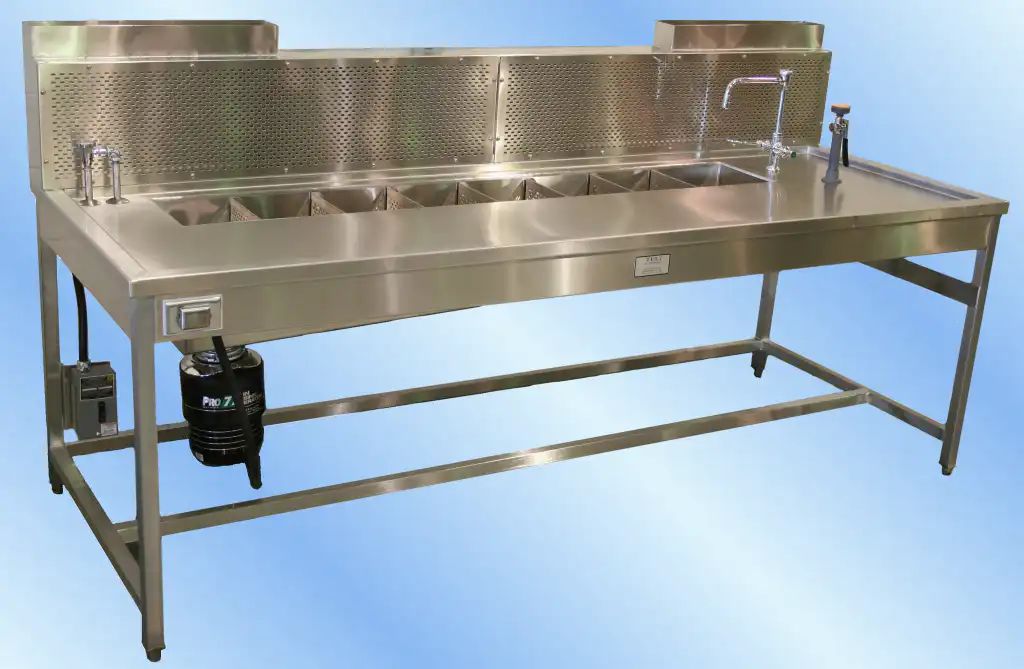

Backdraft Grossing Station Model 37-97-S BD
The TBJ Model 37-97-S BD dual user backdraft grossing station is designed to allow for multiple dissecting work areas to enable convenient dissection and rinsing procedures while protecting personnel from formaldehyde by utilizing backdraft ventilation. The table is show here with option 1 HP disposer and deck mounted spray.
Features:
- Overall dimensions: 37" deep x 97" wide x 34" high work surface
- 97" wide x 31" backdraft ventilated work area
- 10" wide x 69" long x 8" deep sink well with seven removable, perforated dividers.
- Two 4" x 24" duct connections standard
PDF Information Sheet
-

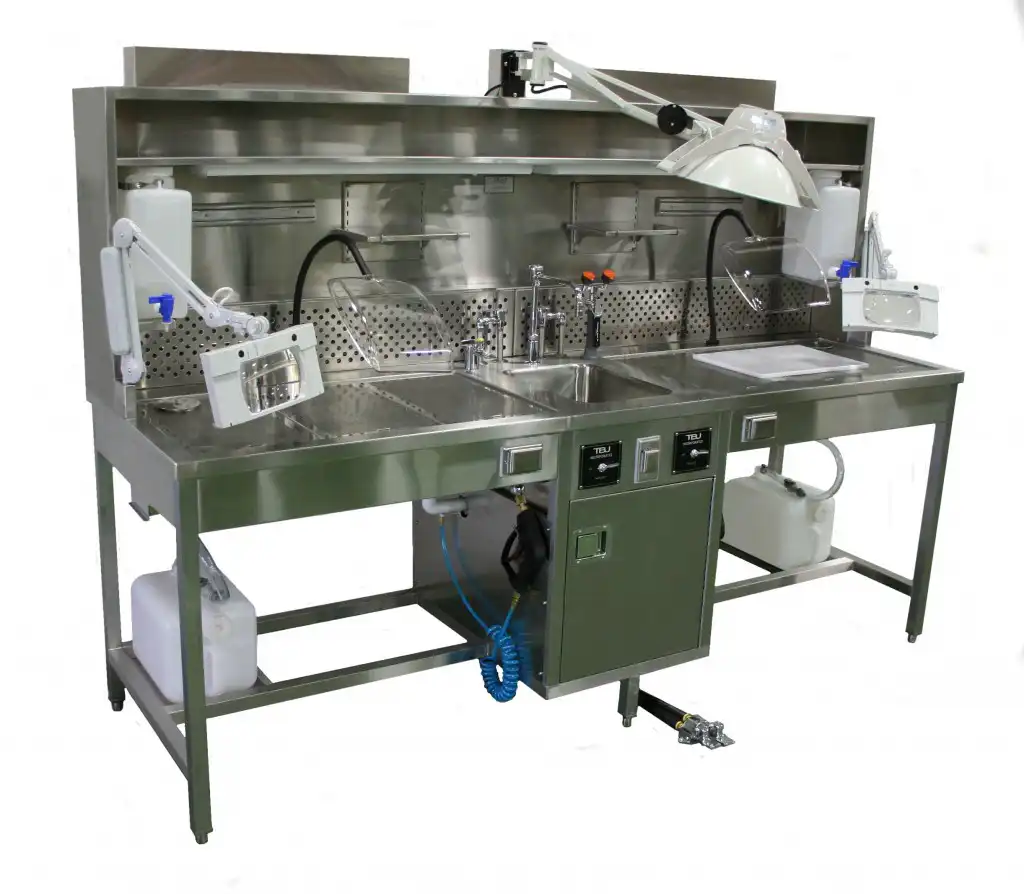

Dual Draft Grossing Station Model 30-96-S DD-BD GS
The TBJ Model 30-96 DD/BD-DU GS is a dual user dual draft Grossing Station designed to accommodate two users simultaneously in one space saving design. It includes a central sink and is loaded with a variety of standard feature while numerous optional accessories enable you to customize the table around your specific needs.
Features:
- Standard features include sink with hot/cold water, two spray guns with recoil hoses, fluorescent lighting, two table rinse/flush manifolds, two magnetic tool bars, paper towel holder and storage shelving.
- Optional features include: 3.5 diopter fluorescent magnifiers, deck mounted eye wash, safety splash shields, formalin cup sinks with collection carboys, foot pedal controlled faucet, four GFCI receptacles and a gas outlet
- Overall dimensions: 34" deep x 96" wide x 36" high work surface
- 92" wide x 24" backdraft ventilated work area
- Two 4" x 30" duct connections standard
PDF Information Sheet
-

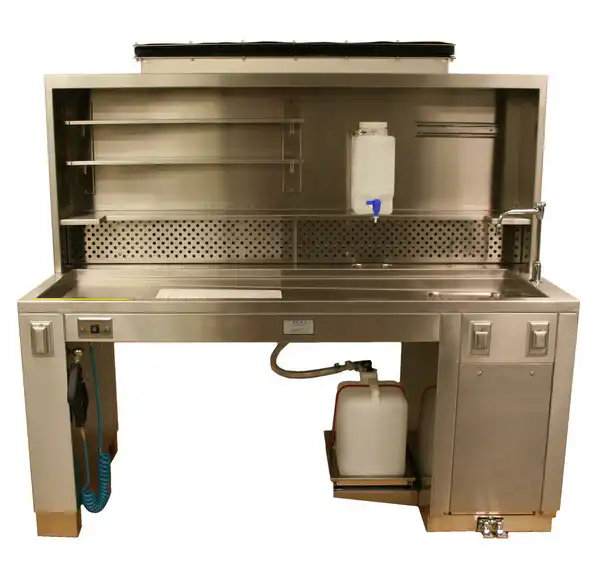

Backdraft Grossing Station Model 34-72-S BD-GS-AH
The TBJ Model 34-72-S BD GS-AH is a complete backdraft grossing station that incorporates numerous standard features. Some of the standard features shown here include shelf mounted dispensing carboy, fluorescent or LED undershelf light fixture, adjustable shelving, magnetic instrument holder, formalin cup sink with formalin collection carboy, foot pedal controlled faucet heavy duty disposer, spray gun, rinse manifold, and push-button height adjustment.
Features:
- Standard features include sink with hot/cold water, spray gun with recoil hose, fluorescent lighting, table rinse/flush manifold, magnetic tool bar, formalin cup sink and collection carboy and storage shelving
- GFCI receptacle
- Overall dimensions: 34″ deep x 72″ wide x 34″ to 42″ high adjustable work surface
- 72″ wide x 24″ backdraft ventilated work area
- 4″ x 48″ with flexible bellows duct connection standard
- Type 304 stainless steel construction (type 316 optional)
PDF Information Sheet
