TBJ’s Water bottle filling stations allow for quick and precise filling of cased bottles. Our available design options include hand-held, wall-mounted, and floor-standing models. These units can be designed for manual, foot pedal, or timer controlled push-button operation. We offer manual or automatic options to fit the preferences for you and your facility. Refilling multiple bottles to a precise measurement one-by-one can be a chore and consume precious time. Make accurately refilling bottles a quick, simultaneous, process with bottle filling stations from TBJ. Browse our online catalog today and call us if you have questions regarding a custom order or if you would like further information regarding our water bottle filling stations in general. When it comes to high-quality products you can trust, look no further than TBJ.
Automatic Water Bottle Filler Model WBF-2
Water Bottle Filler Model WBF-4
Water Bottle Filler Model WBF-4S
Hand Held Water Bottle Filler Model WBF-HH
Water Bottle Filler Model WBF-RT-46
Water Bottle Filler Model WBF-RT-90
Water Bottle Filler Model WBF-SMD
Wall Mounted Water Bottle Filler Model WBF-WM
Water Bottle Filler Proportioner Model WP-2001
Water Bottle Filler Proportioner Model WP-2001-1F
Water Bottle Filler Proportioner Model WP-2001-2F
Water Bottle Filler Proportioner Model WP-2001-RT-1F
Water Bottle Filler Proportioner Model WP-2001-RT-2F
-
Automatic Water Bottle Filler Model WBF-2
The TBJ Model WBF-2 Automatic Water Bottle Filler is a compact floor standing bottle filler designed for use in the central cage washing area.
Features:
- Provides quick and easy filling of baskets full of bottles.
- It includes a timer, push-button control and solenoid valve for automatic hands free filling of bottles.
- The filler manifold can be customized to match up with existing bottle baskets.
- Interchangeable manifold for different configurations of bottle baskets
- Manual ball valve and foot pedal operation available in lieu of automatic push-button timer control
- Individual machined nozzles
- Type 304 stainless steel
- Overall dimensions:18" x 28" x 36" high
-
Water Bottle Filler Model WBF-4
The TBJ Model WBF-4 Water Bottle Filler is designed to fill two baskets of animal water bottles quickly and accurately. Two basket loads of clean bottles are placed on to the alignment tracks of the filler. The alignment tracks will center the bottles directly below each filler nozzle. The user selects the proper fill time from the control timer and then pushes the"FILL" button on the located on the control box. The bottles are automatically filled in each basket simultaneously. Once the timer has initially been set, it does not require further adjustment with each subsequent filling.
Features:
- Interchangeable manifolds for different configurations of bottle baskets
- Manual ball valve operation available
- Individual machined nozzles
- Type 304 stainless steel
- Overall dimensions:36" x 28" x 30" high work surface
-
Water Bottle Filler Model WBF-4S
The TBJ Model WBF-4S Water Bottle Filler is designed to fill cased animal water bottles quickly and accurately. An integral stainless steel sink with hot/cold water faucet is included for processing miscellaneous items. It includes a timer, push-button control and solenoid valve for automatic hands free filling of bottles. The filler manifold can be customized to match up with existing bottle baskets.
Features:
- Interchangeable manifold for different configurations of bottle baskets
- Manual ball valve operation available
- Individual machined nozzles
- Type 304 stainless steel
- Overall dimensions:36" x 28" x 30" high work surface
-
Hand Held Water Bottle Filler Model WBF-HH
The Hand Held Water Bottle Filler Model WBF-HH is a compact hand held bottle filler that can be used in the central cage washing area or it can be moved from room to room. It is designed to provide and quick and easy method of filling a bottle basket full of bottles. The filler can be customized to match up with existing bottle baskets.
Features:
- Manual ball valve operation
- Individual machined nozzles
- Type 304 stainless steel
-
Water Bottle Filler Model WBF-RT-46
The TBJ Model WBF-RT-46 Water Bottle Filler is designed to fill a basket load of animal feeder water bottles quickly and accurately. The tabletop is a gravity roller design to enable users to manually convey bottle baskets to the filling manifold and also provide an area for staging bottle baskets. In operation, a basket load of clean bottles is located under the bottle filling manifold for filling. Alignment guides are provided to make centering the bottle basket directly below each filler nozzle. The user pushes the fill button and bottles are filled automatically for the duration of the adjustable timer setting. Below the roller conveyor top is a drain pan sloped to a center drain
Features:
- Interchangeable manifold for different configurations of bottle baskets
- Manual ball valve operation available
- Individual machined nozzles
- Type 304 stainless steel
- Overall dimensions: 30" x 46" x 30" high work surface
-

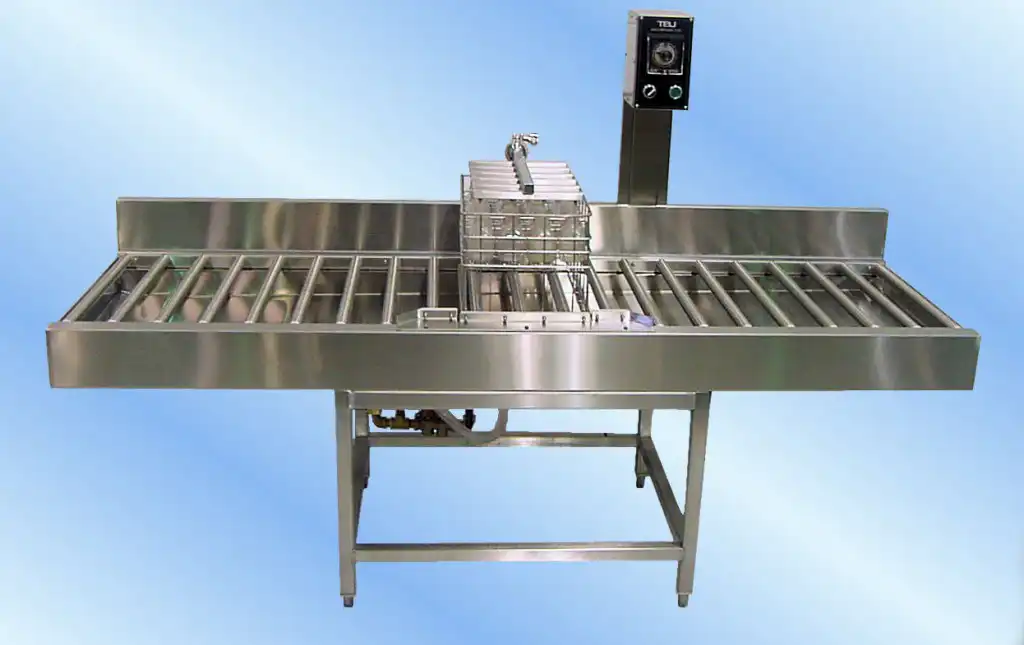

Water Bottle Filler Model WBF-RT-90
The WBF-RT-90 Water Bottle Filler is designed to fill a basket load of animal feeder water bottles quickly and accurately. The tabletop is a gravity roller design to enable users to manually convey bottle baskets to the filling manifold and also provide an area for staging bottle baskets. In operation, a basket load of clean bottles is located under the bottle filling manifold for filling. Alignment guides are provided to make centering the bottle basket directly below each filler nozzle. The user pushes the fill button and bottles are filled automatically for the duration of the adjustable timer setting. Below the roller conveyor top is a drain pan sloped to a center drain
Features:
- Interchangeable manifold for different configurations of bottle baskets
- Manual ball valve operation available
- Individual machined nozzles
- Type 304 stainless steel
- Overall dimensions: 30" W x 90" L x 30" high work surface
-

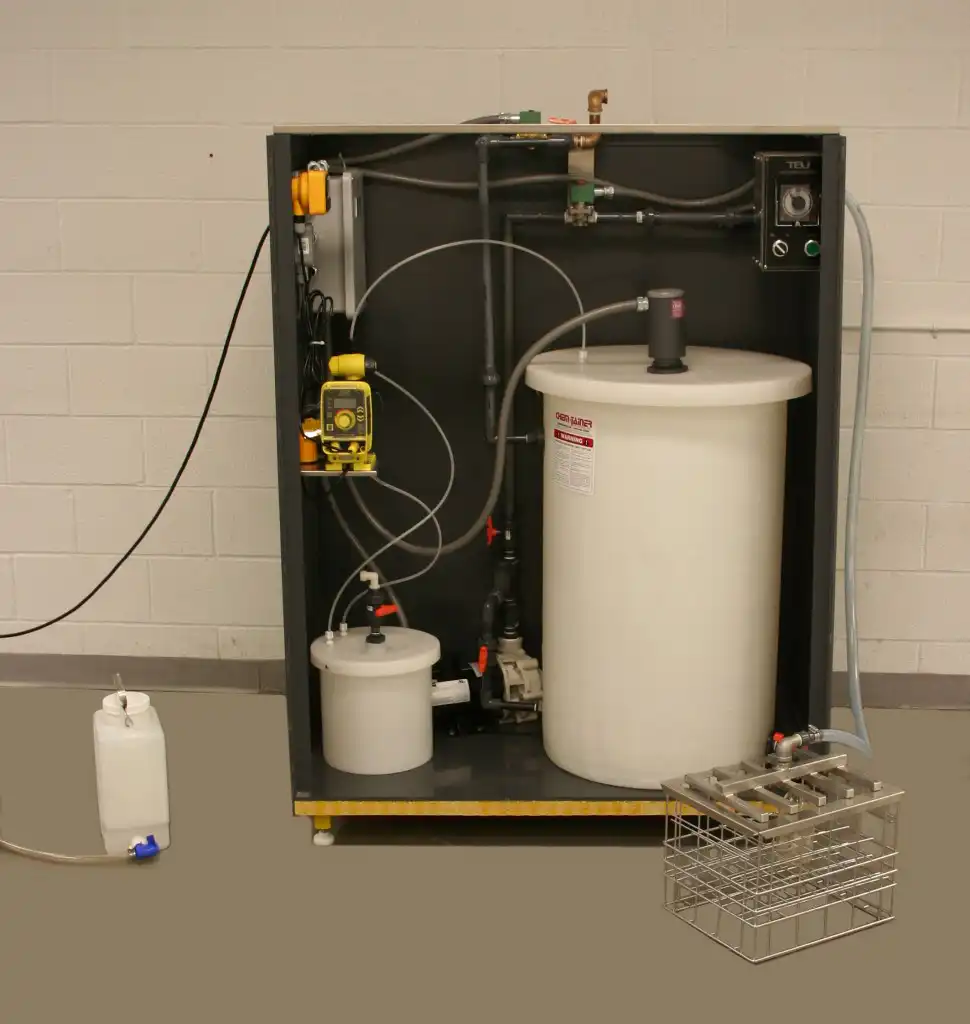

Water Bottle Filler Model WBF-SMD
The Solution Mixing and Dispensing System Water Bottle Filler is a complete packaged module designed to provide batch lots of accurately mixed acidified water solutions at desired concentrations for dispensing into animal water bottles. Acid is added and mixed automatically to provide batch lots of solution with a pH range from 2 to 10. In operation, the system injects measured quantities of acid into a holding tank of water while simultaneously mixing and monitoring the solution until the desired pH has been obtained. The system incorporates a unique"go","no go" feature the will not allow the acidified water solution to be dispensed until the specific set point pH has been achieved. Once the set point pH has been achieved, acid injection ceases but the solution holding tank continues mixing to prevent solution stratification and assure a uniform pH throughout. A handheld bottle filling manifold is included to fill a basket full of bottles simultaneously. The solution pH is continuously indicated on the pH controller display.
-

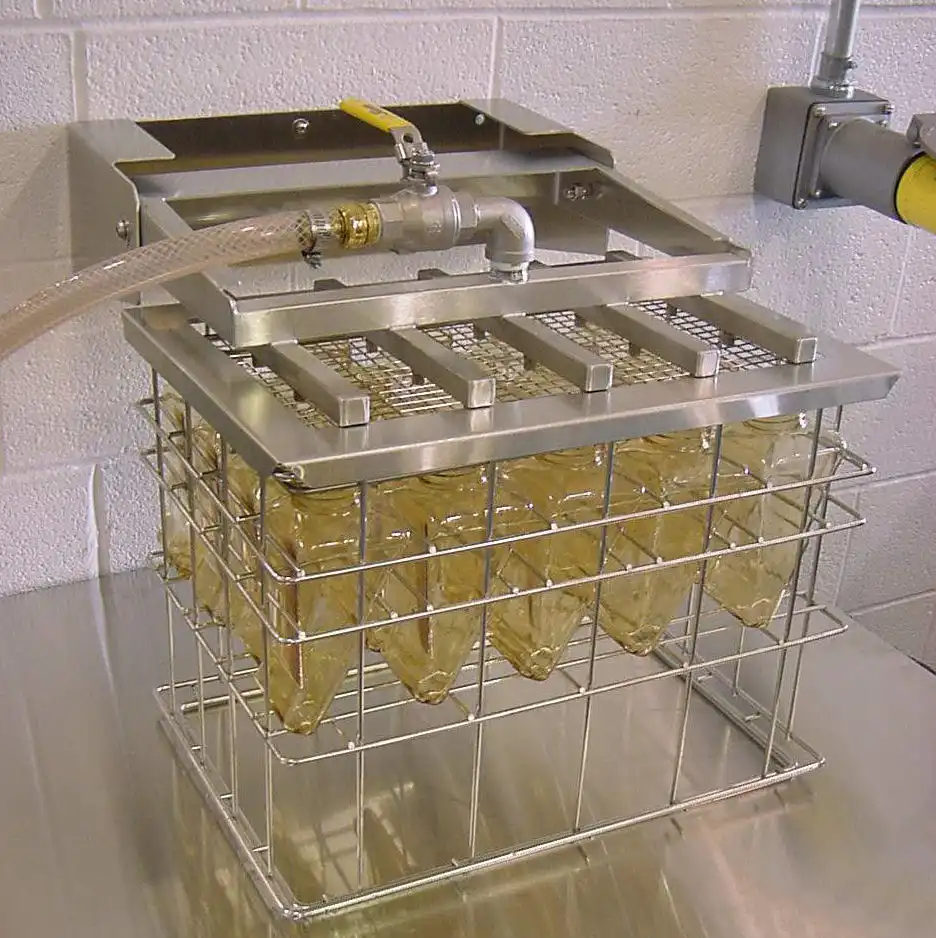

Wall Mounted Water Bottle Filler Model WBF-WM
The Wall Mounted Water Bottle Filler is a compact wall mounted bottle filler for use as a centrally located filler in the central cage washing area. It is designed to provide and quick and easy method of filling a bottle basket full of bottles. The filler can be customized ion
Features:
- Individual machined nozzles
- Type 304 stainless steel
- Custom designed to fit your existing bottle baskets
-

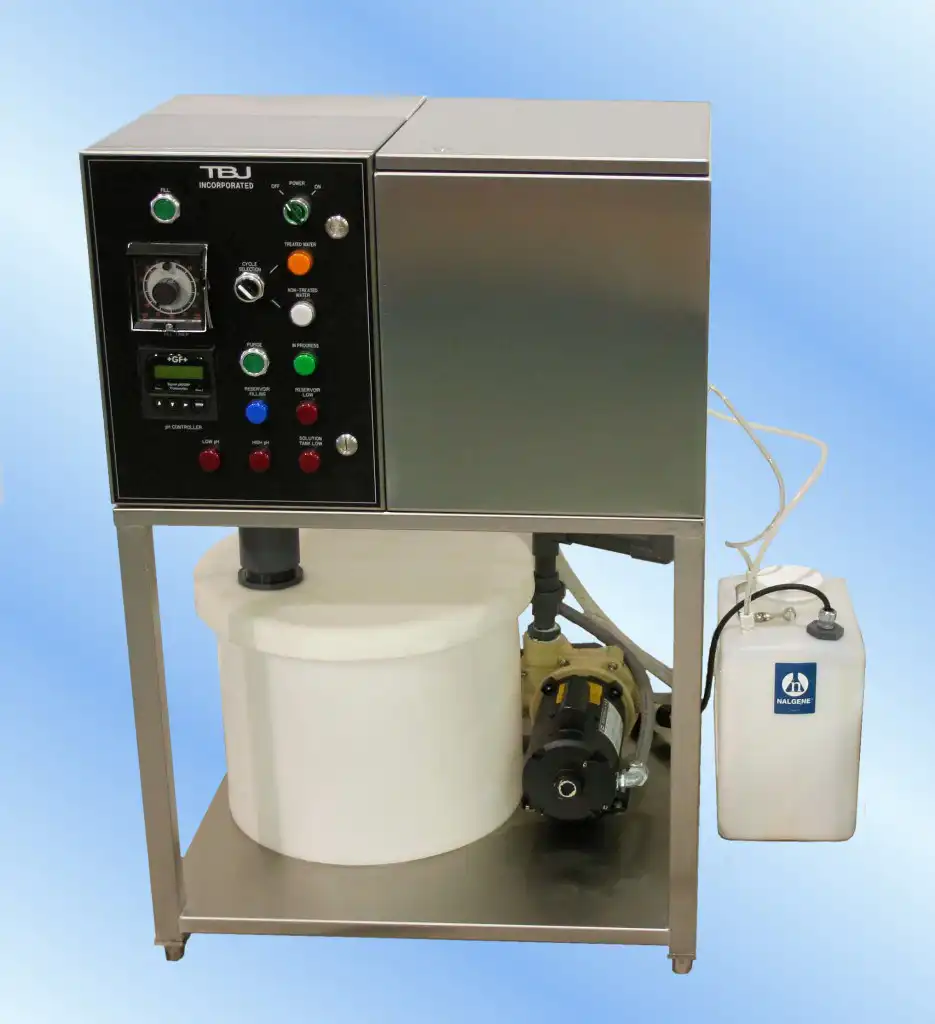

Water Bottle Filler Proportioner Model WP-2001
TBJ Model WP-2001 Chlorine Proportioner is a complete packaged module designed to inject pre-determined amounts of chlorine (or acid) into tap water to control bacteria growth in animal drinking water. It is designed to connect to an existing stainless steel bottle filler or it can be connected to the TBJ WBF-2 bottle filler or any existing bottle filler. A selector switch is available to provide the option of dispensing non-treated tap water in addition to treated water.
Features:
- pH monitor and probe option for acidified water requirements
- Type 316 stainless steel construction
-

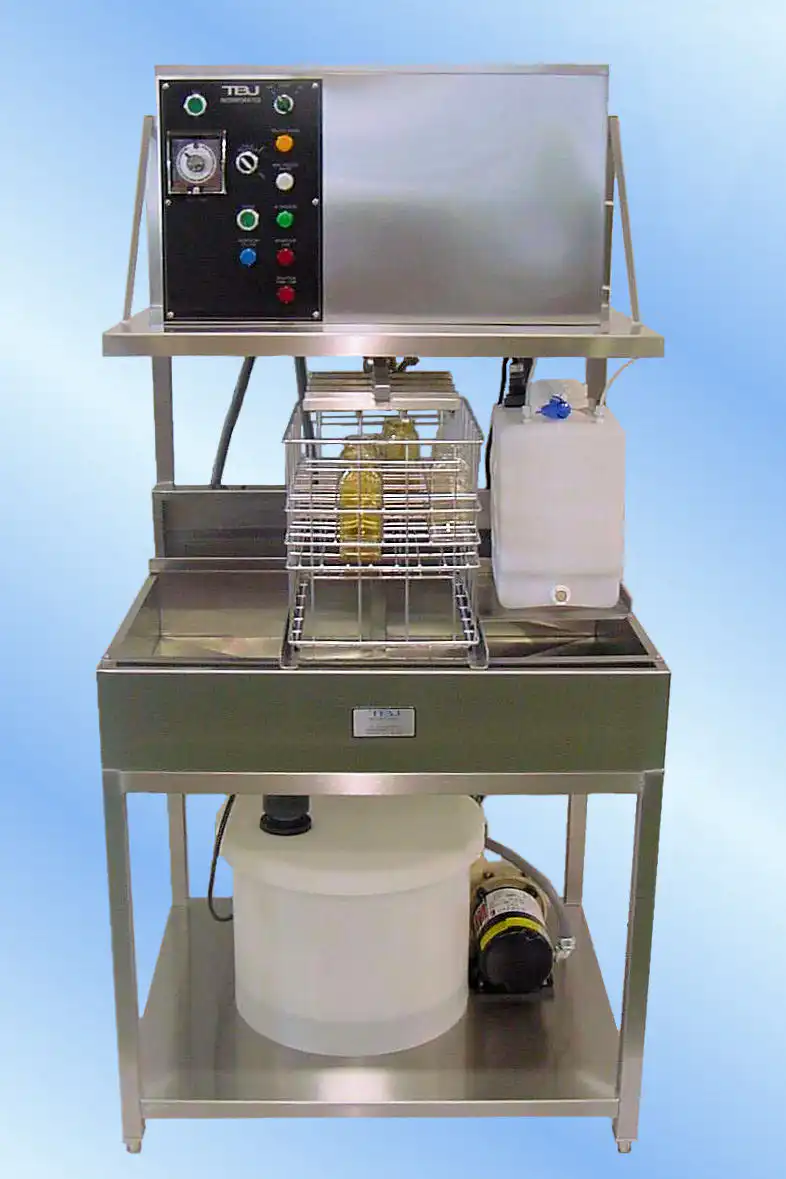

Water Bottle Filler Proportioner Model WP-2001-1F
TBJ Model WP-2001-1F Water Bottle Filler Proportioner is a complete packaged module designed to inject pre-determined amounts of chlorine (or acid) into tap water to control bacteria growth in animal drinking water. A stainless steel bottle filling manifold is provided to dispense water into a rack load of water bottles. A selector switch is available to provide the option of dispensing non-treated tap water in addition to treated water.
Features:
- pH monitor and probe option for acidified water requirements
- Type 316 stainless steel construction
- Overall dimensions shall be 31 1/2" long x 36" wide x 73 1/2" high.
-

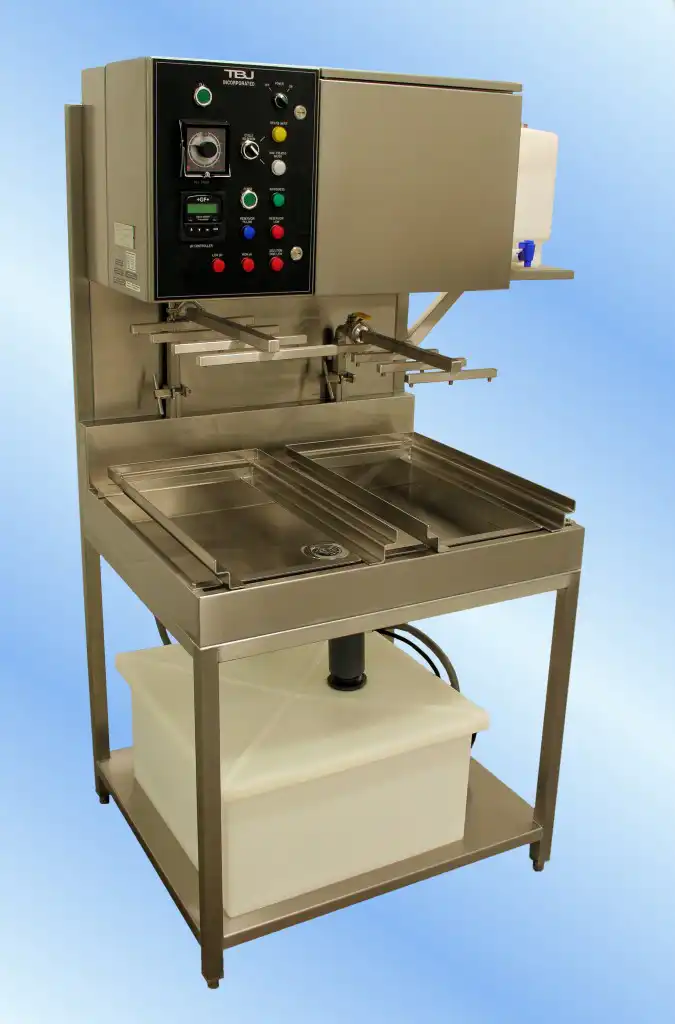

Water Bottle Filler Proportioner Model WP-2001-2F
The TBJ Model WP-2001-2F Water Bottle Proportioner Filler is a complete packaged module designed to inject pre-determined amounts of chlorine (or acid) into tap water to control bacteria growth in animal drinking water. Two stainless steel bottle filling manifolds are provided to dispense water into two rack loads of water bottles simultaneously. A selector switch is available to provide the option of dispensing non-treated tap water in addition to treated water.
Features:
- pH monitor and probe option for acidified water requirements
- Type 316 stainless steel construction
- Overall dimensions shall be 31 1/2" long x 36" wide x 73 1/2" high.
- Fill manifolds customized to fit existing bottle baskets
-

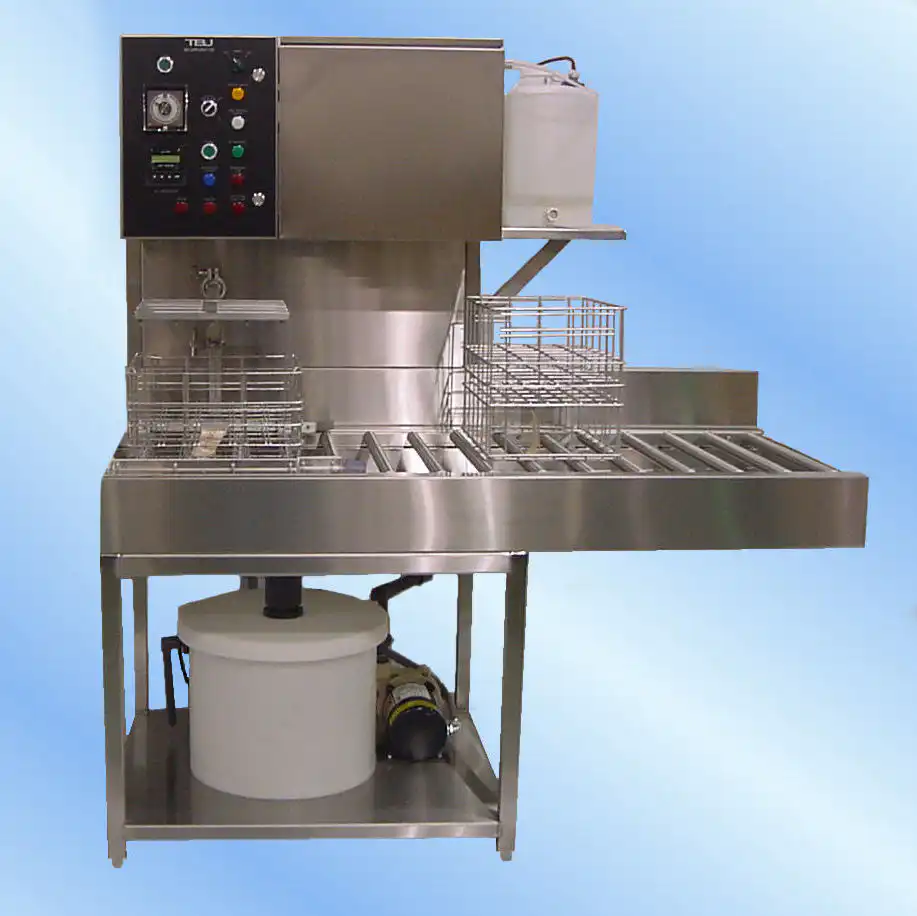

Water Bottle Filler Proportioner Model WP-2001-RT-1F
The TBJ Model WP-2001-RT-1F Water Bottle Filler Proportioner is a complete packaged module designed to inject pre-determined amounts of chlorine (or acid) into tap water to control bacteria growth in animal drinking water. One stainless steel bottle filling manifold is provided to simultaneously dispense water into one basket of water bottles. The system includes a manual roller conveyor for ease in aligning bottle cases and to reduce handling. A selector switch is available to provide the option of dispensing non-treated tap water in addition to treated water.
Features:
- pH monitor and probe option for acidified water requirements
- Type 316 stainless steel construction
- Overall dimensions shall be 96" long x 31 1/2" wide x 73 1/2" high
- Fill manifolds customized to fit existing bottle baskets
-
Water Bottle Filler Proportioner Model WP-2001-RT-2F
Features:
- pH monitor and probe option for acidified water requirements
- Type 316 stainless steel construction
- Overall dimensions shall be 96" long x 31 1/2" wide x 73 1/2" high
- Fill manifolds customized to fit existing bottle baskets
