Make animal waste management and bedding replacement quick and easy with bedding scrapping stations from TBJ. Replacing soiled material has never been this simple. Our inventory offers compact, economical, and ventilated bedding scrapping stations. Models are designed to attach to building exhaust connections or for use as self-contained units with internal blower and filter modules. Dust, dander, and particulates are ventilated around the work area and scrapping grid while the removable and washable filter captures debris and waste. Keep your facility sanitary and increase effectiveness by shopping one of our many different options. We have single and double bedding scrapping stations designs for all your animal waste management needs. Our bio-economical products will not only help fight against workplace contamination, but they’ll also reduce gross facility costs.

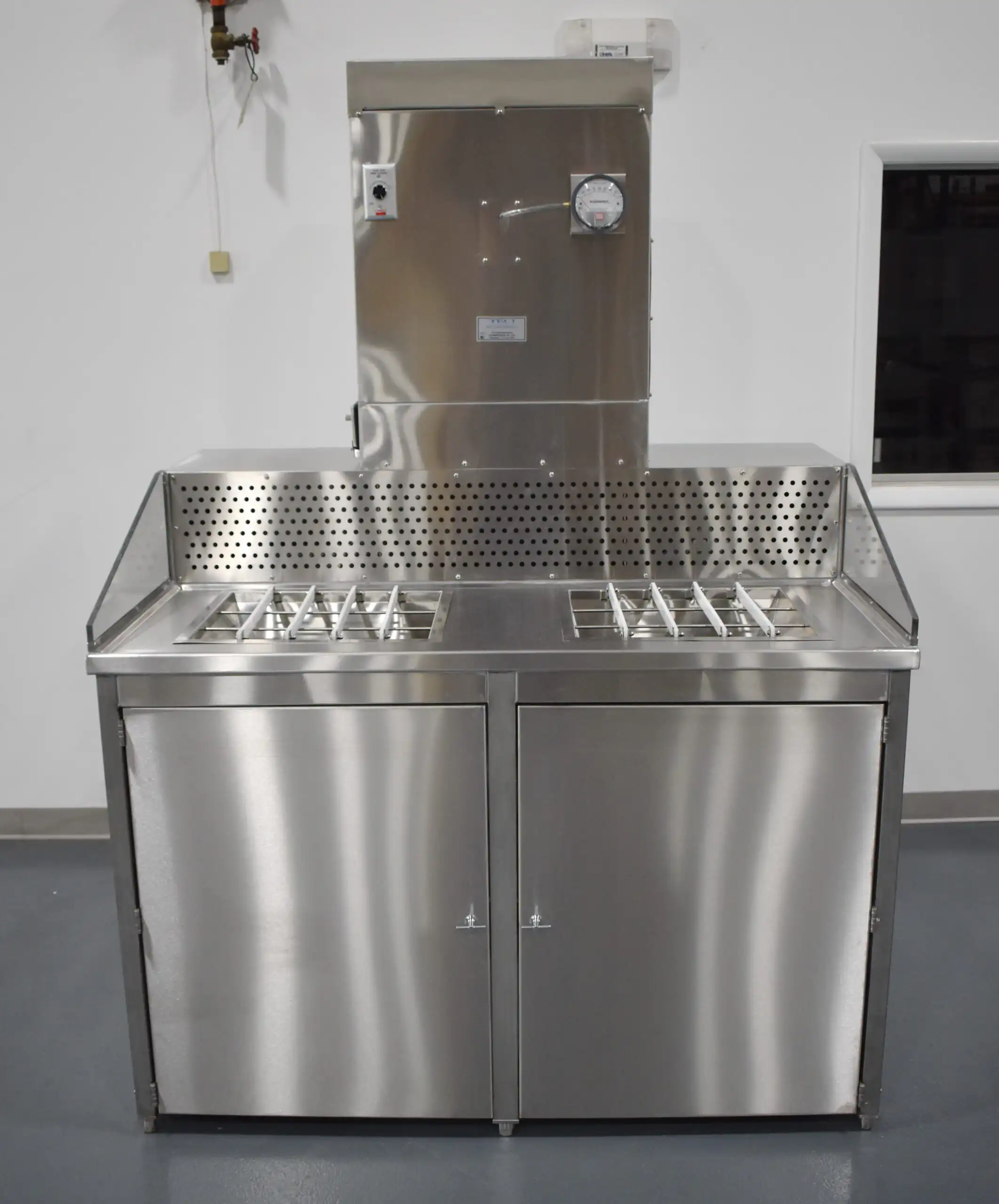

Bedding Scrapping Station Model 42-60 BD-SC
Downdraft Bedding Scrapping Station Model BSS-1DD
Bedding Scrapping Station Model BSS-1DD-SC
Downdraft Bedding Scrapping Station Model BSS-2DD
Downdraft Bedding Scrapping Station Model BSS-2DD-SC
Downdraft Bedding Scrapping Station Model BSS-2DD-SC C
Downdraft Bedding Scrapping Station Model BSS-2DD-TW
Bedding Scrapping Filling Station Model BSS-40-96 BD-SC
TBJ Bedding Disposal Station Model VB-400
-
-
Downdraft Bedding Scrapping Station Model BSS-1DD
The Model BSS-1DD Downdraft Bedding Scrapping Station is a compact, economical downdraft bedding scrapping station that is designed to connect to building exhaust connection. Dust, dander and particulate are down drafted around the work area and scrapping grid and captured in a removable, washable filter.
Features:
- One removable scrapping chute with grid
- Type 304 stainless steel construction
- 6" x 18" duct connection
- Overall dimensions: 30" x 37" x 42" high work surface
PDF Information Sheet
-

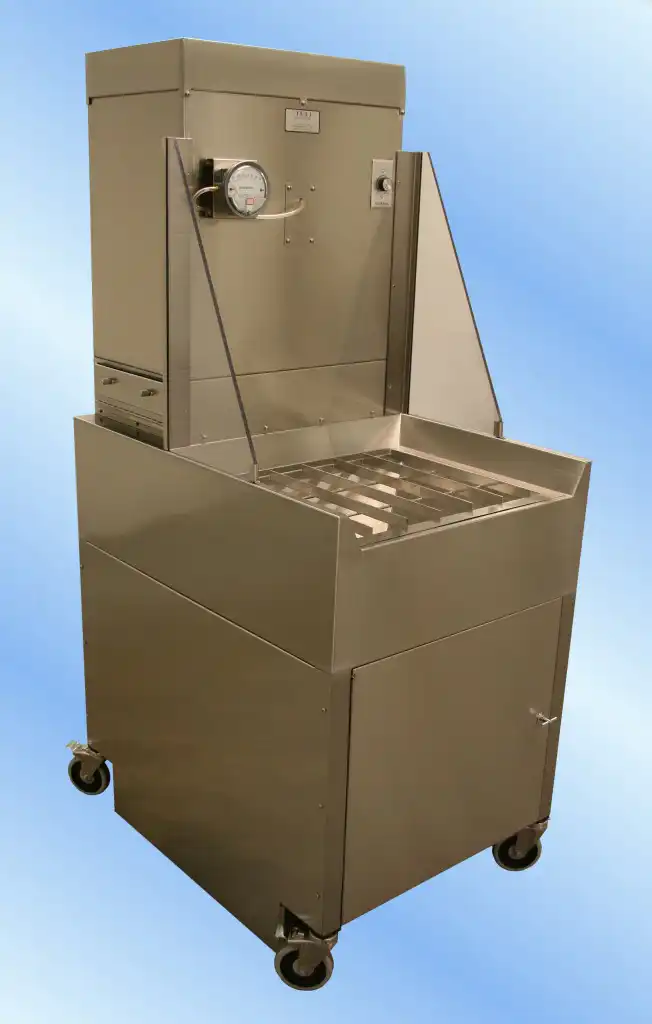

Bedding Scrapping Station Model BSS-1DD-SC
The Model BSS-1DD-SC Self-Contained Downdraft Bedding Scrapping Station is a portable single scrapping station that includes an internal exhaust blower with ON/OFF switch, pre-filter and 99.9% DOP HEPA filter. Dust, dander and particulate are down drafted around the work area and scrapping grid and captured in the pre-filter and HEPA filter and the air is recirculated back into the room.
Features:
- One removable scrapping chute with grid
- Type 304 stainless steel construction
- 120 V, 60 HZ
- Four swivel casters with brakes
- Overall dimensions: 40" x 30" x 40" high work surface
PDF Information Sheet
-

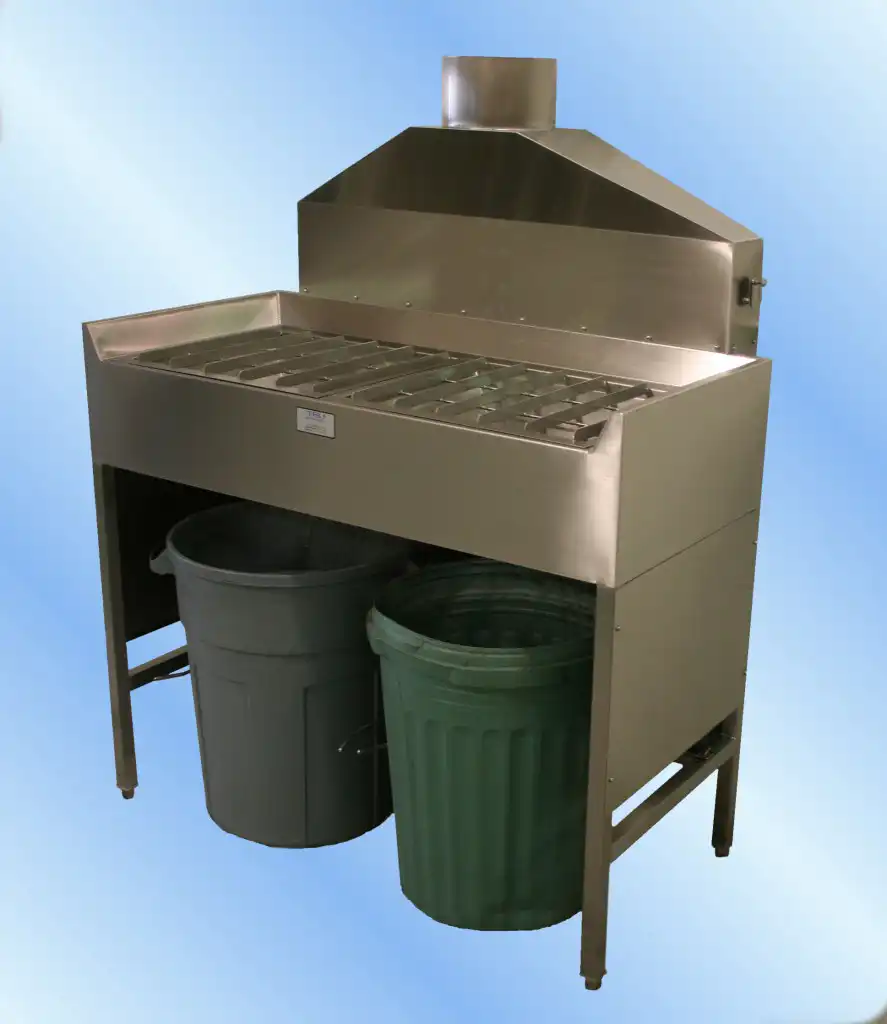

Downdraft Bedding Scrapping Station Model BSS-2DD
The Model BSS-2DD Downdraft Bedding Scrapping Station is a double station downdraft bedding scrapping station that is designed to connect to building exhaust connection. Dust, dander and particulate are down drafted around the work area and scrapping grids and captured in two removable, washable filters.
Features:
- Two removable scrapping chutes with grid
- Type 304 stainless steel construction
- 10" duct connection
- Overall dimensions: 54" x 30" x 42" high work surface
PDF Information Sheet
-

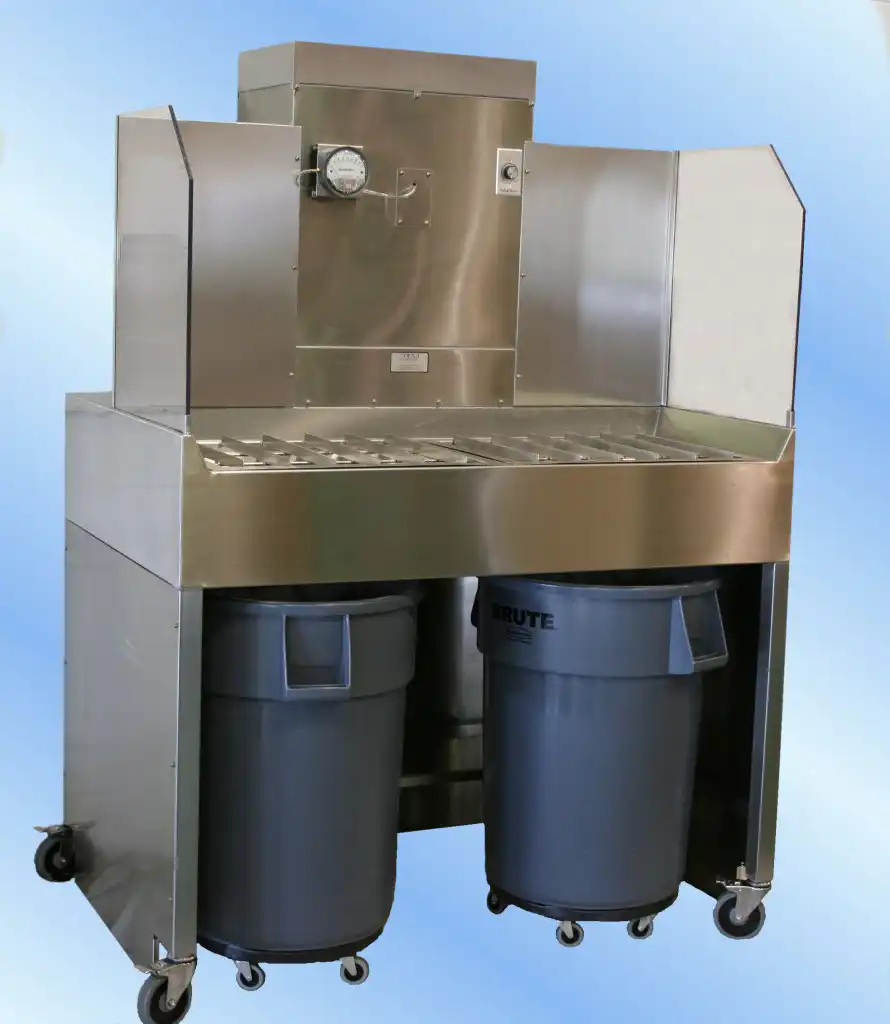

Downdraft Bedding Scrapping Station Model BSS-2DD-SC
The Self-Contained Downdraft Bedding Scrapping Station is a portable double station scrapping station that includes an internal exhaust blower with ON/OFF switch, pre-filter and 99.9% DOP HEPA filter. Dust, dander and particulate are down drafted around the work area and scrapping grid and captured in the pre-filter and HEPA filter and the air is recirculated back into the room
Features:
- Two removable scrapping chutes with grid
- Type 304 stainless steel construction
- 120 V, 60 HZ
- (4) swivel casters with brakes
- Overall dimensions: 59" x 39" x 46" high work surface
PDF Information Sheet
-

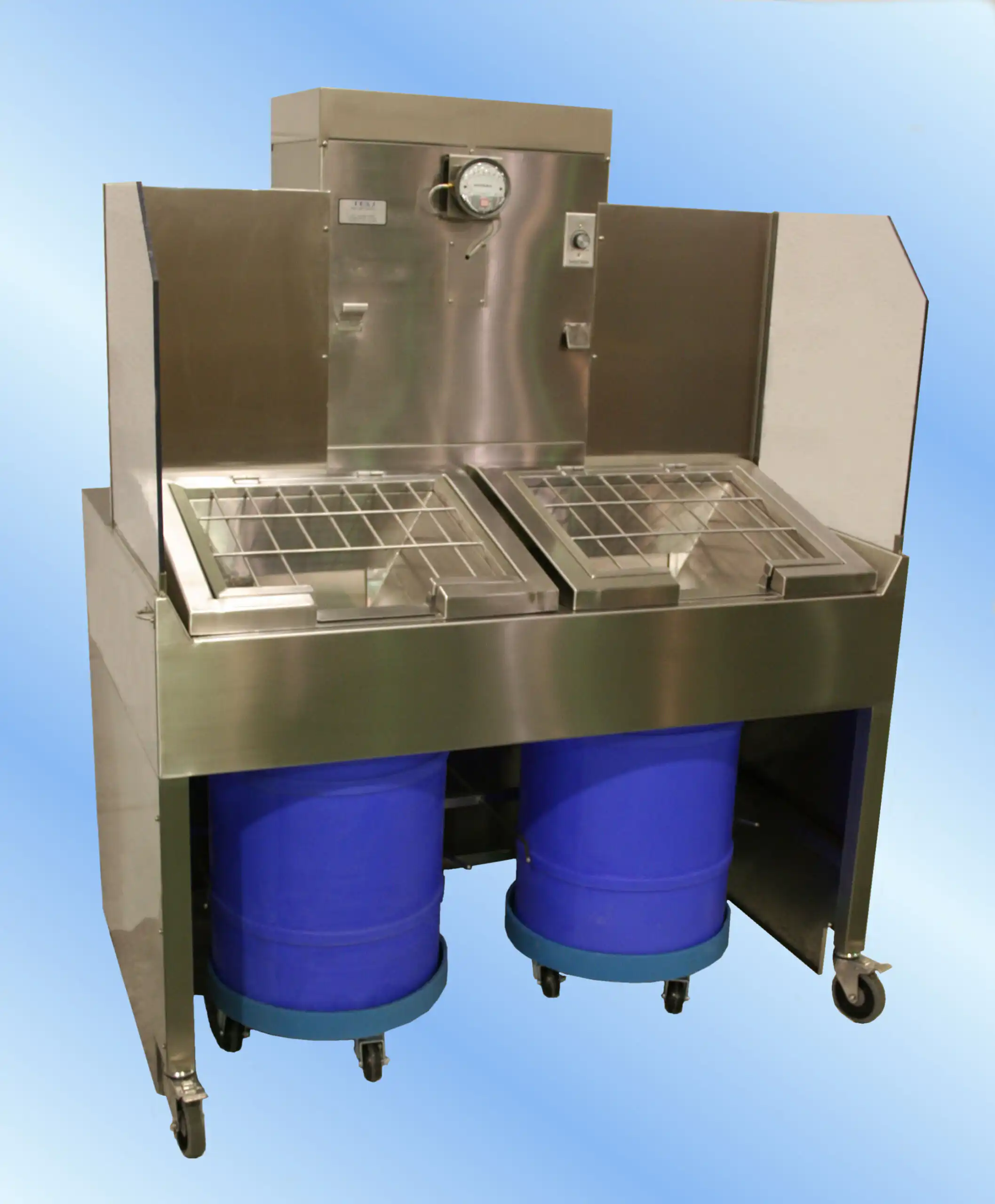

Downdraft Bedding Scrapping Station Model BSS-2DD-SC C
The Self-Contained Downdraft Bedding Scrapping Station is a portable double station scrapping station that includes an internal exhaust blower with ON/OFF switch, pre-filter and 99.9% DOP HEPA filter. Dust, dander and particulate are down drafted around the work area and scrapping grid and captured in the pre-filter and HEPA filter and the air is recirculated back into the room
Features:
- Two removable scrapping chutes with grid
- Type 304 stainless steel construction
- 120 V, 60 HZ
- (4) swivel casters with brakes
- Overall dimensions: 59" x 39" x 46" high work surface
-

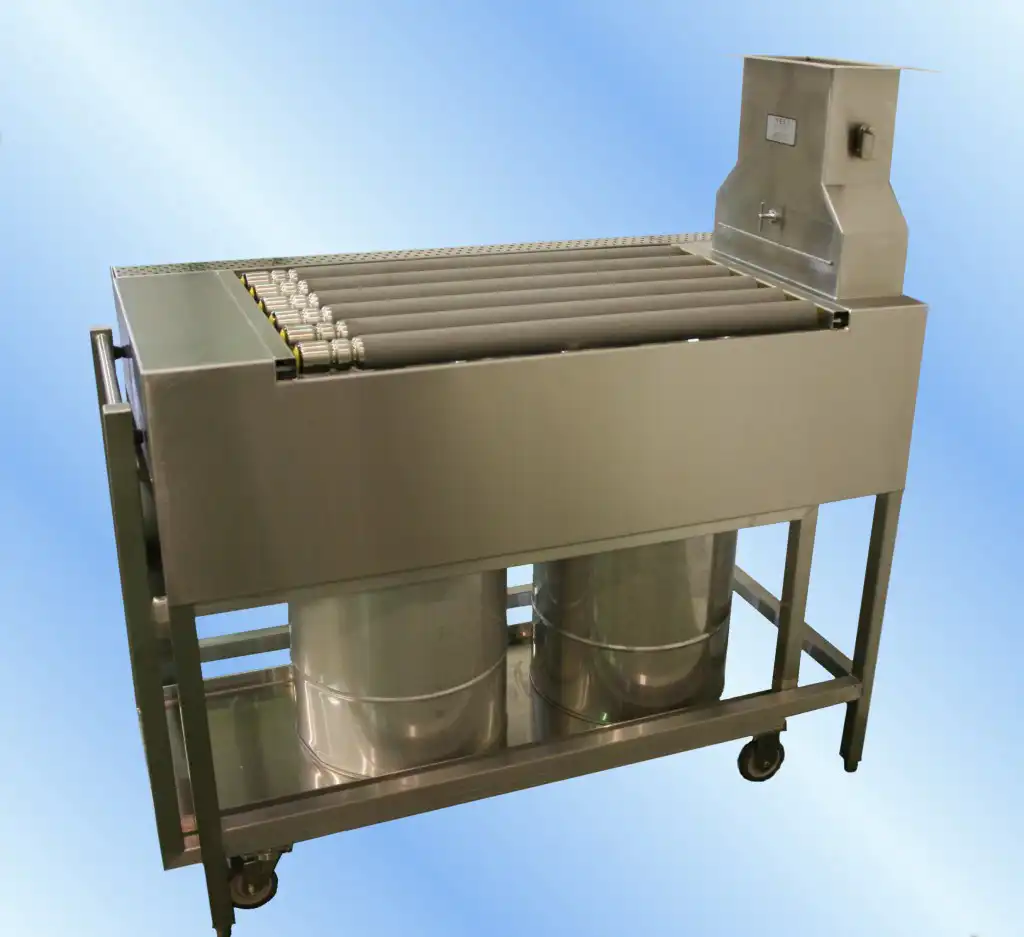

Downdraft Bedding Scrapping Station Model BSS-2DD-TW
Downdraft Bedding Scrapping Station is a double station downdraft bedding scrapping station that is designed to attach to the front end of a tunnel washer so that bedding material can be scrapped as cages are loaded onto the end of the tunnel washer. The unit is designed to connect to a building exhaust source or it can be supplied with blower/HEPA filter module as shown in photos 2 and 3 below.
Features:
- Type 304 stainless steel construction
- In-line removable, washable filter
- 6" x 20" duct connection or self-contained blower/filter system
- Overall dimensions: 53" x 24" x 40" high work surface.
PDF Information Sheet
-

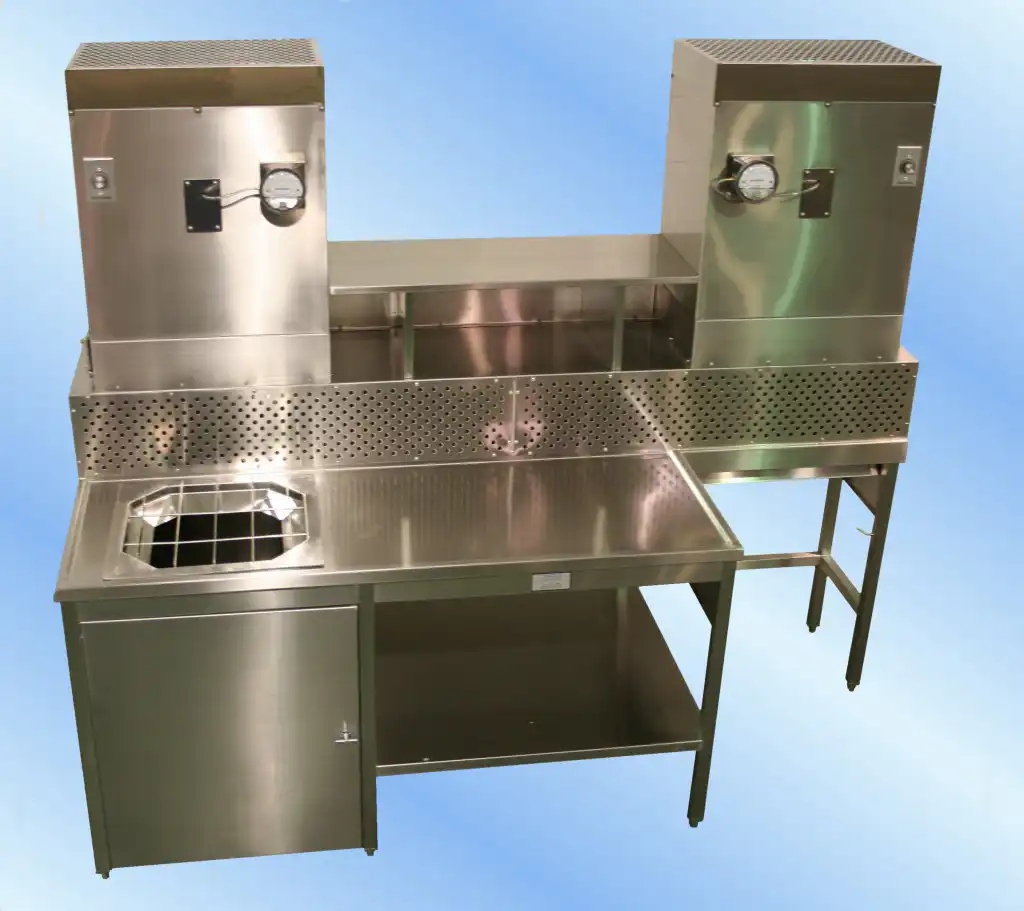

Bedding Scrapping Filling Station Model BSS-40-96 BD-SC
The TBJ Model BSS-40-96 BD-SC Bedding Scrapping Filling Station is a bedding scrapping and filling station with two integral blowers with HEPA filters.
Features:
- The left dumping chute has an enclosure to house a bedding waste receptacle.
- The right side has an open area for a container of clean bedding material.
- Includes to filter modules with self-contained blower/HEPA filters with speed control and magnehelic gauges.
- Backdraft ventilation
- All type 304 stainless steel construction.
- Overall dimensions: 40" x 96" x 37" high work surface.
PDF Information Sheet
-
TBJ Bedding Disposal Station Model VB-400
The TBJ Model VB-400 Bedding Disposal System is designed for the disposal of soiled bedding material into the sanitary sewer system by mixing it with water and reducing and pulverizing the soiled bedding material into a slurry. Soiled bedding is manually dumped into the hopper for processing. Bedding materials such as wood shavings, corn cob, paper and cellulose material are reduced to small particles (maximum particle size – 3/8” diameter) and then flushed through a filter screen into the sewer system via a fixed hammer mill pulverizer. The unit can be designed for placement against a wall or for in front of the load end of a continuous tunnel-type cage washer for convenient disposal of soiled bedding prior to washing cages. The standard unit is non-ventilated but backdraft and downdraft options are available to provide ventilation around the hopper to protect personnel by capturing and controlling odors, aerosols and dust.
Features:
- Type 304 and 316 construction
- Removable bedding hopper grate with safety proximity switch
- Spray gun with recoil hose is included for wash down and clean-up of the stainless steel work surface master power switch
- Start switch, stop switch,“Auger On” switch and emergency stop switch are included
- Pedestal mounted water proof control box with 40” high x 26 ½” wide x 50 ¾” long
- Equipped with a 7.5 HP motor and stainless steel hammermill
- Electrical – 480 V, 3PH, 60 HZ, 15 amps
- Cold Water – 1” NPT
- Drain – 3 ½” NPT
- Available in non-vented, downdraft and backdraft designs
PDF Information Sheet
