TBJ’s automatic bedding dispensers are designed to provide a means of filling animal cages with bedding quickly and accurately with free flowing bedding material while also controlling the dust associated with woodchip and corn cob type animal bettering materials. By providing a consistent volume of bedding material, a bedding dispenser will help reduce overall waste and cost consumption. Because they manage and help contain unwanted debris from entering your facility. Animal bedding dispensing equipment helps to create a safer work environment. Our animal bedding dispensing equipment maximizes overall efficiency, while our simple-to-use and programmable buttons make for easy operation. We have several different models to choose from. Browse online today or contact us for additional information.
Bedding Dispenser Model BD-2000
High Efficiency Dust Collecting Bedding Dispenser Model BD 2000-DC
Pass-Through Bedding Dispenser Model BD-2000 PT
Mobile Bedding Dispenser Model BD-2000-M
Automatic Bedding Dispenser Model BD-4800
Bedding Dispenser Model BD-4000
Automatic Bedding Dispenser Model BD-3600
-
Bedding Dispenser Model BD-2000
TBJ Model BD-2000 Bedding Dispenser is designed for precise, high speed filling of rodent cages with fresh, free flowing type bedding material. Twin dispensing chutes fill 2 cages simultaneously with a pre-programmed volume of bedding.
Features:
- 16 cubic feet hopper capacity
- Internal dust control filter system standard
- Type 304 stainless steel construction
- Overall dimensions: 92" high x 40" wide x 31 1/2" deep
PDF Information Sheet
-

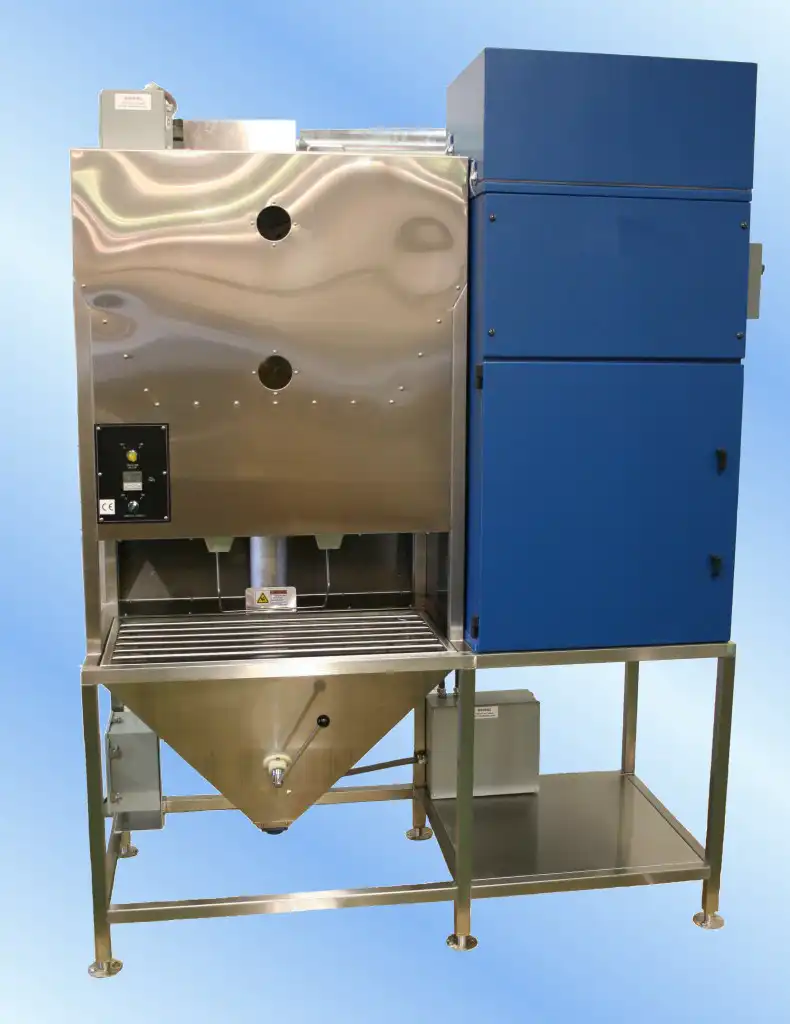

High Efficiency Dust Collecting Bedding Dispenser Model BD 2000-DC
The high efficiency dust collecting bedding dispenser is designed for precise, high speed filling of rodent cages with fresh, free flowing type bedding material. Twin dispensing chutes fill 2 cages simultaneously with a pre-programmed volume of bedding.
Features:
- 16 cubic feet hopper capacity
- "Torit" Model 84 Cabinet Type Dust Collector System with 3 HP centrifugal blower rated @ 875 CFM @ 6" external static pressure. Unit to be provided with permanent type cotton sateen filter bags, a manual filter shaker, a 2 cu. ft. dust storage drawer and an exhaust silencer. Voltage requirements change to 230V., 60 Hz. (Specify on-site voltage availability when ordering.)
- Type 304 stainless steel construction (dust collector system is painted steel)
- Overall dimensions: 68" wide x 34-1/2" deep x 94" high
PDF Information Sheet
-

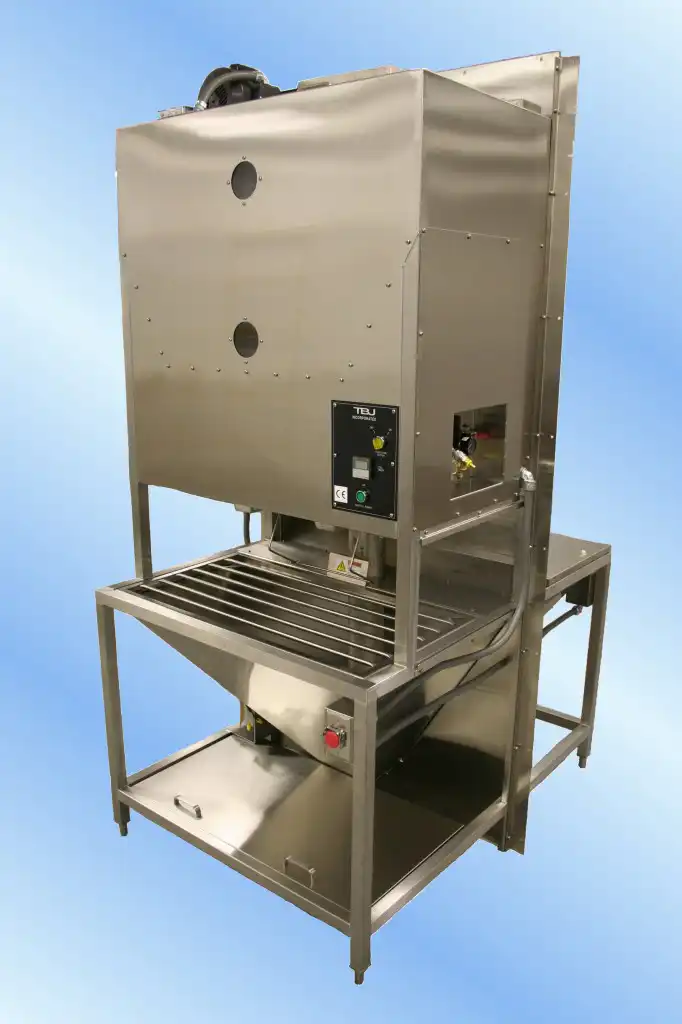

Pass-Through Bedding Dispenser Model BD-2000 PT
The Pass-through Bedding Dispenser is designed for precise, high speed filling of rodent cages with fresh, free flowing type bedding material. Twin dispensing chutes fill 2 cages simultaneously with a pre-programmed volume of bedding. It includes a pass-through hopper that is designed to pass through a wall on the opposite side of the dispensing area to enable the dispenser to be charged with bedding material in a separate room to reduce dust in the clean cage area.
Features:
- 19 cubic feet hopper capacity
- 12" x 7" exhaust connection for dust containment
- Type 304 stainless steel construction
- Overall dimensions: 92" high x 55" wide x 31 1/2" deep
PDF Information Sheet
-

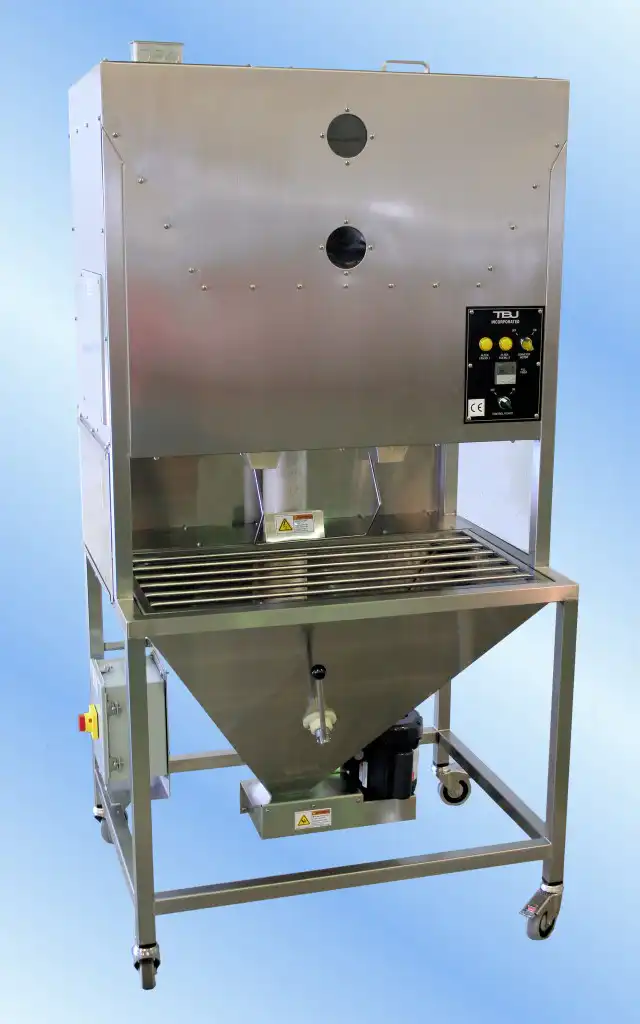

Mobile Bedding Dispenser Model BD-2000-M
The Mobile Bedding Dispenser is similar to our Bedding Dispenser except that it is a mobile unit that includes an integral air compressor. It only needs to be plugged into an 115V outlet for operation. It has a reduced height to allow for passage through door ways. It is designed for precise, high speed filling of rodent cages with fresh, free flowing type bedding material. Twin dispensing chutes fill 2 cages simultaneously with a pre-programmed volume of bedding.
Features:
- 14 cubic feet hopper capacity
- Dispenses only free flowing types of bedding
- Internal dust control filter system standard
- Type 304 stainless steel construction
- Overall dimensions: 80" high x 40" wide x 31 1/2" deep
PDF Information Sheet
-

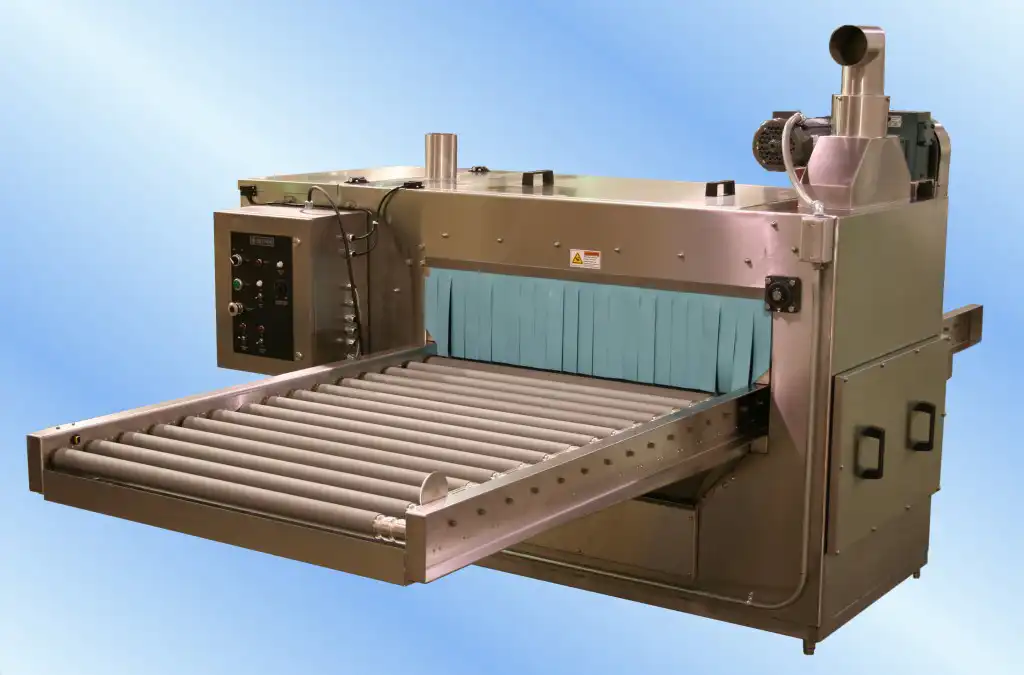

Automatic Bedding Dispenser Model BD-4800
TBJ Model BD-4800 Automatic Bedding Dispenser is a conveyorized system designed to dispense bedding into rodent cages as they pass through the unit. The unit is designed to accept animal cages as they are discharged from a conveyorized tunnel washer or as a stand alone unit and shall be capable of handling most solid beddings currently available. The dispenser shall include an output for connection to a tunnel type cage washer to allow 3-way ON/OFF operation.
Features:
- Conveyor width : 48"
- Standard conveyor length: 96" long
- Dust collection option for dust containment
- Type 304 stainless steel construction
PDF Information Sheet
-

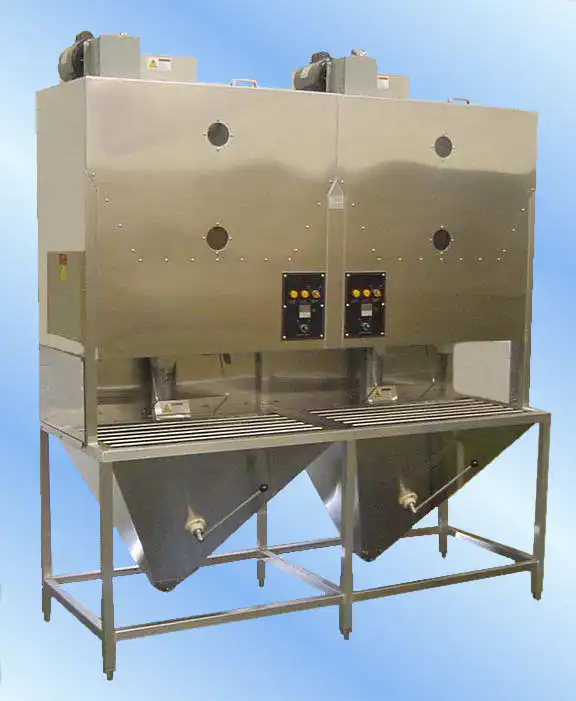

Bedding Dispenser Model BD-4000
TBJ Model BD-4000 Bedding Dispenser is designed for precise, high speed filling of rodent cages with fresh, free flowing type bedding material. The dispenser has two independent systems for filling two cages simultaneously. This model is ideal for installations where two different bedding types such as corn cob and wood chips are being used so that cages can quickly and easily be filled with one or the other types of bedding material.
Features:
- Two 16 cubic foot hoppers
- Internal dust control filter system standard
- Type 304 stainless steel construction
- Overall dimensions: 92" high x 80" wide x 31 1/2" deep
PDF Information Sheet
-

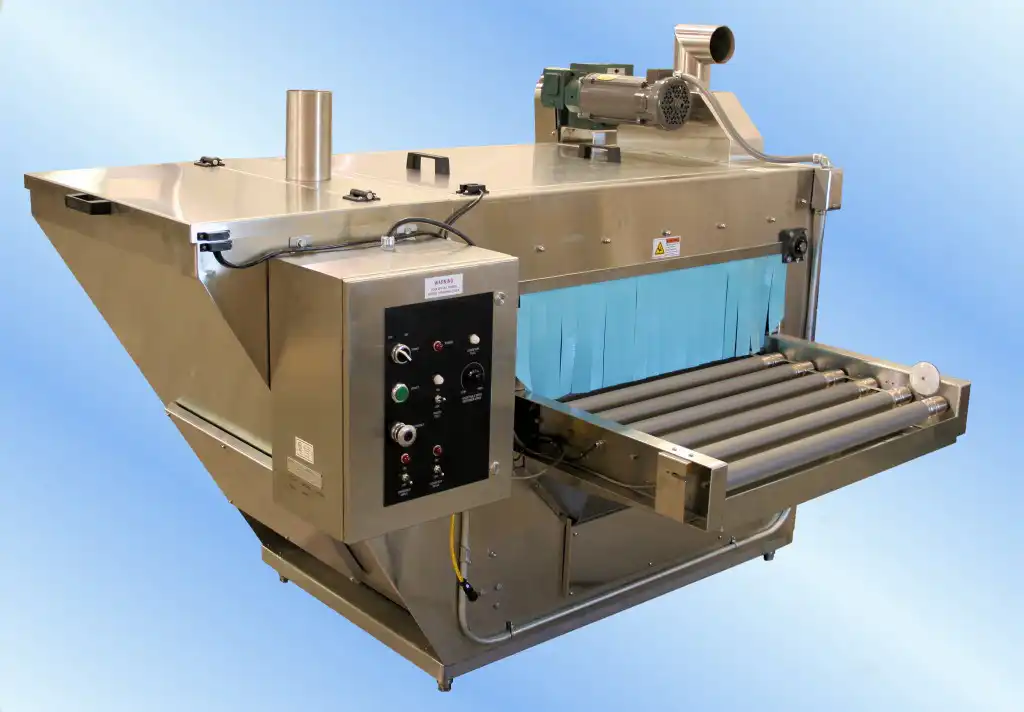

Automatic Bedding Dispenser Model BD-3600
TBJ Model BD-3600 Automatic Bedding Dispenser is a conveyorized system designed to dispense bedding into rodent cages as they pass through the unit. The unit is designed to accept animal cages as they are discharged from a conveyorized tunnel washer or as a stand alone unit and shall be capable of handling most solid beddings currently available. The dispenser shall include an output for connection to a tunnel type cage washer to allow 3-way ON/OFF operation.
Features:
- Conveyor width : 36"
- Standard conveyor length: 96" long
- Dust collection option for dust containment
- Type 304 stainless steel construction
PDF Information Sheet
